YU70LB-MD (1984)

Toyota Dyna

Production Sep 1984 - Aug 1986
Engine 3Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )YU7#

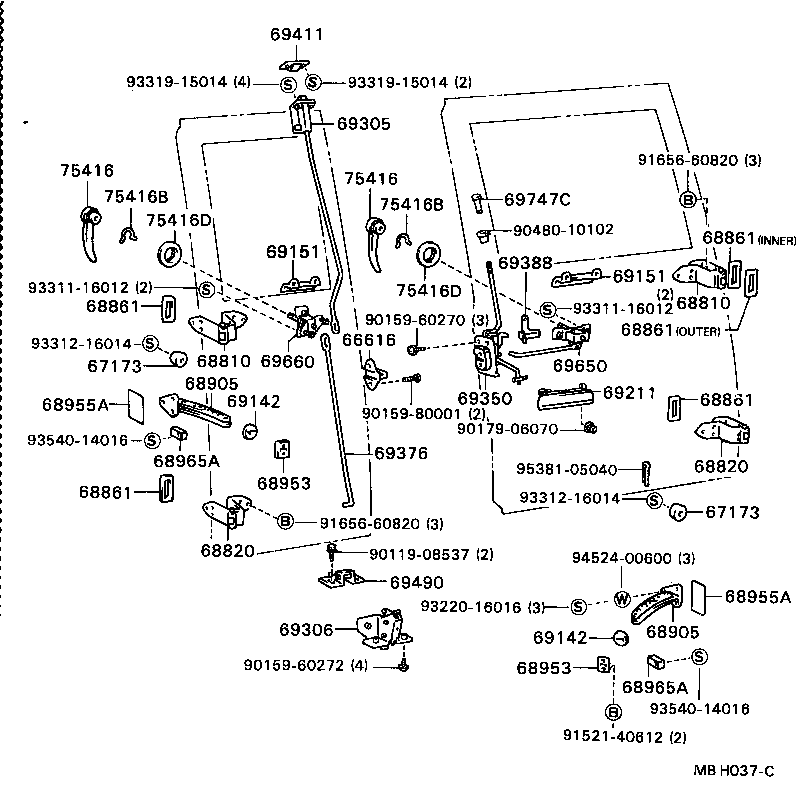

Click highlighted areas on diagram

diagram 66616 67173 67173 68810 68810 68820 68820 68861 68861 68861 68861 68861 68905 68905 68953 68953 68955A 68955A 68965A 68965A 69142 69142 69151 69151 69211 69305 69306 69350 69376 69388 69411 69490 69650 69660 69747C 75416 75416 75416B 75416B 75416D 75416D 9011908537 9015960270 9015960272 9015980001 9017906070 9048010102 9152140612 9165660820 9165660820 9322016016 9331116012 9331116012 9331216014 9331216014 9331915014 9331915014 9354014016 9354014016 9452400600 9538105040
Part # Description Qty Price
67173 - CUSHION, BACK DOOR
67173-92605

YU7#

 2
67173 - CUSHION, BACK DOOR
67173-92605

YU7#

 2
68810 - HINGE ASSY, BACK DOOR, UPPER
68801-92602

YU7#

 2
68810 - HINGE ASSY, BACK DOOR, UPPER
68801-92602

YU7#

 2
68820 - HINGE ASSY, BACK DOOR, LOWER
68803-92601

YU7#

 2
68820 - HINGE ASSY, BACK DOOR, LOWER
68803-92601

YU7#

 2
68861 - HOLD, BACK DOOR HINGE
68861-92601

YU7#

HINGE MALE

 4
68863-92600

YU7#

HINGE FEMALE

 4
68861 - HOLD, BACK DOOR HINGE
68861-92601

YU7#

HINGE MALE

 4
68863-92600

YU7#

HINGE FEMALE

 4
68861 - HOLD, BACK DOOR HINGE
68861-92601

YU7#

HINGE MALE

 4
68863-92600

YU7#

HINGE FEMALE

 4
68861 - HOLD, BACK DOOR HINGE
68861-92601

YU7#

HINGE MALE

 4
68863-92600

YU7#

HINGE FEMALE

 4
68861 - HOLD, BACK DOOR HINGE
68861-92601

YU7#

HINGE MALE

 4
68863-92600

YU7#

HINGE FEMALE

 4
68905 - STOPPER SUB-ASSY, BACK DOOR OPEN
68905-92607

YU7#

 2
68905 - STOPPER SUB-ASSY, BACK DOOR OPEN
68905-92607

YU7#

 2
68953 - PLATE, BACK DOOR OPEN STOPPER ARM GUIDE
68953-92605

YU7#

RH

 1
68954-92605

YU7#

LH

 1
68953 - PLATE, BACK DOOR OPEN STOPPER ARM GUIDE
68953-92605

YU7#

RH

 1
68954-92605

YU7#

LH

 1
68955A - SILENCER, BACK DOOR OPEN STOPPER
68955-92605

YU7#

 2
68955A - SILENCER, BACK DOOR OPEN STOPPER
68955-92605

YU7#

 2
68965A - GUIDE, BACK DOOR OPEN STOPPER
68965-92605

YU7#

 2
68965A - GUIDE, BACK DOOR OPEN STOPPER
68965-92605

YU7#

 2
69142 - CUSHION, DOOR OPEN STOPPER
69142-92606

YU7#

 2
69142 - CUSHION, DOOR OPEN STOPPER
69142-92606

YU7#

 2
69151 - HANDLE, BACK DOOR INSIDE PULL
69285-9260201

YU7#..BUS

BLACK,BLACK

 2
69151 - HANDLE, BACK DOOR INSIDE PULL
69285-9260201

YU7#..BUS

BLACK,BLACK

 2
69211 - HANDLE, BACK DOOR OUTSIDE, RH
69210-92601

YU7#

 1
69305 - LOCK SUB-ASSY, BACK DOOR, UPPER
69370-92605

YU7#

 1
69306 - LOCK SUB-ASSY, BACK DOOR, LOWER
69350-95A00

YU7#

 1
69350 - LOCK ASSY, BACK DOOR
69330-92605

YU7#

 1
69376 - LINK, BACK DOOR LOCK
69375-92605

YU7#

 1
69388 - SNAP, ROD(FOR DOOR LOCK)
69388-12010

YU7#

 1
69411 - CHECK, BACK DOOR
69431-92605

YU7#

 1
69490 - STRIKER ASSY, BACK DOOR LOCK
69450-95A00

YU7#

 1
69650 - CONTROL ASSY, BACK DOOR LOCK REMOTE, RH
69650-92605

YU7#

 1
69660 - CONTROL ASSY, BACK DOOR LOCK REMOTE, LH
69660-92606

YU7#

 1
69747C - BUTTON, DOOR LOCKING(FOR BACK DOOR)
69747-2002001

YU7#

BLACK,BLACK

 2
75416 - HANDLE, TAIL GATE, INSIDE
69271-95110

YU7#

 2
75416 - HANDLE, TAIL GATE, INSIDE
69271-95110

YU7#

 2
75416B - RING, SNAP (FOR BACK DOOR INSIDE HANDLE)
90520-01192

YU7#

 2
75416B - RING, SNAP (FOR BACK DOOR INSIDE HANDLE)
90520-01192

YU7#

 2
75416D - ESCUTCHEON, BACK DOOR INSIDE HANDLE
69273-92600

YU7#

 2
75416D - ESCUTCHEON, BACK DOOR INSIDE HANDLE
69273-92600

YU7#

 2
Common parts
90119-08537
90159-60270
90159-60272
90159-80001
90179-06070
90480-10102
91521-40612
91656-60820
93220-16016
93311-16012
93312-16014
93319-15014
93540-14016
94524-00600
95381-05040
