YU61LD-MDT (1984)

Toyota Dyna

Production Sep 1984 - Aug 1986
Engine 3Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )3Y,4Y

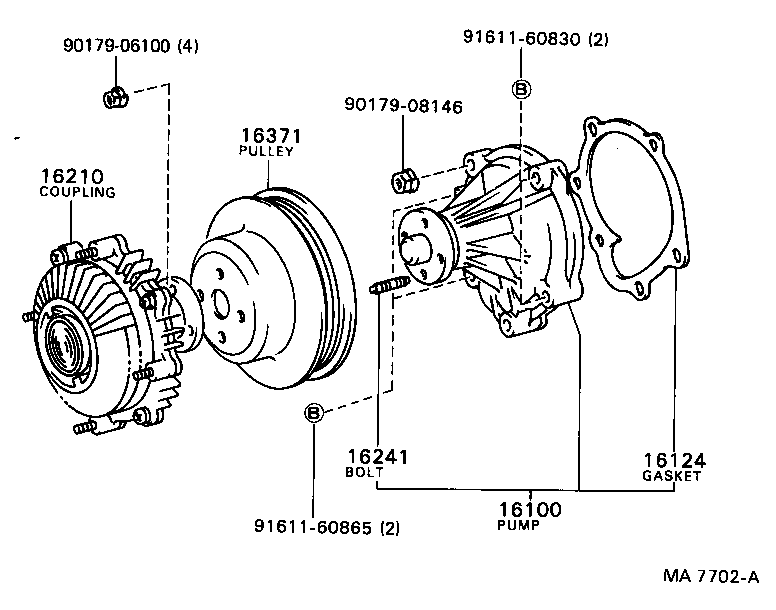

Click highlighted areas on diagram

diagram 16100 16124 16210 16241 16371 9017906100 9017908146 9161160830 9161160865
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-79035

3Y,4Y..YU6#,7#,8#

 1
16124 - GASKET, WATER PUMP COVER
16124-71010

3Y,4Y..YU6#,7#,8#

 1
16241 - BOLT, STUD(FOR WATER PUMP COUPLING)
16192-70010

3Y,4Y..YU6#,7#,8#

 4
16371 - PULLEY, FAN
16371-71010

3Y,4Y..YU6#,7#,8#

 1
Common parts
90179-06100
90179-08146
91611-60830
91611-60865
