YU60R-MDBTQ3 (1984)

Toyota Dyna

Production Sep 1984 - Aug 1986
Engine 3Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )

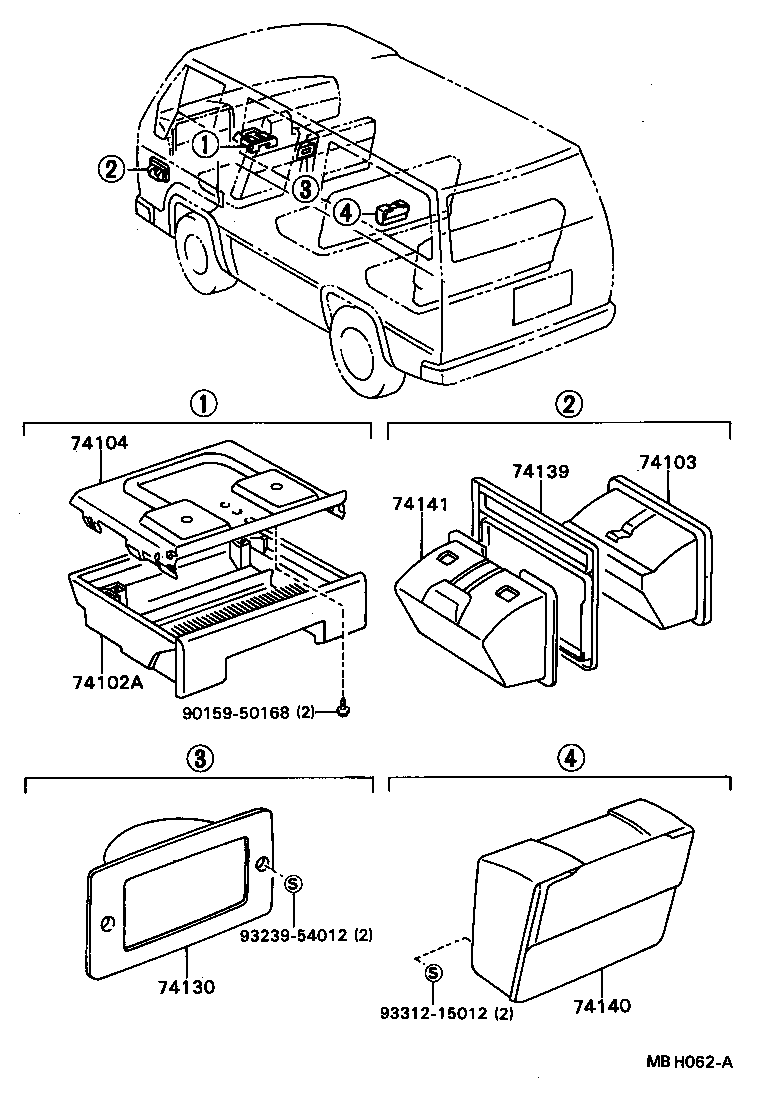

Click highlighted areas on diagram

diagram 74102A 74103 74104 74130 74139 74140 74141 9015950168 9323954012 9331215012
Part # Description Qty Price
74102A - RECEPTACLE ASSY, FRONT ASH
74102-1002001

RU75,85,WU9#,YU6#,7#,8#

BLACK,BLACK

 1
74104 - RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1
74104-95406

RU75,85,WU9#,YU6#,7#,8#

 1
Common parts
90159-50168
93239-54012
93312-15012
