YU60R-MDBTQ3 (1984)

Toyota Dyna

Production Sep 1984 - Aug 1986
Engine 3Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )22R,3Y,4Y

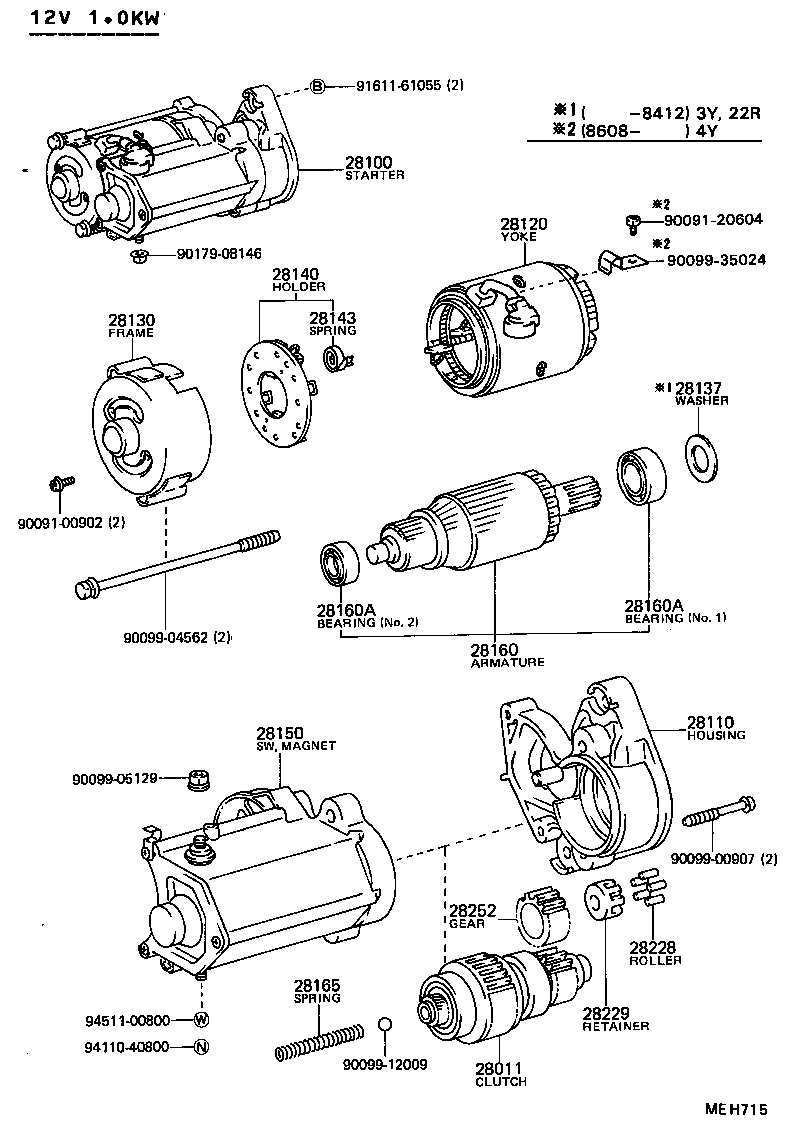

Click highlighted areas on diagram

diagram 28011 28100 28110 28120 28130 28137 28140 28143 28150 28160 28160A 28160A 28165 28228 28229 28252 9009100902 9009120604 9009900907 9009904562 9009905129 9009912009 9009935024 9017908146 9161161055 9411040800 9451100800
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-26042

22R,3Y,4Y..RU75,85,YU6#,7#,8#

12V 1.0KW

 1
28100 - STARTER ASSY
28100-72010

3Y,4Y..YU6#,70,80

12V 1.0KW,12V 1.0KW

 1
28110 - HOUSING ASSY, STARTER DRIVE
28110-72010

3Y,4Y..YU6#,7#,8#

12V 1.0KW

 1
28120 - YOKE ASSY, STARTER
28120-26070

22R,3Y,4Y..RU75,85,YU60,61,70,80

12V 1.0KW

 1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-72010

3Y,4Y..YU6#,7#,8#

12V 1.0KW

 1
28137 - WASHER, FELT, STARTER
90099-02323

22R,3Y,4Y..RU75,85,YU6#,70,80

12V 1.0KW

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-26070

22R,3Y,4Y..RU75,85,YU6#,7#,8#

12V 1.0KW

 1
28143 - SPRING, STARTER BRUSH
90099-17112

22R,3Y,4Y..RU75,85,YU6#,7#,8#

12V 1.0KW

 4
28150 - SWITCH ASSY, MAGNET STARTER
28150-34080

22R,3Y,4Y..RU75,85,YU60,61,70,80

12V 1.0KW

 1
28160 - ARMATURE ASSY, STARTER
28160-26070

22R,3Y,4Y..RU75,85,YU6#,7#,8#

12V 1.0KW

 1
28160A - BEARING, STARTER ARMATURE
28253-45020

22R,3Y,4Y..RU75,85,YU6#,7#,8#

12V 1.0KW,NO.2

 1
90099-10113

22R,3Y,4Y..RU75,85,YU6#,7#,8#

12V 1.0KW,NO.1

 1
28160A - BEARING, STARTER ARMATURE
28253-45020

22R,3Y,4Y..RU75,85,YU6#,7#,8#

12V 1.0KW,NO.2

 1
90099-10113

22R,3Y,4Y..RU75,85,YU6#,7#,8#

12V 1.0KW,NO.1

 1
28165 - SPRING, STARTER MAGNET SWITCH RETURN
28165-26040

22R,3Y,4Y..RU75,85,YU6#,7#,8#

12V 1.0KW

 1
28228 - ROLLER, STARTER IDLE GEAR CLUTCH
28228-26040

22R,3Y,4Y..RU75,85,YU6#,7#,8#

12V 1.0KW

 5
28229 - RETAINER, STARTER IDLE GEAR
28229-26040

22R,3Y,4Y..RU75,85,YU6#,7#,8#

12V 1.0KW

 1
28252 - GEAR, STARTER IDLE
28254-45020

22R,3Y,4Y..RU75,85,YU6#,7#,8#

12V 1.0KW

 1
Common parts
90091-00902
90091-20604
90099-00907
90099-04562
90099-05129
90099-12009
90099-35024
90179-08146
91611-61055
94110-40800
94511-00800
