YU60R-MDBT (1984)

Toyota Dyna

Production Sep 1984 - Aug 1986
Engine 3Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )

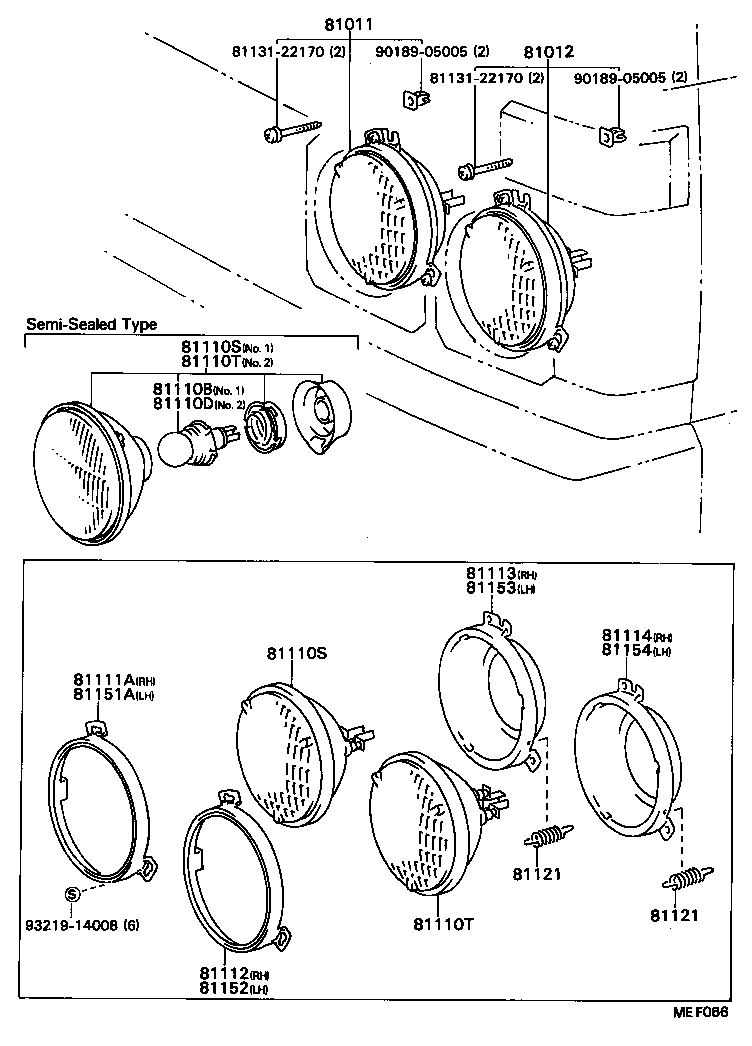

Click highlighted areas on diagram

diagram 81011 81012 81110B 81110D 81110S 81110S 81110T 81110T 81111A 81112 81113 81114 81121 81121 8113122170 8113122170 81151A 81152 81153 81154 9018905005 9018905005 9321914008
Part # Description Qty Price
81011 - HEADLAMP SUB-ASSY, NO.1
81011-39085

RU75,85,WU9#,YU6#,70,80..ARL,GEN,SA

RH,12V,WHITE

 1
81013-39025

RU75,85,WU9#,YU6#,7#,8#..ARL,GEN,SA

LH,12V,WHITE

 1
81012 - HEADLAMP SUB-ASSY, NO.2
81014-39025

RU85,WU9#,YU60,62,8#..RHD

LH,12V,WHITE

 1
81012-39105

RU85,WU9#,YU60,62,8#..RHD

RH,12V,WHITE

 1
81110S - SEALED BEAM UNIT, NO.1
90981-02039

RU75,85,WU9#,YU6#,7#,8#..ARL,GEN,SA

12V 37.5W,*WB,12V 37.5W,WHITE

 2
81110S - SEALED BEAM UNIT, NO.1
90981-02039

RU75,85,WU9#,YU6#,7#,8#..ARL,GEN,SA

12V 37.5W,*WB,12V 37.5W,WHITE

 2
81110T - SEALED BEAM UNIT, NO.2
90981-02040

WU9#,YU60,62,8#..RHD

12V 37.5/50W,*WB,12V 37.5/50W,WHITE

 2
81110T - SEALED BEAM UNIT, NO.2
90981-02040

WU9#,YU60,62,8#..RHD

12V 37.5/50W,*WB,12V 37.5/50W,WHITE

 2
81111A - RING, SEALED BEAM RETAINING, NO.1 RH
81111-14261

RU75,85,WU9#,YU6#,7#,8#

 1
81112 - RING, SEALED BEAM RETAINING, NO.2 RH
81111-14261

RU75,85,WU9#,YU6#,7#,8#

 1
81113 - RING, SEALED BEAM MOUNTING, NO.1 RH
81113-14100

RU75,85,WU9#,YU6#,7#,8#

 1
81114 - RING, SEALED BEAM MOUNTING, NO.2 RH
81114-20210

RU75,85,WU9#,YU6#,7#,8#

 1
81121 - SPRING, HEADLAMP TENSION
90506-16017

RU75,85,WU9#,YU6#,7#,8#

RH

 2
81121-95400

RU75,85,WU9#,YU6#,7#,8#

LH

 2
81121 - SPRING, HEADLAMP TENSION
90506-16017

RU75,85,WU9#,YU6#,7#,8#

RH

 2
81121-95400

RU75,85,WU9#,YU6#,7#,8#

LH

 2
81151A - RING, SEALED BEAM RETAINING, NO.1 LH
81111-14261

RU75,85,WU9#,YU6#,7#,8#

 1
81152 - RING, SEALED BEAM RETAINING, NO.2 LH
81111-14261

RU75,85,WU9#,YU6#,7#,8#

 1
81153 - RING, SEALED BEAM MOUNTING, NO.1 LH
81153-14100

RU75,85,WU9#,YU6#,7#,8#

 1
81154 - RING, SEALED BEAM MOUNTING, NO.2 LH
81154-20170

RU75,85,WU9#,YU6#,7#,8#

 1
Common parts
81131-22170
90189-05005
93219-14008
