YU60R-MDBT (1984)

Toyota Dyna

Production Sep 1984 - Aug 1986
Engine 3Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )3Y,4Y

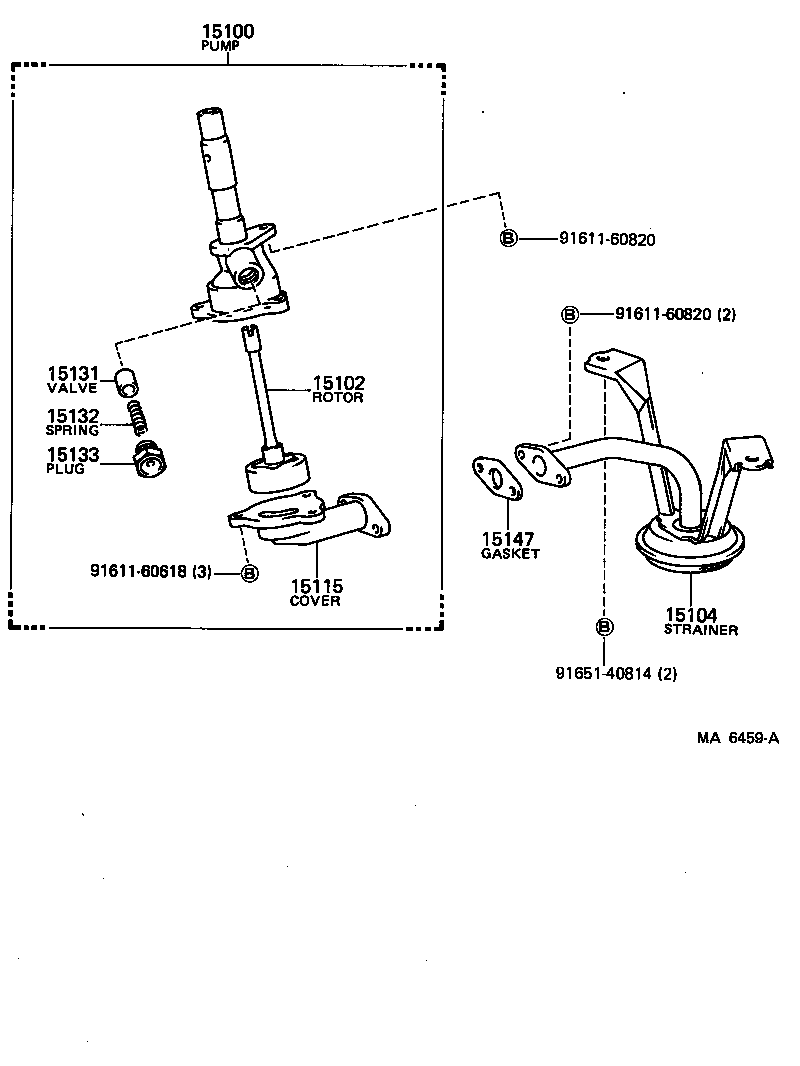

Click highlighted areas on diagram

diagram 15100 15102 15104 15115 15131 15132 15133 15147 9161160618 9161160820 9161160820 9165140814
Part # Description Qty Price
15100 - PUMP ASSY, OIL
15110-71010

3Y,4Y..YU6#,7#,8#

 1
15102 - ROTOR SET, OIL PUMP
15102-71010

3Y,4Y..YU6#,7#,8#

 1
15104 - STRAINER SUB-ASSY, OIL
15104-71010

3Y,4Y..YU6#,7#,8#

 1
15115 - COVER, OIL PUMP
15115-71015

3Y,4Y..YU6#,7#,8#

 1
15131 - VALVE, OIL PUMP RELIEF
15131-24010

3Y,4Y..YU6#,7#,8#

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-40010

3Y,4Y..YU6#,7#,8#

 1
15133 - PLUG, OIL PUMP RELIEF VALVE
15133-24010

3Y,4Y..YU6#,7#,8#

 1
15147 - GASKET, OIL STRAINER
15147-38020

3Y,4Y..YU6#,7#,8#

 1
Common parts
91611-60618
91611-60820
91651-40814
