YU60L-MDP (1984)

Toyota Dyna

Production Sep 1984 - Aug 1986
Engine 3Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )T1,TW1

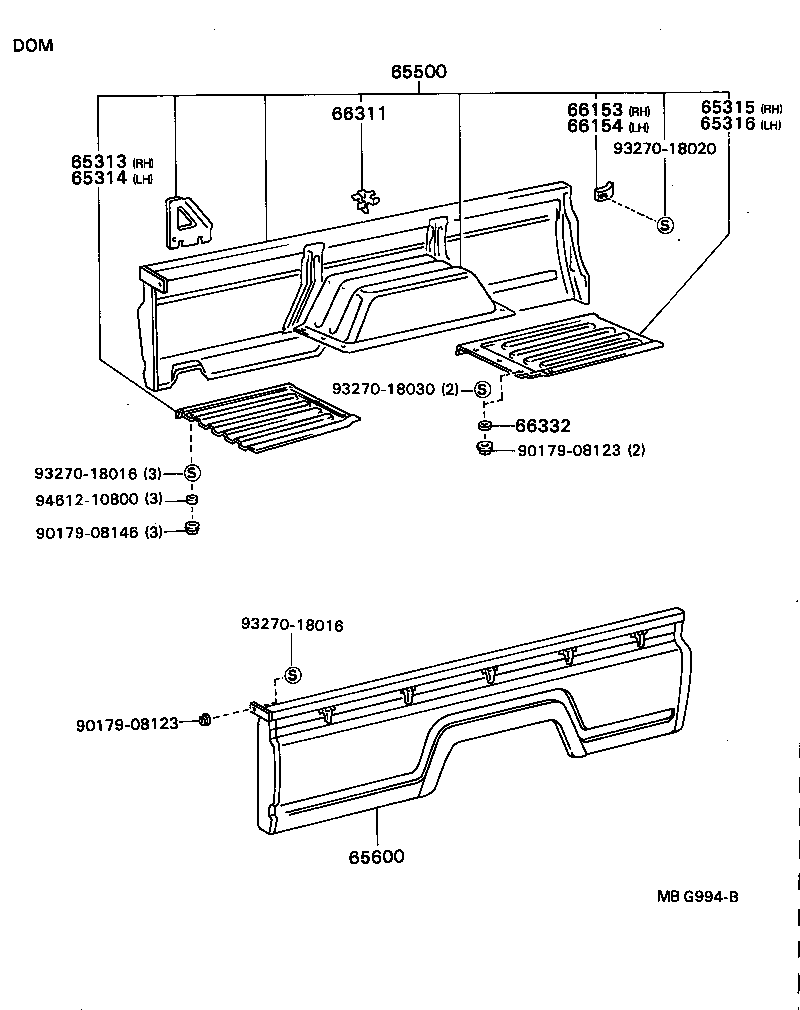

Click highlighted areas on diagram

diagram 65313 65314 65315 65316 65500 65600 66153 66154 66311 66332 9017908123 9017908123 9017908146 9327018016 9327018016 9327018020 9327018030 9461210800
Part # Description Qty Price
65313 - PANEL, FLOOR FRONT CORNER, RH
65313-92707

YU60,62..TW1

 1
65314 - PANEL, FLOOR FRONT CORNER, LH
65314-92704

YU60,62..TW1

 1
65315 - PANEL, FLOOR REAR CORNER, RH
65315-95407

YU60,62..T1,TW1

 1
65316 - PANEL, FLOOR REAR CORNER, LH
65316-95407

YU60,62..T1,TW1

 1
65500 - PANEL ASSY, REAR BODY SIDE, RH
65500-92719

YU60,62..TW1

 1
65600 - PANEL ASSY, REAR BODY SIDE, LH
65600-92722

YU60,62..TW1

 1
66153 - LATCH, TAIL GATE FEMALE, RH
66153-95012

YU60,62..T1,TW1

 1
66154 - LATCH, TAIL GATE FEMALE, LH
66153-95012

YU60,62..T1,TW1

 1
66311 - HOOK, ROPE
66311-95010

YU60,62..T1,TW1

 1
66332 - CUSHION, RUBBER
66332-95A00

YU60,62..T1,TW1

 4
Common parts
90179-08123
90179-08146
93270-18016
93270-18020
93270-18030
94612-10800
