YU60L-MDBTW (1984)

Toyota Dyna

Production Sep 1984 - Aug 1986
Engine 3Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )YU6#,7#,8#..LHD

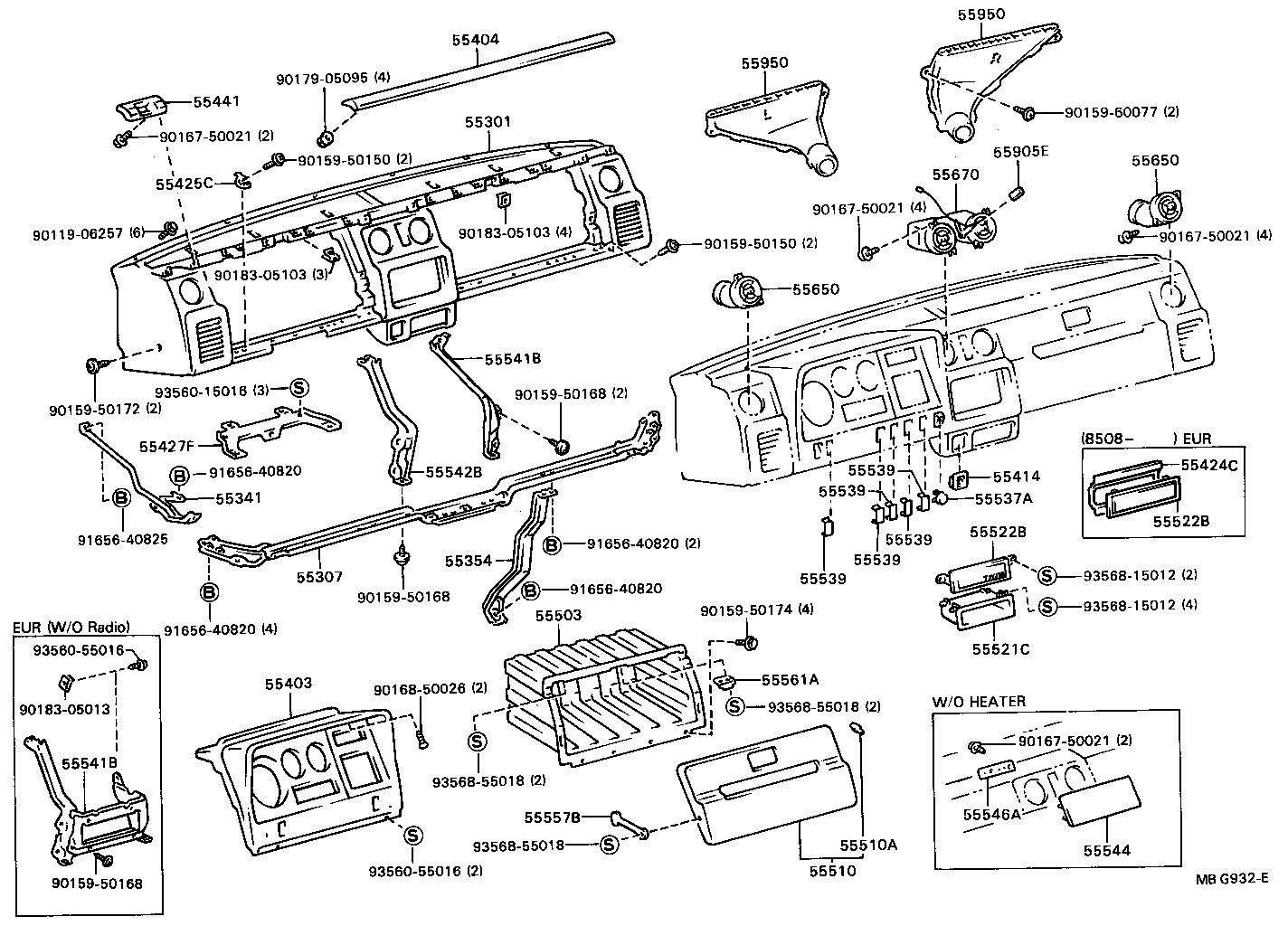

Click highlighted areas on diagram

diagram 55301 55307 55341 55354 55403 55404 55414 55424C 55425C 55427F 55441 55503 55510 55510A 55521C 55522B 55522B 55537A 55539 55539 55539 55539 55539 55541B 55541B 55542B 55544 55546A 55557B 55561A 55650 55650 55670 55905E 55950 55950 9011906257 9015950150 9015950150 9015950168 9015950168 9015950168 9015950172 9015950174 9015960077 9016750021 9016750021 9016750021 9016750021 9016850026 9017905095 9018305013 9018305103 9018305103 9165640820 9165640820 9165640820 9165640820 9165640825 9356015016 9356055016 9356055016 9356815012 9356815012 9356855018 9356855018 9356855018
Part # Description Qty Price
55301 - PANEL SUB-ASSY, INSTRUMENT
55311-9502803

YU60..EUR

GRAY,SHADOW GRAY

 1
55311-9541903

YU60..EUR

W/RADIO,GRAY,SHADOW GRAY

 1
55311-9541903

YU6#,70,80..LHD

GRAY,SHADOW GRAY

 1
55307 - REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, LOWER
55307-95404

YU6#,7#,8#..LHD

 1
55341 - BRACE, INSTRUMENT PANEL, NO.1
55306-95404

RU75,85,WU9#,YU6#,7#,8#..LHD

 1
55354 - BRACE, INSTRUMENT PANEL TO FLOOR
55351-95400

RU75,85,WU9#,YU6#,7#,8#

 1
55403 - HOOD SUB-ASSY, METER
55403-9548203

RU75,85,WU9#,YU6#,70,80..LHD

W/HEATER,SHADOW GRAY,SHADOW GRAY

 1
55403-9548903

RU75,85,WU9#,YU6#,70,80..LHD

W/HEATER,CLOCK,SHADOW GRAY,SHADOW GRAY

 1
55403-95B0903

YU60..EUR

SHADOW GRAY,SHADOW GRAY

 1
55403-95B1403

YU60..EUR

W/CLOCK,SHADOW GRAY,SHADOW GRAY

 1
55404 - SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER
55401-9541303

YU6#,7#,8#..LHD

SHADOW GRAY,SHADOW GRAY

 1
55414 - BEZEL, CIGAR LIGHTER HOLE
55414-95J00

RU75,85,WU9#,YU6#,7#,8#

 1
55424C - PANEL, RADIO TUNER FINISH
55424-9501001

YU60..EUR

BLACK,BLACK

 1
55425C - BRACKET, METER HOOD SET, NO.1
55425-95403

RU75,85,WU9#,YU6#,7#,8#

 2
55427F - BRACKET, METER HOOD SET, NO.3
55427-95401

RU75,85,WU9#,YU6#,7#,8#

 1
55441 - BOX, INSTRUMENT PANEL
55441-9541703

YU6#,7#,8#

SHADOW GRAY,SHADOW GRAY

 1
55503 - COMPARTMENT SUB-ASSY, GLOVE
55581-9540001

RU75,85,WU9#,YU6#,7#,8#

BLACK,BLACK

 1
55510 - DOOR ASSY, GLOVE COMPARTMENT
55501-9541203

RU75,85,WU9#,YU6#,7#,8#

SHADOW GRAY,SHADOW GRAY

 1
55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR)
90541-03015

RU75,85,WU9#,YU6#,7#,8#

OD=7

 1
90541-05080

RU75,85,WU9#,YU6#,7#,8#

OD=10

 2
55521C - COVER, STEREO OPENING
55521-1405001

RU75,85,WU9#,YU6#,7#,8#

BLACK,BLACK

 1
55522B - COVER, RADIO TUNER OPENING
55522-14070

YU60..EUR

 1
55522-20040

RU75,85,WU9#,YU6#,70,80

 1
55522B - COVER, RADIO TUNER OPENING
55522-14070

YU60..EUR

 1
55522-20040

RU75,85,WU9#,YU6#,70,80

 1
55539 - COVER, SPARE SWITCH HOLE
55539-95J0003

RU75,85,WU9#,YU6#,7#,8#

SHADOW GRAY,SHADOW GRAY

 1
55539 - COVER, SPARE SWITCH HOLE
55539-95J0003

RU75,85,WU9#,YU6#,7#,8#

SHADOW GRAY,SHADOW GRAY

 1
55539 - COVER, SPARE SWITCH HOLE
55539-95J0003

RU75,85,WU9#,YU6#,7#,8#

SHADOW GRAY,SHADOW GRAY

 1
55539 - COVER, SPARE SWITCH HOLE
55539-95J0003

RU75,85,WU9#,YU6#,7#,8#

SHADOW GRAY,SHADOW GRAY

 1
55539 - COVER, SPARE SWITCH HOLE
55539-95J0003

RU75,85,WU9#,YU6#,7#,8#

SHADOW GRAY,SHADOW GRAY

 1
55541B - RETAINER, RADIO TUNER OPENING, NO.1
55541-95407

YU6#,7#,8#..LHD

 1
55509-95010

YU60..EUR

W/O RADIO

 1
55541B - RETAINER, RADIO TUNER OPENING, NO.1
55541-95407

YU6#,7#,8#..LHD

 1
55509-95010

YU60..EUR

W/O RADIO

 1
55542B - RETAINER, RADIO TUNER OPENING, NO.2
55542-95407

RU75,85,WU9#,YU6#,7#,8#..LHD

 1
55557B - STOPPER, GLOVE COMPERTMENT DOOR CHECK
55557-9540001

RU75,85,WU9#,YU6#,7#,8#

BLACK,BLACK

 2
55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK
55561-9540101

RU75,85,WU9#,YU6#,7#,8#

BLACK,BLACK

 1
55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55650-9540001

RU75,85,WU9#,YU6#,7#,8#

BLACK,BLACK

 2
55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55650-9540001

RU75,85,WU9#,YU6#,7#,8#

BLACK,BLACK

 2
55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3
55670-9540001

YU6#,7#,8#

W/HEATER,BLACK,BLACK

 1
55905E - KNOB SUB-ASSY, CONTROL
55905-1205001

RU75,85,WU9#,YU6#,7#,8#

BLACK,BLACK

 1
55950 - NOZZLE ASSY, DEFROSTER
55960-95010

RU75,85,WU9#,YU6#,7#,8#

LH

 1
55950-95010

RU75,85,WU9#,YU6#,70,80

RH

 1
55950 - NOZZLE ASSY, DEFROSTER
55960-95010

RU75,85,WU9#,YU6#,7#,8#

LH

 1
55950-95010

RU75,85,WU9#,YU6#,70,80

RH

 1
Common parts
90119-06257
90159-50150
90159-50168
90159-50172
90159-50174
90159-60077
90167-50021
90168-50026
90179-05095
90183-05013
90183-05103
91656-40820
91656-40825
93560-15016
93560-55016
93568-15012
93568-55018
