YU60L-MDBTW (1984)
Toyota Dyna
(8409- )3Y,4Y..YU60,62,8# ; (8508- )3Y,4Y..YU61,63

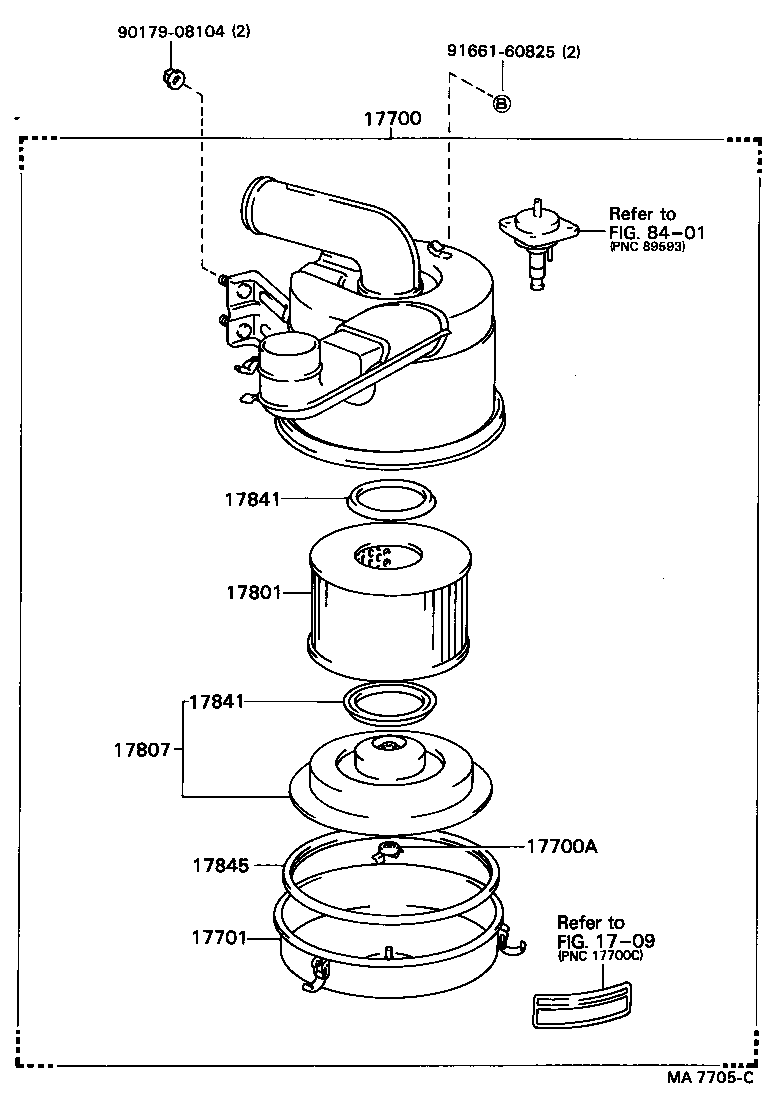

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-73090 |
3Y..YU60..EUR |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-08008 |
3Y,4Y..YU60,62,8#..T3 SCHNORKEL TYPE & PAPER ELEMENT |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-56150 |
3Y,4Y..YU60,62,8#..T3 SCHNORKEL TYPE & PAPER ELEMENT |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-56020 |
3Y,4Y..YU60,62,8#..T3 SCHNORKEL TYPE & PAPER ELEMENT |
1 | ||
| 17807 - PLATE SUB-ASSY, AIR CLEANER FILTER SET | ||||
| 17807-56011 |
3Y,4Y..YU60,62,8#..T3 SCHNORKEL TYPE & PAPER ELEMENT |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-44030 |
3Y,4Y..YU60,62,8#..T3 SCHNORKEL TYPE & PAPER ELEMENT |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-44030 |
3Y,4Y..YU60,62,8#..T3 SCHNORKEL TYPE & PAPER ELEMENT |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-56020 |
3Y,4Y..YU60,62,8#..T3 SCHNORKEL TYPE |
1 | ||
| Common parts | ||||
| 90179-08104 | ||||
| 91661-60825 | ||||
| Linked diagrams | ||||
| 1709 | ||||
| 8401 | ||||
(8409- )3Y,4Y..YU60,62,8# ; (8508- )3Y,4Y..YU61,63

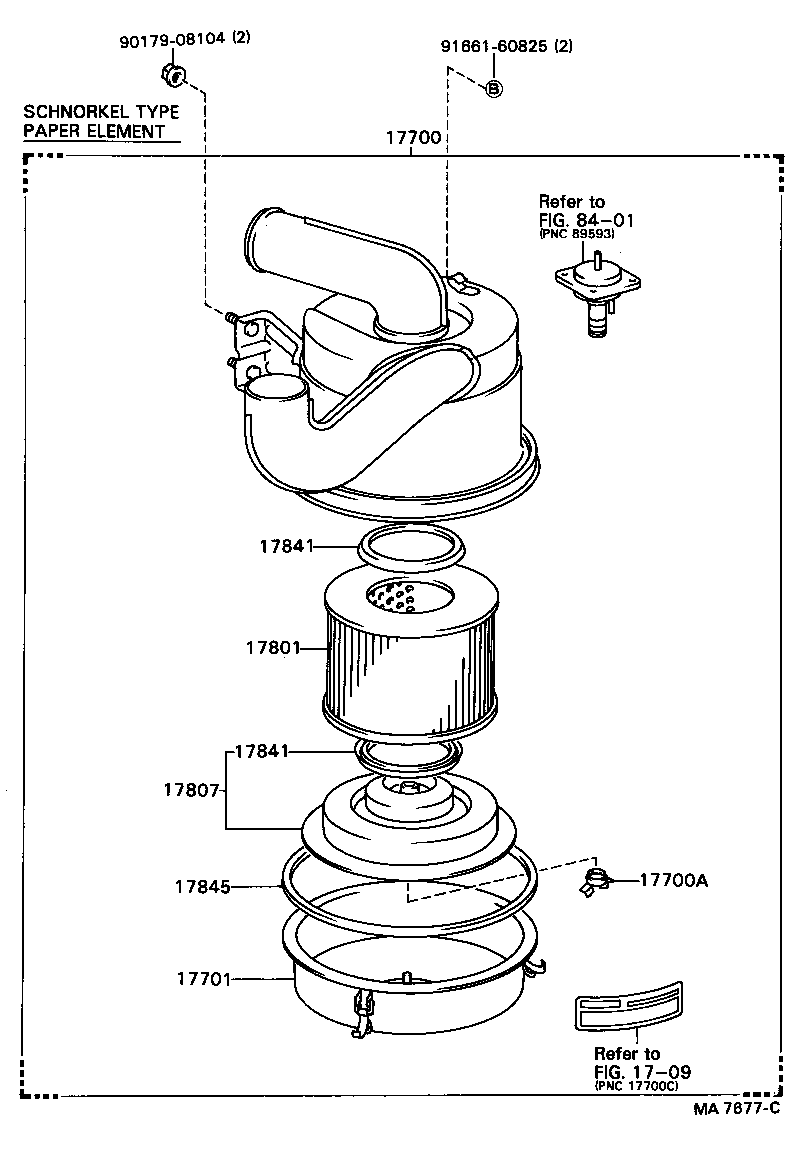

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-73090 |
3Y..YU60..EUR |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-08008 |
3Y,4Y..YU60,62,8#..T3 SCHNORKEL TYPE & PAPER ELEMENT |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-56150 |
3Y,4Y..YU60,62,8#..T3 SCHNORKEL TYPE & PAPER ELEMENT |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-56020 |
3Y,4Y..YU60,62,8#..T3 SCHNORKEL TYPE & PAPER ELEMENT |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-44030 |
3Y,4Y..YU60,62,8#..T3 SCHNORKEL TYPE & PAPER ELEMENT |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-56020 |
3Y,4Y..YU60,62,8#..T3 SCHNORKEL TYPE |
1 | ||
| Common parts | ||||
| 90179-08104 | ||||
| 91651-61025 | ||||
| 91661-60825 | ||||
| 94271-00600 | ||||
| 94511-00600 | ||||
| 94611-10601 | ||||
| Linked diagrams | ||||
| 1709 | ||||
| 8401 | ||||
(8409-8608)3Y..YU60..EUR
(8610- )SWITZERLAND SPEC

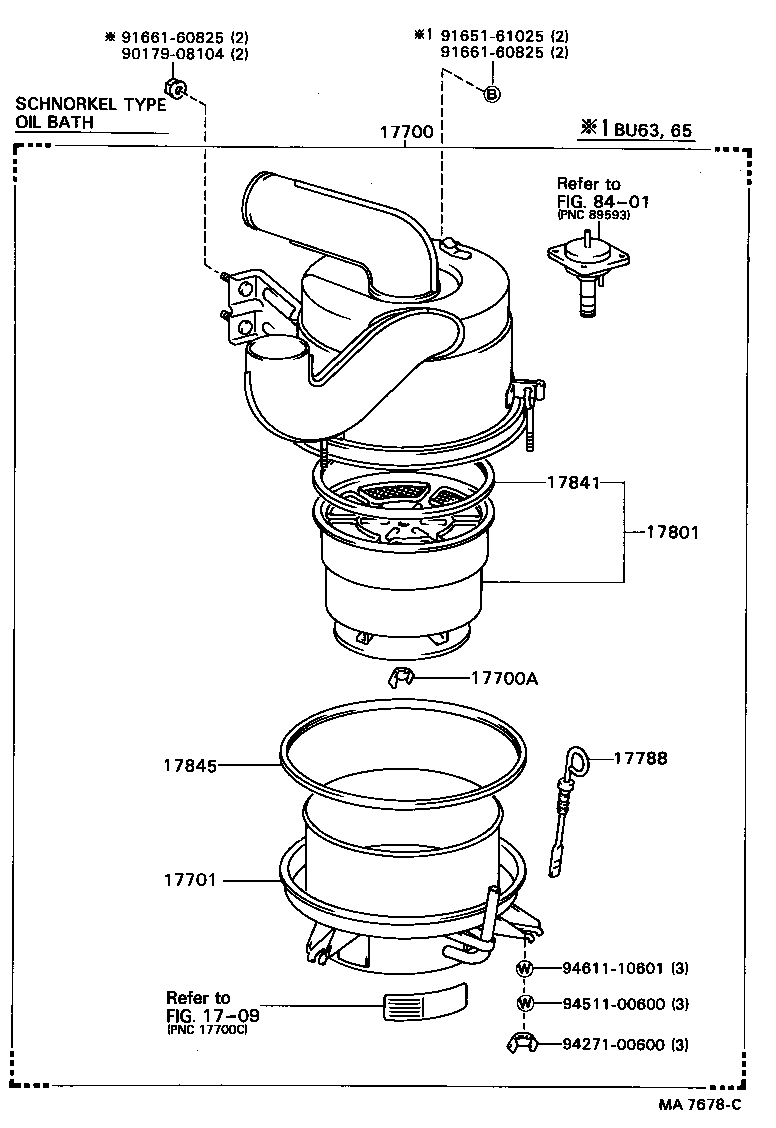

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-73090 |
3Y..YU60..EUR |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-08008 |
3Y,4Y..YU60,62,8#..T3 SCHNORKEL TYPE & PAPER ELEMENT |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-56150 |
3Y,4Y..YU60,62,8#..T3 SCHNORKEL TYPE & PAPER ELEMENT |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-56020 |
3Y,4Y..YU60,62,8#..T3 SCHNORKEL TYPE & PAPER ELEMENT |
1 | ||
| 17807 - PLATE SUB-ASSY, AIR CLEANER FILTER SET | ||||
| 17807-56011 |
3Y,4Y..YU60,62,8#..T3 SCHNORKEL TYPE & PAPER ELEMENT |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-44030 |
3Y,4Y..YU60,62,8#..T3 SCHNORKEL TYPE & PAPER ELEMENT |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-44030 |
3Y,4Y..YU60,62,8#..T3 SCHNORKEL TYPE & PAPER ELEMENT |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-56020 |
3Y,4Y..YU60,62,8#..T3 SCHNORKEL TYPE |
1 | ||
| Common parts | ||||
| 90179-08104 | ||||
| 91661-60825 | ||||
| Linked diagrams | ||||
| 1709 | ||||
| 8401 | ||||
(8409- )3Y,4Y..YU60,62,8#..T3 ; (8508- )3Y,4Y..YU61,63

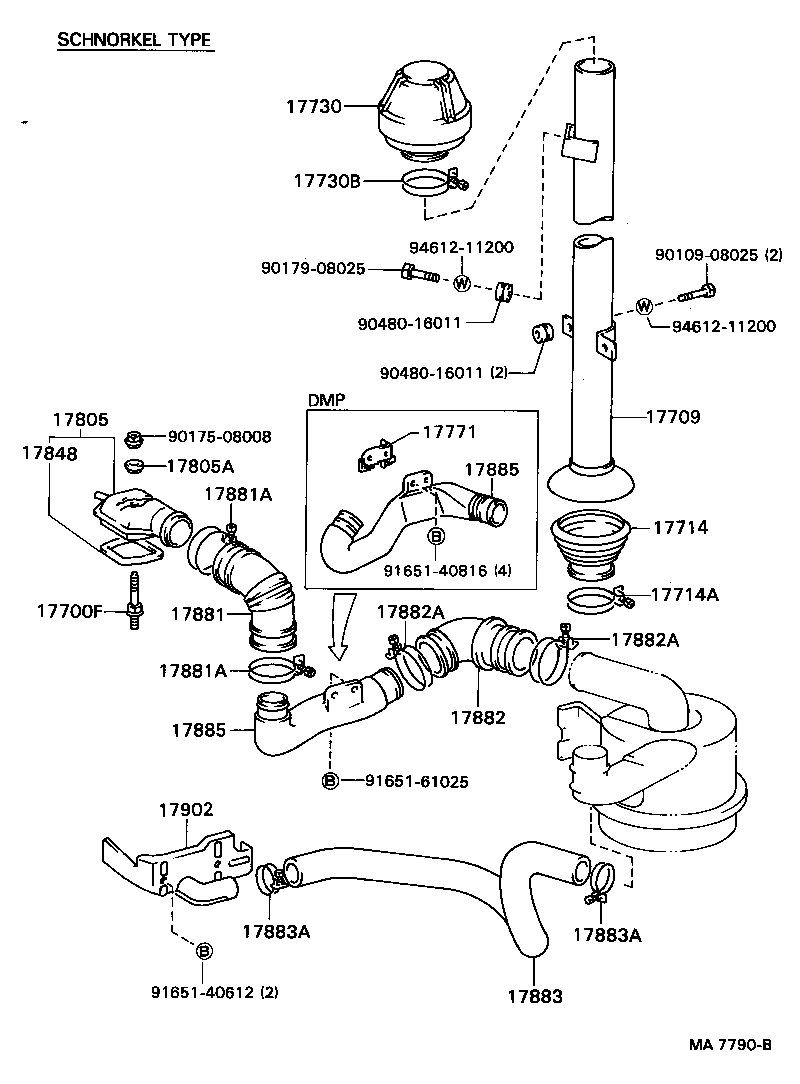

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06018 |
3Y,4Y..YU6#,7#,8# |
1 | ||
| 17709 - INLET SUB-ASSY, AIR CLEANER | ||||
| 53097-95407 |
3Y,4Y..YU60,62,8#..T3 SCHNORKEL TYPE |
1 | ||
| 17714 - RUBBER SEAL, AIR INTAKE | ||||
| 17714-95401 |
3Y,4Y..YU60,62,8#..T3 SCHNORKEL TYPE |
1 | ||
| 17714A - CLAMP(FOR AIR INTAKE RUBBER SEAL) | ||||
| 96111-10780 |
3Y,4Y..YU60,62,8#..T3 SCHNORKEL TYPE |
1 | ||
| 17730 - PRECLEANER ASSY, AIR W/HOSE | ||||
| 17730-56010 |
3Y,4Y..YU60,80..T3 SCHNORKEL TYPE & W/PRECLEANER |
1 | ||
| 17730B - CLAMP, HOSE(FOR PRECLEANER HOSE) | ||||
| 96111-10780 |
3Y,4Y..YU60,62,8#..T3 SCHNORKEL TYPE |
1 | ||
| 17805 - CONNECTOR SUB-ASSY, INTAKE AIR | ||||
| 17805-71010 |
3Y,4Y..YU6#,70,80 |
1 | ||
| 17805A - GASKET & WASHER, SEAL | ||||
| 90210-09026 |
3Y,4Y..YU6#,7#,8# |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 17848-35010 |
3Y,4Y..YU6#,7#,8# |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-73050 |
3Y,4Y..YU60,62,8#..T3 SCHNORKEL TYPE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10690 |
3Y..YU60..EUR |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10690 |
3Y..YU60..EUR |
2 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-56090 |
3Y,4Y..YU60,62,8#..T3 SCHNORKEL TYPE |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10750 |
3Y..YU60..EUR |
2 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10750 |
3Y..YU60..EUR |
2 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17883-73010 |
3Y..YU60..EUR |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 90467-37002 |
3Y..YU60..EUR |
2 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 90467-37002 |
3Y..YU60..EUR |
2 | ||
| 17885 - PIPE, AIR CLEANER | ||||
| 17885-73010 |
3Y,4Y..YU60,8#..T3 SCHNORKEL TYPE |
1 | ||
| 17885 - PIPE, AIR CLEANER | ||||
| 17885-73010 |
3Y,4Y..YU60,8#..T3 SCHNORKEL TYPE |
1 | ||
| 17902 - INLET SUB-ASSY, HOT AIR INTAKE, NO.1 | ||||
| 17895-73020 |
3Y..YU60..EUR |
1 | ||
| Common parts | ||||
| 90109-08025 | ||||
| 90175-08008 | ||||
| 90179-08025 | ||||
| 90480-16011 | ||||
| 91651-40612 | ||||
| 91651-40816 | ||||
| 91651-61025 | ||||
| 94612-11200 | ||||
