YU60L-MDBT (1984)

Toyota Dyna

Production Sep 1984 - Aug 1986
Engine 3Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )3Y,4Y

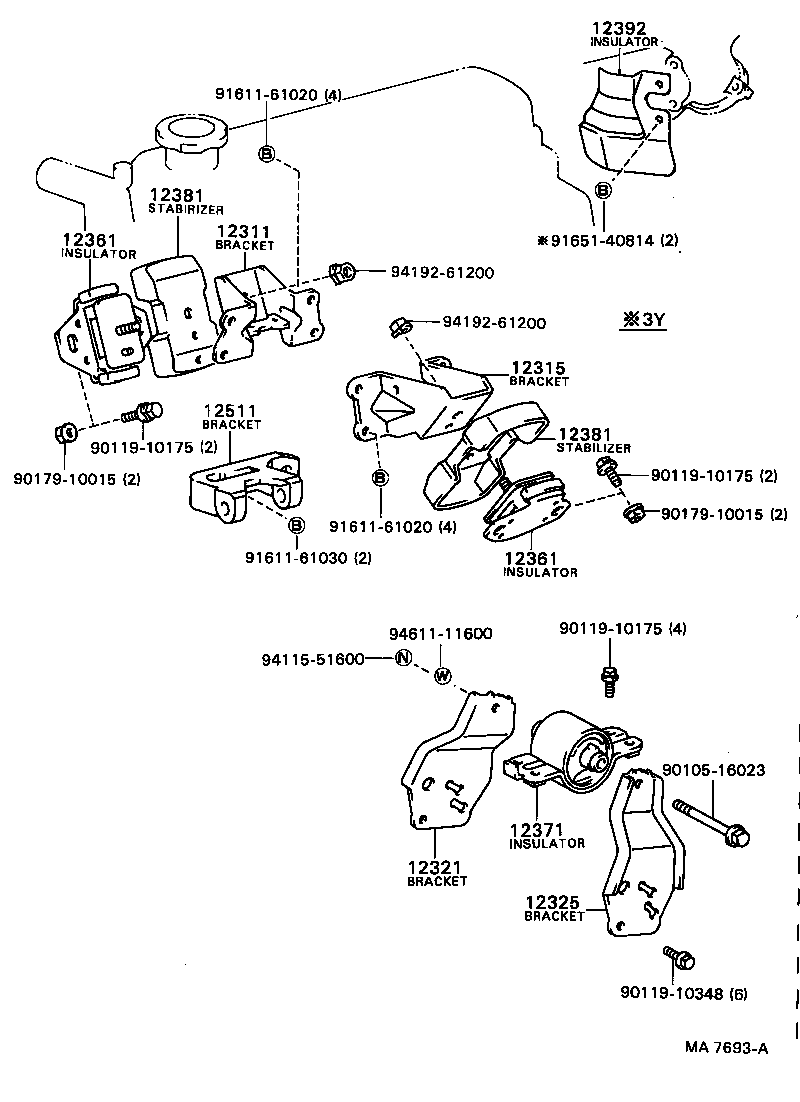

Click highlighted areas on diagram

diagram 12311 12315 12321 12325 12361 12361 12371 12381 12381 12392 12511 9010516023 9011910175 9011910175 9011910175 9011910348 9017910015 9017910015 9161161020 9161161020 9161161030 9165140814 9411551600 9419261200 9419261200 9461111600
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-71010

3Y,4Y..YU6#,7#,8#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-71010

3Y,4Y..YU6#,7#,8#

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-56050

3Y,4Y..YU6#,70,80

 1
12325 - BRACKET, ENGINE MOUNTING, NO.3
12325-56040

3Y,4Y..YU6#,70,80

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-35040

3Y,4Y..YU6#,70,80

TOKAI

 2
12361-35050

3Y,4Y..YU6#,7#,8#

TOYO

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-35040

3Y,4Y..YU6#,70,80

TOKAI

 2
12361-35050

3Y,4Y..YU6#,7#,8#

TOYO

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-56040

3Y,4Y..YU6#,70,80

 1
12371-56040

3Y,4Y..YU6#,70,80

 1
12381 - STABILIZER, ENGINE MOUNTING
12381-73010

3Y,4Y..YU6#,7#,8#

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-73010

3Y,4Y..YU6#,7#,8#

 2
12392 - INSULATOR, ENGINE MOUNTING HEAT, FRONT LH
12391-72010

3Y,4Y..YU6#,7#,8#

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-71010

3Y,4Y..YU6#,7#,8#

 1
Common parts
90105-16023
90119-10175
90119-10348
90179-10015
91611-61020
91611-61030
91651-40814
94115-51600
94192-61200
94611-11600
