YU60L-MDB (1984)

Toyota Dyna

Production Sep 1984 - Aug 1986
Engine 3Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )

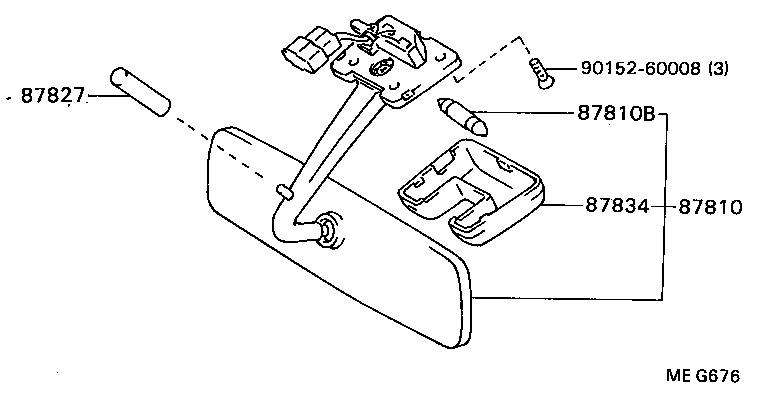

Click highlighted areas on diagram

diagram 87810 87810B 87827 87834 9015260008
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-95418

YU6#,7#,8#..GEN

12V

 1
87810B - BULB, INNER REAR VIEW MIRROR LAMP
90981-11027

RU75,85,WU9#,YU6#,7#,8#

12V 10W,12V 10W

 1
87827 - ABSORBER, INNER REAR VIEW MIRROR
87828-30010

RU75,85,WU9#,YU6#,7#,8#

L=43.5

 1
87828-32010

RU75,85,WU9#,YU6#,7#,8#

L=46.5

 1
87828-23010

RU75,85,WU9#,YU6#,7#,8#

L=38.5

 1
87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER
81243-95701

RU75,85,WU9#,YU6#,7#,8#

 1
Common parts
90152-60008

(8409- )

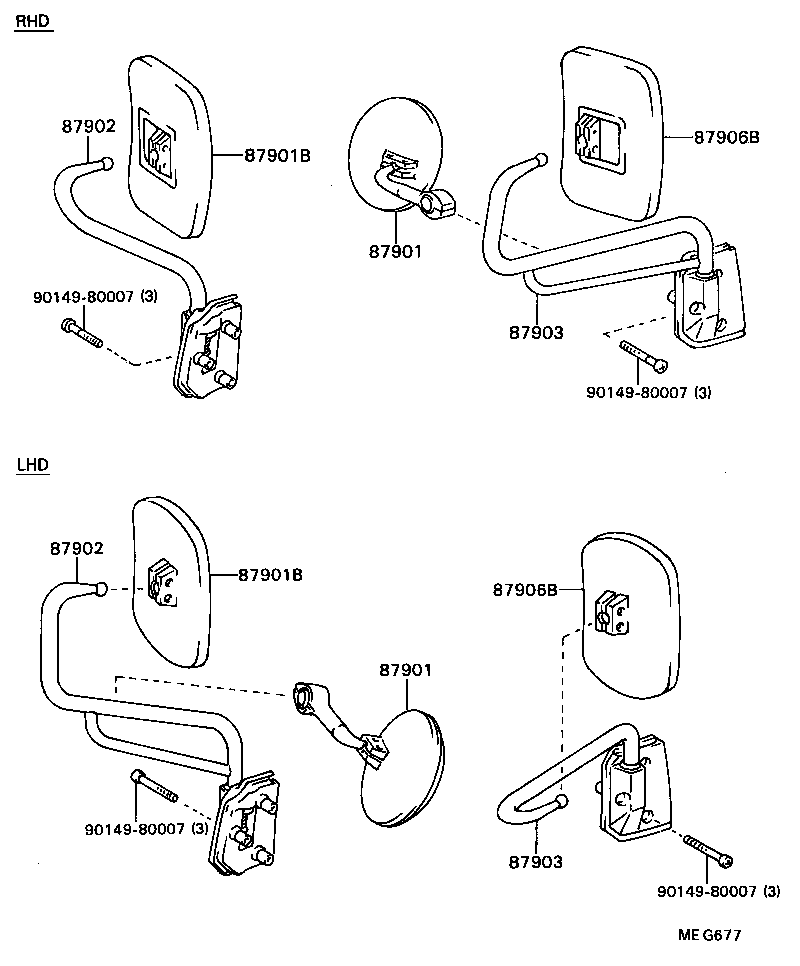

Click highlighted areas on diagram

diagram 87901 87901 87901B 87901B 87902 87902 87903 87903 87906B 87906B 9014980007 9014980007 9014980007 9014980007
Part # Description Qty Price
87901 - MIRROR SUB-ASSY, OUTER UNDER VIEW
87906-95403

RU75,85,WU9#,YU6#,7#,8#..LHD..GEN

 1
87901 - MIRROR SUB-ASSY, OUTER UNDER VIEW
87906-95403

RU75,85,WU9#,YU6#,7#,8#..LHD..GEN

 1
87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH
87901-95412

YU6#,7#,8#..LHD..GEN

 1
87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH
87901-95412

YU6#,7#,8#..LHD..GEN

 1
87902 - SUPPORT, REAR VIEW OUTSIDE MIRROR, RH
87093-95403

YU60,62,7#..ST

 1
87902 - SUPPORT, REAR VIEW OUTSIDE MIRROR, RH
87093-95403

YU60,62,7#..ST

 1
87903 - SUPPORT, REAR VIEW OUTSIDE MIRROR, LH
87094-95404

YU60,62..ST

 1
87903 - SUPPORT, REAR VIEW OUTSIDE MIRROR, LH
87094-95404

YU60,62..ST

 1
87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH
87901-95412

YU6#,8#..LHD..GEN

 1
87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH
87901-95412

YU6#,8#..LHD..GEN

 1
Common parts
90149-80007
