Toyota Dyna XZU730 HEATING & AIR CONDITIONING - COOLER PIPING

Manufacturers Home
Toyota
GR
DYNA
XZU730L-TKFRSW3 (2013)
8718 - HEATING & AIR CONDITIONING - COOLER PIPING

XZU730L-TKFRSW3 (2013)

Toyota Dyna

Production Jun 2013 - Sep 9999

Engine N04C

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

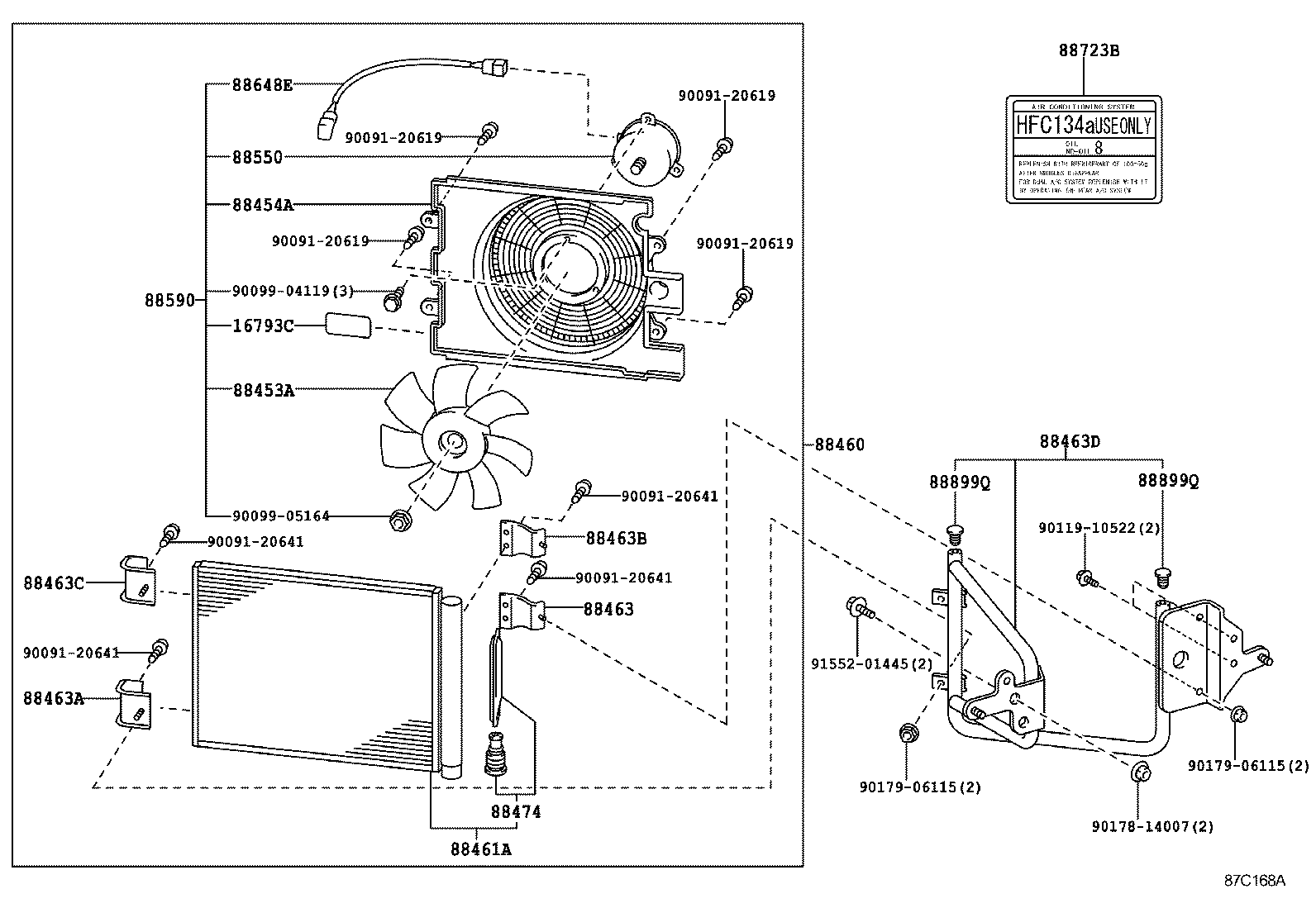

ILLUST NO. 1 OF 4(1107-1410)LHD..SCB

Click highlighted areas on diagram

CONDENSER & RECEIVER

Part #	Description	Period	Qty
16793C - LABEL, COOLING FAN CAUTION
16793-28020	N04C..XZU710,720,730..EUR	06/2013 - 12/2015	1
88453A - FAN, COOLING
88453-37030	XZU710,720,730..EUR	06/2013 - 12/2015	1
88454A - SHROUD, FAN
88454-37130	XZU710,720,730..EUR	06/2013 - 12/2015	1
88460 - CONDENSER ASSY, COOLER
88460-37A10	XZU710,720,730..EUR	06/2013 - 12/2015	1
88461A - CORE, COOLER CONDENSER
88461-37160	XZU710,720,730..EUR	06/2013 - 12/2015	1
88463 - BRACKET, COOLER CONDENSER, NO.1
88688-37D80	XZU710,720,730..EUR	06/2013 - 12/2015	1
88463A - BRACKET, COOLER CONDENSER, NO.2
88688-37D90	XZU710,720,730..EUR	06/2013 - 12/2015	1
88463B - BRACKET, COOLER CONDENSER, NO.3
88688-37E00	XZU710,720,730..EUR	06/2013 - 12/2015	1
88463C - BRACKET, COOLER CONDENSER, NO.4
88688-37E10	XZU710,720,730..EUR	06/2013 - 12/2015	1
88463D - BRACKET, COOLER CONDENSER, NO.5
88688-37D60	XZU710,720,730..EUR	06/2013 - 12/2015	1
88474 - DRYER, COOLER
88474-17010	XZU710,720,730..EUR	06/2013 - 10/2014	1
88474-12030	XZU710,720,730..EUR	10/2014 - 12/2015	1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-37120	XZU710,720,730..EUR	06/2013 - 12/2015	1
88590 - BLOWER ASSY, W/SHROUD
88590-37260	XZU710,720,730..EUR	06/2013 - 12/2015	1
88648E - WIRING, COOLER
88648-37140	XZU710,720,730..EUR	06/2013 - 12/2015	1
88723B - LABEL, COOLER SERVICE CAUTION
88723-28220	XZU710,720,730..EUR	06/2013 - 12/2015	1
88899Q - PLATE, COVER
88899-30840	XZU710,720,730..EUR	06/2013 - 12/2015	2
88899Q - PLATE, COVER
88899-30840	XZU710,720,730..EUR	06/2013 - 12/2015	2
Common parts
90091-20619
90091-20641
90099-04119
90099-05164
90119-10522
90178-14007
90179-06115
91552-01445

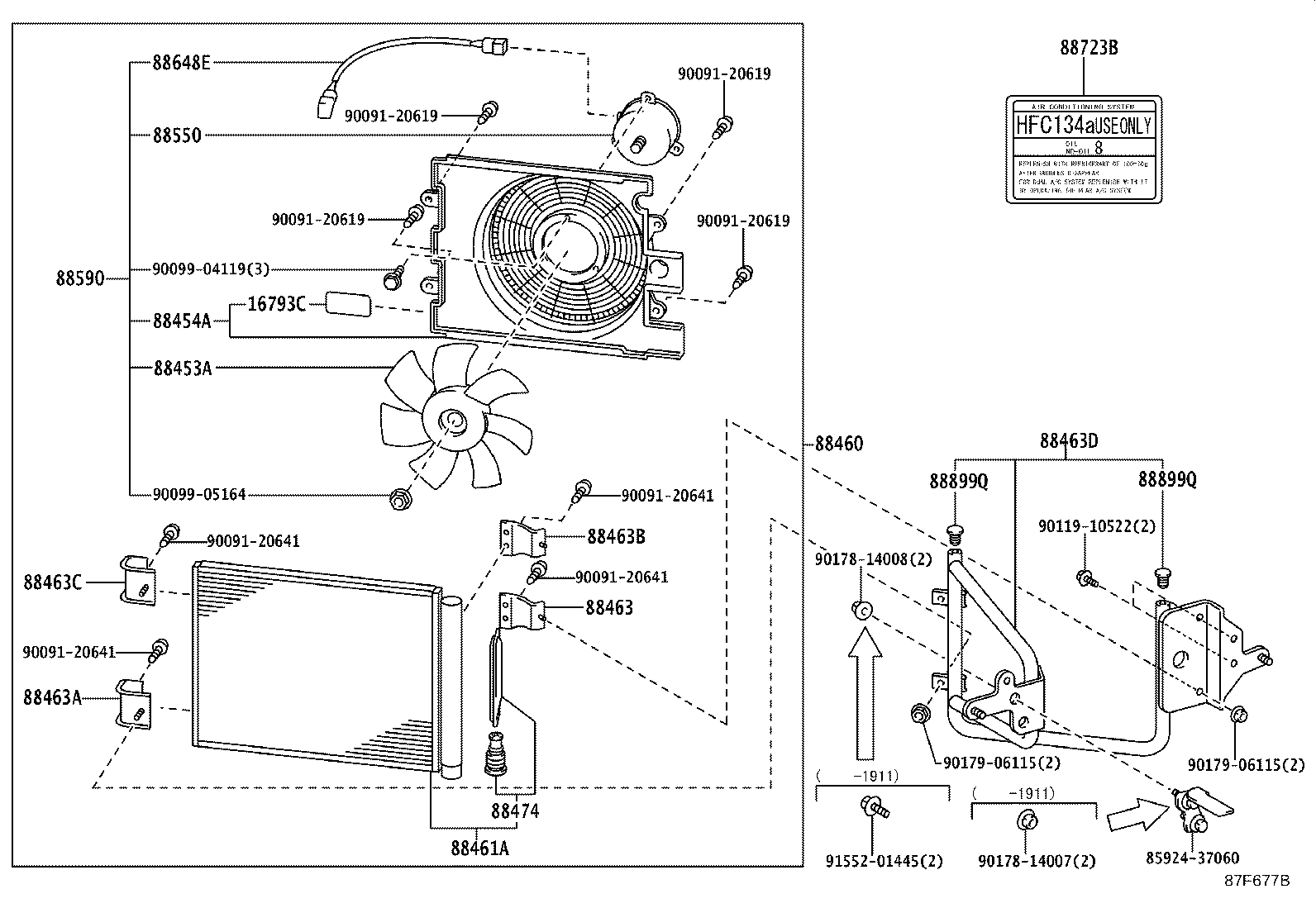

ILLUST NO. 1 OF 4(1410- )XZU710,720..SCB..EUR,GCC ; (1410-)WU700,710,720,XZU730..LHD

Click highlighted areas on diagram

CONDENSER & RECEIVER

Part #	Description	Period	Qty
16793C - LABEL, COOLING FAN CAUTION
16793-28020	N04C..XZU710,720,730..EUR	06/2013 - 12/2015	1
88453A - FAN, COOLING
88453-37030	XZU710,720,730..EUR	06/2013 - 12/2015	1
88454A - SHROUD, FAN
88454-37130	XZU710,720,730..EUR	06/2013 - 12/2015	1
88460 - CONDENSER ASSY, COOLER
88460-37A10	XZU710,720,730..EUR	06/2013 - 12/2015	1
88461A - CORE, COOLER CONDENSER
88461-37160	XZU710,720,730..EUR	06/2013 - 12/2015	1
88463 - BRACKET, COOLER CONDENSER, NO.1
88688-37D80	XZU710,720,730..EUR	06/2013 - 12/2015	1
88463A - BRACKET, COOLER CONDENSER, NO.2
88688-37D90	XZU710,720,730..EUR	06/2013 - 12/2015	1
88463B - BRACKET, COOLER CONDENSER, NO.3
88688-37E00	XZU710,720,730..EUR	06/2013 - 12/2015	1
88463C - BRACKET, COOLER CONDENSER, NO.4
88688-37E10	XZU710,720,730..EUR	06/2013 - 12/2015	1
88463D - BRACKET, COOLER CONDENSER, NO.5
88688-37D60	XZU710,720,730..EUR	06/2013 - 12/2015	1
88474 - DRYER, COOLER
88474-17010	XZU710,720,730..EUR	06/2013 - 10/2014	1
88474-12030	XZU710,720,730..EUR	10/2014 - 12/2015	1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-37120	XZU710,720,730..EUR	06/2013 - 12/2015	1
88590 - BLOWER ASSY, W/SHROUD
88590-37260	XZU710,720,730..EUR	06/2013 - 12/2015	1
88648E - WIRING, COOLER
88648-37140	XZU710,720,730..EUR	06/2013 - 12/2015	1
88723B - LABEL, COOLER SERVICE CAUTION
88723-28220	XZU710,720,730..EUR	06/2013 - 12/2015	1
88899Q - PLATE, COVER
88899-30840	XZU710,720,730..EUR	06/2013 - 12/2015	2
88899Q - PLATE, COVER
88899-30840	XZU710,720,730..EUR	06/2013 - 12/2015	2
Common parts
85924-37060
90091-20619
90091-20641
90099-04119
90099-05164
90119-10522
90178-14007
90178-14008
90179-06115
91552-01445
