XZU730L-TKFRSW3 (2013)

Toyota Dyna

Production Jun 2013 - Sep 9999
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1306- )EUR

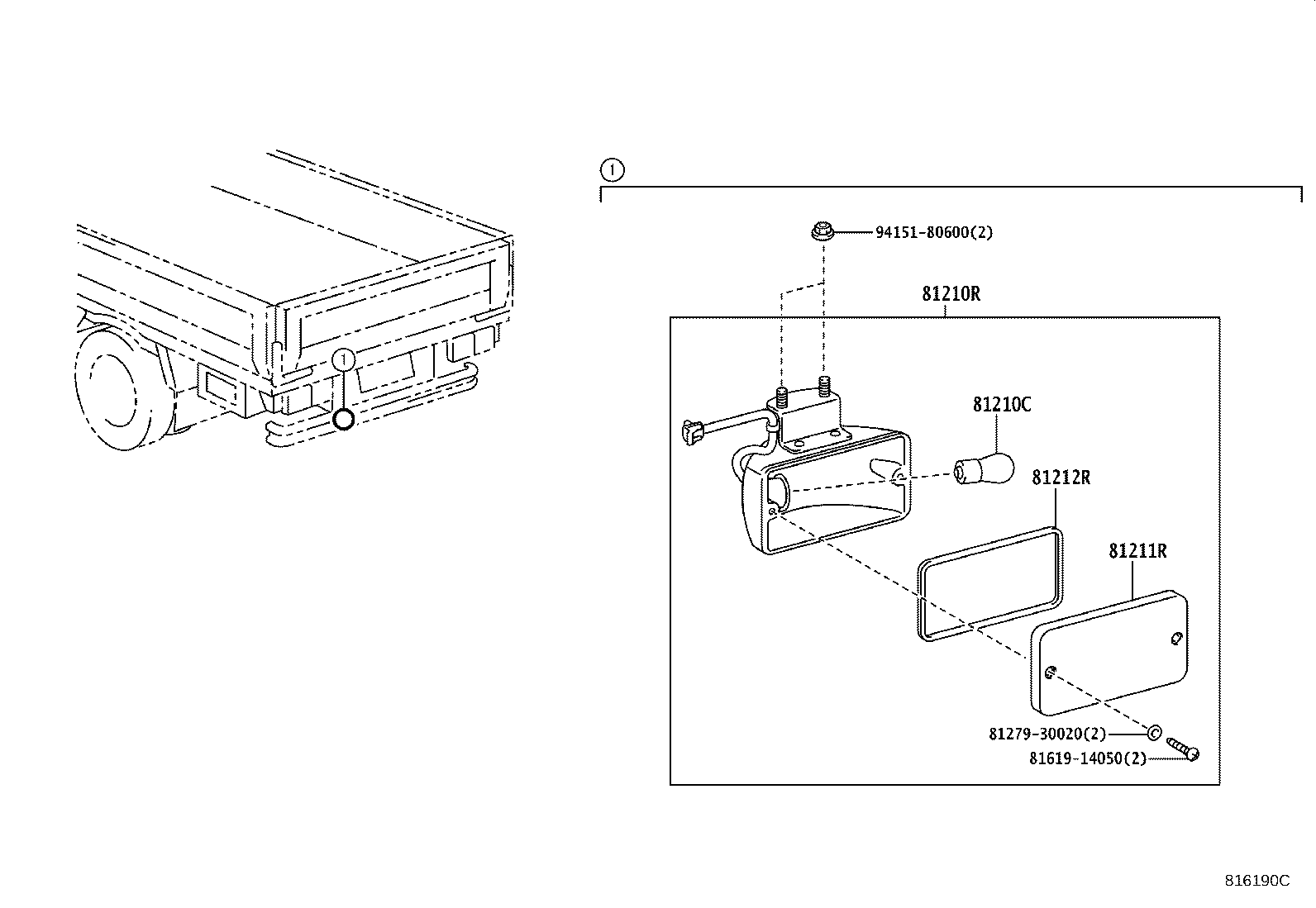

Click highlighted areas on diagram

diagram 81210C 81210R 81211R 81212R 8127930020 8161914050 9415180600
Part # Description Qty Price
81210C - BULB, REAR FOG LAMP
90981-16014

XZU710,720,730..EUR

24V 21W

 1
81210R - LAMP ASSY, REAR FOG
81480-37010

XZU710,720,730..EUR

 1
81211R - LENS, REAR FOG LAMP
81211-95700

XZU710,720,730..EUR

 1
81212R - GASKET, REAR FOG LAMP, NO.1
81212-95700

XZU710,720,730..EUR

 1
Common parts
81279-30020
81619-14050
94151-80600
