XZU730L-TKFRSW3 (2013)
Toyota Dyna

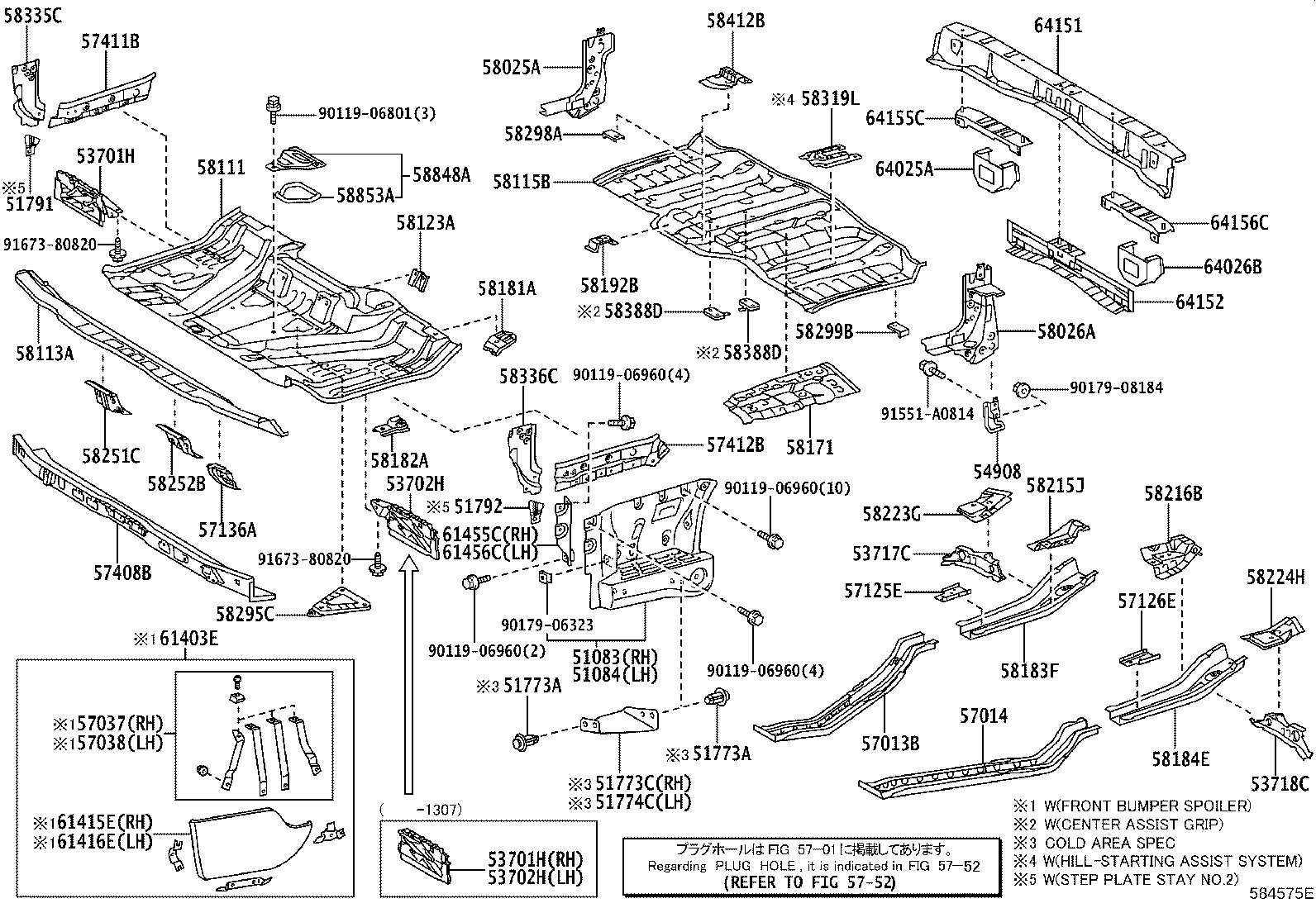

ILLUST NO. 1 OF 2(1306- )XZU710,720,730..EUR,GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51083 - STEP SUB-ASSY, RH | ||||
| 51083-37052 |
XZU710,720,730..EUR |
1 | ||
| 51084 - STEP SUB-ASSY, LH | ||||
| 51084-37042 |
XZU710,720,730..EUR |
1 | ||
| 51773A - CLIP, STEP PLATE COVER | ||||
| 90467-06133C0 |
XZU710,720,730..EUR COLD AREA SPEC,BLACK |
8 | ||
| 51773A - CLIP, STEP PLATE COVER | ||||
| 90467-06133C0 |
XZU710,720,730..EUR COLD AREA SPEC,BLACK |
8 | ||
| 51773C - COVER, STEP PLATE, RH | ||||
| 51773-37030 |
XZU710,720,730..EUR NO PAINT REQ.,COLD AREA SPEC |
1 | ||
| 51774C - COVER, STEP PLATE, LH | ||||
| 51773-37030 |
XZU710,720,730..EUR NO PAINT REQ.,COLD AREA SPEC |
1 | ||
| 53701H - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-37050 |
WU700,710,720,XZU710,720,730 |
1 | ||
| 53701-37060 |
XZU710,720,730..EUR |
1 | ||
| 53701H - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-37050 |
WU700,710,720,XZU710,720,730 |
1 | ||
| 53701-37060 |
XZU710,720,730..EUR |
1 | ||
| 53702H - APRON SUB-ASSY, FENDER, LH | ||||
| 53702-37070 |
XZU710,720,730..EUR |
1 | ||
| 53702-37040 |
WU700,710,720,XZU710,720,730 |
1 | ||
| 53702H - APRON SUB-ASSY, FENDER, LH | ||||
| 53702-37070 |
XZU710,720,730..EUR |
1 | ||
| 53702-37040 |
WU700,710,720,XZU710,720,730 |
1 | ||
| 53717C - APRON, FRPNT FENDER, NO.2 RH | ||||
| 53717-37190 |
XZU710,720,730..EUR |
1 | ||
| 53718C - APRON, FRONT FENDER, NO.2 LH | ||||
| 53718-37150 |
XZU710,720,730..EUR |
1 | ||
| 54908 - BRACKET SUB-ASSY, TILT CAB GRIP | ||||
| 54908-37050 |
XZU710,720,730..EUR |
1 | ||
| 57013B - MEMBER SUB-ASSY, FLOOR, FRONT RH | ||||
| 57013-37291 |
XZU710,720,730..EUR |
1 | ||
| 57013-37290 |
WU700,710,720,XZU710,720,730 |
1 | ||
| 57014 - MEMBER SUB-ASSY, FLOOR, FRONT LH | ||||
| 57014-37200 |
WU700,710,720,XZU710,720,730 |
1 | ||
| 57014-37201 |
XZU710,720,730..EUR |
1 | ||
| 57125E - REINFORCEMENT, FRONT SIDE MEMBER, RH | ||||
| 57125-37040 |
XZU710,720,730..EUR |
1 | ||
| 57126E - REINFORCEMENT, FRONT SIDE MEMBER, LH | ||||
| 57126-37030 |
XZU710,720,730..EUR |
1 | ||
| 57136A - BRACKET, FRONT FLOOR SIDE, LH | ||||
| 57136-37030 |
XZU710,720,730..EUR |
1 | ||
| 57408B - MEMBER SUB-ASSY, FRONT FLOOR CROSS | ||||
| 57408-37500 |
XZU710,720,730..EUR |
1 | ||
| 57411B - MEMBER, FLOOR SIDE, INNER RH | ||||
| 57411-37050 |
XZU710,720,730..EUR |
1 | ||
| 57412B - MEMBER, FLOOR SIDE, INNER LH | ||||
| 57412-37060 |
XZU710,720,730..EUR |
1 | ||
| 58025A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH | ||||
| 58043-37130 |
XZU710,720,730..EUR |
1 | ||
| 58026A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH | ||||
| 58044-37110 |
XZU710,720,730..EUR |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-37A00 |
XZU710,720,730..EUR |
1 | ||
| 58113A - PANEL, FRONT FLOOR, CENTER | ||||
| 58113-37080 |
XZU710,720,730..EUR |
1 | ||
| 58115B - PANEL, FRONT FLOOR, REAR | ||||
| 58115-37291 |
XZU710,720,730..EUR HILL-STARTING ASSIST SYSTEM-WITH(ES START)&ASSIST GRIP-WITH(DRIVER:1,PASSENGER:2,CENTER:1) |
1 | ||
| 58115-37291 |
XZU710,720,730..EUR HILL-STARTING ASSIST SYSTEM-WITH(ES START)&ASSIST GRIP-WITH(DRIVER:1,PASSENGER:1,CENTER:1) |
1 | ||
| 58123A - SUPPORT, SHIFT & SELECT LEVER | ||||
| 58123-37060 |
XZU710,720,730..EUR |
1 | ||
| 58171 - REINFORCEMENT, PARKING BRAKE BASE | ||||
| 58171-37110 |
XZU710,720,730..EUR |
1 | ||
| 58181A - RETAINER, SEAT RAIL, FRONT | ||||
| 58181-37090 |
XZU710,720,730..EUR |
1 | ||
| 58182A - RETAINER, SEAT RAIL, NO.2 | ||||
| 58182-37040 |
XZU710,720,730..EUR |
1 | ||
| 58183F - REINFORCEMENT, REAR MOUNTING, RH | ||||
| 58183-37090 |
XZU710,720,730..EUR |
1 | ||
| 58184E - REINFORCEMENT, REAR MOUNTING, LH | ||||
| 58183-37090 |
XZU710,720,730..EUR |
1 | ||
| 58192B - PLATE, FRONT FLOOR, REAR | ||||
| 58192-37050 |
XZU710,720,730..EUR |
1 | ||
| 58215J - BRACKET, REAR SEAT MOUNTING, RH | ||||
| 58215-37050 |
XZU710,720,730..EUR |
1 | ||
| 58216B - BRACKET, REAR SEAT MOUNTING, LH | ||||
| 58216-37010 |
XZU710,720,730..EUR |
1 | ||
| 58223G - REINFORCEMENT, SEAT SET, NO.1 | ||||
| 58223-37070 |
XZU710,720,730..EUR |
1 | ||
| 58251C - BRACE, FLOOR PANEL, FRONT RH | ||||
| 58251-37130 |
XZU710,720,730..EUR |
1 | ||
| 58252B - BRACE, FLOOR PANEL, FRONT LH | ||||
| 58252-37090 |
XZU710,720,730..EUR |
1 | ||
| 58295C - BRACKET, FLOOR SHIFT LEVER, NO.1 | ||||
| 58295-37110 |
XZU710,720,730..EUR |
1 | ||
| 58298A - REINFORCEMENT, SEAT BELT ANCHOR FLOOR, RH | ||||
| 58298-37030 |
XZU710,720,730..EUR |
1 | ||
| 58299B - REINFORCEMENT, SEAT BELT ANCHOR FLOOR, LH | ||||
| 58298-37030 |
XZU710,720,730..EUR |
1 | ||
| 58319L - BRACKET, FRONT FLOOR SIDE PANEL | ||||
| 58319-37110 |
XZU710,720,730..EUR HILL-STARTING ASSIST SYSTEM-WITH(ES START)&ASSIST GRIP-WITH(DRIVER:1,PASSENGER:2,CENTER:1) |
1 | ||
| 58319-37110 |
XZU710,720,730..EUR HILL-STARTING ASSIST SYSTEM-WITH(ES START)&ASSIST GRIP-WITH(DRIVER:1,PASSENGER:1,CENTER:1) |
1 | ||
| 58319-37110 |
XZU710,720,730..EUR HILL-STARTING ASSIST SYSTEM-WITH(ES START) |
1 | ||
| 58335C - PLATE, FLOOR SIDE, FRONT RH | ||||
| 58335-37060 |
XZU710,720,730..EUR |
1 | ||
| 58336C - PLATE, FLOOR SIDE, FRONT LH | ||||
| 58336-37080 |
XZU710,720,730..EUR |
1 | ||
| 58388D - BRACKET, PLATE FRONT FLOOR | ||||
| 58388-37020 |
XZU710,720,730..EUR ASSIST GRIP-WITH(DRIVER:1,PASSENGER:2,CENTER:1) |
2 | ||
| 58388-37020 |
XZU710,720,730..EUR ASSIST GRIP-WITH(DRIVER:1,PASSENGER:1,CENTER:1) |
2 | ||
| 58388-37020 |
XZU710,720,730..EUR HILL-STARTING ASSIST SYSTEM-WITH(ES START)&ASSIST GRIP-WITH(DRIVER:1,PASSENGER:1,CENTER:1) |
2 | ||
| 58388-37020 |
XZU710,720,730..EUR HILL-STARTING ASSIST SYSTEM-WITH(ES START)&ASSIST GRIP-WITH(DRIVER:1,PASSENGER:2,CENTER:1) |
2 | ||
| 58388D - BRACKET, PLATE FRONT FLOOR | ||||
| 58388-37020 |
XZU710,720,730..EUR ASSIST GRIP-WITH(DRIVER:1,PASSENGER:2,CENTER:1) |
2 | ||
| 58388-37020 |
XZU710,720,730..EUR ASSIST GRIP-WITH(DRIVER:1,PASSENGER:1,CENTER:1) |
2 | ||
| 58388-37020 |
XZU710,720,730..EUR HILL-STARTING ASSIST SYSTEM-WITH(ES START)&ASSIST GRIP-WITH(DRIVER:1,PASSENGER:1,CENTER:1) |
2 | ||
| 58388-37020 |
XZU710,720,730..EUR HILL-STARTING ASSIST SYSTEM-WITH(ES START)&ASSIST GRIP-WITH(DRIVER:1,PASSENGER:2,CENTER:1) |
2 | ||
| 58412B - REINFORCEMENT, ENGINE SUB COVER | ||||
| 58412-37140 |
XZU710,720,730..EUR |
1 | ||
| 58848A - COVER, SHIFT LEVER HOLE | ||||
| 58840-37040 |
XZU710,720,730..EUR |
1 | ||
| 58853A - PACKING, SHIFT LEVER HOLE | ||||
| 58853-37030 |
XZU710,720,730..EUR |
1 | ||
| 61455C - RETAINER, FRONT STEP, RH | ||||
| 61455-37020 |
XZU710,720,730..EUR |
1 | ||
| 61456C - RETAINER, FRONT STEP, LH | ||||
| 61456-37020 |
XZU710,720,730..EUR |
1 | ||
| 64025A - BRACKET SUB-ASSY, REAR MOUNTING, RH | ||||
| 64171-37120 |
XZU710,720,730..EUR |
1 | ||
| 64026B - BRACKET SUB-ASSY, REAR MOUNTING, LH | ||||
| 64172-37080 |
XZU710,720,730..EUR |
1 | ||
| 64152 - FRAME, BACK, LOWER | ||||
| 64106-37060 |
XZU710,720,730..EUR |
1 | ||
| 64156C - PLATE, BACK FRAME, LH | ||||
| 64156-37110 |
XZU710,720,730..EUR |
1 | ||
| Common parts | ||||
| 90119-06801 | ||||
| 90119-06960 | ||||
| 90179-06323 | ||||
| 90179-08184 | ||||
| 91551-A0814 | ||||
| 91673-80820 | ||||
| Linked diagrams | ||||
| 5752 | ||||
