XZU730L-TKFRSW3 (2013)

Toyota Dyna

Production Jun 2013 - Sep 9999
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

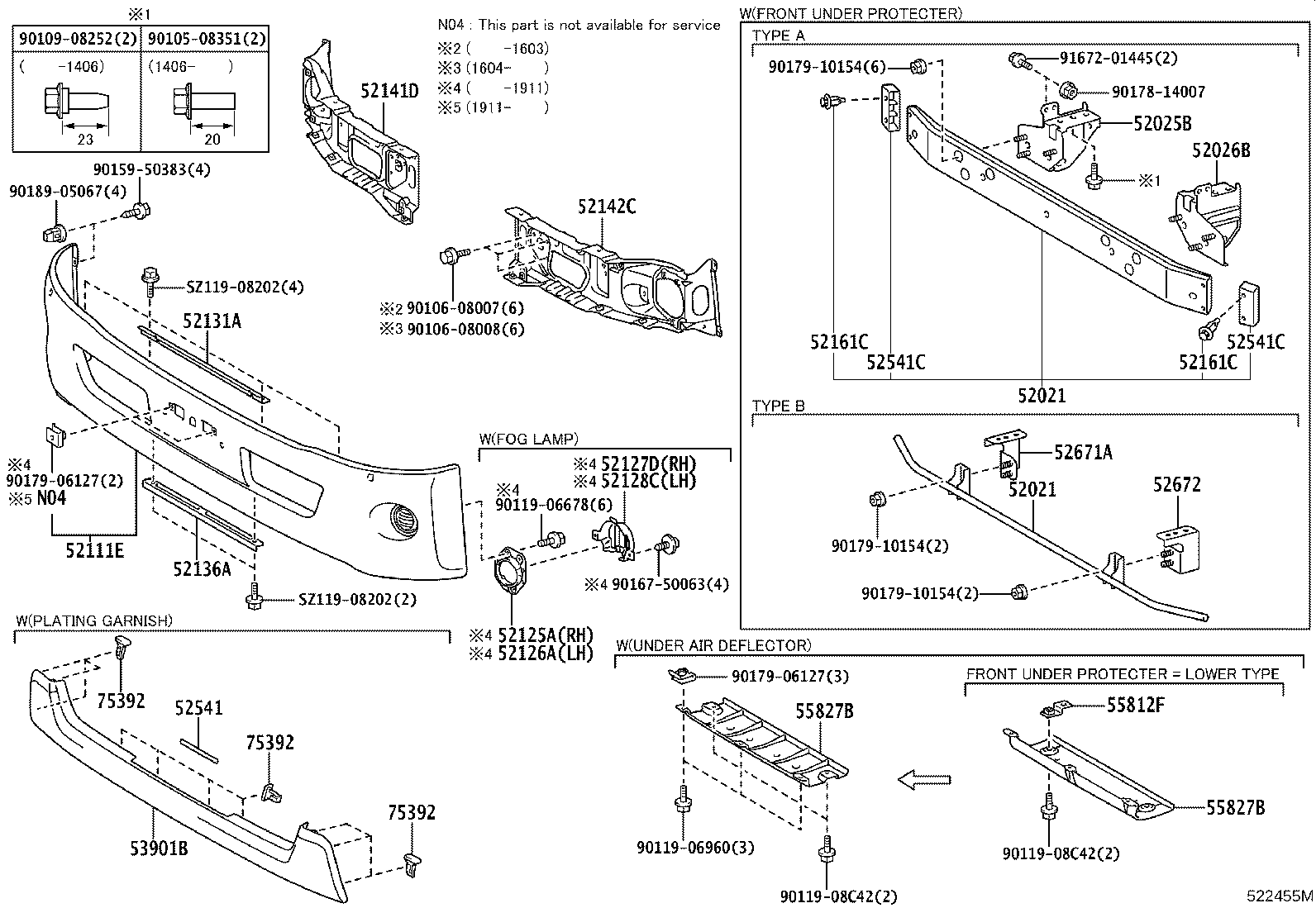

ILLUST NO. 1 OF 2(1605- )XZU720..75T..CBU ; (1605- )XZU710,720..SCB..MTM..65T,85T ; (1911-

Click highlighted areas on diagram

diagram 52021 52021 52025B 52026B 52111E 52125A 52126A 52127D 52128C 52131A 52136A 52141D 52142C 52161C 52161C 52541 52541C 52541C 52671A 52672 53901B 55812F 55827B 55827B 75392 75392 75392 9010508351 9010608007 9010608008 9010908252 9011906678 9011906960 9011908C42 9011908C42 9015950383 9016750063 9017814007 9017906127 9017906127 9017910154 9017910154 9017910154 9018905067 9167201445 SZ11908202 SZ11908202
Part # Description Qty Price
52111E - BAR, FRONT BUMPER
52111-37380

XZU710,720,730..EUR

NO PAINT REQ.

 1
52111-37380

XZU710,720,730..EUR

NO PAINT REQ.

 1
52125A - BRACKET, FOG LAMP MOUNTING, RH
52125-37020

XZU710,720,730..EUR

 1
52125-37020

XZU710,720,730..EUR

 1
52126A - BRACKET, FOG LAMP MOUNTING, LH
52126-37020

XZU710,720,730..EUR

 1
52126-37020

XZU710,720,730..EUR

 1
52127D - COVER, FRONT BUMPER HOLE, RH
81610-37180

XZU710,720,730..EUR

 1
81610-37180

XZU710,720,730..EUR

 1
52128C - COVER, FRONT BUMPER HOLE, LH
81620-37180

XZU710,720,730..EUR

 1
81620-37180

XZU710,720,730..EUR

 1
52131A - REINFORCEMENT, FRONT BUMPER
52131-37110

XZU710,720,730..EUR

 1
52131-37110

XZU710,720,730..EUR

 1
52136A - REINFORCEMENT, FRONT BUMPER
52136-37010

XZU710,720,730..EUR

 1
52136-37010

XZU710,720,730..EUR

 1
Common parts
90105-08351
90106-08007
90106-08008
90109-08252
90119-06678
90119-06960
90119-08C42
90159-50383
90167-50063
90178-14007
90179-06127
90179-10154
90189-05067
91672-01445
SZ119-08202
