XZU730L-TKFRSW3 (2013)

Toyota Dyna

Production Jun 2013 - Sep 9999
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1306-1512)EUR

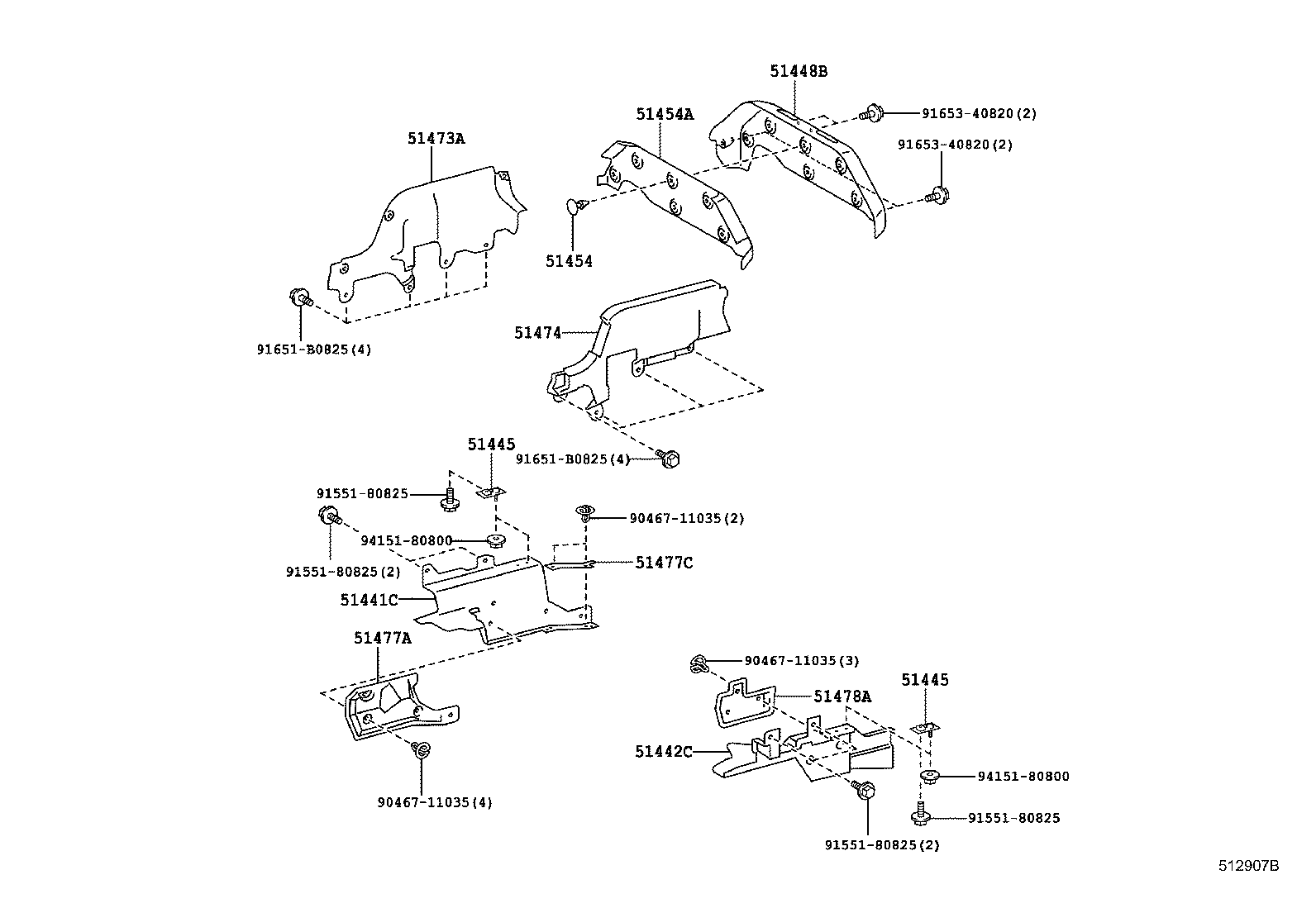

Click highlighted areas on diagram

diagram 51441C 51442C 51445 51445 51448B 51454 51454A 51473A 51474 51477A 51477C 51478A 9046711035 9046711035 9046711035 9155180825 9155180825 9155180825 9155180825 91651B0825 91651B0825 9165340820 9165340820 9415180800 9415180800
Part # Description Qty Price
51441C - COVER, ENGINE UNDER, RH
51441-37790

XZU710,720,730..EUR

 1
51442C - COVER, ENGINE UNDER, LH
51441-37B30

XZU710,720,730..EUR

 1
51445 - BRACKET, ENGINE UNDER COVER
51445-37130

XZU710,720,730..EUR

 2
51445 - BRACKET, ENGINE UNDER COVER
51445-37130

XZU710,720,730..EUR

 2
51448B - SHUTTER, ENGINE REAR SIDE
51448-37200

XZU710,720,730..EUR

 1
51454 - CLIP
90467-08081

XZU710,720,730..EUR

 6
51454A - SILENCER, ENGINE REAR COVER
51454-37240

XZU710,720,730..EUR

 1
51473A - COVER SUB-ASSY, ENGINE SIDE, RH
51473-37290

XZU710,720,730..EUR

 1
51474 - COVER SUB-ASSY, ENGINE SIDE, LH
51474-37250

WU700,710,720,XZU710,720,730..MTM

 1
51477A - SILENCER, ENGINE UNDER COVER, RH
51477-37040

XZU710,720,730..EUR

 1
51477C - SILENCER, ENGINE UNDER COVER, LOWER RH
51477-37050

XZU710,720,730..EUR

 1
51478A - SILENCER, ENGINE UNDER COVER, LH
51478-37190

XZU710,720,730..EUR

 1
Common parts
90467-11035
91551-80825
91651-B0825
91653-40820
94151-80800
