XZU730L-TKFRSW3 (2013)
Toyota Dyna
Production
Jun 2013
-
Sep 9999
Engine
N04C
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1508- )EUR

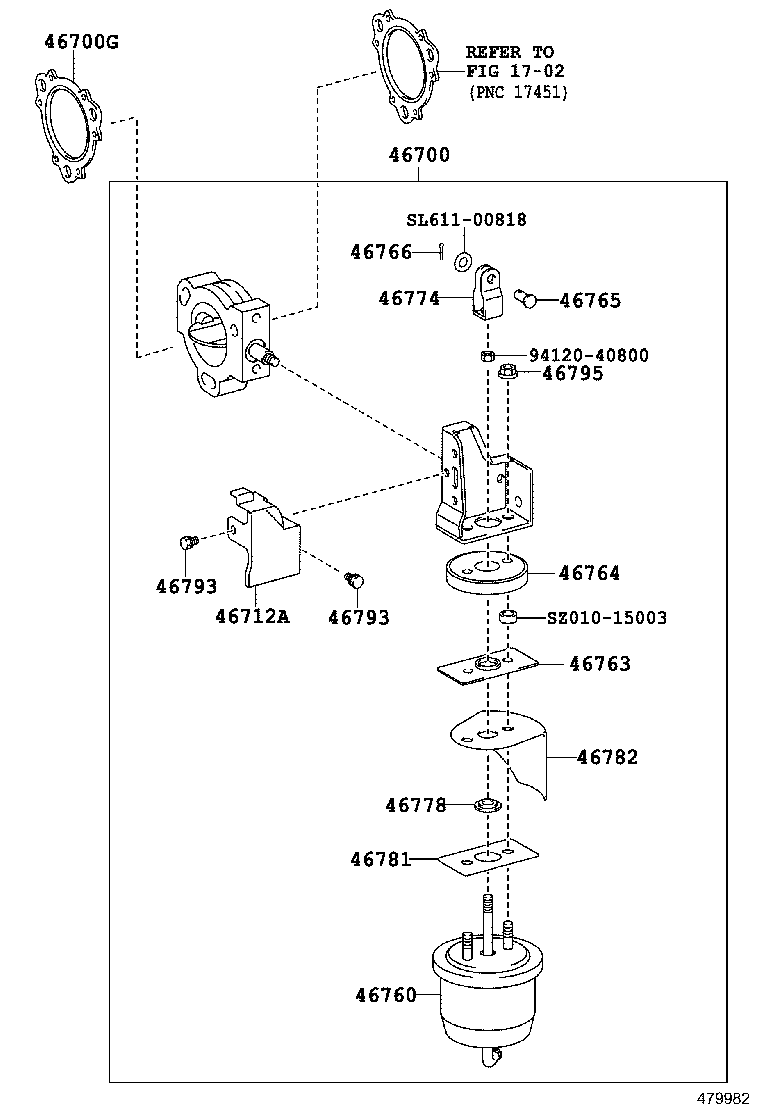

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46700 - RETARDER ASSY, EXHAUST | ||||
| 46700-E0451 |
XZU710,720,730..EUR |
1 | ||
| 46700-E0450 |
XZU710,720,730..EUR |
1 | ||
| 46700G - GASKET(FOR EXHAUST BRAKE) | ||||
| 17451-E0110 |
XZU710,720,730..EUR |
1 | ||
| 46712A - COVER, EXHAUST BRAKE BRACKET | ||||
| 46712-37230 |
XZU710,720,730..EUR |
1 | ||
| 46712-EV010 |
XZU710,720,730..EUR |
1 | ||
| 46760 - CYLINDER ASSY, EXHAUST RETARDER VACUUM | ||||
| 46760-EV020 |
XZU710,720,730..EUR |
1 | ||
| 46763 - COVER, VACUUM CYLINDER DUST, NO.1 | ||||
| 46763-37230 |
XZU710,720,730..EUR |
1 | ||
| 46764 - COVER, VACUUM CYLINDER DUST, NO.2 | ||||
| 46764-37230 |
XZU710,720,730..EUR |
1 | ||
| 46765 - PIN, VACUUM CYLINDER CLEVIS | ||||
| 46765-36010 |
XZU710,720,730..EUR |
1 | ||
| 46766 - PIN, VACUUM CYLINDER CLEVIS SNAP | ||||
| 46766-36010 |
XZU710,720,730..EUR |
1 | ||
| 46774 - CLEVIS, EXHAUST BRAKE ROD | ||||
| 46774-36270 |
XZU710,720,730..EUR |
1 | ||
| 46778 - BEARING, VACUUM CYLINDER | ||||
| 46778-EV010 |
XZU710,720,730..EUR |
1 | ||
| 46781 - INSULATOR, EXHAUST BRAKE CHAMBER, NO.1 | ||||
| 46781-28010 |
XZU710,720,730..EUR |
1 | ||
| 46782 - INSULATOR, EXHAUST BRAKE CHAMBER, NO.2 | ||||
| 46782-EV010 |
XZU710,720,730..EUR |
1 | ||
| 46793 - BOLT, EXHAUST VALVE LINK COVER | ||||
| 46793-36010 |
XZU710,720,730..EUR |
2 | ||
| 46793 - BOLT, EXHAUST VALVE LINK COVER | ||||
| 46793-36010 |
XZU710,720,730..EUR |
2 | ||
| 46795 - NUT, EXHAUST VALVE BRACKET | ||||
| 46795-36260 |
XZU710,720,730..EUR |
2 | ||
| Common parts | ||||
| 94120-40800 | ||||
| SL611-00818 | ||||
| SZ010-15003 | ||||
| Linked diagrams | ||||
| 1702 | ||||
