XZU730L-TKFRSW3 (2013)
Toyota Dyna

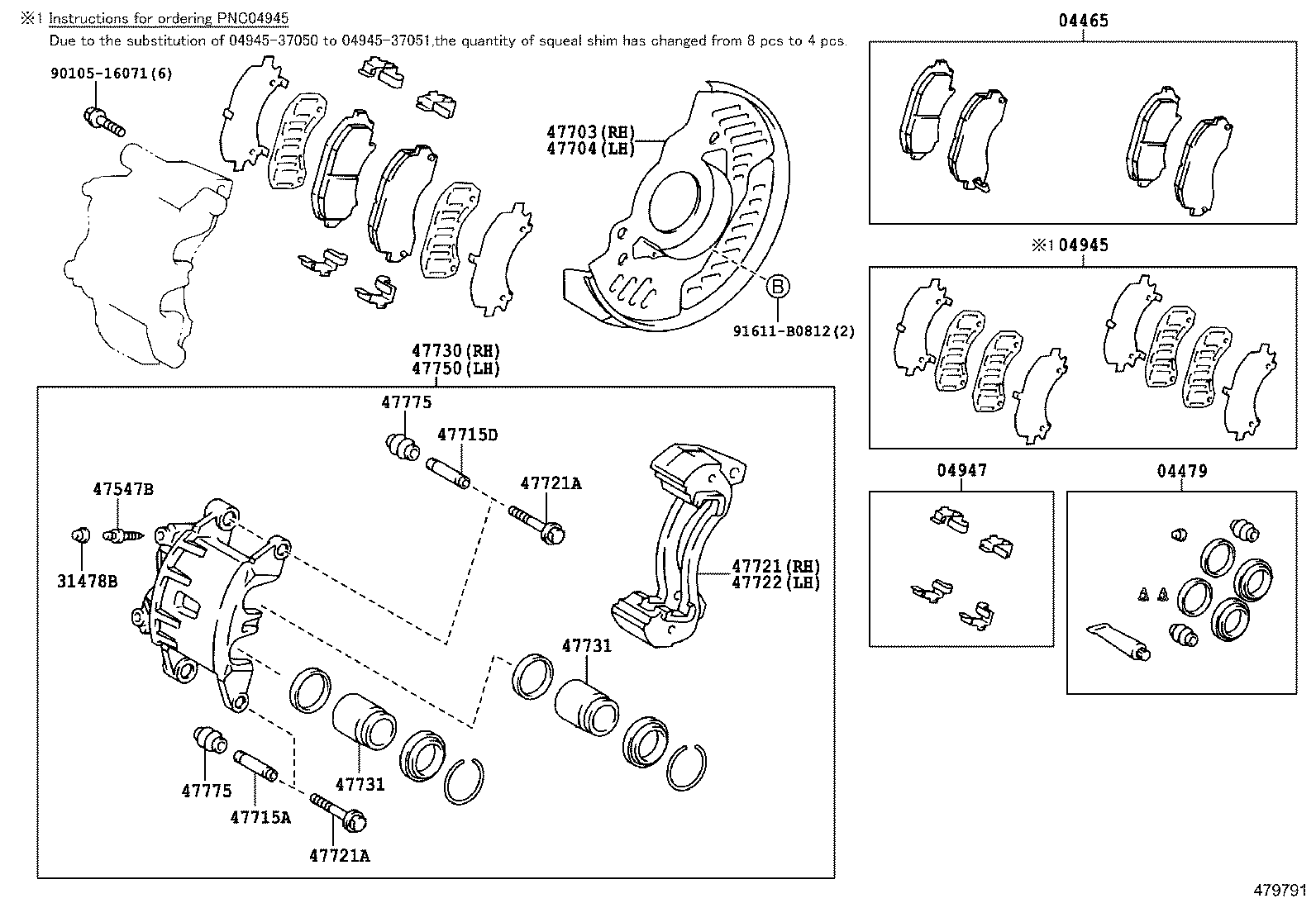

(1309- )XZU710,720,730..EUR,GCC
115.7
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-37090 |
XZU710,720,730..EUR MARK NS174 |
1 | ||
| 04465-37091 |
XZU710,720,730..EUR MARK NS174 |
1 | ||
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 0447B-37030 |
XZU710,720,730..EUR |
2 | ||
| 04945 - SHIM KIT, ANTI SQUEAL, FRONT | ||||
| 04945-37050 |
XZU710,720,730..EUR |
1 | ||
| 04945-37051 |
XZU710,720,730..EUR |
1 | ||
| 04947 - FITTING KIT, DISC BRAKE, FRONT | ||||
| 0494A-37030 |
XZU710,720,730..EUR |
2 | ||
| 31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-37030 |
XZU710,720,730..EUR |
2 | ||
| 47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47847-37030 |
XZU710,720,730..EUR |
2 | ||
| 47703 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH | ||||
| 47781-37070 |
XZU710,720,730..EUR |
1 | ||
| 47704 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH | ||||
| 47781-37070 |
XZU710,720,730..EUR |
1 | ||
| 47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE | ||||
| 47714-37120 |
XZU710,720,730..EUR |
2 | ||
| 47715D - PIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2 | ||||
| 47715-37120 |
XZU710,720,730..EUR |
2 | ||
| 47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH | ||||
| 47721-37120 |
XZU710,720,730..EUR |
1 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90105-37120 |
XZU710,720,730..EUR |
4 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90105-37120 |
XZU710,720,730..EUR |
4 | ||
| 47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH | ||||
| 47722-37120 |
XZU710,720,730..EUR |
1 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-37121 |
XZU710,720,730..EUR |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-37120 |
XZU710,720,730..EUR |
4 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-37120 |
XZU710,720,730..EUR |
4 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-37121 |
XZU710,720,730..EUR |
1 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-37121 |
XZU710,720,730..EUR |
4 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-37121 |
XZU710,720,730..EUR |
4 | ||
| Common parts | ||||
| 90105-16071 | ||||
| 91611-B0812 | ||||

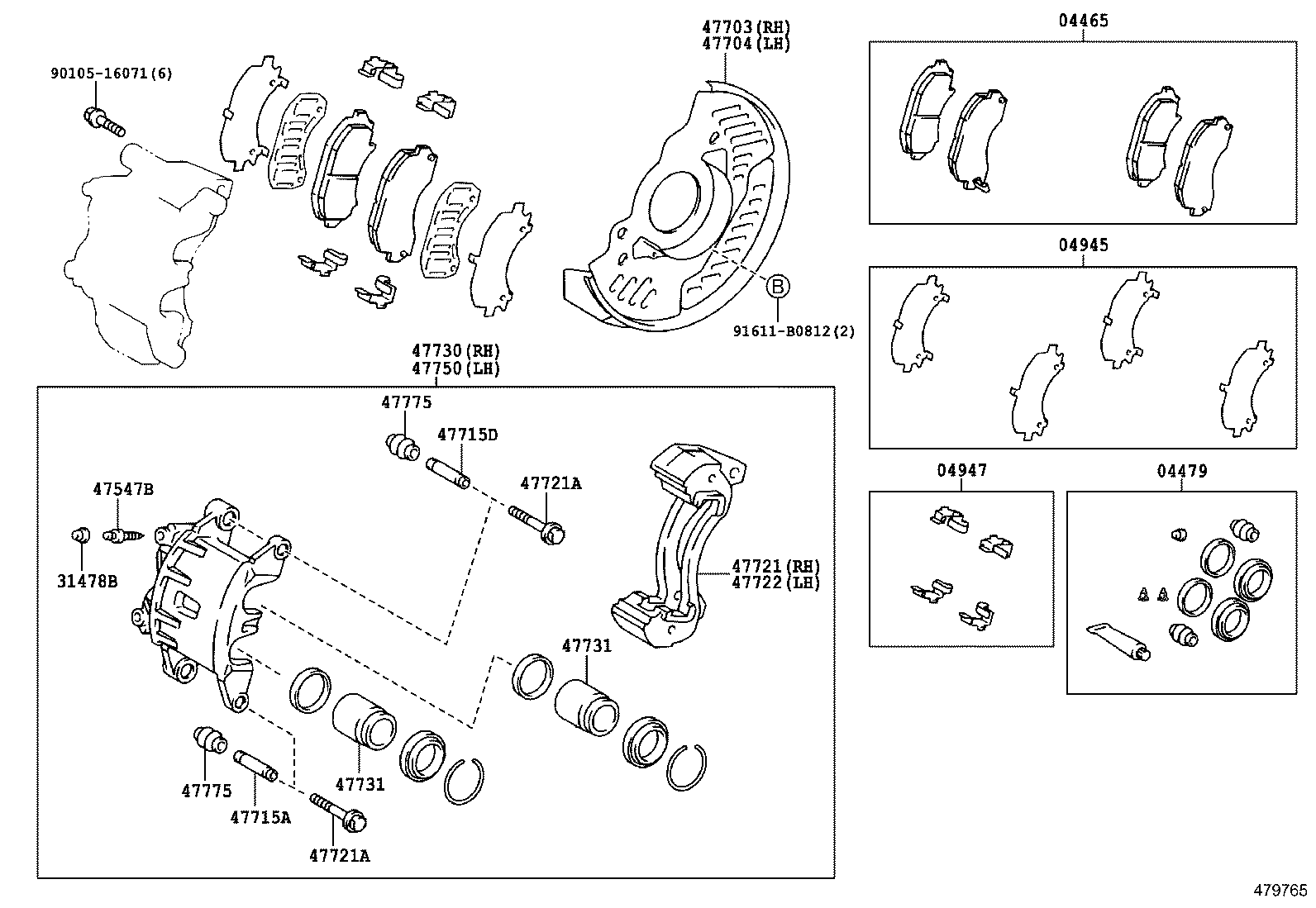

(1107-1309)XZU710,720,730
115.7
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-37090 |
XZU710,720,730..EUR MARK NS174 |
1 | ||
| 04465-37091 |
XZU710,720,730..EUR MARK NS174 |
1 | ||
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 0447B-37030 |
XZU710,720,730..EUR |
2 | ||
| 04945 - SHIM KIT, ANTI SQUEAL, FRONT | ||||
| 04945-37050 |
XZU710,720,730..EUR |
1 | ||
| 04945-37051 |
XZU710,720,730..EUR |
1 | ||
| 04947 - FITTING KIT, DISC BRAKE, FRONT | ||||
| 0494A-37030 |
XZU710,720,730..EUR |
2 | ||
| 31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-37030 |
XZU710,720,730..EUR |
2 | ||
| 47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47847-37030 |
XZU710,720,730..EUR |
2 | ||
| 47703 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH | ||||
| 47781-37070 |
XZU710,720,730..EUR |
1 | ||
| 47704 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH | ||||
| 47781-37070 |
XZU710,720,730..EUR |
1 | ||
| 47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE | ||||
| 47714-37120 |
XZU710,720,730..EUR |
2 | ||
| 47715D - PIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2 | ||||
| 47715-37120 |
XZU710,720,730..EUR |
2 | ||
| 47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH | ||||
| 47721-37120 |
XZU710,720,730..EUR |
1 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90105-37120 |
XZU710,720,730..EUR |
4 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90105-37120 |
XZU710,720,730..EUR |
4 | ||
| 47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH | ||||
| 47722-37120 |
XZU710,720,730..EUR |
1 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-37121 |
XZU710,720,730..EUR |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-37120 |
XZU710,720,730..EUR |
4 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-37120 |
XZU710,720,730..EUR |
4 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-37121 |
XZU710,720,730..EUR |
1 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-37121 |
XZU710,720,730..EUR |
4 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-37121 |
XZU710,720,730..EUR |
4 | ||
| Common parts | ||||
| 90105-16071 | ||||
| 91611-B0812 | ||||
