XZU730L-TKFRSW3 (2013)

Toyota Dyna

Production Jun 2013 - Sep 9999
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1107-1506)LHD

Click highlighted areas on diagram

diagram 4703 47201B 47207 47220D 47230 47234B 47235B 47299 8202 9017908204 91511B0614 9613341500 9613341500 9613341500 9613341500
Part # Description Qty Price
47201B - RING, O(FOR BRAKE MASTER CYLINDER)
90015-AH001

XZU710,720,730..EUR

 1
47207 - CYLINDER SUB-ASSY, BRAKE MASTER LESS RESERVOIR TANK
47207-37170

WU700,710,720,XZU710,720,730..LHD..MTM

 1
47220D - RESERVOIR ASSY, BRAKE MASTER CYLINDER
47220-37210

XZU710,720,730..EUR

 1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-37081

XZU710,720,730..EUR

 1
47234B - TUBE, RESERVOIR, NO.1
47234-37190

XZU710,720,730..EUR

 1
47235B - TUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2
47235-37180

XZU710,720,730..EUR

 1
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-37080

XZU710,720,730..EUR

 1
Common parts
90179-08204
91511-B0614
96133-41500
Linked diagrams
4703
8202

(1506- )XZU710,720..EUR,GCC ; (1506- )WU710,720,XZU730..LHD ; (1911- )XZU7

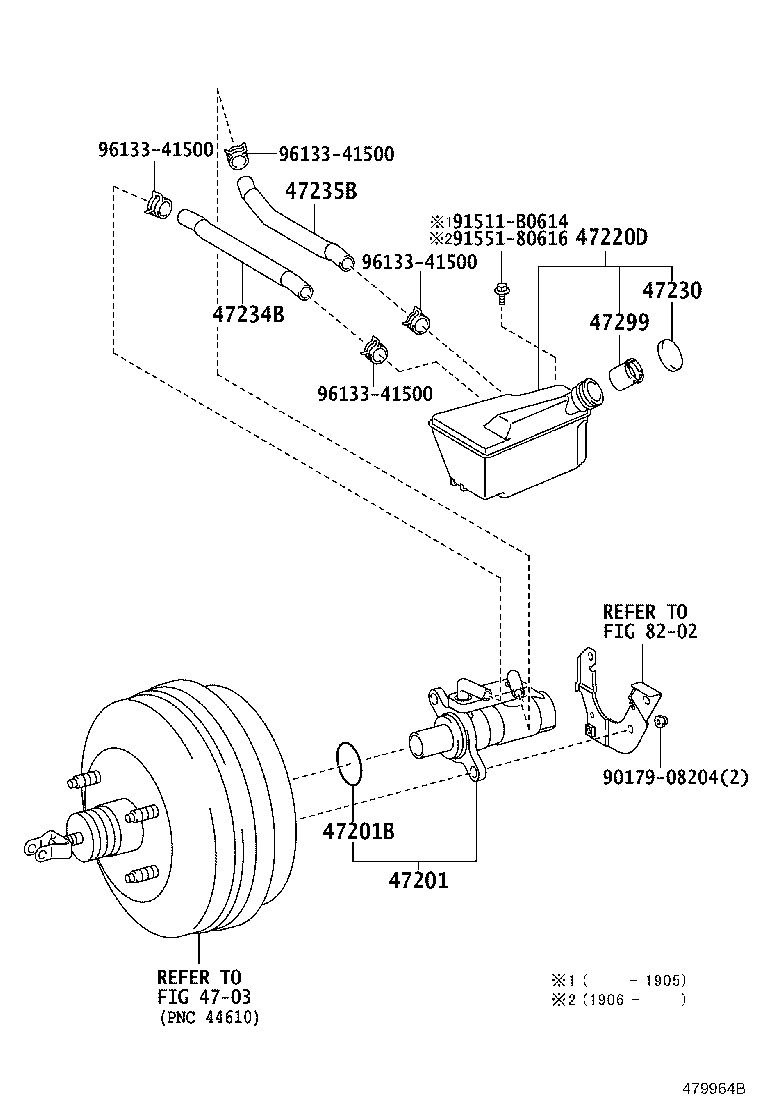

Click highlighted areas on diagram

diagram 4703 47201 47201B 47220D 47230 47234B 47235B 47299 8202 9017908204 91511B0614 9155180616 9613341500 9613341500 9613341500 9613341500
Part # Description Qty Price
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-37290

XZU710,720,730..EUR

 1
47201B - RING, O(FOR BRAKE MASTER CYLINDER)
90015-AH001

XZU710,720,730..EUR

 1
47220D - RESERVOIR ASSY, BRAKE MASTER CYLINDER
47220-37210

XZU710,720,730..EUR

 1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-37081

XZU710,720,730..EUR

 1
47234B - TUBE, RESERVOIR, NO.1
47234-37190

XZU710,720,730..EUR

 1
47235B - TUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2
47235-37180

XZU710,720,730..EUR

 1
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-37080

XZU710,720,730..EUR

 1
Common parts
90179-08204
91511-B0614
91551-80616
96133-41500
Linked diagrams
4703
8202
