XZU730L-TKFRSW3 (2013)
Toyota Dyna
Production
Jun 2013
-
Sep 9999
Engine
N04C
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1107-1505)

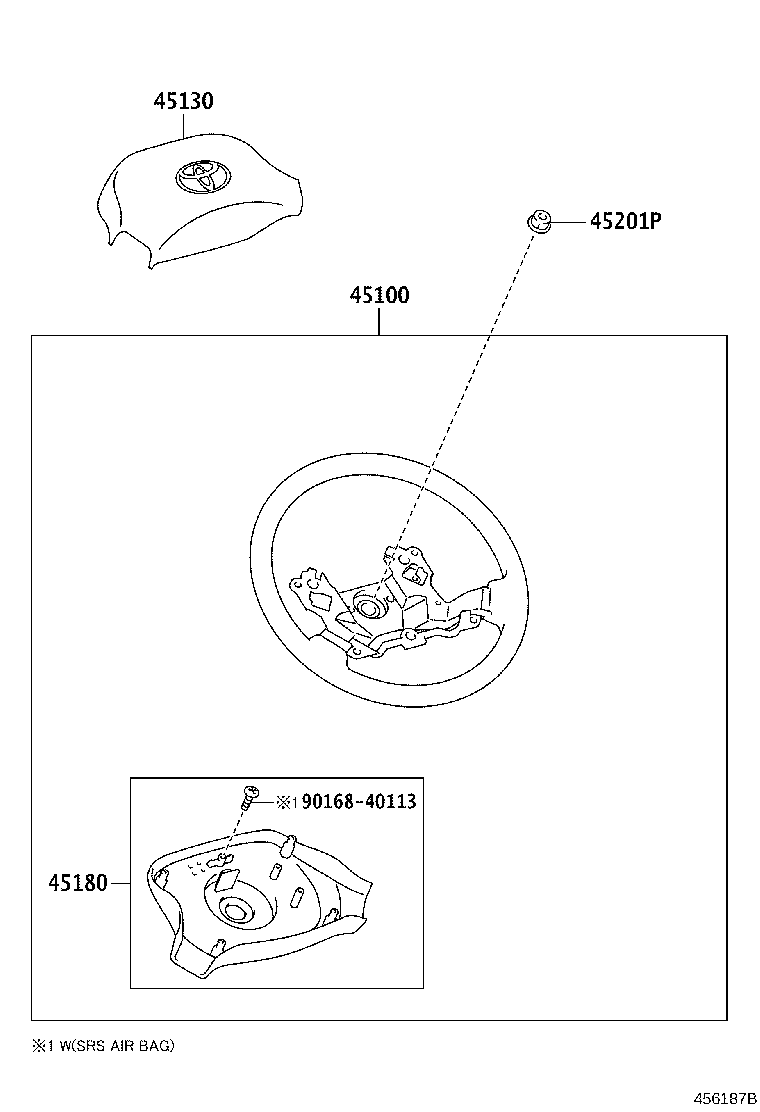

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-37060C0 |
XZU710,720,730..EUR 2-SPOKE,URETHANE,BLACK,TRIM1# |
1 | ||
| 45100-37090C0 |
XZU710,720,730..EUR 2-SPOKE,URETHANE,BLACK,TRIM1# |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-37170C0 |
XZU710,720,730..EUR BLACK,TRIM1# |
1 | ||
| 45130-37101C0 |
XZU710,720,730..EUR BLACK,TRIM1# |
1 | ||
| 45180 - COVER SUB-ASSY, STEERING WHEEL | ||||
| 45180-37020C0 |
XZU710,720,730..EUR BLACK,TRIM1# |
1 | ||
| 45180-37050C0 |
XZU710,720,730..EUR BLACK,TRIM1# |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12071 |
XZU710,720,730..EUR |
1 | ||
| Common parts | ||||
| 90149-50032 | ||||
| 90168-40113 | ||||
(1505- )MTM ; (1911- )XZU710,720..GEN

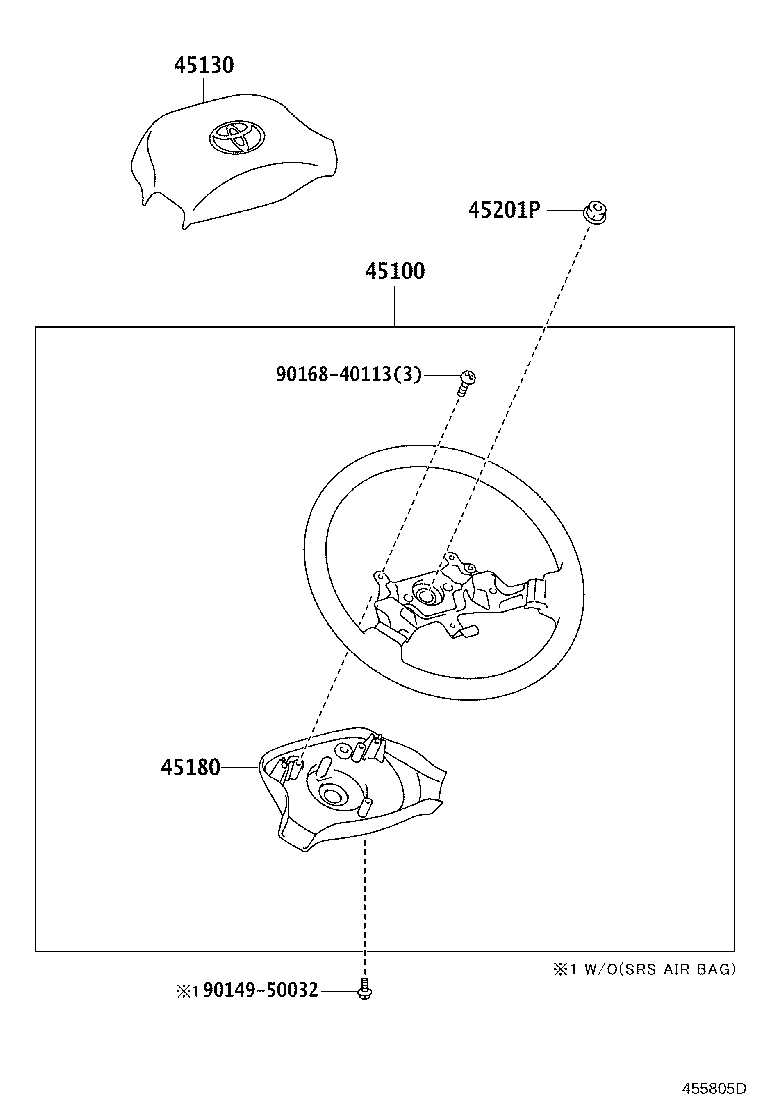

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-37060C0 |
XZU710,720,730..EUR 2-SPOKE,URETHANE,BLACK,TRIM1# |
1 | ||
| 45100-37090C0 |
XZU710,720,730..EUR 2-SPOKE,URETHANE,BLACK,TRIM1# |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-37170C0 |
XZU710,720,730..EUR BLACK,TRIM1# |
1 | ||
| 45130-37101C0 |
XZU710,720,730..EUR BLACK,TRIM1# |
1 | ||
| 45180 - COVER SUB-ASSY, STEERING WHEEL | ||||
| 45180-37020C0 |
XZU710,720,730..EUR BLACK,TRIM1# |
1 | ||
| 45180-37050C0 |
XZU710,720,730..EUR BLACK,TRIM1# |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12071 |
XZU710,720,730..EUR |
1 | ||
| Common parts | ||||
| 90168-40113 | ||||
