XZU730L-TKFRSW3 (2013)
Toyota Dyna
Production
Jun 2013
-
Sep 9999
Engine
N04C
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1306- )EUR

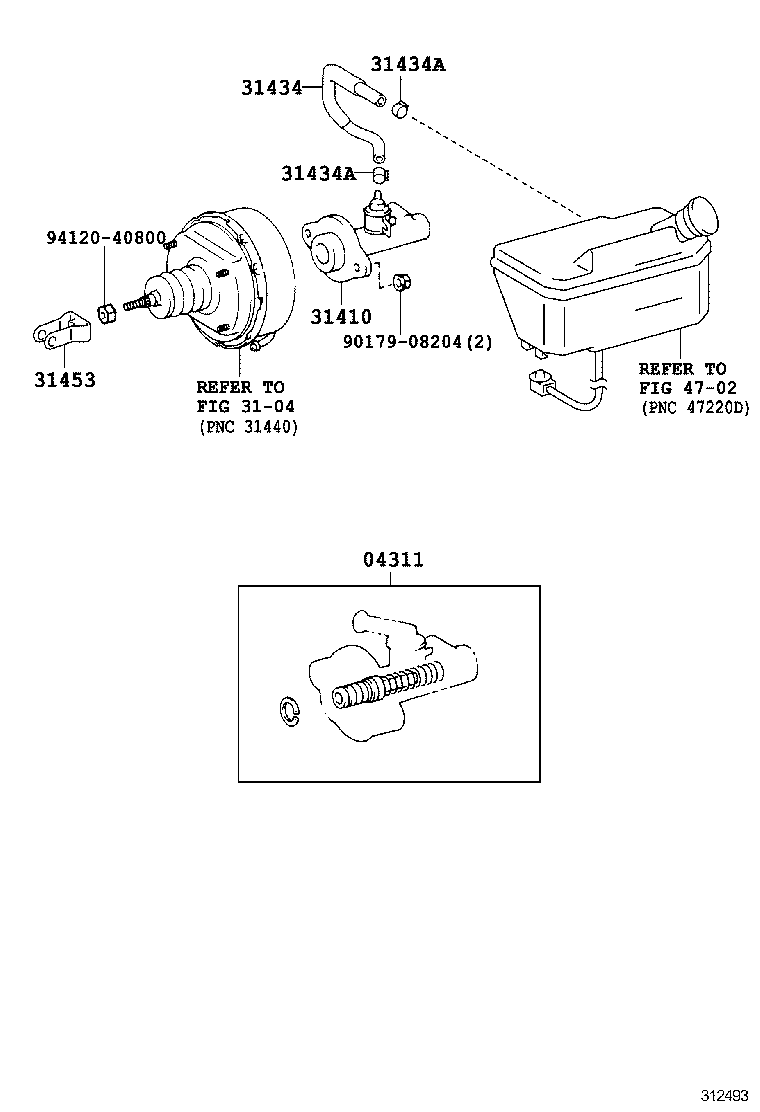

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04311 - CYLINDER KIT, CLUTCH MASTER | ||||
| 04311-37030 |
XZU710,720,730..EUR |
1 | ||
| 31410 - CYLINDER ASSY, CLUTCH MASTER | ||||
| 31401-37011 |
XZU710,720,730..EUR |
1 | ||
| 31434 - TUBE, CLUTCH RESERVOIR | ||||
| 31434-37270 |
XZU710,720,730..EUR |
1 | ||
| 31434A - CLIP(FOR CLUTCH RESERVOIR TUBE) | ||||
| 96133-41300 |
XZU710,720,730..EUR |
2 | ||
| 31434A - CLIP(FOR CLUTCH RESERVOIR TUBE) | ||||
| 96133-41300 |
XZU710,720,730..EUR |
2 | ||
| 31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD | ||||
| 31453-10040 |
XZU710,720,730..EUR |
1 | ||
| Common parts | ||||
| 90179-08204 | ||||
| 94120-40800 | ||||
| Linked diagrams | ||||
| 3104 | ||||
| 4702 | ||||
