XZU730L-TKFRSW3 (2013)
Toyota Dyna

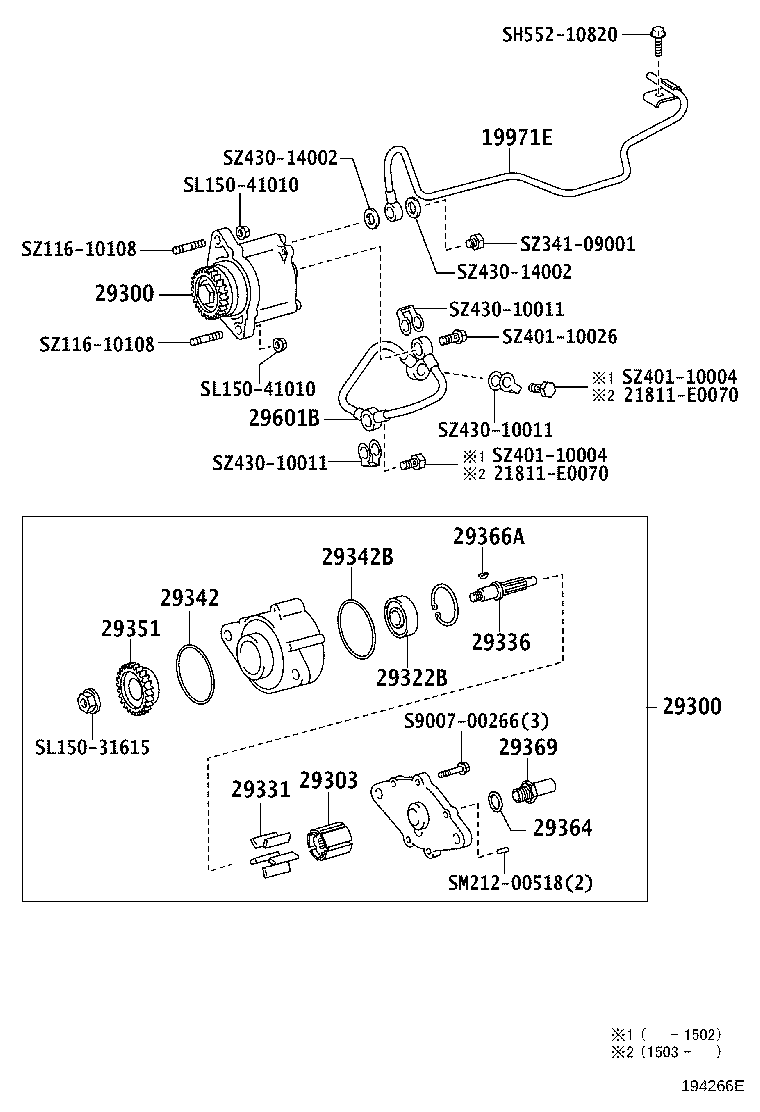

(1309-1506)N04C ; (1503- )N04C..XZU710..DCB ;(1605- )N04C..XZU710,720..SCB..
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19971E - PIPE, VACUUM | ||||
| 87207-E0123 |
N04C..XZU710,720,730..EUR |
1 | ||
| 29300 - PUMP ASSY, VACUUM | ||||
| 29300-E0051 |
N04C..XZU710,720,730 |
1 | ||
| 29300-E0090 |
N04C..XZU710,720,730..EUR |
1 | ||
| 29300 - PUMP ASSY, VACUUM | ||||
| 29300-E0051 |
N04C..XZU710,720,730 |
1 | ||
| 29300-E0090 |
N04C..XZU710,720,730..EUR |
1 | ||
| 29303 - ROTOR SUB-ASSY, VACUUM PUMP | ||||
| S2930-31020 |
N04C..XZU710,720,730..IV3 |
1 | ||
| 29303-EV020 |
N04C..XZU710,720,730..EUR |
1 | ||
| 29322B - BEARING, VACUUM PUMP | ||||
| S2917-21160 |
N04C..XZU710,720,730..IV3 |
1 | ||
| 29331 - BLADE, VACUUM PUMP, A | ||||
| 29331-EV020 |
N04C..XZU710,720,730..EUR |
5 | ||
| S2933-11100 |
N04C..XZU710,720,730..IV3 |
5 | ||
| 29336 - SHAFT, VACUUM PUMP | ||||
| S2933-61030 |
N04C..XZU710,720,730..IV3 |
1 | ||
| 29342 - PACKING, VACUUM PUMP | ||||
| SZ010-46050 |
N04C..XZU710,720,730..IV3 |
1 | ||
| 29343-EV030 |
N04C..XZU710,720,730..EUR |
1 | ||
| 29342B - RING, O | ||||
| SZ010-46051 |
N04C..XZU710,720,730..IV3 |
1 | ||
| 29351 - GEAR, VACUUM PUMP | ||||
| S1363-31050 |
N04C..XZU710,720,730..IV3 |
1 | ||
| 29364 - WASHER, VACUUM PUMP | ||||
| 29364-66010 |
N04C..XZU710,720,730..EUR |
1 | ||
| 29366A - KEY, VACUUM PUMP | ||||
| SM161-00413 |
N04C..XZU710,720,730..IV3 |
1 | ||
| 29369 - VALVE SUB-ASSY, CHECK | ||||
| S2930-11270 |
N04C..XZU710,720,730..IV3 |
1 | ||
| 29369-EV060 |
N04C..XZU710,720,730..EUR |
1 | ||
| 29601B - PIPE SUB-ASSY, OIL(FOR VACUUM PUMP) | ||||
| 29601-E0320 |
N04C..XZU710,720,730..EUR |
1 | ||
| Common parts | ||||
| 21811-E0070 | ||||
| S9007-00266 | ||||
| SH552-10820 | ||||
| SL150-31615 | ||||
| SL150-41010 | ||||
| SM212-00518 | ||||
| SZ116-10108 | ||||
| SZ341-09001 | ||||
| SZ401-10004 | ||||
| SZ401-10026 | ||||
| SZ430-10011 | ||||
| SZ430-14002 | ||||

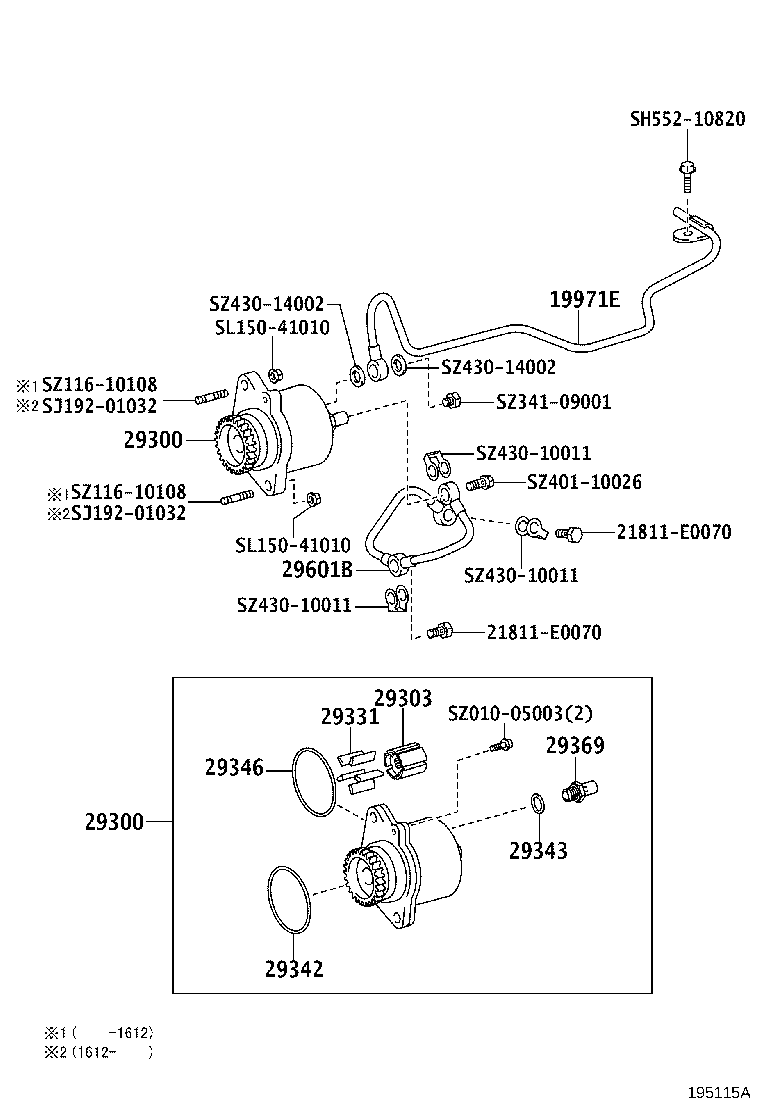

(1506- )N04C..EUR,GCC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19971E - PIPE, VACUUM | ||||
| 87207-E0123 |
N04C..XZU710,720,730..EUR |
1 | ||
| 29300 - PUMP ASSY, VACUUM | ||||
| 29300-E0051 |
N04C..XZU710,720,730 |
1 | ||
| 29300-E0090 |
N04C..XZU710,720,730..EUR |
1 | ||
| 29300 - PUMP ASSY, VACUUM | ||||
| 29300-E0051 |
N04C..XZU710,720,730 |
1 | ||
| 29300-E0090 |
N04C..XZU710,720,730..EUR |
1 | ||
| 29303 - ROTOR SUB-ASSY, VACUUM PUMP | ||||
| S2930-31020 |
N04C..XZU710,720,730..IV3 |
1 | ||
| 29303-EV020 |
N04C..XZU710,720,730..EUR |
1 | ||
| 29331 - BLADE, VACUUM PUMP, A | ||||
| 29331-EV020 |
N04C..XZU710,720,730..EUR |
5 | ||
| S2933-11100 |
N04C..XZU710,720,730..IV3 |
5 | ||
| 29342 - PACKING, VACUUM PUMP | ||||
| SZ010-46050 |
N04C..XZU710,720,730..IV3 |
1 | ||
| 29343-EV030 |
N04C..XZU710,720,730..EUR |
1 | ||
| 29343 - RING, O VACUUM PUMP, NO.1 | ||||
| 29342-EV010 |
N04C..XZU710,720,730..EUR |
1 | ||
| 29346 - RING, O VACUUM PUMP COVER | ||||
| 29346-EV010 |
N04C..XZU710,720,730..EUR |
1 | ||
| 29369 - VALVE SUB-ASSY, CHECK | ||||
| S2930-11270 |
N04C..XZU710,720,730..IV3 |
1 | ||
| 29369-EV060 |
N04C..XZU710,720,730..EUR |
1 | ||
| 29601B - PIPE SUB-ASSY, OIL(FOR VACUUM PUMP) | ||||
| 29601-E0320 |
N04C..XZU710,720,730..EUR |
1 | ||
| Common parts | ||||
| 21811-E0070 | ||||
| SH552-10820 | ||||
| SJ192-01032 | ||||
| SL150-41010 | ||||
| SZ010-05003 | ||||
| SZ116-10108 | ||||
| SZ341-09001 | ||||
| SZ401-10026 | ||||
| SZ430-10011 | ||||
| SZ430-14002 | ||||
