XZU730L-TKFRSW3 (2013)

Toyota Dyna

Production Jun 2013 - Sep 9999
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1107-1505)N04C,W04D..WU700,720,XZU710..SCB..65T; (1107- )W04D..65T ; (1107-

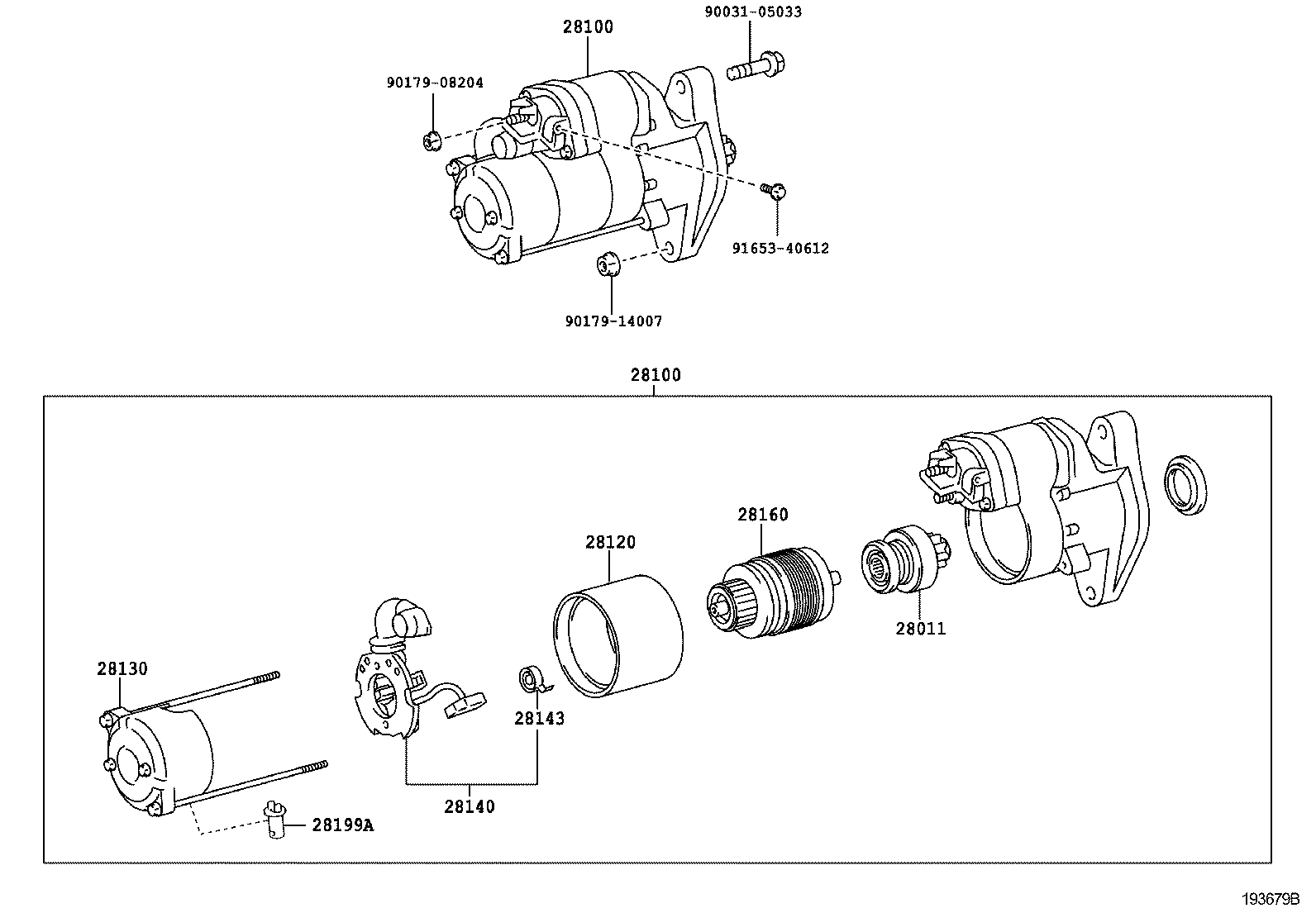

Click highlighted areas on diagram

24V 4.5KW

diagram 28011 28100 28100 28120 28140 28143 28150 28160 28170 9003105033 9017908204 9017914007 9165340612
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-78111

N04C..XZU710,720,730..EUR

 1
28100 - STARTER ASSY
28100-78113

N04C..XZU710,720,730..EUR

24V 5.0KW

 1
28100 - STARTER ASSY
28100-78113

N04C..XZU710,720,730..EUR

24V 5.0KW

 1
28120 - YOKE ASSY, STARTER
28120-78111

N04C..XZU710,720,730..EUR

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-78110

N04C..XZU710,720,730..EUR

 1
28143 - SPRING, STARTER BRUSH
S2814-31200

N04C..XZU710,720,730..EUR

 4
28160 - ARMATURE ASSY, STARTER
28160-78110

N04C..XZU710,720,730..EUR

 1
Common parts
90031-05033
90179-08204
90179-14007
91653-40612

(1107-1505)W04D..WU710..85T..CBU ; (1107- )N04C..EUR,GCC

Click highlighted areas on diagram

24V 5.0KW

diagram 28011 28100 28100 28120 28130 28140 28143 28160 28199A 9003105033 9017908204 9017914007 9165340612
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-78111

N04C..XZU710,720,730..EUR

 1
28100 - STARTER ASSY
28100-78113

N04C..XZU710,720,730..EUR

24V 5.0KW

 1
28100 - STARTER ASSY
28100-78113

N04C..XZU710,720,730..EUR

24V 5.0KW

 1
28120 - YOKE ASSY, STARTER
28120-78111

N04C..XZU710,720,730..EUR

 1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-78110

N04C..XZU710,720,730..EUR

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-78110

N04C..XZU710,720,730..EUR

 1
28143 - SPRING, STARTER BRUSH
S2814-31200

N04C..XZU710,720,730..EUR

 4
28160 - ARMATURE ASSY, STARTER
28160-78110

N04C..XZU710,720,730..EUR

 1
28199A - PROTECTOR, DUST STARTER
S2819-91100

N04C..XZU710,720,730..EUR

 2
Common parts
90031-05033
90179-08204
90179-14007
91653-40612

(1107-1505)N04C,W04D..WU710,XZU710..6F,6FC..CBU; (1107- )W04D..WU710..75T ; (11

Click highlighted areas on diagram

24V 4.5KW

diagram 28011 28011A 28100 28110 28118 28120 28130 28138 28139 28140 28150 28160 28160A 28160B 28165 28199 28199A 28222 28228A 28229 28254 9003105033 9009221001 9009900158 9009900254 9009902205 9009902325 9009904207 9017910195 9017914007 9020110344 9321915008 9451100500
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-78111

N04C..XZU710,720,730..EUR

 1
28100 - STARTER ASSY
28100-78113

N04C..XZU710,720,730..EUR

24V 5.0KW

 1
28120 - YOKE ASSY, STARTER
28120-78111

N04C..XZU710,720,730..EUR

 1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-78110

N04C..XZU710,720,730..EUR

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-78110

N04C..XZU710,720,730..EUR

 1
28160 - ARMATURE ASSY, STARTER
28160-78110

N04C..XZU710,720,730..EUR

 1
28199A - PROTECTOR, DUST STARTER
S2819-91100

N04C..XZU710,720,730..EUR

 2
Common parts
90031-05033
90092-21001
90099-00158
90099-00254
90099-02205
90099-02325
90099-04207
90179-10195
90179-14007
90201-10344
93219-15008
94511-00500
