XZU730L-TKFRSW3 (2013)

Toyota Dyna

Production Jun 2013 - Sep 9999
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1306- )N04C

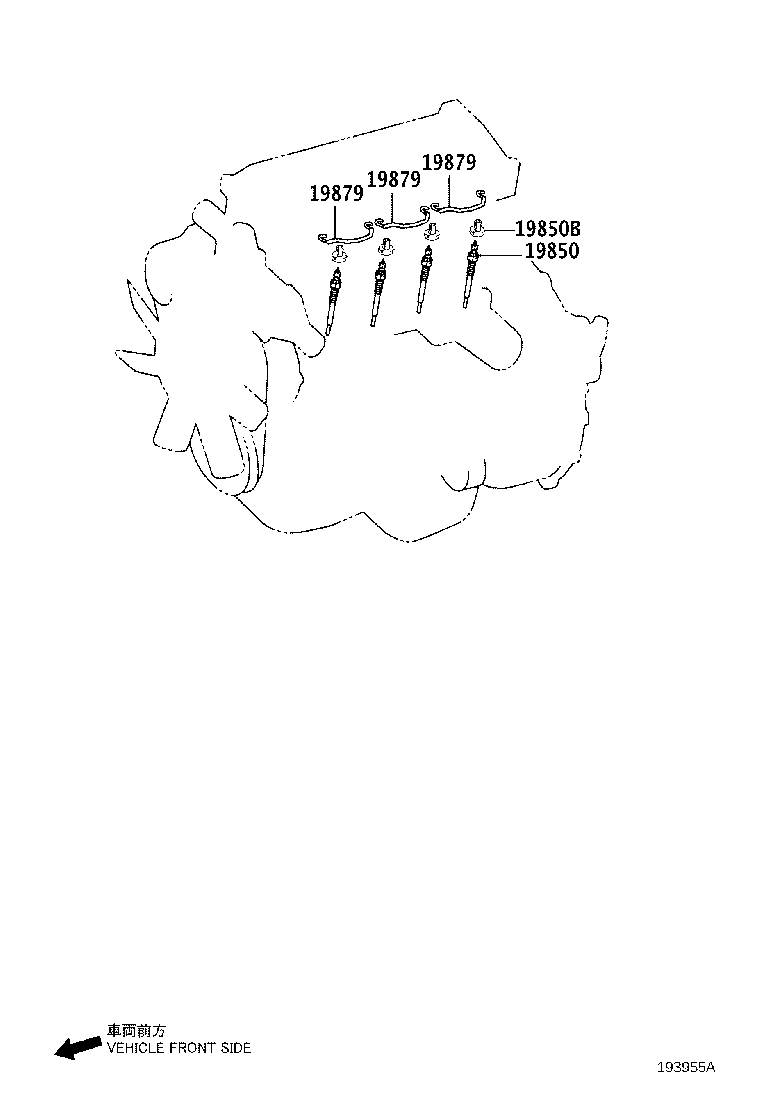

Click highlighted areas on diagram

W(GLOW PLUG)

diagram 19850 19850B 19879 19879 19879
Part # Description Qty Price
19850 - PLUG ASSY, GLOW
19850-E0030

N04C..XZU710,720,730..EUR

*BV-GV=24V-23V,GLOW PLUG-WITH

 4
19850B - GROMMET, SCREW(FOR GLOW PLUG)
S1911-31050

N04C..XZU710,720,730..EUR

GLOW PLUG-WITH

 4
19879 - WIRE, GLOW PLUG GROUND
S1911-21230

N04C..XZU710,720,730..EUR

GLOW PLUG-WITH

 3
19879 - WIRE, GLOW PLUG GROUND
S1911-21230

N04C..XZU710,720,730..EUR

GLOW PLUG-WITH

 3
19879 - WIRE, GLOW PLUG GROUND
S1911-21230

N04C..XZU710,720,730..EUR

GLOW PLUG-WITH

 3
