XZU730L-TKFRSW3 (2013)

Toyota Dyna

Production Jun 2013 - Sep 9999
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1306- )N04C..EUR

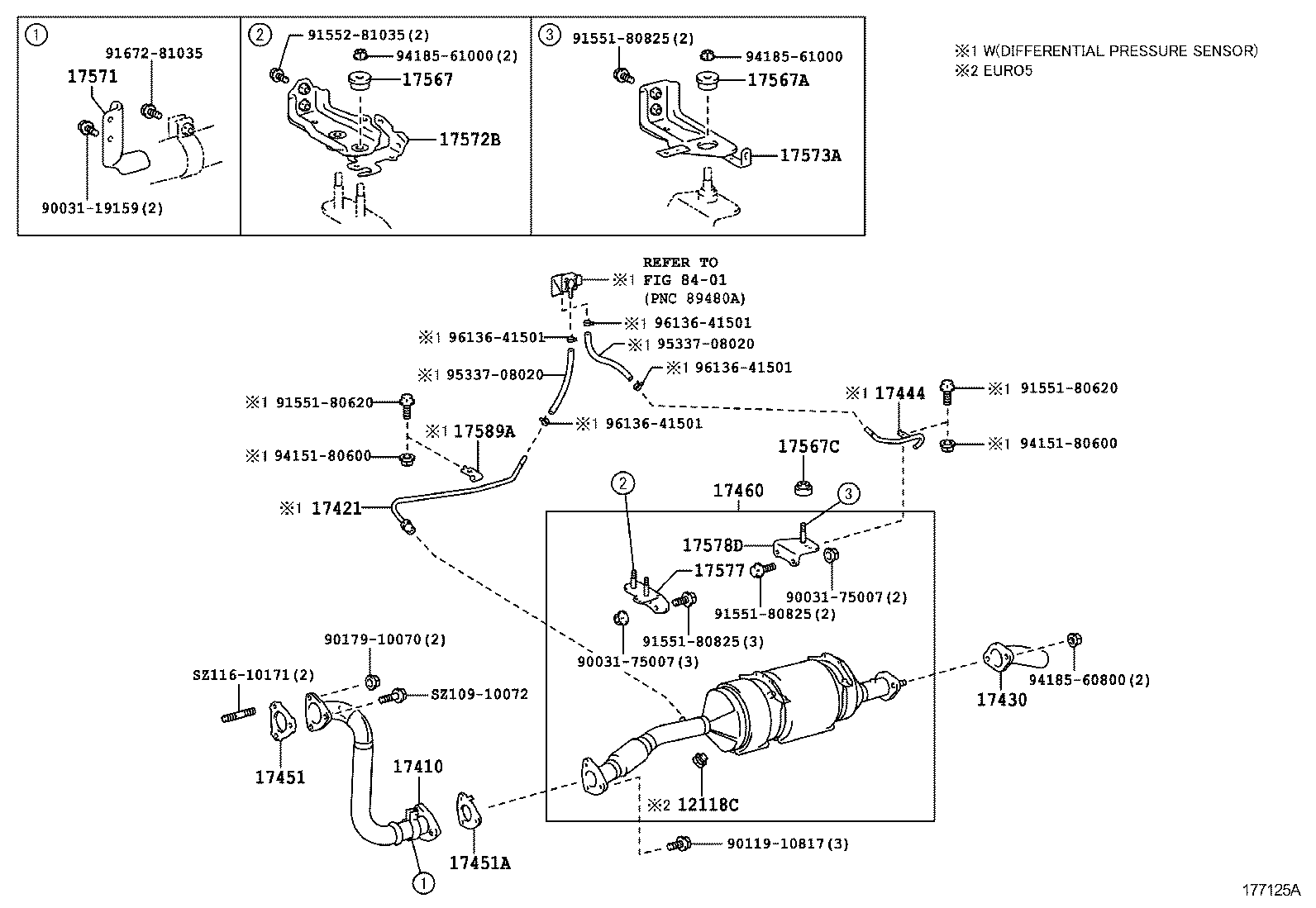

Click highlighted areas on diagram

diagram 12118C 17410 17421 17430 17444 17451 17451A 17460 17567 17567A 17567C 17571 17572B 17573A 17577 17578D 17589A 8401 9003119159 9003175007 9003175007 9011910817 9017910070 9155180620 9155180620 9155180825 9155180825 9155180825 9155281035 9167281035 9415180600 9415180600 9418560800 9418561000 9418561000 9533708020 9533708020 9613641501 9613641501 9613641501 9613641501 SZ10910072 SZ11610171
Part # Description Qty Price
12118C - PLUG, DRAIN
12118-78010

N04C..XZU710,720,730..EUR

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-E0720

N04C..XZU710,720,730..EUR

 1
17421 - PIPE, EXHAUST, NO.2
17421-78230

N04C..XZU710,720,730..EUR

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17405-78G90

N04C..XZU730

 1
17444 - PIPE, EXHAUST, NO.4
17444-78080

N04C..XZU710,720,730..EUR

 1
17451 - GASKET, EXHAUST PIPE
17451-E0110

N04C..XZU710,720,730..EUR

 1
17451A - GASKET, EXHAUST PIPE, NO.2
17451-78060

N04C..XZU710,720,730..EUR

 1
17460 - CONVERTER ASSY, CATALYTIC W/PIPE
17406-78431

N04C..XZU710,720,730..EUR

*114=TOYOTA/7829/Y

 1
17406-78430

N04C..XZU710,720,730..EUR

*114=TOYOTA/7833/Y

 1
17567 - CUSHION, EXHAUST PIPE SUPPORT
17567-78030

N04C..XZU710,720,730..EUR

 2
17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2
17567-78030

N04C..XZU710,720,730..EUR

 1
17567C - CUSHION, EXHAUST PIPE SUPPORT, NO.4
17567-78040

N04C..XZU710,720,730..EUR

 1
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-E0480

N04C..XZU710,720,730..EUR

 1
17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2
17572-78330

N04C..XZU710,720,730..EUR

 1
17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3
17573-78420

N04C..XZU710,720,730..EUR

 1
17577 - BRACKET, EXHAUST PIPE SUPPORT, NO.7
17577-78080

N04C..XZU710,720,730..EUR

 1
17578D - BRACKET, EXHAUST PIPE SUPPORT, NO.8
17578-78180

N04C..XZU710,720,730..EUR

 1
17589A - CLAMP, EXHAUST PIPE
17589-78021

N04C..XZU710,720,730..EUR

 1
Common parts
90031-19159
90031-75007
90119-10817
90179-10070
91551-80620
91551-80825
91552-81035
91672-81035
94151-80600
94185-60800
94185-61000
95337-08020
96136-41501
SZ109-10072
SZ116-10171
Linked diagrams
8401
