XZU730L-TKFRSW3 (2013)

Toyota Dyna

Production Jun 2013 - Sep 9999
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(1306- )N04C..EUR

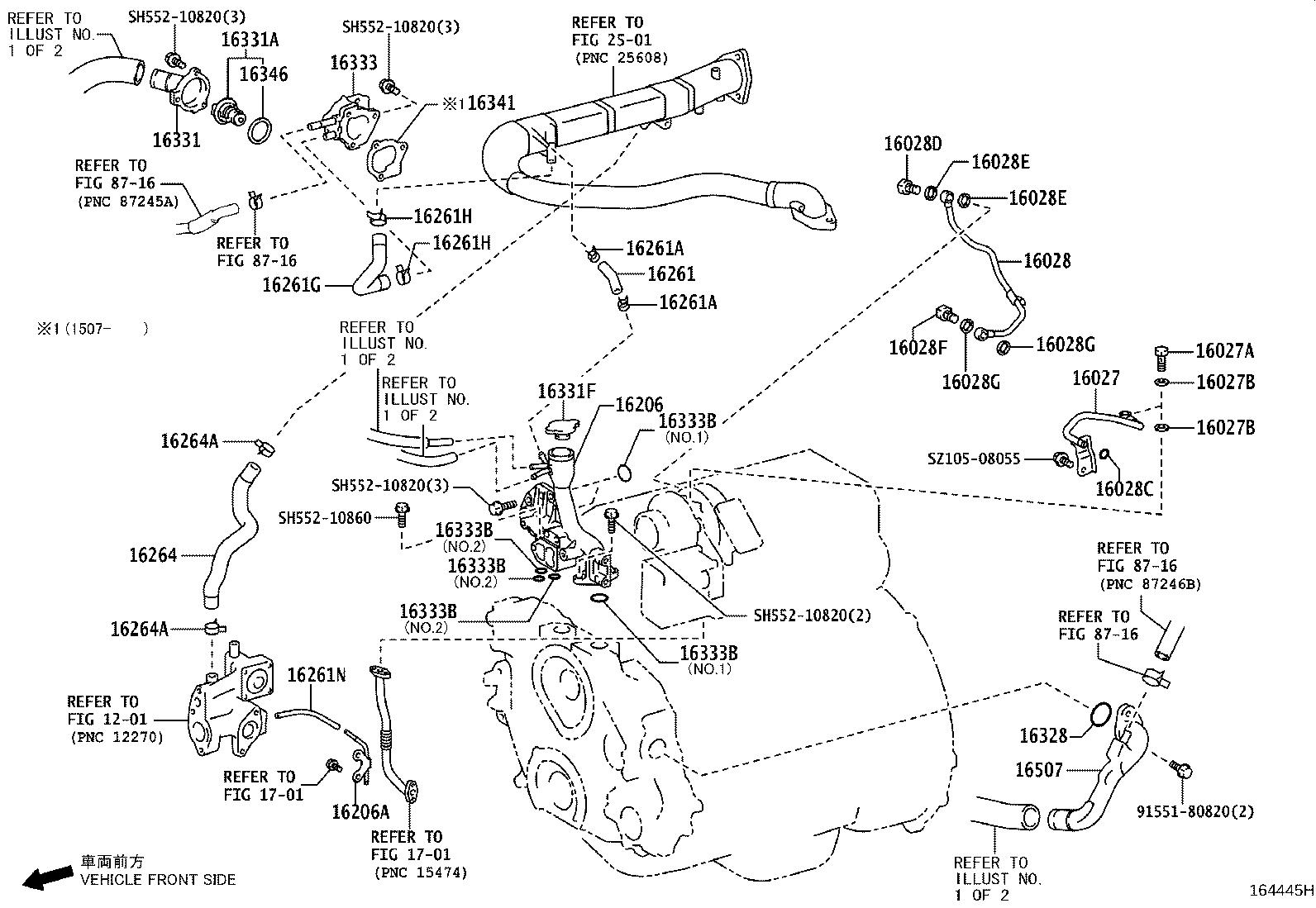

Click highlighted areas on diagram

diagram 1201 16027 16027A 16027B 16027B 16028 16028C 16028D 16028E 16028E 16028F 16028G 16028G 16206 16206A 16261 16261A 16261A 16261G 16261H 16261H 16261N 16264 16264A 16264A 16328 16331 16331A 16331F 16333 16333B 16333B 16333B 16333B 16333B 16341 16346 16507 1701 1701 2501 8716 8716 8716 8716 9155180820 SH55210820 SH55210820 SH55210820 SH55210820 SH55210860 SZ10508055
Part # Description Qty Price
16027 - PIPE SUB-ASSY, TURBO WATER, NO.1
16895-E0180

N04C..XZU710,720,730..EUR

 1
16027A - BOLT, UNION(FOR TURBO WATER PIPE)
SZ401-12001

N04C..XZU710,720,730..EUR

 1
16027B - GASKET(FOR TURBO WATER PIPE)
SZ430-12005

N04C..XZU710,720,730..EUR

 2
16027B - GASKET(FOR TURBO WATER PIPE)
SZ430-12005

N04C..XZU710,720,730..EUR

 2
16028 - PIPE SUB-ASSY, TURBO WATER, NO.2
16895-E0170

N04C..XZU710,720,730..EUR

 1
16028C - RING, O(FOR TURBO WATER PIPE)
SN732-00092

N04C..XZU710,720,730..EUR

 1
16028D - BOLT, UNION, NO.1(FOR TURBO WATER PIPE)
SZ401-12001

N04C..XZU710,720,730..EUR

 1
16028E - GASKET, NO.1(FOR TURBO WATER PIPE)
SZ430-12005

N04C..XZU710,720,730..EUR

 2
16028E - GASKET, NO.1(FOR TURBO WATER PIPE)
SZ430-12005

N04C..XZU710,720,730..EUR

 2
16028F - BOLT, UNION, NO.2(FOR TURBO WATER PIPE)
SZ401-14004

N04C..XZU710,720,730..EUR

 1
16028G - GASKET, NO.2(FOR TURBO WATER PIPE)
SZ430-14003

N04C..XZU710,720,730..EUR

 2
16028G - GASKET, NO.2(FOR TURBO WATER PIPE)
SZ430-14003

N04C..XZU710,720,730..EUR

 2
16206 - PIPE SUB-ASSY, WATER BY-PASS
16206-78461

N04C..XZU710,720,730..EUR

 1
16206A - PIPE SUB-ASSY, WATER BY-PASS, NO.2
S1608-75320

N04C..XZU710,720,730..EUR

 1
16261 - HOSE, WATER BY-PASS
SZ920-34333

N04C..XZU710,720,730..EUR

L=59

 1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
SZ466-13007

N04C..XZU710,720,730..EUR

 2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
SZ466-13007

N04C..XZU710,720,730..EUR

 2
16261G - HOSE, WATER BY-PASS, NO.1
87245-E0C20

N04C..XZU710,720,730..EUR

 1
16261H - CLIP(FOR WATER BY-PASS HOSE NO.1)
SZ466-26001

N04C..XZU710,720,730..EUR

 2
16261H - CLIP(FOR WATER BY-PASS HOSE NO.1)
SZ466-26001

N04C..XZU710,720,730..EUR

 2
16261N - HOSE, WATER BY-PASS, NO.2
SZ920-34294

N04C..XZU710,720,730..EUR

 1
16264 - HOSE, WATER BY-PASS, NO.2
87245-E0C12

N04C..XZU710,720,730..EUR

 1
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
SZ466-26001

N04C..XZU710,720,730..EUR

 2
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
SZ466-26001

N04C..XZU710,720,730..EUR

 2
16328 - GASKET, WATER INLET PIPE
16328-78010

N04C..XZU710,720,730..EUR

 1
16331 - OUTLET, WATER
16331-E0111

N04C..XZU710,720,730..EUR

 1
16331A - THERMOSTAT
S1632-E9280

N04C..XZU710,720,730..EUR

*WAX 82-95

 1
S1632-E9070

N04C..XZU710,720,730

*WAX 82-95

 1
16331F - CAP SUB-ASSY(FOR WATER OUTLET)
16401-E0051

N04C..XZU710,720,730..EUR

 1
16333 - HOUSING, WATER OUTLET
16303-E0621

N04C..XZU710,720,730..EUR

W/O(PNC 16341)

 1
16303-E0622

N04C..XZU710,720,730..EUR

W(PNC 16341)

 1
16333B - RING, O(FOR WATER OUTLET HOUSING)
SZ301-31011

N04C..XZU710,720,730..EUR

NO.1

 3
SZ301-19015

N04C..XZU710,720,730..EUR

NO.2

 3
16333B - RING, O(FOR WATER OUTLET HOUSING)
SZ301-31011

N04C..XZU710,720,730..EUR

NO.1

 3
SZ301-19015

N04C..XZU710,720,730..EUR

NO.2

 3
16333B - RING, O(FOR WATER OUTLET HOUSING)
SZ301-31011

N04C..XZU710,720,730..EUR

NO.1

 3
SZ301-19015

N04C..XZU710,720,730..EUR

NO.2

 3
16333B - RING, O(FOR WATER OUTLET HOUSING)
SZ301-31011

N04C..XZU710,720,730..EUR

NO.1

 3
SZ301-19015

N04C..XZU710,720,730..EUR

NO.2

 3
16333B - RING, O(FOR WATER OUTLET HOUSING)
SZ301-31011

N04C..XZU710,720,730..EUR

NO.1

 3
SZ301-19015

N04C..XZU710,720,730..EUR

NO.2

 3
16341 - GASKET, WATER OUTLET
16346-E0040

N04C..XZU710,720,730..EUR

 1
16346 - GASKET, THERMOSTAT
S1632-51420

N04C..XZU710,720,730..EUR

 1
16507 - PIPE SUB-ASSY, RADIATOR
16507-78010

N04C..XZU710,720,730..EUR

 1
