XZU730L-TKFRSW3 (2013)

Toyota Dyna

Production Jun 2013 - Sep 9999
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

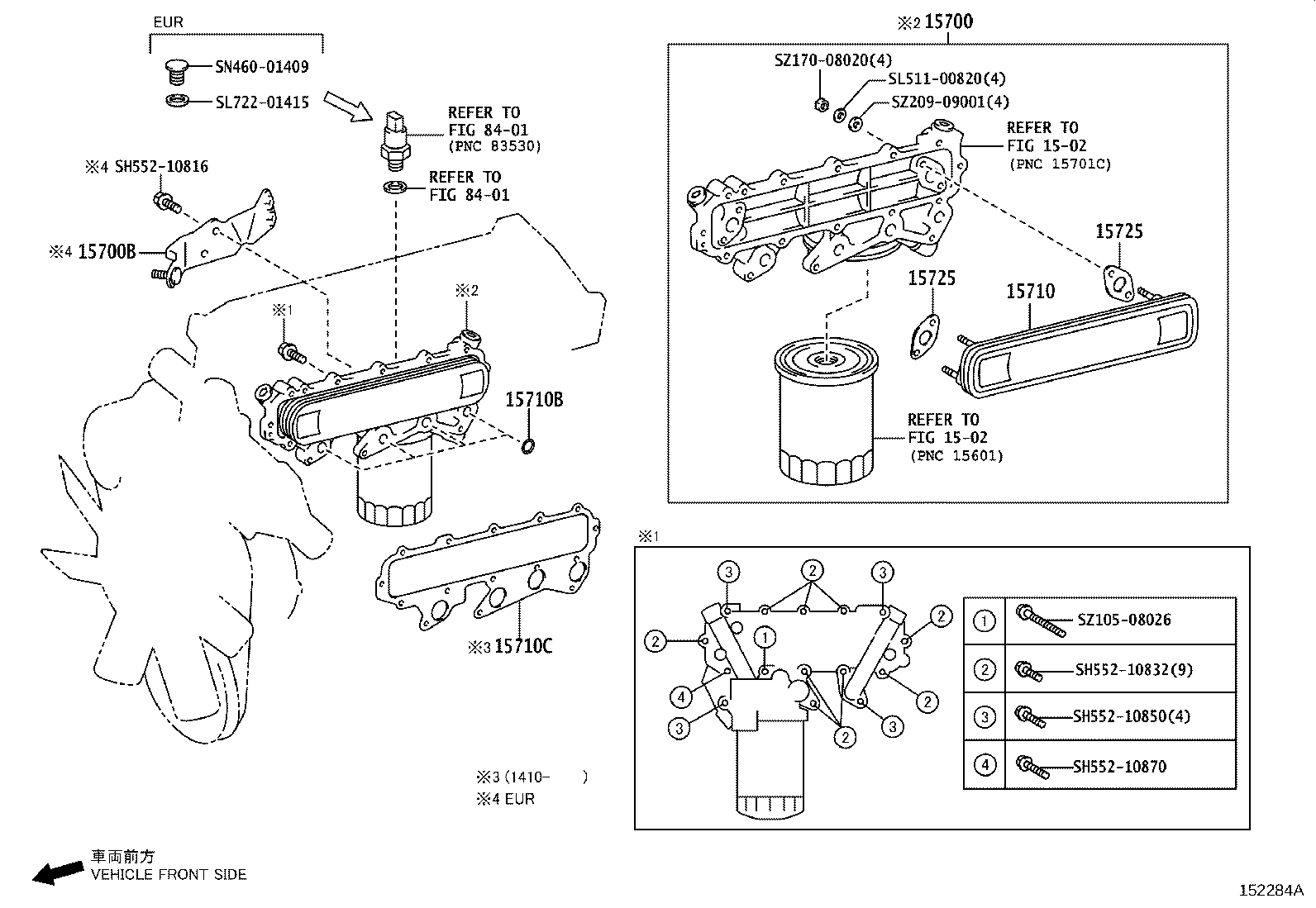

(1107-1605)N04C

Click highlighted areas on diagram

diagram 1502 1502 15700 15700B 15710 15710B 15710C 15725 15725 8401 8401 SH55210816 SH55210832 SH55210850 SH55210870 SL51100820 SL72201415 SN46001409 SZ10508026 SZ17008020 SZ20909001
Part # Description Qty Price
15700B - BRACKET(FOR OIL COOLER)
16269-78030

N04C..XZU710,720,730..EUR

 1
15710B - RING, O(FOR OIL COOLER)
SZ301-19015

N04C..XZU710,720,730

W/O(PNC 15710C)

 4
SZ301-19018

N04C..XZU710,720,730..EUR

W(PNC 15710C)

 4
15710C - GASKET(FOR OIL COOLER)
15725-E0020

N04C..XZU710,720,730..EUR

 1
Common parts
SH552-10816
SH552-10832
SH552-10850
SH552-10870
SL511-00820
SL722-01415
SN460-01409
SZ105-08026
SZ170-08020
SZ209-09001
Linked diagrams
1502
8401

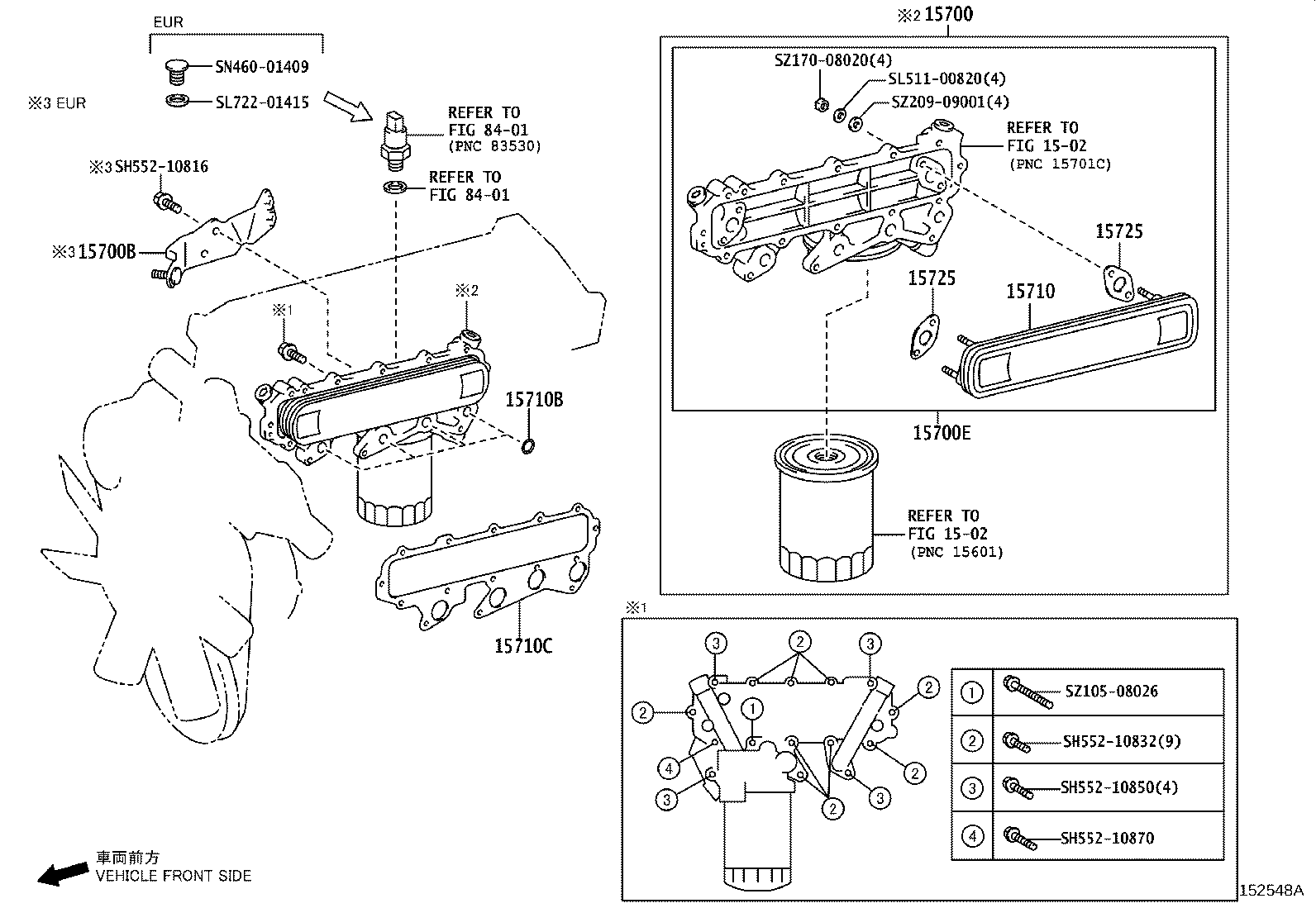

(1605- )N04C..EUR,GCC

Click highlighted areas on diagram

diagram 1502 1502 15700 15700B 15700E 15710 15710B 15710C 15725 15725 8401 8401 SH55210816 SH55210832 SH55210850 SH55210870 SL51100820 SL72201415 SN46001409 SZ10508026 SZ17008020 SZ20909001
Part # Description Qty Price
15700B - BRACKET(FOR OIL COOLER)
16269-78030

N04C..XZU710,720,730..EUR

 1
15710B - RING, O(FOR OIL COOLER)
SZ301-19015

N04C..XZU710,720,730

W/O(PNC 15710C)

 4
SZ301-19018

N04C..XZU710,720,730..EUR

W(PNC 15710C)

 4
15710C - GASKET(FOR OIL COOLER)
15725-E0020

N04C..XZU710,720,730..EUR

 1
Common parts
SH552-10816
SH552-10832
SH552-10850
SH552-10870
SL511-00820
SL722-01415
SN460-01409
SZ105-08026
SZ170-08020
SZ209-09001
Linked diagrams
1502
8401
