XZU730L-TKFRSW3 (2013)

Toyota Dyna

Production Jun 2013 - Sep 9999
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1306- )N04C..EUR

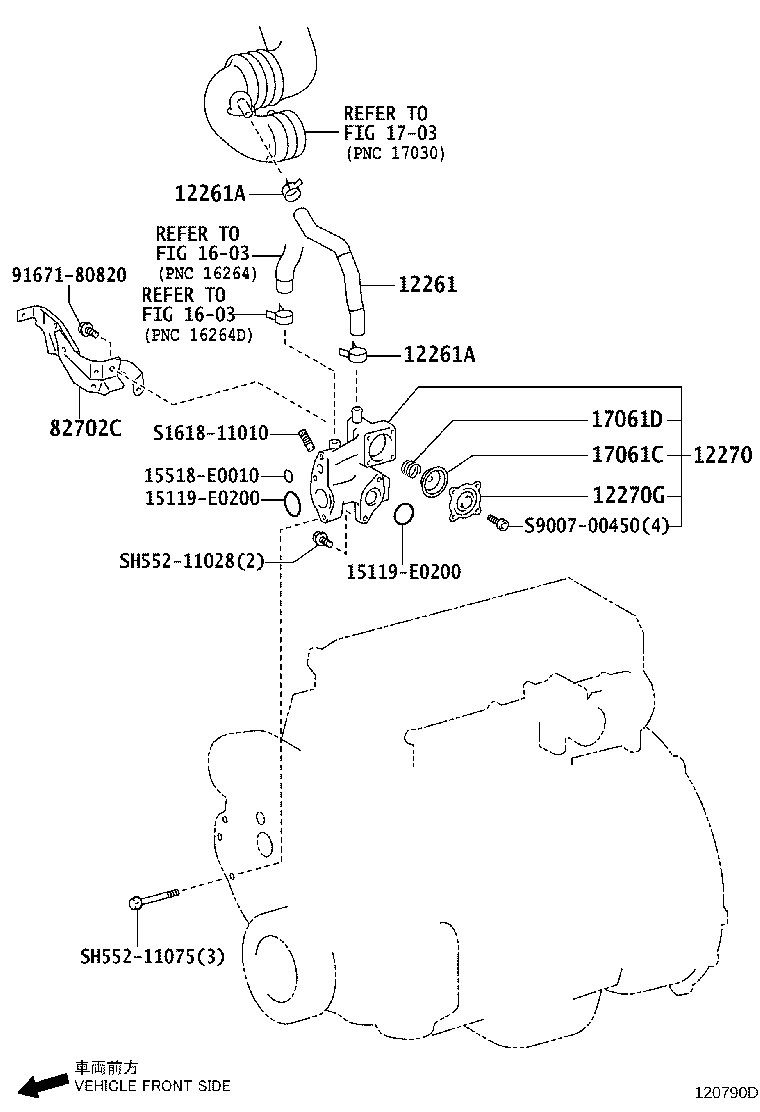

Click highlighted areas on diagram

diagram 12261 12261A 12261A 12270 12270G 15119E0200 15119E0200 15518E0010 1603 1603 1703 17061C 17061D 82702C 9167180820 S161811010 S900700450 SH55211028 SH55211075
Part # Description Qty Price
12261 - HOSE, VENTILATION
12261-78472

N04C..XZU710,720,730..EUR

 1
12261-78471

N04C..XZU710,720,730..EUR

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
96136-42901

N04C..XZU710,720,730..EUR

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
96136-42901

N04C..XZU710,720,730..EUR

 2
12270 - SEPARATOR ASSY, OIL
12270-E0131

N04C..XZU710,720,730..EUR

 1
12270-E0130

N04C..XZU710,720,730..EUR

 1
12270G - COVER
S9007-57139

N04C..XZU710,720,730..EUR

 1
17061C - DIAPHRAGM SUB-ASSY
17061-EV010

N04C..XZU710,720,730..EUR

 1
17061D - SPRING L
SZ010-70031

N04C..XZU710,720,730..EUR

 1
SZ010-70053

N04C..XZU710,720,730..EUR

 1
82702C - BRACKET SUB-ASSY, WIRING HARNESS
82702-37760

XZU710,720,730..EUR

 1
Common parts
15119-E0200
15518-E0010
91671-80820
S1618-11010
S9007-00450
SH552-11028
SH552-11075
Linked diagrams
1603
1703
