XZU720L-TKFRSW3 (2013)
Toyota Dyna

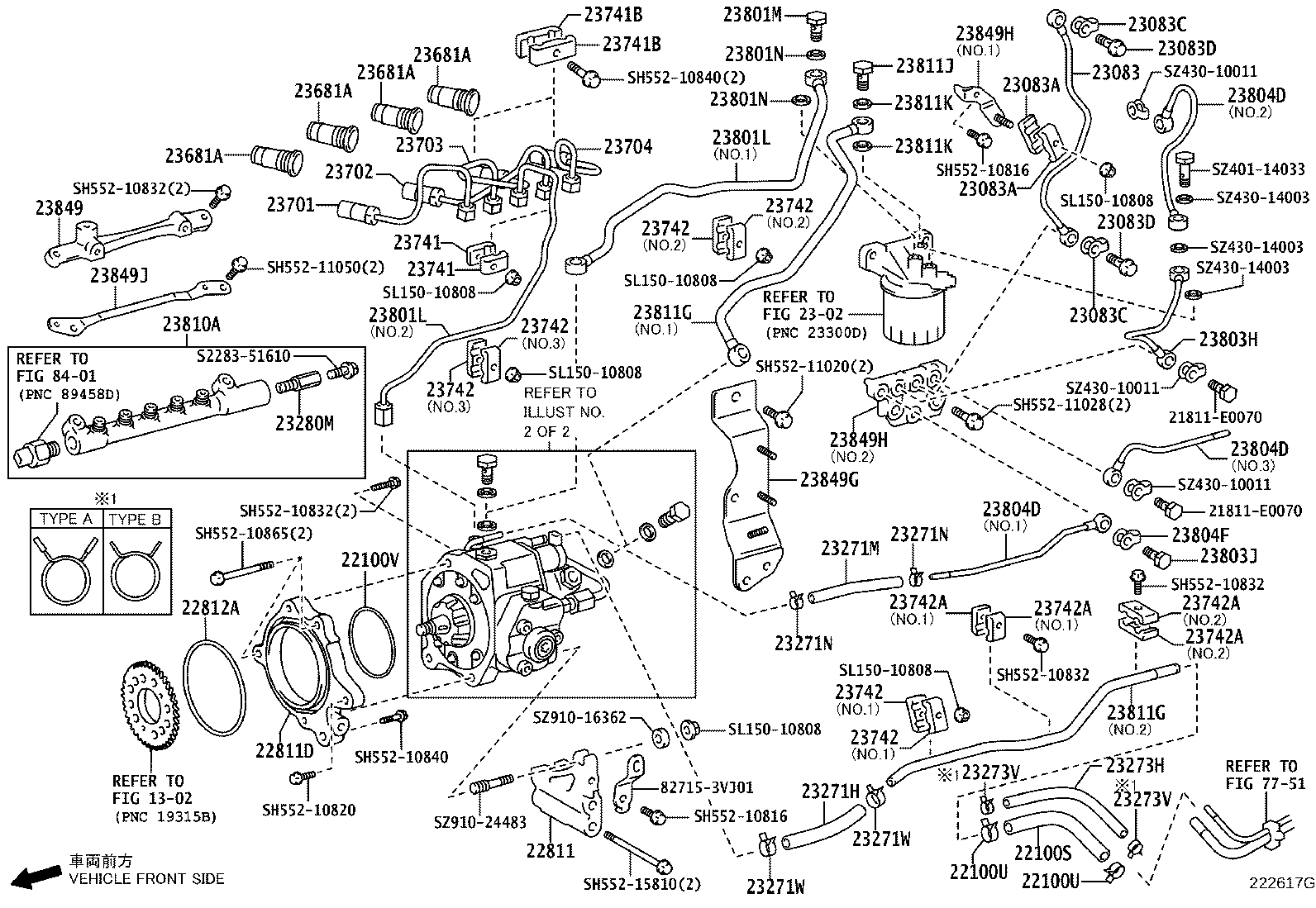

ILLUST NO. 1 OF 2(1306- )N04C..EUR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22100S - HOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE) | ||||
| 23271-78600 |
N04C..XZU710,720,730..EUR |
1 | ||
| 22100U - CLIP, HOSE FUEL(FOR INJECTION PUMP) | ||||
| 90467-18008 |
N04C..XZU710,720,730..EUR |
2 | ||
| 22100U - CLIP, HOSE FUEL(FOR INJECTION PUMP) | ||||
| 90467-18008 |
N04C..XZU710,720,730..EUR |
2 | ||
| 22100V - RING, O(FOR INJECTION PUMP) | ||||
| SN732-10493 |
N04C..XZU710,720,730..EUR |
1 | ||
| 22811 - STAY, INJECTION PUMP, NO.1 | ||||
| 22811-78141 |
N04C..XZU710,720,730..EUR |
1 | ||
| 22811D - STAY, INJECTION PUMP, NO.2 | ||||
| S2251-22060 |
N04C..XZU710,720,730..EUR |
1 | ||
| 22812A - RING, O | ||||
| SN732-10793 |
N04C..XZU710,720,730..EUR |
1 | ||
| 23083 - PIPE SUB-ASSY, NOZZLE LEAKAGE, NO.3 | ||||
| 23816-E0330 |
N04C..XZU710,720,730..EUR |
1 | ||
| 23816-E0331 |
N04C..XZU710,720,730..EUR |
1 | ||
| 23083A - CLAMP, NOZZLE LEAKAGE | ||||
| S7990-43390 |
N04C..XZU710,720,730..EUR |
2 | ||
| 23083A - CLAMP, NOZZLE LEAKAGE | ||||
| S7990-43390 |
N04C..XZU710,720,730..EUR |
2 | ||
| 23083C - GASKET(NOZZLE LEKAGE PIPE NO.3) | ||||
| SZ430-08013 |
N04C..XZU710,720,730..EUR |
2 | ||
| 23083C - GASKET(NOZZLE LEKAGE PIPE NO.3) | ||||
| SZ430-08013 |
N04C..XZU710,720,730..EUR |
2 | ||
| 23271H - HOSE, FUEL, NO.1 | ||||
| 23271-E0540 |
N04C..XZU710,720,730..EUR |
1 | ||
| 23271M - HOSE, FUEL | ||||
| 95337-06012 |
N04C..XZU710,720,730..EUR |
1 | ||
| 23271N - CLIP, HOSE | ||||
| 21576-E0170 |
N04C..XZU710,720,730..EUR |
2 | ||
| 23271N - CLIP, HOSE | ||||
| 21576-E0170 |
N04C..XZU710,720,730..EUR |
2 | ||
| 23271W - CLIP(FOR FUEL HOSE NO.1) | ||||
| SZ466-18001 |
N04C..XZU710,720,730..EUR |
2 | ||
| 23271W - CLIP(FOR FUEL HOSE NO.1) | ||||
| SZ466-18001 |
N04C..XZU710,720,730..EUR |
2 | ||
| 23273H - HOSE, FUEL, NO.2 | ||||
| 23273-78610 |
N04C..XZU710,720,730..EUR |
1 | ||
| 23273V - CLIP(FOR FUEL HOSE NO.2) | ||||
| 96132-51300 |
N04C..XZU710,720,730..EUR |
2 | ||
| 23273V - CLIP(FOR FUEL HOSE NO.2) | ||||
| 96132-51300 |
N04C..XZU710,720,730..EUR |
2 | ||
| 23280M - LIMITTER ASSY, FUEL PRESSURE | ||||
| 23280-E0020 |
N04C..XZU710,720,730..EUR |
1 | ||
| 23681A - SEAL, NOZZLE HOLDER | ||||
| S2307-41070 |
N04C..XZU710,720,730..EUR |
4 | ||
| 23681A - SEAL, NOZZLE HOLDER | ||||
| S2307-41070 |
N04C..XZU710,720,730..EUR |
4 | ||
| 23681A - SEAL, NOZZLE HOLDER | ||||
| S2307-41070 |
N04C..XZU710,720,730..EUR |
4 | ||
| 23681A - SEAL, NOZZLE HOLDER | ||||
| S2307-41070 |
N04C..XZU710,720,730..EUR |
4 | ||
| 23701 - PIPE SUB-ASSY, INJECTION, NO.1 | ||||
| 23701-78160 |
N04C..XZU710,720,730..EUR |
1 | ||
| 23702 - PIPE SUB-ASSY, INJECTION, NO.2 | ||||
| 23702-78160 |
N04C..XZU710,720,730..EUR |
1 | ||
| 23703 - PIPE SUB-ASSY, INJECTION, NO.3 | ||||
| 23703-78150 |
N04C..XZU710,720,730..EUR |
1 | ||
| 23704 - PIPE SUB-ASSY, INJECTION, NO.4 | ||||
| 23704-78150 |
N04C..XZU710,720,730..EUR |
1 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| S7990-41240 |
N04C..XZU710,720,730..EUR |
2 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| S7990-41240 |
N04C..XZU710,720,730..EUR |
2 | ||
| 23741B - CLAMP, INJECTION PIPE | ||||
| S2304-E0010 |
N04C..XZU710,720,730..EUR |
4 | ||
| 23741B - CLAMP, INJECTION PIPE | ||||
| S2304-E0010 |
N04C..XZU710,720,730..EUR |
4 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| S2304-E0020 |
N04C..XZU710,720,730..EUR NO.1 |
2 | ||
| S7990-42150 |
N04C..XZU710,720,730..EUR NO.2 |
2 | ||
| S7990-43390 |
N04C..XZU710,720,730..EUR NO.3 |
2 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| S2304-E0020 |
N04C..XZU710,720,730..EUR NO.1 |
2 | ||
| S7990-42150 |
N04C..XZU710,720,730..EUR NO.2 |
2 | ||
| S7990-43390 |
N04C..XZU710,720,730..EUR NO.3 |
2 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| S2304-E0020 |
N04C..XZU710,720,730..EUR NO.1 |
2 | ||
| S7990-42150 |
N04C..XZU710,720,730..EUR NO.2 |
2 | ||
| S7990-43390 |
N04C..XZU710,720,730..EUR NO.3 |
2 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| S2304-E0020 |
N04C..XZU710,720,730..EUR NO.1 |
2 | ||
| S7990-42150 |
N04C..XZU710,720,730..EUR NO.2 |
2 | ||
| S7990-43390 |
N04C..XZU710,720,730..EUR NO.3 |
2 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| S2304-E0020 |
N04C..XZU710,720,730..EUR NO.1 |
2 | ||
| S7990-42150 |
N04C..XZU710,720,730..EUR NO.2 |
2 | ||
| S7990-43390 |
N04C..XZU710,720,730..EUR NO.3 |
2 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| S2304-E0020 |
N04C..XZU710,720,730..EUR NO.1 |
2 | ||
| S7990-42150 |
N04C..XZU710,720,730..EUR NO.2 |
2 | ||
| S7990-43390 |
N04C..XZU710,720,730..EUR NO.3 |
2 | ||
| 23742A - CLAMP, INJECTION PIPE, NO.3 | ||||
| S7990-44090 |
N04C..XZU710,720,730..EUR NO.2 |
2 | ||
| S7990-42180 |
N04C..XZU710,720,730..EUR NO.1 |
2 | ||
| 23742A - CLAMP, INJECTION PIPE, NO.3 | ||||
| S7990-44090 |
N04C..XZU710,720,730..EUR NO.2 |
2 | ||
| S7990-42180 |
N04C..XZU710,720,730..EUR NO.1 |
2 | ||
| 23742A - CLAMP, INJECTION PIPE, NO.3 | ||||
| S7990-44090 |
N04C..XZU710,720,730..EUR NO.2 |
2 | ||
| S7990-42180 |
N04C..XZU710,720,730..EUR NO.1 |
2 | ||
| 23742A - CLAMP, INJECTION PIPE, NO.3 | ||||
| S7990-44090 |
N04C..XZU710,720,730..EUR NO.2 |
2 | ||
| S7990-42180 |
N04C..XZU710,720,730..EUR NO.1 |
2 | ||
| 23801L - PIPE SUB-ASSY, FUEL(FOR FUEL FILTER TO INJECTION PUMP) | ||||
| 23801-E0284 |
N04C..XZU710,720,730..EUR NO.1 |
1 | ||
| 23801-E0283 |
N04C..XZU710,720,730..EUR NO.1 |
1 | ||
| 23801-78180 |
N04C..XZU710,720,730..EUR NO.2 |
1 | ||
| 23801-E0282 |
N04C..XZU710,720,730..EUR NO.1 |
1 | ||
| 23801L - PIPE SUB-ASSY, FUEL(FOR FUEL FILTER TO INJECTION PUMP) | ||||
| 23801-E0284 |
N04C..XZU710,720,730..EUR NO.1 |
1 | ||
| 23801-E0283 |
N04C..XZU710,720,730..EUR NO.1 |
1 | ||
| 23801-78180 |
N04C..XZU710,720,730..EUR NO.2 |
1 | ||
| 23801-E0282 |
N04C..XZU710,720,730..EUR NO.1 |
1 | ||
| 23801M - BOLT, UNION | ||||
| SZ401-14004 |
N04C..XZU710,720,730..EUR |
1 | ||
| 23801N - GASKET | ||||
| SZ430-14003 |
N04C..XZU710,720,730..EUR |
2 | ||
| 23801N - GASKET | ||||
| SZ430-14003 |
N04C..XZU710,720,730..EUR |
2 | ||
| 23803H - PIPE SUB-ASSY, FUEL RETURN | ||||
| 23816-E0341 |
N04C..XZU710,720,730..EUR |
1 | ||
| 23816-E0342 |
N04C..XZU710,720,730..EUR |
1 | ||
| 23803J - BOLT, UNION(FOR FUEL RETURN PIPE) | ||||
| SZ401-10004 |
N04C..XZU710,720,730..EUR |
1 | ||
| 21811-E0070 |
N04C..XZU710,720,730..EUR |
1 | ||
| 23804D - PIPE SUB-ASSY, FUEL, NO.4 | ||||
| 23816-78150 |
N04C..XZU710,720,730..EUR NO.2 |
1 | ||
| 23816-E0360 |
N04C..XZU710,720,730..EUR NO.3 |
1 | ||
| 23816-E0351 |
N04C..XZU710,720,730..EUR NO.1 |
1 | ||
| 23816-E0361 |
N04C..XZU710,720,730..EUR NO.3 |
1 | ||
| 23816-78151 |
N04C..XZU710,720,730..EUR NO.2 |
1 | ||
| 23816-E0352 |
N04C..XZU710,720,730..EUR NO.1 |
1 | ||
| 23804D - PIPE SUB-ASSY, FUEL, NO.4 | ||||
| 23816-78150 |
N04C..XZU710,720,730..EUR NO.2 |
1 | ||
| 23816-E0360 |
N04C..XZU710,720,730..EUR NO.3 |
1 | ||
| 23816-E0351 |
N04C..XZU710,720,730..EUR NO.1 |
1 | ||
| 23816-E0361 |
N04C..XZU710,720,730..EUR NO.3 |
1 | ||
| 23816-78151 |
N04C..XZU710,720,730..EUR NO.2 |
1 | ||
| 23816-E0352 |
N04C..XZU710,720,730..EUR NO.1 |
1 | ||
| 23804D - PIPE SUB-ASSY, FUEL, NO.4 | ||||
| 23816-78150 |
N04C..XZU710,720,730..EUR NO.2 |
1 | ||
| 23816-E0360 |
N04C..XZU710,720,730..EUR NO.3 |
1 | ||
| 23816-E0351 |
N04C..XZU710,720,730..EUR NO.1 |
1 | ||
| 23816-E0361 |
N04C..XZU710,720,730..EUR NO.3 |
1 | ||
| 23816-78151 |
N04C..XZU710,720,730..EUR NO.2 |
1 | ||
| 23816-E0352 |
N04C..XZU710,720,730..EUR NO.1 |
1 | ||
| 23804F - GASKET(FOR FUEL PIPE NO.4) | ||||
| SZ430-10011 |
N04C..XZU710,720,730..EUR |
1 | ||
| 23810A - RAIL ASSY, COMMON | ||||
| 23810-E0240 |
N04C..XZU710,720,730..EUR |
1 | ||
| 23811G - PIPE, FUEL, NO.1 | ||||
| 23811-E0853 |
N04C..XZU710,720,730..EUR NO.1 |
1 | ||
| 23811-E0860 |
N04C..XZU710,720,730..EUR NO.2 |
1 | ||
| 23811-E0861 |
N04C..XZU710,720,730..EUR NO.2 |
1 | ||
| 23811-E0852 |
N04C..XZU710,720,730..EUR NO.1 |
1 | ||
| 23811-E0851 |
N04C..XZU710,720,730..EUR NO.1 |
1 | ||
| 23811G - PIPE, FUEL, NO.1 | ||||
| 23811-E0853 |
N04C..XZU710,720,730..EUR NO.1 |
1 | ||
| 23811-E0860 |
N04C..XZU710,720,730..EUR NO.2 |
1 | ||
| 23811-E0861 |
N04C..XZU710,720,730..EUR NO.2 |
1 | ||
| 23811-E0852 |
N04C..XZU710,720,730..EUR NO.1 |
1 | ||
| 23811-E0851 |
N04C..XZU710,720,730..EUR NO.1 |
1 | ||
| 23811J - BOLT, UNION | ||||
| SZ401-14004 |
N04C..XZU710,720,730..EUR |
1 | ||
| 23811K - GASKET | ||||
| SZ430-14003 |
N04C..XZU710,720,730..EUR |
2 | ||
| 23811K - GASKET | ||||
| SZ430-14003 |
N04C..XZU710,720,730..EUR |
2 | ||
| 23849 - SUPPORT, FUEL | ||||
| 23849-E0600 |
N04C..XZU710,720,730..EUR |
1 | ||
| 23849G - SUPPORT, FUEL PIPE | ||||
| 23809-E0400 |
N04C..XZU710,720,730..EUR |
1 | ||
| 23849H - SUPPORT, FUEL PIPE | ||||
| 23809-78100 |
N04C..XZU710,720,730..EUR NO.2 |
1 | ||
| 23849-78210 |
N04C..XZU710,720,730..EUR NO.1 |
1 | ||
| 23849H - SUPPORT, FUEL PIPE | ||||
| 23809-78100 |
N04C..XZU710,720,730..EUR NO.2 |
1 | ||
| 23849-78210 |
N04C..XZU710,720,730..EUR NO.1 |
1 | ||
| 23849J - SUPPORT, FUEL PIPE(FOR RAIL ASSY, COMMON) | ||||
| 23849-78220 |
N04C..XZU710,720,730..EUR |
1 | ||
| Common parts | ||||
| 21811-E0070 | ||||
| 82715-3VJ01 | ||||
| S2283-51610 | ||||
| SH552-10816 | ||||
| SH552-10820 | ||||
| SH552-10832 | ||||
| SH552-10840 | ||||
| SH552-10865 | ||||
| SH552-11020 | ||||
| SH552-11028 | ||||
| SH552-11050 | ||||
| SH552-15810 | ||||
| SL150-10808 | ||||
| SZ401-14033 | ||||
| SZ430-10011 | ||||
| SZ430-14003 | ||||
| SZ910-16362 | ||||
| SZ910-24483 | ||||
| Linked diagrams | ||||
| 1302 | ||||
| 2302 | ||||
| 7751 | ||||
| 8401 | ||||
