XZU720L-SKMRK3 (2019)

Toyota Dyna

Production Nov 2019 - Sep 9999
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

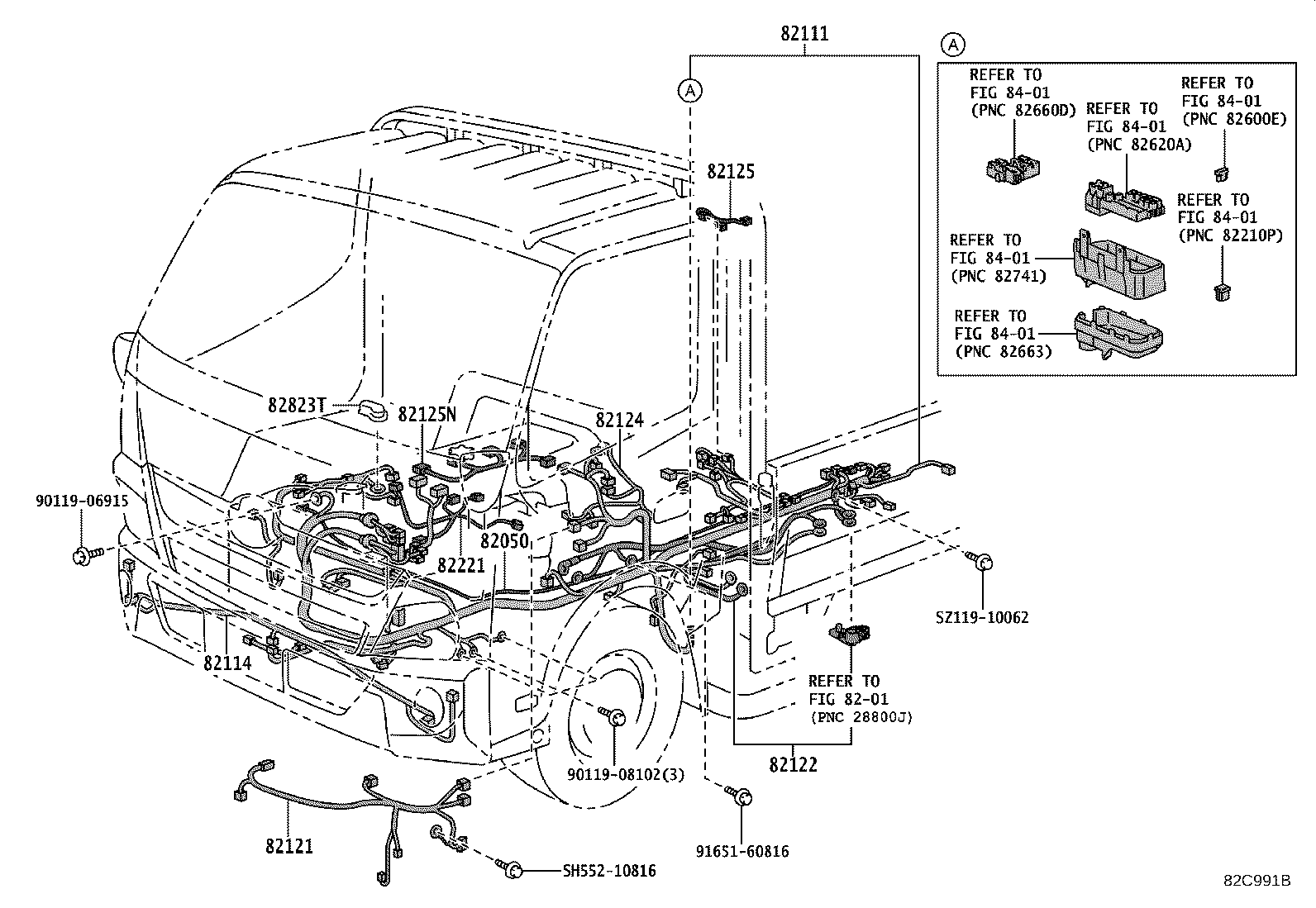

ILLUST NO. 1 OF 8(1911- )XZU710,720..GEN

Click highlighted areas on diagram

ENGINE ROOM

diagram 8201 82050 82111 82114 82121 82122 82124 82125 82125N 82221 82823T 8401 8401 8401 8401 8401 8401 9011906915 9011908102 9165160816 SH55210816 SZ11910062
Part # Description Qty Price
82050 - WIRE ASSY, ENGINE
82050-37010

XZU710,720..GEN

MANUAL IDLING CONTROL-WITH(CONTROL LEVER)

 1
82050-37010

XZU710,720..GEN

MANUAL IDLING CONTROL-WITH(ELECTRIC,CONTROL LEVER)

 1
82111 - WIRE, ENGINE ROOM MAIN
82116-37T30

XZU710,720..GEN

 1
82116-37T20

XZU710,720..GEN

ABS-WITH(POWER ASSIST BRAKE)

 1
82114 - WIRE, ENGINE ROOM, NO.4
82114-37320

XZU710,720..GEN

FRONT FOG & DRIVING LAMP-WITH(LED)

 1
82121 - WIRE, ENGINE
82121-37K50

XZU710,720..GEN

 1
82122 - WIRE, ENGINE, NO.2
82122-37M30

XZU710,720..GEN

 1
82124 - WIRE, ENGINE, NO.4
82121-37L00

XZU710,720..GEN

 1
82121-37L10

XZU710,720..GEN

GLOW PLUG-WITH

 1
82125 - WIRE, TRANSMISSION
82125-37330

WU710,720..LHD..75T..GEN

 1
82125-37630

XZU710,720..GEN

 1
82125N - WIRE, ENGINE, NO.5
82121-37L60

XZU710,720..GEN

 1
82221 - WIRE, OIL PRESSURE SWITCH
82221-37300

WU700,710,720

 1
82221-37260

XZU710,720..GEN

 1
82823T - CAP, ALTERNATOR TERMINAL
82823-22050

WU700,710,720;XZU710,720..MTM..GCC

 1
82823-22050

XZU710,720..GEN

 1
Common parts
90119-06915
90119-08102
91651-60816
SH552-10816
SZ119-10062
Linked diagrams
8201
8401
