XZU720L-SKMRK3 (2019)
Toyota Dyna

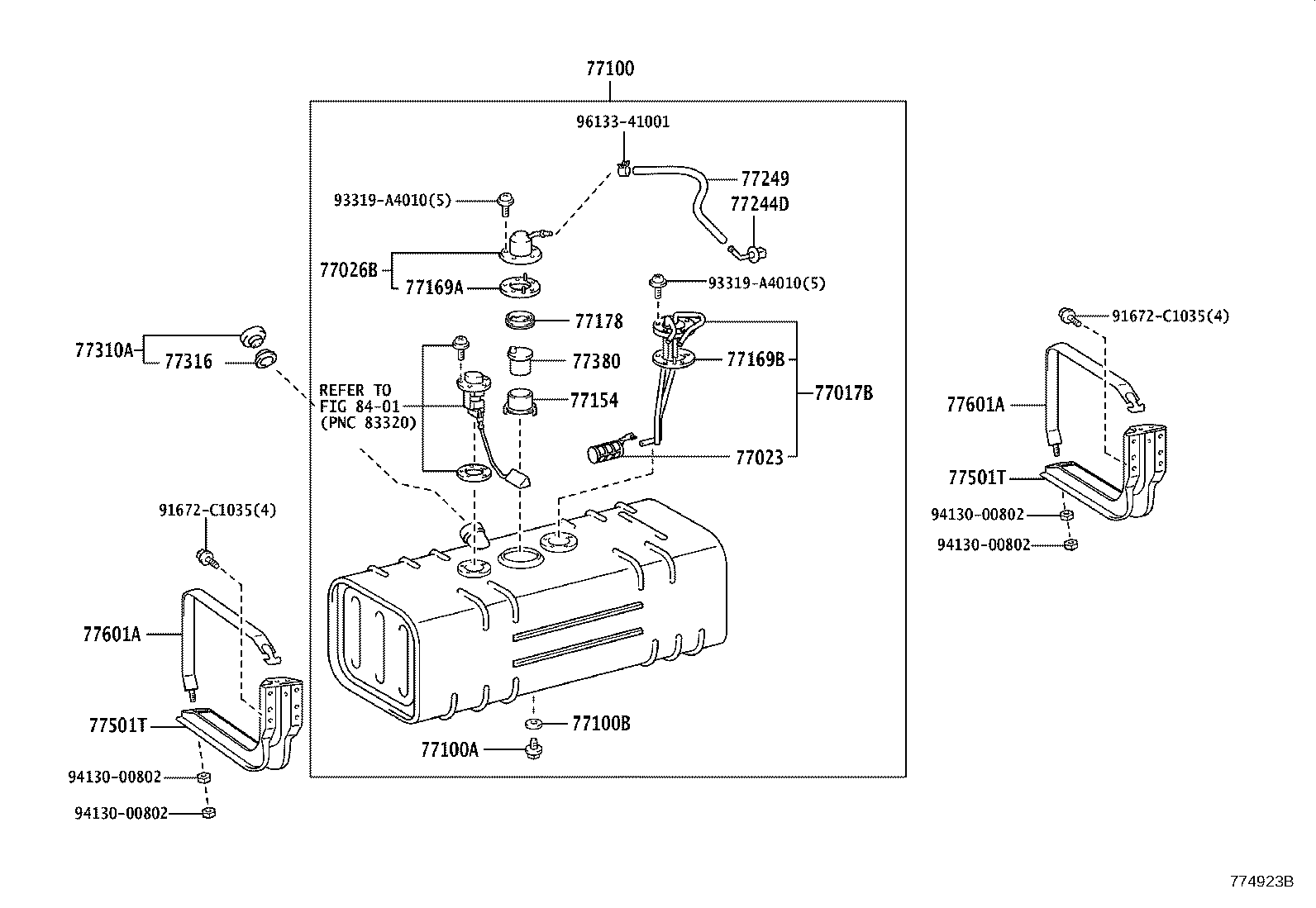

ILLUST NO. 1 OF 2(1911- )XZU710,720..GEN
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-37090 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 77017-37070 |
XZU710,720..GEN |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-60010 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 77023-36010 |
XZU710,720..GEN |
1 | ||
| 77026B - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-37010 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 77026-37010 |
WU710,720;XZU710,720..SCB..MTM..GCC FUEL TANK-100L & W(SUB TANK) |
2 | ||
| 77026-37010 |
XZU710,720..GEN |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77100-37841 |
XZU710,720..GEN FUEL TANK-150L |
1 | ||
| 77001-37650 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 77100-37843 |
XZU710,720..GEN FUEL TANK-150L |
1 | ||
| 77100-37C70 |
XZU710,720..GEN |
1 | ||
| 77100-37842 |
XZU710,720..GEN FUEL TANK-150L |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 90105-12116 |
XZU710,720..GEN |
1 | ||
| 90105-12116 |
WU710,720;XZU710,720..SCB..MTM..GCC FUEL TANK-100L & W(SUB TANK) |
2 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 90430-12245 |
WU710,720;XZU710,720..SCB..MTM..GCC FUEL TANK-100L & W(SUB TANK) |
2 | ||
| 90430-12245 |
XZU710,720..GEN |
1 | ||
| 77154 - PLATE, FUEL TANK EVAP/VENT TUBE SUPPORT | ||||
| 77154-25010 |
XZU710,720..GEN |
1 | ||
| 77154-25010 |
WU710,720;XZU710,720..SCB..MTM..GCC FUEL TANK-100L & W(SUB TANK) |
2 | ||
| 77154-25010 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-14020 |
WU700,710,720;XZU710,720..MTM..GCC |
2 | ||
| 77169-14020 |
XZU710,720..GEN |
1 | ||
| 77169-14020 |
WU710,720;XZU710,720..SCB..MTM..GCC FUEL TANK-100L & W(SUB TANK) |
3 | ||
| 77169B - GASKET, FUEL SUCTION TUBE SET, NO.1 | ||||
| 77169-14020 |
XZU710,720..GEN |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-44010 |
WU710,720;XZU710,720..SCB..MTM..GCC FUEL TANK-100L & W(SUB TANK) |
2 | ||
| 77178-44010 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 77178-44010 |
XZU710,720..GEN |
1 | ||
| 77244D - TUBE, FUEL EVAPORATION BREATHER, NO.1 | ||||
| 77244-37010 |
WU710,720;XZU710,720..SCB..MTM..GCC FUEL TANK-100L & W(SUB TANK) |
2 | ||
| 77244-37010 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 77244-37030 |
XZU710,720..GEN |
1 | ||
| 77249 - HOSE, FUEL EMISSION | ||||
| 77249-37540 |
XZU710,720..GEN |
1 | ||
| 77249-37580 |
XZU710,720..GEN FUEL TANK-150L |
1 | ||
| 77249-37190 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 77249-37190 |
WU710,720;XZU710,720..SCB..MTM..GCC FUEL TANK-100L & W(SUB TANK) |
2 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-60100 |
WU710,720;XZU710,720..SCB..MTM..GCC FUEL TANK-100L & W(SUB TANK) |
2 | ||
| 77310-60100 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 77310-60100 |
XZU710,720..GEN |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-12050 |
WU710,720;XZU710,720..SCB..MTM..GCC FUEL TANK-100L & W(SUB TANK) |
2 | ||
| 77316-12050 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 77316-12050 |
XZU710,720..GEN |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 77380-26010 |
XZU710,720..GEN |
1 | ||
| 77380-26010 |
WU710,720;XZU710,720..SCB..MTM..GCC FUEL TANK-100L & W(SUB TANK) |
2 | ||
| 77501T - BRACKET SUB-ASSY, FUEL TANK | ||||
| 77501-37730 |
XZU710,720..GEN |
2 | ||
| 77501-37691 |
XZU710,720..GEN FUEL TANK-150L |
2 | ||
| 77501T - BRACKET SUB-ASSY, FUEL TANK | ||||
| 77501-37730 |
XZU710,720..GEN |
2 | ||
| 77501-37691 |
XZU710,720..GEN FUEL TANK-150L |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-37030 |
WU710,720;XZU710,720..SCB..MTM..GCC FUEL TANK-100L & W(SUB TANK) |
4 | ||
| 77601-37030 |
WU700,710,720;XZU710,720..SCB..MTM..GCC |
2 | ||
| 77601-37150 |
XZU710,720..GEN |
2 | ||
| 77601-37130 |
XZU710,720..GEN FUEL TANK-150L |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-37030 |
WU710,720;XZU710,720..SCB..MTM..GCC FUEL TANK-100L & W(SUB TANK) |
4 | ||
| 77601-37030 |
WU700,710,720;XZU710,720..SCB..MTM..GCC |
2 | ||
| 77601-37150 |
XZU710,720..GEN |
2 | ||
| 77601-37130 |
XZU710,720..GEN FUEL TANK-150L |
2 | ||
| Common parts | ||||
| 91672-C1035 | ||||
| 93319-A4010 | ||||
| 94130-00802 | ||||
| 96133-41001 | ||||
| Linked diagrams | ||||
| 8401 | ||||

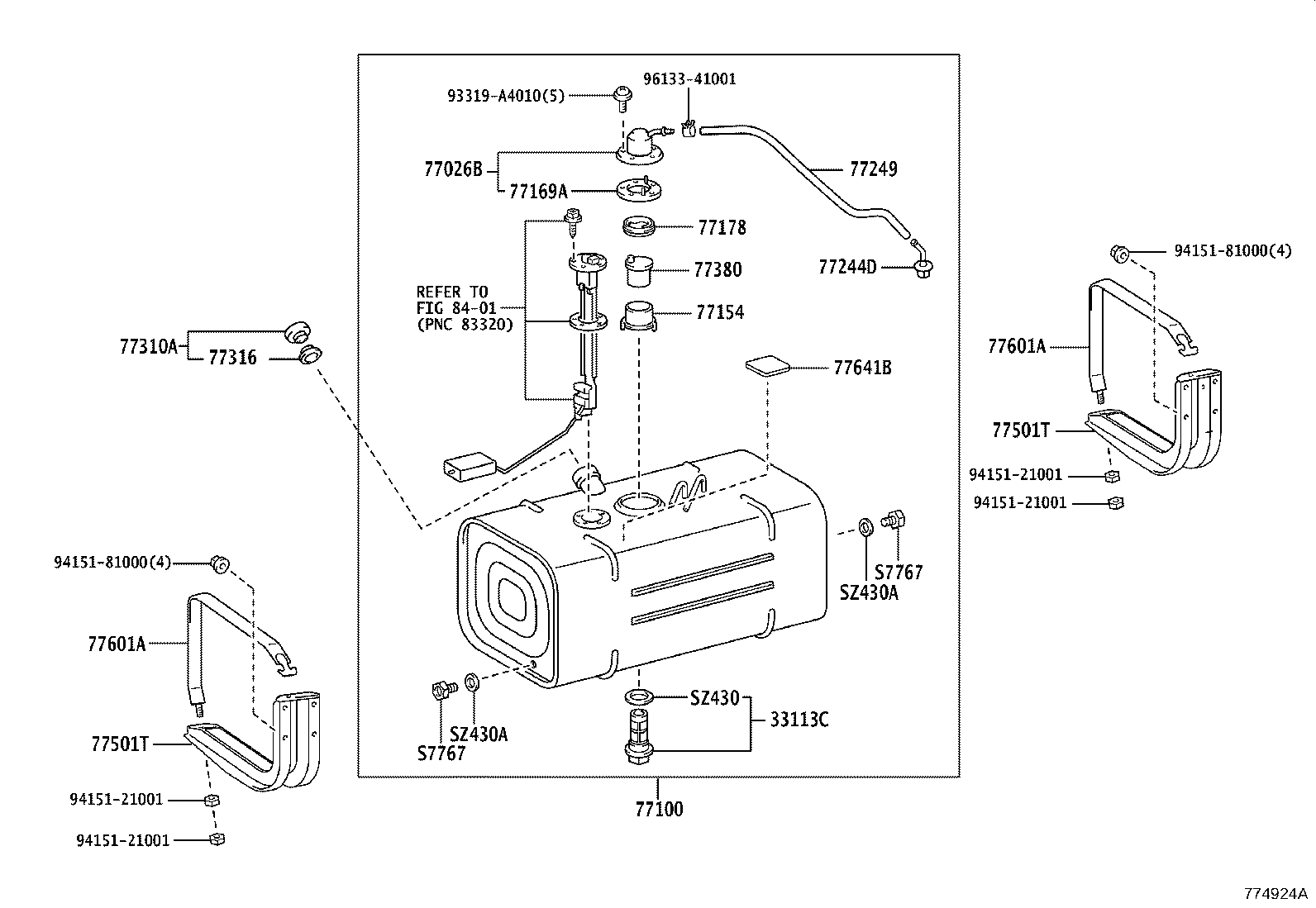

ILLUST NO. 1 OF 2(1911- )XZU710,720..GEN
FUEL TANK-150L MDT TYPE SB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33113C - PLUG, DRAIN | ||||
| S7730-E0080 |
XZU710,720..GEN FUEL TANK-150L |
1 | ||
| 77026B - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-37010 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 77026-37010 |
WU710,720;XZU710,720..SCB..MTM..GCC FUEL TANK-100L & W(SUB TANK) |
2 | ||
| 77026-37010 |
XZU710,720..GEN |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77100-37841 |
XZU710,720..GEN FUEL TANK-150L |
1 | ||
| 77001-37650 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 77100-37843 |
XZU710,720..GEN FUEL TANK-150L |
1 | ||
| 77100-37C70 |
XZU710,720..GEN |
1 | ||
| 77100-37842 |
XZU710,720..GEN FUEL TANK-150L |
1 | ||
| 77154 - PLATE, FUEL TANK EVAP/VENT TUBE SUPPORT | ||||
| 77154-25010 |
XZU710,720..GEN |
1 | ||
| 77154-25010 |
WU710,720;XZU710,720..SCB..MTM..GCC FUEL TANK-100L & W(SUB TANK) |
2 | ||
| 77154-25010 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-14020 |
WU700,710,720;XZU710,720..MTM..GCC |
2 | ||
| 77169-14020 |
XZU710,720..GEN |
1 | ||
| 77169-14020 |
WU710,720;XZU710,720..SCB..MTM..GCC FUEL TANK-100L & W(SUB TANK) |
3 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-44010 |
WU710,720;XZU710,720..SCB..MTM..GCC FUEL TANK-100L & W(SUB TANK) |
2 | ||
| 77178-44010 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 77178-44010 |
XZU710,720..GEN |
1 | ||
| 77244D - TUBE, FUEL EVAPORATION BREATHER, NO.1 | ||||
| 77244-37010 |
WU710,720;XZU710,720..SCB..MTM..GCC FUEL TANK-100L & W(SUB TANK) |
2 | ||
| 77244-37010 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 77244-37030 |
XZU710,720..GEN |
1 | ||
| 77249 - HOSE, FUEL EMISSION | ||||
| 77249-37540 |
XZU710,720..GEN |
1 | ||
| 77249-37580 |
XZU710,720..GEN FUEL TANK-150L |
1 | ||
| 77249-37190 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 77249-37190 |
WU710,720;XZU710,720..SCB..MTM..GCC FUEL TANK-100L & W(SUB TANK) |
2 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-60100 |
WU710,720;XZU710,720..SCB..MTM..GCC FUEL TANK-100L & W(SUB TANK) |
2 | ||
| 77310-60100 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 77310-60100 |
XZU710,720..GEN |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-12050 |
WU710,720;XZU710,720..SCB..MTM..GCC FUEL TANK-100L & W(SUB TANK) |
2 | ||
| 77316-12050 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 77316-12050 |
XZU710,720..GEN |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 77380-26010 |
XZU710,720..GEN |
1 | ||
| 77380-26010 |
WU710,720;XZU710,720..SCB..MTM..GCC FUEL TANK-100L & W(SUB TANK) |
2 | ||
| 77501T - BRACKET SUB-ASSY, FUEL TANK | ||||
| 77501-37730 |
XZU710,720..GEN |
2 | ||
| 77501-37691 |
XZU710,720..GEN FUEL TANK-150L |
2 | ||
| 77501T - BRACKET SUB-ASSY, FUEL TANK | ||||
| 77501-37730 |
XZU710,720..GEN |
2 | ||
| 77501-37691 |
XZU710,720..GEN FUEL TANK-150L |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-37030 |
WU710,720;XZU710,720..SCB..MTM..GCC FUEL TANK-100L & W(SUB TANK) |
4 | ||
| 77601-37030 |
WU700,710,720;XZU710,720..SCB..MTM..GCC |
2 | ||
| 77601-37150 |
XZU710,720..GEN |
2 | ||
| 77601-37130 |
XZU710,720..GEN FUEL TANK-150L |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-37030 |
WU710,720;XZU710,720..SCB..MTM..GCC FUEL TANK-100L & W(SUB TANK) |
4 | ||
| 77601-37030 |
WU700,710,720;XZU710,720..SCB..MTM..GCC |
2 | ||
| 77601-37150 |
XZU710,720..GEN |
2 | ||
| 77601-37130 |
XZU710,720..GEN FUEL TANK-150L |
2 | ||
| 77641B - COVER, FUEL TANK | ||||
| 77641-37100 |
XZU710,720..GEN FUEL TANK-150L |
1 | ||
| 77641-37100 |
XZU710,720..GEN FUEL TANK-150L |
2 | ||
| S7767 - PLUG, FUEL STRAINER | ||||
| S7767-31120 |
XZU710,720..GEN FUEL TANK-150L |
2 | ||
| S7767 - PLUG, FUEL STRAINER | ||||
| S7767-31120 |
XZU710,720..GEN FUEL TANK-150L |
2 | ||
| SZ430 - WASHER, SOFT, NO.1 | ||||
| SZ430-30004 |
XZU710,720..GEN FUEL TANK-150L |
1 | ||
| SZ430A - WASHER, SOFT, NO.2 | ||||
| SZ430-16012 |
XZU710,720..GEN FUEL TANK-150L |
2 | ||
| SZ430A - WASHER, SOFT, NO.2 | ||||
| SZ430-16012 |
XZU710,720..GEN FUEL TANK-150L |
2 | ||
| Common parts | ||||
| 93319-A4010 | ||||
| 94151-21001 | ||||
| 94151-81000 | ||||
| 96133-41001 | ||||
| Linked diagrams | ||||
| 8401 | ||||

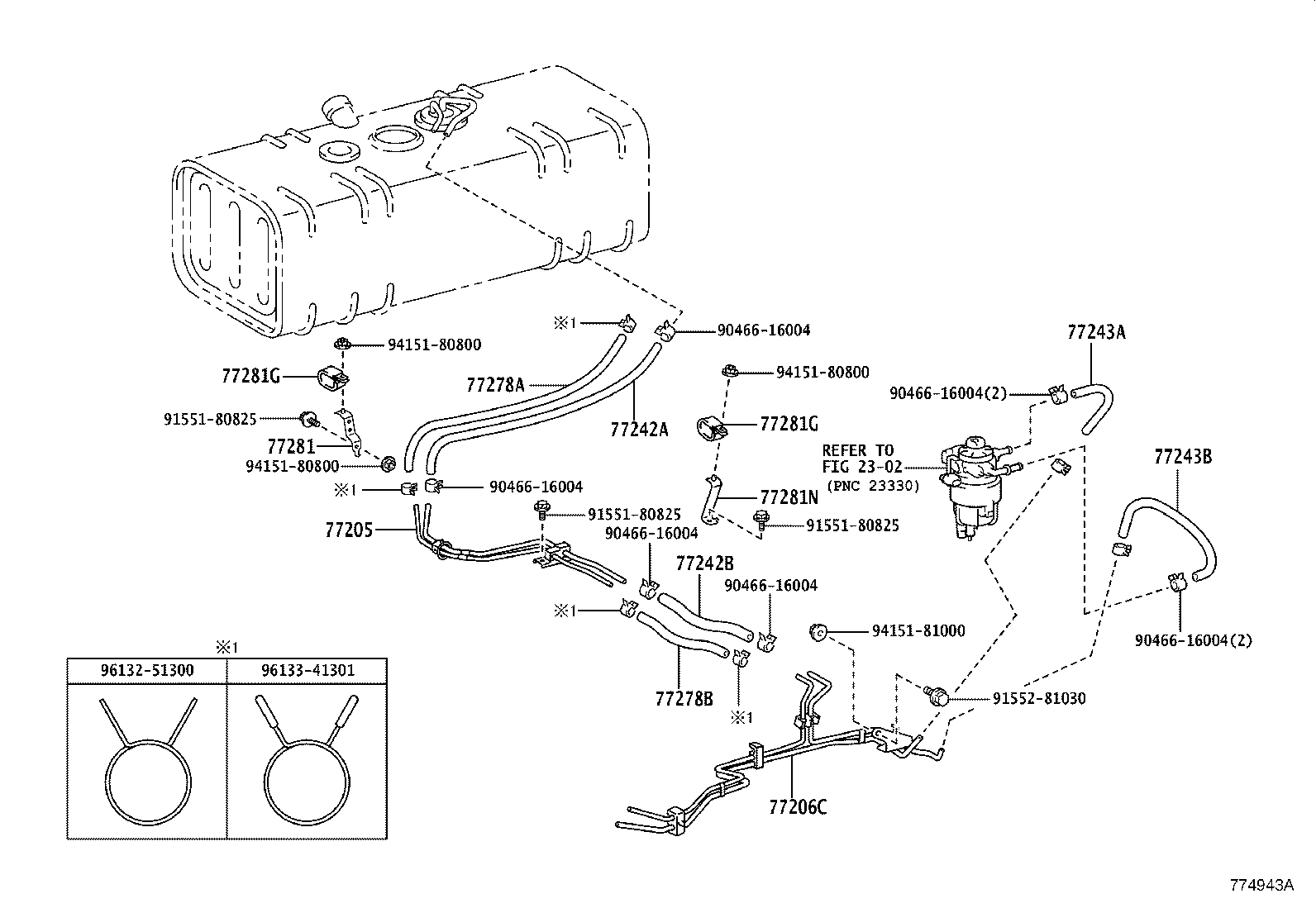

ILLUST NO. 2 OF 2(1911- )XZU710,720..GEN
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77205 - TUBE SUB-ASSY, FUEL MAIN | ||||
| 77205-37L01 |
XZU710,720..GEN |
1 | ||
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-37P01 |
XZU710,720..GEN |
1 | ||
| 77206-37K50 |
WU700,710,720 |
1 | ||
| 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) | ||||
| 77259-37C60 |
XZU710,720..GEN L=810,FUEL TANK-150L |
1 | ||
| 95337-12028 |
WU700,710,720;XZU710,720..SCB..MTM..GCC L=280 |
1 | ||
| SM331-10100 |
XZU710,720..GEN L=850,FUEL TANK-150L |
1 | ||
| SM331-10100 |
XZU710,720..GEN L=900 |
1 | ||
| SM331-10100 |
XZU710,720..GEN L=950 |
1 | ||
| 77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2) | ||||
| SM331-10030 |
XZU710,720..GEN L=160 |
1 | ||
| 77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) | ||||
| SM331-10030 |
XZU710,720..GEN L=240 |
1 | ||
| 95337-12016 |
WU700,710,720;XZU710,720..MTM..GCC L=160 |
1 | ||
| 77243B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.3) | ||||
| 95337-12024 |
WU700,710,720 L=240 |
2 | ||
| SM331-10030 |
XZU710,720..GEN L=300 |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95337-08034 |
WU700,710,720;XZU710,720..SCB..MTM..GCC L=300 |
1 | ||
| 77279-37760 |
XZU710,720..GEN L=775,FUEL TANK-150L |
1 | ||
| 95337-08090 |
XZU710,720..GEN L=900 |
1 | ||
| 95337-08080 |
XZU710,720..GEN L=800,FUEL TANK-150L |
1 | ||
| 95337-08095 |
XZU710,720..GEN L=950 |
1 | ||
| 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) | ||||
| 95337-08020 |
XZU710,720..GEN L=160 |
1 | ||
| 95337-08020 |
WU700,710,720;XZU710,720..MTM..GCC L=160 |
1 | ||
| 77281 - BRACKET, FUEL MAIN TUBE, NO.1 | ||||
| 77281-37821 |
XZU710,720..GEN |
1 | ||
| 77281-37810 |
XZU710,720..GEN FUEL TANK-150L |
1 | ||
| 77281-37820 |
XZU710,720..GEN |
1 | ||
| 77281G - CLAMP, FUEL HOSE | ||||
| 90461-08733 |
XZU710,720..GEN |
2 | ||
| 77281G - CLAMP, FUEL HOSE | ||||
| 90461-08733 |
XZU710,720..GEN |
2 | ||
| 77281N - CLAMP, FUEL HOSE | ||||
| 77281-37780 |
XZU710,720..GEN |
1 | ||
| 77281-37850 |
XZU710,720..GEN FUEL TANK-150L |
1 | ||
| Common parts | ||||
| 90466-16004 | ||||
| 91551-80825 | ||||
| 91552-81030 | ||||
| 94151-80800 | ||||
| 94151-81000 | ||||
| 96132-51300 | ||||
| 96133-41301 | ||||
| Linked diagrams | ||||
| 2302 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
