XZU710L-TKTQKV (2011)

Toyota Dyna

Production Jul 2011 - Sep 9999
Engine N04C
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )XZU710,720..EUR,GCC;WU700,710,720,XZU730

Click highlighted areas on diagram

diagram 81580 81590 81910 81910D 81910D 81920 9017905004 9017905004 9026903025 9026903025 9026905010 9026905010
Part # Description Qty Price
81580 - REFLECTOR ASSY, REFLEX SIDE, RH
81910-37070

XZU710..CBU

 1
81590 - REFLECTOR ASSY, REFLEX SIDE, LH
81910-37070

XZU710..CBU

 1
81910 - REFLECTOR ASSY, REFLEX, RH
81910-37070

XZU710..CBU

 1
81910D - REFLECTOR ASSY, REFLEX, REAR
81910-37060

XZU710..CBU

REAR BUMPER-WITHOUT&REFLEX REFLECTOR-SIDE(FRONT 2,REAR 2),REAR(LARGE)

 2
81910-37060

XZU710..CBU

REFLEX REFLECTOR-SIDE(FRONT 2,REAR 2),REAR(LARGE)

 2
81910D - REFLECTOR ASSY, REFLEX, REAR
81910-37060

XZU710..CBU

REAR BUMPER-WITHOUT&REFLEX REFLECTOR-SIDE(FRONT 2,REAR 2),REAR(LARGE)

 2
81910-37060

XZU710..CBU

REFLEX REFLECTOR-SIDE(FRONT 2,REAR 2),REAR(LARGE)

 2
81920 - REFLECTOR ASSY, REFLEX, LH
81910-37070

XZU710..CBU

 1
Common parts
90179-05004
90269-03025
90269-05010

(1207- )6FC

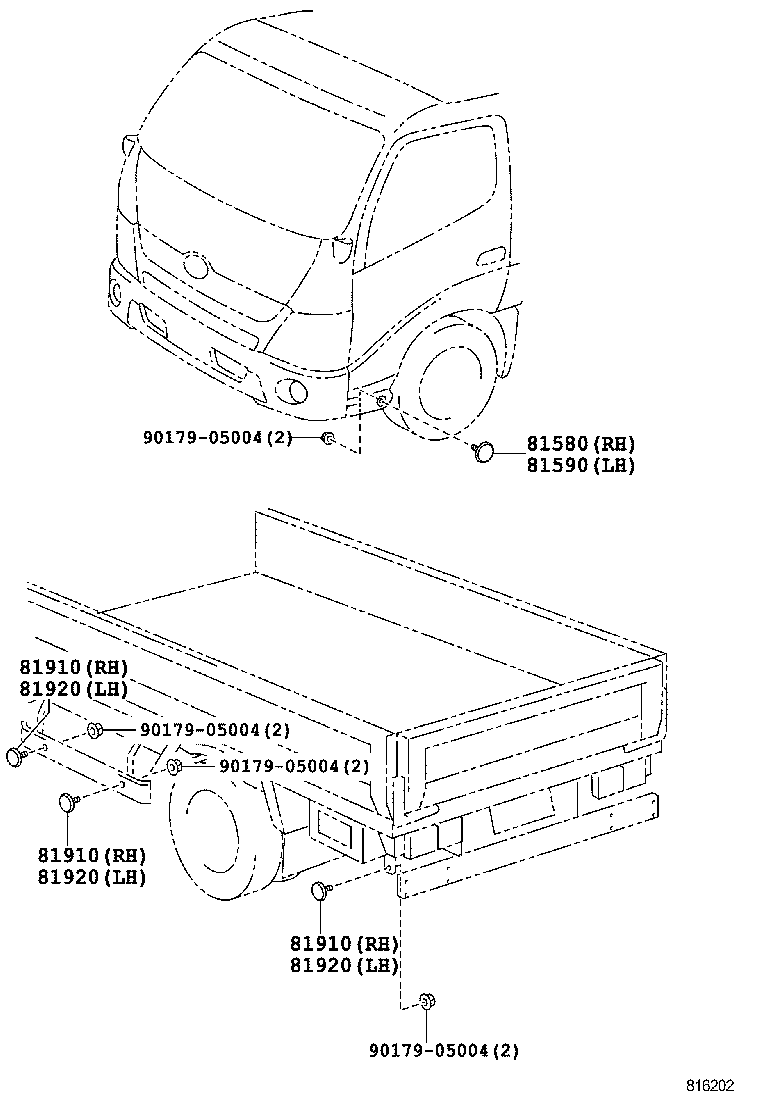

Click highlighted areas on diagram

diagram 81580 81590 81910 81910 81910 81920 81920 81920 9017905004 9017905004 9017905004 9017905004
Part # Description Qty Price
81580 - REFLECTOR ASSY, REFLEX SIDE, RH
81910-37070

XZU710..CBU

 1
81590 - REFLECTOR ASSY, REFLEX SIDE, LH
81910-37070

XZU710..CBU

 1
81910 - REFLECTOR ASSY, REFLEX, RH
81910-37070

XZU710..CBU

 1
81910 - REFLECTOR ASSY, REFLEX, RH
81910-37070

XZU710..CBU

 1
81910 - REFLECTOR ASSY, REFLEX, RH
81910-37070

XZU710..CBU

 1
81920 - REFLECTOR ASSY, REFLEX, LH
81910-37070

XZU710..CBU

 1
81920 - REFLECTOR ASSY, REFLEX, LH
81910-37070

XZU710..CBU

 1
81920 - REFLECTOR ASSY, REFLEX, LH
81910-37070

XZU710..CBU

 1
Common parts
90179-05004
