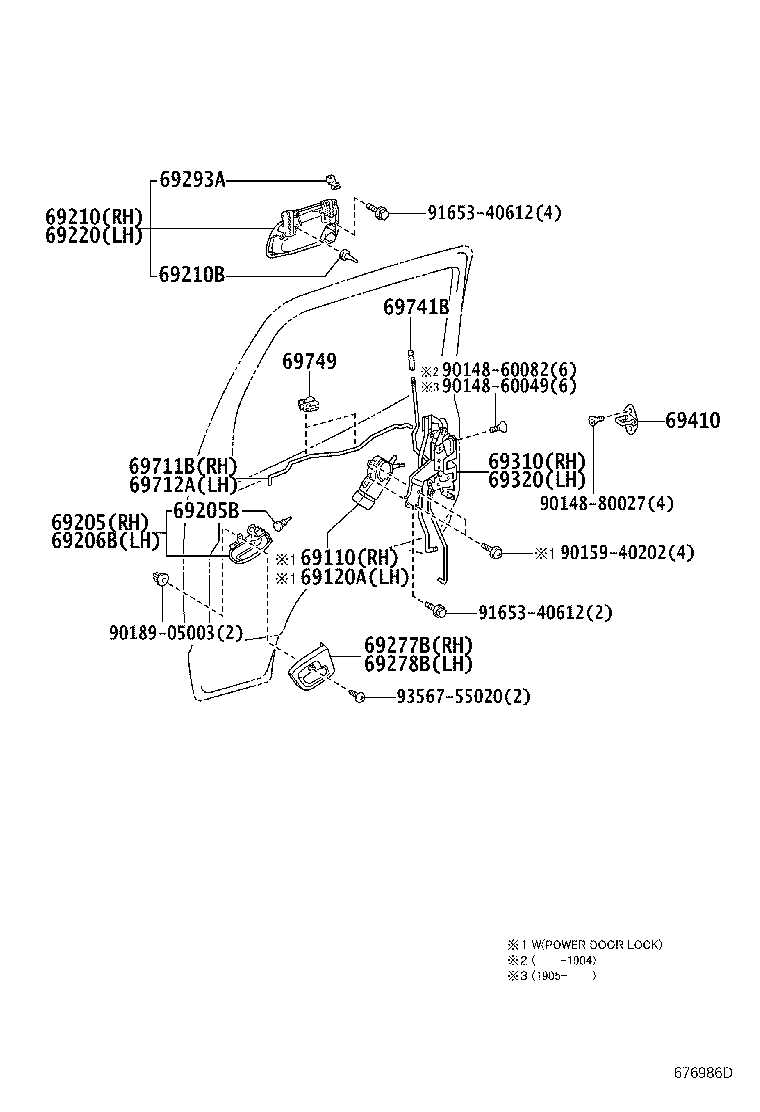

Toyota Dyna XZU710 FRONT DOOR LOCK & HANDLE

Part #	Description	Period	Qty
69110 - ACTUATOR ASSY, FRONT DOOR LOCK, RH
69110-37080	WU700,710,720..LHD;XZU710,720..MTM..GCC POWER WINDOW-WITH(FRONT ONLY)	07/2011 - 05/2020	1
69110-37080	XZU710..CBU POWER WINDOW-WITH(FRONT ONLY)	07/2011 - 05/2015	1
69120A - ACTUATOR ASSY, FRONT DOOR LOCK, LH
69120-37070	XZU710..CBU POWER WINDOW-WITH(FRONT ONLY)	07/2011 - 05/2015	1
69120-37070	WU700,710,720..LHD;XZU710,720..MTM..GCC POWER WINDOW-WITH(FRONT ONLY)	07/2011 - 05/2020	1
69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-37050C0	WU700,710,720;XZU710,720..MTM..GCC BLACK,TRIM1#	07/2011 - 05/2020	1
69205-37050C0	XZU710..CBU BLACK,TRIM1#	07/2011 - 05/2015	1
69205B - CUSHION(FOR FRONT DOOR INSIDE HANDLE)
90541-04027	XZU710..CBU	07/2011 - 05/2015	2
90541-04027	WU700,710,720;XZU710,720..MTM..GCC	07/2011 - 05/2020	2
69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-37050C0	WU700,710,720;XZU710,720..MTM..GCC BLACK,TRIM1#	07/2011 - 05/2020	1
69206-37050C0	XZU710..CBU BLACK,TRIM1#	07/2011 - 05/2015	1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-37020	WU700,710,720;XZU710,720..MTM..GCC NO PAINT REQ.	07/2011 - 05/2020	1
69210-37020	XZU710..CBU NO PAINT REQ.	07/2011 - 05/2015	1
69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
90541-04015	WU700,710,720;XZU710,720..MTM..GCC	07/2011 - 05/2020	4
90541-04015	XZU710..CBU	07/2011 - 05/2015	4
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-37020	XZU710..CBU NO PAINT REQ.	07/2011 - 05/2015	1
69220-37020	WU700,710,720;XZU710,720..MTM..GCC NO PAINT REQ.	07/2011 - 05/2020	1
69277B - BEZEL, FRONT DOOR INSIDE HANDLE, RH
69277-37020C0	XZU710..CBU BLACK,TRIM1#	07/2011 - 05/2015	1
69277-37020C0	WU700,710,720;XZU710,720..MTM..GCC BLACK,TRIM1#	07/2011 - 05/2020	1
69278B - BEZEL, FRONT DOOR INSIDE HANDLE, LH
69278-37020C0	WU700,710,720;XZU710,720..MTM..GCC BLACK,TRIM1#	07/2011 - 05/2020	1
69278-37020C0	XZU710..CBU BLACK,TRIM1#	07/2011 - 05/2015	1
69293A - SNAP, FRONT DOOR OUTSIDE HANDLE
69293-12050	XZU710..CBU RH	07/2011 - 05/2015	1
69293-12060	XZU710..CBU LH	07/2011 - 05/2015	1
69293-12050	WU700,710,720;XZU710,720..MTM..GCC RH	07/2011 - 05/2020	1
69293-12060	WU700,710,720;XZU710,720..MTM..GCC LH	07/2011 - 05/2020	1
69310 - LOCK ASSY, FRONT DOOR, RH
69310-37150	XZU710..CBU	07/2011 - 05/2015	1
69310-37150	WU700,710,720;XZU710,720..MTM..GCC	07/2011 - 05/2020	1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-37150	XZU710..CBU	07/2011 - 05/2015	1
69320-37150	WU700,710,720;XZU710,720..MTM..GCC	07/2011 - 05/2020	1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-20110	WU700,710,720;XZU710,720..MTM..GCC	07/2011 - 05/2020	2
69410-20110	XZU710..CBU	07/2011 - 05/2015	2
69711B - LINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69711-37040	XZU710..CBU	07/2011 - 05/2015	1
69711-37040	WU700,710,720;XZU710,720..MTM..GCC	07/2011 - 05/2020	1
69712A - LINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69712-37050	XZU710..CBU	07/2011 - 05/2015	1
69712-37050	WU700,710,720;XZU710,720..MTM..GCC	07/2011 - 05/2020	1
69741B - KNOB, FRONT DOOR LOCK CONTROL
69741-37010C0	WU700,710,720;XZU710,720..MTM..GCC BLACK,TRIM1#	07/2011 - 05/2020	2
69741-37010C0	XZU710..CBU BLACK,TRIM1#	07/2011 - 05/2015	2
69749 - CLAMP, FRONT DOOR LOCK LINK
69749-12070	WU700,710,720;XZU710,720..MTM..GCC	07/2011 - 05/2020	4
69749-12070	XZU710..CBU	07/2011 - 05/2015	4
Common parts
90148-60049
90148-60082
90148-80027
90159-40202
90189-05003
91653-40612
93567-55020

XZU710L-TKTQKV (2011)

(1107- ) ; (1911- )XZU710,720..GEN
