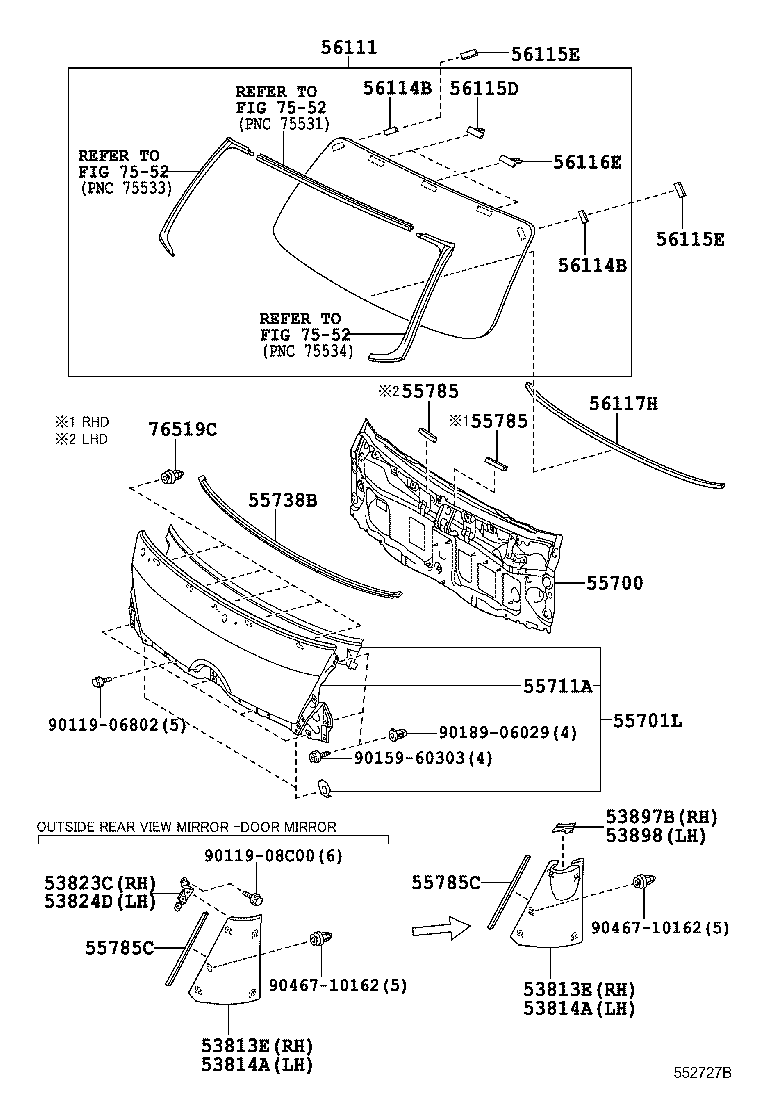

Toyota Dyna XZU710 FRONT PANEL & WINDSHIELD GLASS

Part #	Description	Period	Qty
53813E - PANEL, FRONT SIDE, RH
53813-37140A0	XZU710..CBU OUTSIDE REAR VIEW MIRROR-CONVEX MIRROR, *LOS,WHITE,058	07/2011 - 05/2015	1
53813-37140B0	XZU710..CBU OUTSIDE REAR VIEW MIRROR-CONVEX MIRROR, *LOS,SILVER ME.,199	07/2011 - 05/2015	1
53813-37160H0	XZU710..CBU TURQUOISE,766	07/2011 - 05/2015	1
53813-37160J0	XZU710..CBU BLUE,8P0	07/2011 - 05/2015	1
53813-37160A0	XZU710..CBU WHITE,058	07/2011 - 05/2015	1
53813-37140H0	XZU710..CBU OUTSIDE REAR VIEW MIRROR-CONVEX MIRROR, *LOS,TURQUOISE,766	07/2011 - 05/2015	1
53813-37160B0	XZU710..CBU SILVER ME.,199	07/2011 - 05/2015	1
53813-37140J0	XZU710..CBU OUTSIDE REAR VIEW MIRROR-CONVEX MIRROR, *LOS,BLUE,8P0	07/2011 - 05/2015	1
53813E - PANEL, FRONT SIDE, RH
53813-37140A0	XZU710..CBU OUTSIDE REAR VIEW MIRROR-CONVEX MIRROR, *LOS,WHITE,058	07/2011 - 05/2015	1
53813-37140B0	XZU710..CBU OUTSIDE REAR VIEW MIRROR-CONVEX MIRROR, *LOS,SILVER ME.,199	07/2011 - 05/2015	1
53813-37160H0	XZU710..CBU TURQUOISE,766	07/2011 - 05/2015	1
53813-37160J0	XZU710..CBU BLUE,8P0	07/2011 - 05/2015	1
53813-37160A0	XZU710..CBU WHITE,058	07/2011 - 05/2015	1
53813-37140H0	XZU710..CBU OUTSIDE REAR VIEW MIRROR-CONVEX MIRROR, *LOS,TURQUOISE,766	07/2011 - 05/2015	1
53813-37160B0	XZU710..CBU SILVER ME.,199	07/2011 - 05/2015	1
53813-37140J0	XZU710..CBU OUTSIDE REAR VIEW MIRROR-CONVEX MIRROR, *LOS,BLUE,8P0	07/2011 - 05/2015	1
53814A - PANEL, FRONT SIDE, LH
53814-37160B0	XZU710..CBU SILVER ME.,199	07/2011 - 05/2015	1
53814-37160A0	XZU710..CBU WHITE,058	07/2011 - 05/2015	1
53814-37160H0	XZU710..CBU TURQUOISE,766	07/2011 - 05/2015	1
53814-37160J0	XZU710..CBU BLUE,8P0	07/2011 - 05/2015	1
53814-37140B0	XZU710..CBU OUTSIDE REAR VIEW MIRROR-CONVEX MIRROR, *LOS,SILVER ME.,199	07/2011 - 05/2015	1
53814-37140H0	XZU710..CBU OUTSIDE REAR VIEW MIRROR-CONVEX MIRROR, *LOS,TURQUOISE,766	07/2011 - 05/2015	1
53814-37140A0	XZU710..CBU OUTSIDE REAR VIEW MIRROR-CONVEX MIRROR, *LOS,WHITE,058	07/2011 - 05/2015	1
53814-37140J0	XZU710..CBU OUTSIDE REAR VIEW MIRROR-CONVEX MIRROR, *LOS,BLUE,8P0	07/2011 - 05/2015	1
53814A - PANEL, FRONT SIDE, LH
53814-37160B0	XZU710..CBU SILVER ME.,199	07/2011 - 05/2015	1
53814-37160A0	XZU710..CBU WHITE,058	07/2011 - 05/2015	1
53814-37160H0	XZU710..CBU TURQUOISE,766	07/2011 - 05/2015	1
53814-37160J0	XZU710..CBU BLUE,8P0	07/2011 - 05/2015	1
53814-37140B0	XZU710..CBU OUTSIDE REAR VIEW MIRROR-CONVEX MIRROR, *LOS,SILVER ME.,199	07/2011 - 05/2015	1
53814-37140H0	XZU710..CBU OUTSIDE REAR VIEW MIRROR-CONVEX MIRROR, *LOS,TURQUOISE,766	07/2011 - 05/2015	1
53814-37140A0	XZU710..CBU OUTSIDE REAR VIEW MIRROR-CONVEX MIRROR, *LOS,WHITE,058	07/2011 - 05/2015	1
53814-37140J0	XZU710..CBU OUTSIDE REAR VIEW MIRROR-CONVEX MIRROR, *LOS,BLUE,8P0	07/2011 - 05/2015	1
53823C - PROTECTOR, FRONT SIDE PANEL, NO.2 RH
53823-37050	XZU710..CBU	07/2011 - 05/2015	1
53824D - PROTECTOR, FRONT SIDE PANEL, NO.2 LH
53824-37040	XZU710..CBU	07/2011 - 05/2015	1
53897B - PLATE, FRONT PILLAR TO FRONT SIDE SEAL, RH
53897-37030	XZU710..CBU OUTSIDE REAR VIEW MIRROR-CONVEX MIRROR, *LOS	07/2011 - 05/2015	1
53898 - PLATE, FRONT PILLAR TO FRONT SIDE SEAL, LH
53898-37030	XZU710..CBU OUTSIDE REAR VIEW MIRROR-CONVEX MIRROR, *LOS	07/2011 - 05/2015	1
55700 - PANEL ASSY, FRONT
55700-37400	XZU710..CBU	07/2011 - 05/2015	1
55700-37400	WU700,710,720..LHD;XZU710,720..MTM..GCC	07/2011 - 05/2020	1
55701L - PANEL SUB-ASSY, COWL TOP, OUTER
55701-37090	XZU710..CBU	07/2011 - 05/2015	1
55701-37090	WU700,710,720..LHD;XZU710,720..MTM..GCC	07/2011 - 05/2020	1
55711A - PANEL, FRONT, LOWER
55711-37130	WU700,710,720..LHD;XZU710,720..MTM..GCC	07/2011 - 05/2020	1
55711-37130	XZU710..CBU	07/2011 - 05/2015	1
55738B - PROTECTOR, FRONT PANEL COVER, NO.1
55738-37090	XZU710..CBU	07/2011 - 05/2015	1
55738-37090	WU700,710,720;XZU710,720..MTM..GCC	07/2011 - 05/2020	1
55785 - PAD, COWL OUTER PANEL, NO.2
55785-37030	XZU710..CBU	07/2011 - 05/2015	1
55785-37030	WU700,710,720;XZU710,720..MTM..GCC	07/2011 - 05/2020	1
55785 - PAD, COWL OUTER PANEL, NO.2
55785-37030	XZU710..CBU	07/2011 - 05/2015	1
55785-37030	WU700,710,720;XZU710,720..MTM..GCC	07/2011 - 05/2020	1
55785C - PAD, FRONT PANEL COVER
55785-37050	XZU710..CBU	07/2011 - 05/2015	2
55785-37050	WU700,710,720;XZU710,720..MTM..GCC	07/2011 - 05/2020	2
55785C - PAD, FRONT PANEL COVER
55785-37050	XZU710..CBU	07/2011 - 05/2015	2
55785-37050	WU700,710,720;XZU710,720..MTM..GCC	07/2011 - 05/2020	2
56111 - GLASS, WINDSHIELD
56101-37010	XZU710..CBU *LAM,T=5.26,GREEN	07/2011 - 05/2015	1
56114B - RETAINER, WINDSHIELD GLASS
56114-89102	XZU710..CBU	07/2011 - 05/2015	2
56114-89102	WU700,710,720;XZU710,720..MTM..GCC	07/2011 - 05/2020	2
56114B - RETAINER, WINDSHIELD GLASS
56114-89102	XZU710..CBU	07/2011 - 05/2015	2
56114-89102	WU700,710,720;XZU710,720..MTM..GCC	07/2011 - 05/2020	2
56115D - STOPPER, WINDSHIELD GLASS
56115-37010	WU700,710,720;XZU710,720..MTM..GCC	07/2011 - 05/2020	2
56115-37010	XZU710..CBU	07/2011 - 05/2015	2
56115E - STOPPER, WINDSHIELD GLASS
56115-89105	XZU710..CBU	07/2011 - 05/2015	2
56115-89105	WU700,710,720;XZU710,720..MTM..GCC	07/2011 - 05/2020	2
56115E - STOPPER, WINDSHIELD GLASS
56115-89105	XZU710..CBU	07/2011 - 05/2015	2
56115-89105	WU700,710,720;XZU710,720..MTM..GCC	07/2011 - 05/2020	2
56116E - STOPPER, WINDSHIELD GLASS, NO.2
56116-37020	XZU710..CBU	07/2011 - 05/2015	1
56116-37020	WU700,710,720;XZU710,720..MTM..GCC	07/2011 - 05/2020	1
56117H - DAM, WINDOW GLASS ADHESIVE
56117-89108	WU700,710,720;XZU710,720..MTM..GCC *D,L=1775	07/2011 - 05/2020	1
56117-89108	XZU710..CBU *D,L=1775	07/2011 - 05/2015	1
76519C - CLIP, FRONT END PANEL MOULDING
76519-37010	XZU710..CBU	07/2011 - 05/2015	5
76519-37010	WU700,710,720;XZU710,720..MTM..GCC	07/2011 - 05/2020	5
Common parts
90119-06802
90119-08C00
90159-60303
90189-06029
90467-10162
Linked diagrams
7552

XZU710L-TKTQKV (2011)

(1107- )XZU710,720..EUR,GCC ; (1107- )WU700,710,720,XZU730 ; (1911- )XZU71
