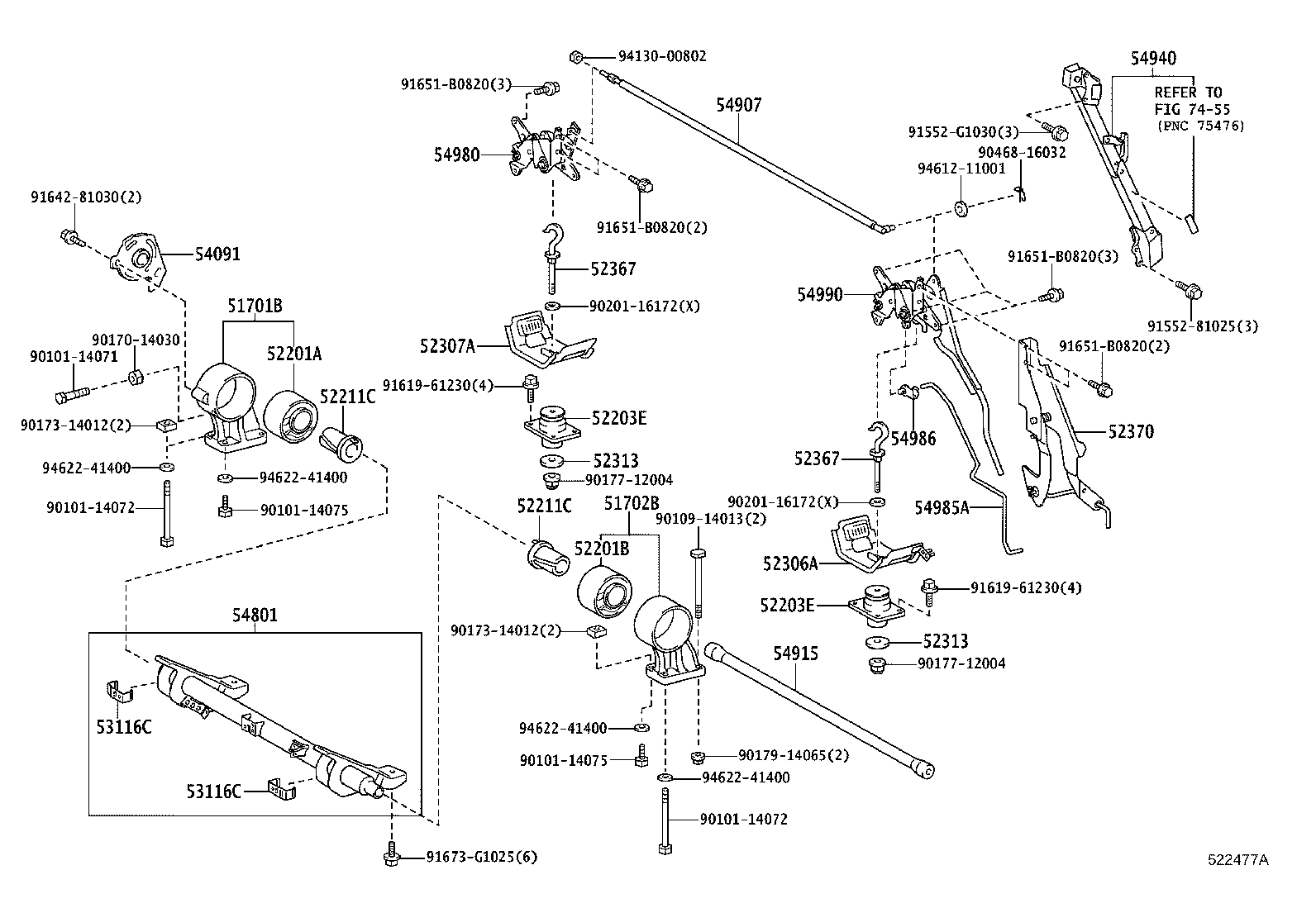

Toyota Dyna XZU710 CAB MOUNTING & BODY MOUNTING

Part #	Description	Period	Qty
51701B - BRACKET SUB-ASSY, CAB FRONT MOUNTING, RH
51701-37470	XZU710..CBU	07/2011 - 05/2015	1
51702B - BRACKET SUB-ASSY, CAB FRONT MOUNTING, LH
51702-37390	XZU710..CBU	07/2011 - 05/2015	1
52201A - CUSHION SUB-ASSY, CAB FRONT MOUNTING
52201-37120	XZU710..CBU	07/2011 - 05/2015	1
52201B - CUSHION SUB-ASSY, CAB FRONT MOUNTING
52201-37120	XZU710..CBU	07/2011 - 05/2015	1
52203E - CUSHION SUB-ASSY, CAB MOUNTING, NO.2
52203-37060	XZU710..CBU	07/2011 - 05/2015	2
52203-37060	WU700,710,720;XZU710,720..SCB..MTM..GCC	07/2011 - 05/2020	2
52203E - CUSHION SUB-ASSY, CAB MOUNTING, NO.2
52203-37060	XZU710..CBU	07/2011 - 05/2015	2
52203-37060	WU700,710,720;XZU710,720..SCB..MTM..GCC	07/2011 - 05/2020	2
52211C - SPACER(FOR BODY MOUNTING NO.1 CUSHION)
52211-37030	XZU710..CBU	07/2011 - 05/2015	2
52211-37030	WU700,710,720;XZU710,720..MTM..GCC	07/2011 - 05/2020	2
52211C - SPACER(FOR BODY MOUNTING NO.1 CUSHION)
52211-37030	XZU710..CBU	07/2011 - 05/2015	2
52211-37030	WU700,710,720;XZU710,720..MTM..GCC	07/2011 - 05/2020	2
52306A - BRACKET SUB-ASSY, CAB MOUNTING HOOK, NO.1
52306-37090	WU700,710,720;XZU710,720..SCB..MTM..GCC	07/2011 - 05/2020	1
52306-37090	XZU710..CBU	07/2011 - 05/2015	1
52307A - BRACKET SUB-ASSY, CAB MOUNTING HOOK, NO.2
52307-37030	WU700,710,720;XZU710,720..SCB..MTM..GCC	07/2011 - 05/2020	1
52307-37030	XZU710..CBU	07/2011 - 05/2015	1
52313 - STOPPER, CAB REAR MOUNTING REBOUND
52313-37040	XZU710..CBU	07/2011 - 05/2015	2
52313-37040	WU700,710,720;XZU710,720..SCB..MTM..GCC	07/2011 - 05/2020	2
52313 - STOPPER, CAB REAR MOUNTING REBOUND
52313-37040	XZU710..CBU	07/2011 - 05/2015	2
52313-37040	WU700,710,720;XZU710,720..SCB..MTM..GCC	07/2011 - 05/2020	2
52367 - HOOK, CAB REAR MOUNTING
52367-37060	WU700,710,720;XZU710,720..SCB..MTM..GCC	07/2011 - 05/2020	2
52367-37060	XZU710..CBU	07/2011 - 05/2015	2
52367 - HOOK, CAB REAR MOUNTING
52367-37060	WU700,710,720;XZU710,720..SCB..MTM..GCC	07/2011 - 05/2020	2
52367-37060	XZU710..CBU	07/2011 - 05/2015	2
52370 - LATCH ASSY, CAB MOUNTING SAFETY
52370-37011	XZU710..CBU	03/2013 - 05/2015	1
52370-37010	WU700,710,720,XZU710,720..SCB	07/2011 - 02/2013	1
52370-37011	WU700,710,720;XZU710,720..SCB..MTM..GCC	03/2013 - 05/2020	1
53116C - BRACKET, RADIATOR GRILLE, NO.2
53116-37030	XZU710..CBU	07/2011 - 05/2015	2
53116-37030	WU700,710,720;XZU710,720..MTM..GCC	07/2011 - 05/2020	2
53116C - BRACKET, RADIATOR GRILLE, NO.2
53116-37030	XZU710..CBU	07/2011 - 05/2015	2
53116-37030	WU700,710,720;XZU710,720..MTM..GCC	07/2011 - 05/2020	2
54091 - ARM SUB-ASSY, TILT CAB SPRING SUPPORT, NO.1
54091-37061	XZU710..CBU	01/2012 - 05/2015	1
54091-37060	WU700,710,720,XZU710..LHD..SCB	07/2011 - 12/2011	1
54091-37061	WU700,710,720..LHD;XZU710,720..SCB..MTM..GCC	01/2012 - 05/2020	1
54801 - TUBE SUB-ASSY, TILT CAB, NO.1
54801-37260	XZU710..CBU	07/2011 - 05/2015	1
54801-37260	WU700,710,720..LHD;XZU710,720..MTM..GCC	07/2011 - 05/2020	1
54907 - PIPE SUB-ASSY, TILT CAB LOCK CONNECTING
54907-37040	XZU710..CBU	07/2011 - 05/2015	1
54907-37040	WU700,710,720;XZU710,720..SCB..MTM..GCC	07/2011 - 05/2020	1
54915 - SPRING, TILT CAB, NO.1
54915-37210	XZU710..CBU SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)	07/2011 - 05/2015	1
54915-37220	XZU710..CBU	07/2011 - 05/2015	1
54940 - STAY ASSY, TILT CAB
54940-37271	XZU710..CBU	07/2011 - 05/2015	1
54980 - LOCK ASSY, TILT CAB MOUNTING, RH
54980-37040	WU700,710,720;XZU710,720..SCB..MTM..GCC	07/2011 - 05/2020	1
54980-37040	XZU710..CBU	07/2011 - 05/2015	1
54985A - ROD, TILT CAB LOCK HANDLE
54985-37060	XZU710..CBU	07/2011 - 05/2015	1
54985-37060	WU700,710,720;XZU710,720..SCB..MTM..GCC	07/2011 - 05/2020	1
54986 - SUPPORT, TILT CAB LOCK
54986-37030	WU700,710,720;XZU710,720..SCB..MTM..GCC	07/2011 - 05/2020	1
54986-37030	XZU710..CBU	07/2011 - 05/2015	1
54990 - LOCK ASSY, TILT CAB MOUNTING, LH
54990-37080	WU700,710,720,XZU710,720,730..SCB	07/2011 - 10/2013	1
54990-37081	XZU710..CBU	11/2013 - 05/2015	1
54990-37081	WU700,710,720;XZU710,720..SCB..MTM..GCC	11/2013 - 05/2020	1
Common parts
90101-14071
90101-14072
90101-14075
90109-14013
90170-14030
90173-14012
90177-12004
90179-14065
90201-16172
90468-16032
91552-81025
91552-G1030
91619-61230
91642-81030
91651-B0820
91673-G1025
94130-00802
94612-11001
94622-41400
Linked diagrams
7455

XZU710L-TKTQKV (2011)

(1107- )LHD..SCB
