Toyota Dyna XZU710 FRAME - JDM Part Detective

XZU710L-TKTQKV (2011)

Toyota Dyna

Production Jul 2011 - Sep 9999

Engine N04C

Transmission 6FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

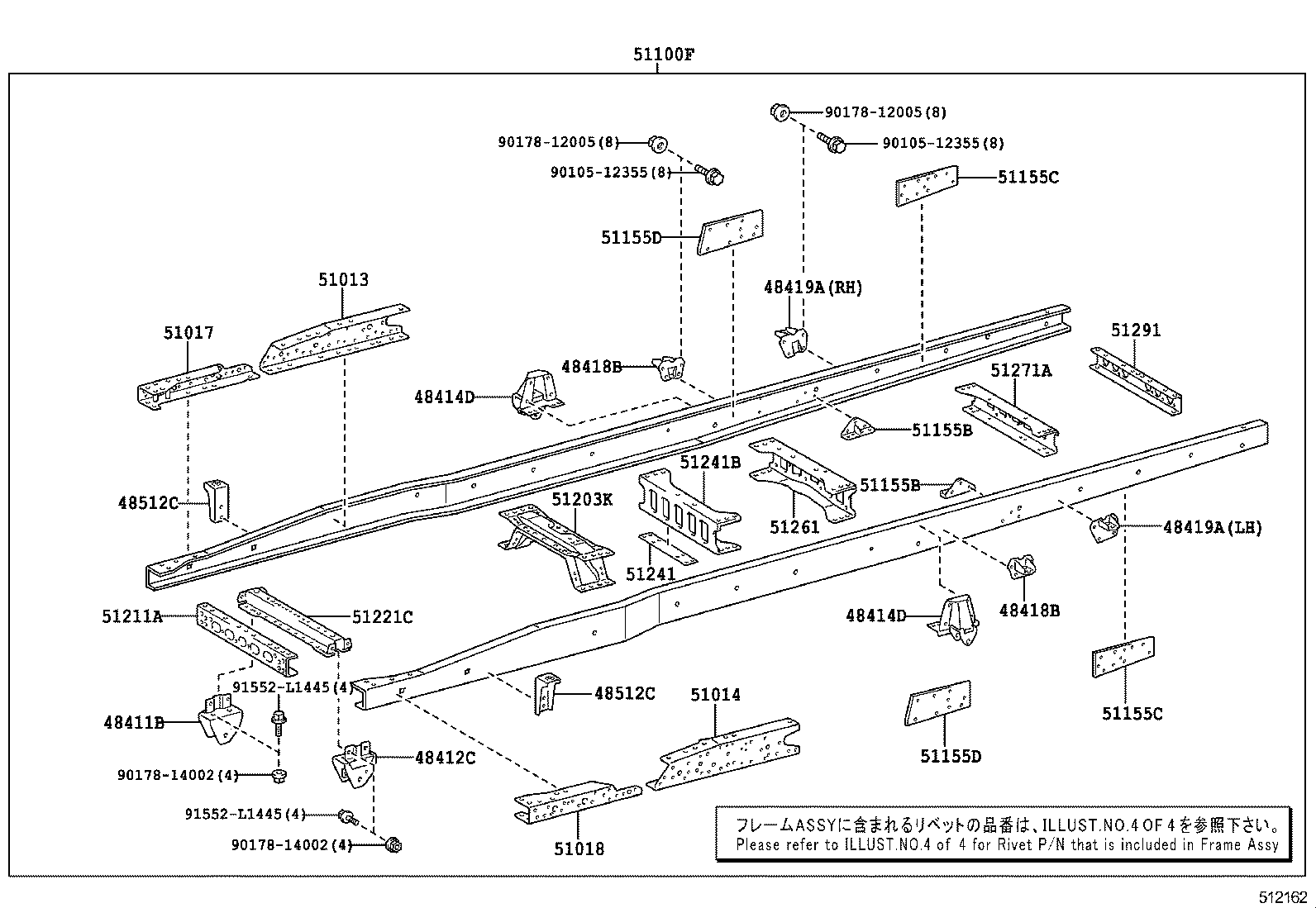

ILLUST NO. 1 OF 4(1107- )6FC

Click highlighted areas on diagram

Part #	Description	Period	Qty
48411B - BRACKET, SPRING, NO.1 RH
48411-37090	XZU710..CBU	07/2011 - 05/2015	1
48411-37110	XZU710..CBU REAR SUSPENSION-MULTI LEAF REIN TENSION	07/2011 - 05/2015	1
48411-37110	WU720..GCC;WU710,XZU710,720..6F..GCC	07/2011 - 05/2020	1
48411-37110	XZU710..CBU REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)	07/2011 - 05/2015	1
48412C - BRACKET, SPRING, NO.1 LH
48412-37080	XZU710..CBU	07/2011 - 05/2015	1
48412-37100	XZU710..CBU REAR SUSPENSION-MULTI LEAF REIN TENSION	07/2011 - 05/2015	1
48412-37100	XZU710..CBU REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)	07/2011 - 05/2015	1
48412-37100	WU720..GCC;WU710,XZU710,720..6F..GCC	07/2011 - 05/2020	1
48414D - BRACKET, SPRING, NO.3
48414-37200	WU720..GCC;WU710,XZU710,720..6F..GCC	07/2011 - 05/2020	2
48414-37200	XZU710..CBU REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)	07/2011 - 05/2015	2
48414-37200	XZU710..CBU REAR SUSPENSION-MULTI LEAF REIN TENSION	07/2011 - 05/2015	2
48414-37140	XZU710..CBU	07/2011 - 05/2015	2
48414D - BRACKET, SPRING, NO.3
48414-37200	WU720..GCC;WU710,XZU710,720..6F..GCC	07/2011 - 05/2020	2
48414-37200	XZU710..CBU REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)	07/2011 - 05/2015	2
48414-37200	XZU710..CBU REAR SUSPENSION-MULTI LEAF REIN TENSION	07/2011 - 05/2015	2
48414-37140	XZU710..CBU	07/2011 - 05/2015	2
48418B - BRACKET, SPRING, NO.6
48418-37050	XZU710..CBU REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)	07/2011 - 05/2015	2
48418-37050	XZU710..CBU REAR SUSPENSION-MULTI LEAF REIN TENSION	07/2011 - 05/2015	2
48418-37030	XZU710..CBU	07/2011 - 05/2015	2
48418-37050	WU720..GCC;WU710,XZU710,720..6F..GCC	07/2011 - 05/2020	2
48418B - BRACKET, SPRING, NO.6
48418-37050	XZU710..CBU REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)	07/2011 - 05/2015	2
48418-37050	XZU710..CBU REAR SUSPENSION-MULTI LEAF REIN TENSION	07/2011 - 05/2015	2
48418-37030	XZU710..CBU	07/2011 - 05/2015	2
48418-37050	WU720..GCC;WU710,XZU710,720..6F..GCC	07/2011 - 05/2020	2
48419A - BRACKET, SPRING, NO.7
48419-37030	XZU710..CBU	07/2011 - 05/2015	2
48419-37040	XZU710..CBU REAR SUSPENSION-MULTI LEAF REIN TENSION,RH	07/2011 - 05/2015	1
48419-37050	XZU710..CBU REAR SUSPENSION-MULTI LEAF REIN TENSION,LH	07/2011 - 05/2015	1
48419-37050	XZU710..CBU REAR SUSPENSION-MULTI LEAF(RUBBER BUSH),LH	07/2011 - 05/2015	1
48419-37040	XZU710..CBU REAR SUSPENSION-MULTI LEAF(RUBBER BUSH),RH	07/2011 - 05/2015	1
48419-37040	WU720..GCC;WU710,XZU710,720..6F..GCC RH	07/2011 - 05/2020	1
48419-37050	WU720..GCC;WU710,XZU710,720..6F..GCC LH	07/2011 - 05/2020	1
48419A - BRACKET, SPRING, NO.7
48419-37030	XZU710..CBU	07/2011 - 05/2015	2
48419-37040	XZU710..CBU REAR SUSPENSION-MULTI LEAF REIN TENSION,RH	07/2011 - 05/2015	1
48419-37050	XZU710..CBU REAR SUSPENSION-MULTI LEAF REIN TENSION,LH	07/2011 - 05/2015	1
48419-37050	XZU710..CBU REAR SUSPENSION-MULTI LEAF(RUBBER BUSH),LH	07/2011 - 05/2015	1
48419-37040	XZU710..CBU REAR SUSPENSION-MULTI LEAF(RUBBER BUSH),RH	07/2011 - 05/2015	1
48419-37040	WU720..GCC;WU710,XZU710,720..6F..GCC RH	07/2011 - 05/2020	1
48419-37050	WU720..GCC;WU710,XZU710,720..6F..GCC LH	07/2011 - 05/2020	1
48512C - BRACKET, FRONT SHOCK ABSORBER, UPPER
48512-37080	WU700,710,720;XZU710,720..MTM..GCC	07/2011 - 05/2020	2
48512-37080	XZU710..CBU	07/2011 - 05/2015	2
48512C - BRACKET, FRONT SHOCK ABSORBER, UPPER
48512-37080	WU700,710,720;XZU710,720..MTM..GCC	07/2011 - 05/2020	2
48512-37080	XZU710..CBU	07/2011 - 05/2015	2
51013 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT RH
51013-37470	XZU710..CBU	07/2011 - 05/2015	1
51013-37470	WU700,710,720;XZU710,720..MTM..GCC	07/2011 - 05/2020	1
51014 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT LH
51014-37450	XZU710..CBU	07/2011 - 05/2015	1
51014-37450	WU700,710,720;XZU710,720..MTM..GCC	07/2011 - 05/2020	1
51017 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 RH
51017-37240	WU700,710,720;XZU710,720..MTM..GCC	07/2011 - 05/2020	1
51017-37240	XZU710..CBU	07/2011 - 05/2015	1
51018 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 LH
51018-37190	WU700,710,720;XZU710,720..MTM..GCC	07/2011 - 05/2020	1
51018-37190	XZU710..CBU	07/2011 - 05/2015	1
51100F - FRAME SUB-ASSY
51002-37A20	XZU710..CBU REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)	07/2011 - 05/2015	1
51002-37A50	XZU710..CBU	07/2011 - 05/2015	1
51002-37A20	XZU710..CBU REAR SUSPENSION-MULTI LEAF REIN TENSION	07/2011 - 05/2015	1
51155B - STIFFENER, FRAME SIDE RAIL, REAR NO.2
51155-37090	WU700,710,720;XZU710,720..MTM..GCC	07/2011 - 05/2020	2
51155-37090	XZU710..CBU	07/2011 - 05/2015	2
51155B - STIFFENER, FRAME SIDE RAIL, REAR NO.2
51155-37090	WU700,710,720;XZU710,720..MTM..GCC	07/2011 - 05/2020	2
51155-37090	XZU710..CBU	07/2011 - 05/2015	2
51155C - STIFFENER, FRAME SIDE RAIL, REAR NO.3
51155-37050	XZU710..CBU	07/2011 - 05/2015	2
51155-37210	XZU710..CBU REAR SUSPENSION-MULTI LEAF REIN TENSION	07/2011 - 05/2015	2
51155-37210	XZU710..CBU REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)	07/2011 - 05/2015	2
51155-37210	WU720..GCC;WU710,XZU710,720..6F..GCC	07/2011 - 05/2020	2
51155C - STIFFENER, FRAME SIDE RAIL, REAR NO.3
51155-37050	XZU710..CBU	07/2011 - 05/2015	2
51155-37210	XZU710..CBU REAR SUSPENSION-MULTI LEAF REIN TENSION	07/2011 - 05/2015	2
51155-37210	XZU710..CBU REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)	07/2011 - 05/2015	2
51155-37210	WU720..GCC;WU710,XZU710,720..6F..GCC	07/2011 - 05/2020	2
51155D - STIFFENER, FRAME SIDE RAIL, REAR NO.1
51155-37200	XZU710..CBU REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)	07/2011 - 05/2015	2
51155-37040	XZU710..CBU	07/2011 - 05/2015	2
51155-37200	XZU710..CBU REAR SUSPENSION-MULTI LEAF REIN TENSION	07/2011 - 05/2015	2
51155-37200	WU720..GCC;WU710,XZU710,720..6F..GCC	07/2011 - 05/2020	2
51155D - STIFFENER, FRAME SIDE RAIL, REAR NO.1
51155-37200	XZU710..CBU REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)	07/2011 - 05/2015	2
51155-37040	XZU710..CBU	07/2011 - 05/2015	2
51155-37200	XZU710..CBU REAR SUSPENSION-MULTI LEAF REIN TENSION	07/2011 - 05/2015	2
51155-37200	WU720..GCC;WU710,XZU710,720..6F..GCC	07/2011 - 05/2020	2
51203K - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51203-37351	WU700,710,720;XZU710,720..MTM..GCC	07/2011 - 05/2020	1
51203-37202	XZU710..CBU	07/2011 - 05/2015	1
51211A - CROSSMEMBER, FRAME, FRONT
51211-37130	WU700,710,720;XZU710,720..MTM..GCC	07/2011 - 05/2020	1
51211-37130	XZU710..CBU	07/2011 - 05/2015	1
51221C - CROSSMEMBER, FRAME, NO.2
51221-37200	WU700,710,720;XZU710,720..MTM..GCC	07/2011 - 05/2020	1
51221-37200	XZU710..CBU	07/2011 - 05/2015	1
51241 - BRACKET, CENTER BEARING SUPPORT
51241-37080	XZU710..CBU	07/2011 - 05/2015	1
51241B - CROSSMEMBER, FRAME, NO.4
51241-37070	XZU710..CBU	07/2011 - 05/2015	1
51261 - CROSSMEMBER, FRAME, NO.6
51261-37060	XZU710..DCB;WU710..85T..IV3;WU720,XZU710,720..6F..GCC	07/2011 - 05/2017	1
51261-37060	XZU710..CBU	07/2011 - 05/2015	1
51261-37170	XZU710..DCB;WU710,720,XZU710,720..6F..GCC	05/2017 - 05/2020	1
51271A - CROSSMEMBER, FRAME, NO.7
51271-37010	XZU710..CBU	07/2011 - 05/2015	1
51271-37010	WU700,710,720;XZU710,720..MTM..GCC	07/2011 - 05/2020	1
51291 - CROSSMEMBER, FRAME, REAR
51291-37100	XZU710..CBU	07/2011 - 05/2015	1
Common parts
90105-12355
90178-12005
90178-14002
91552-L1445

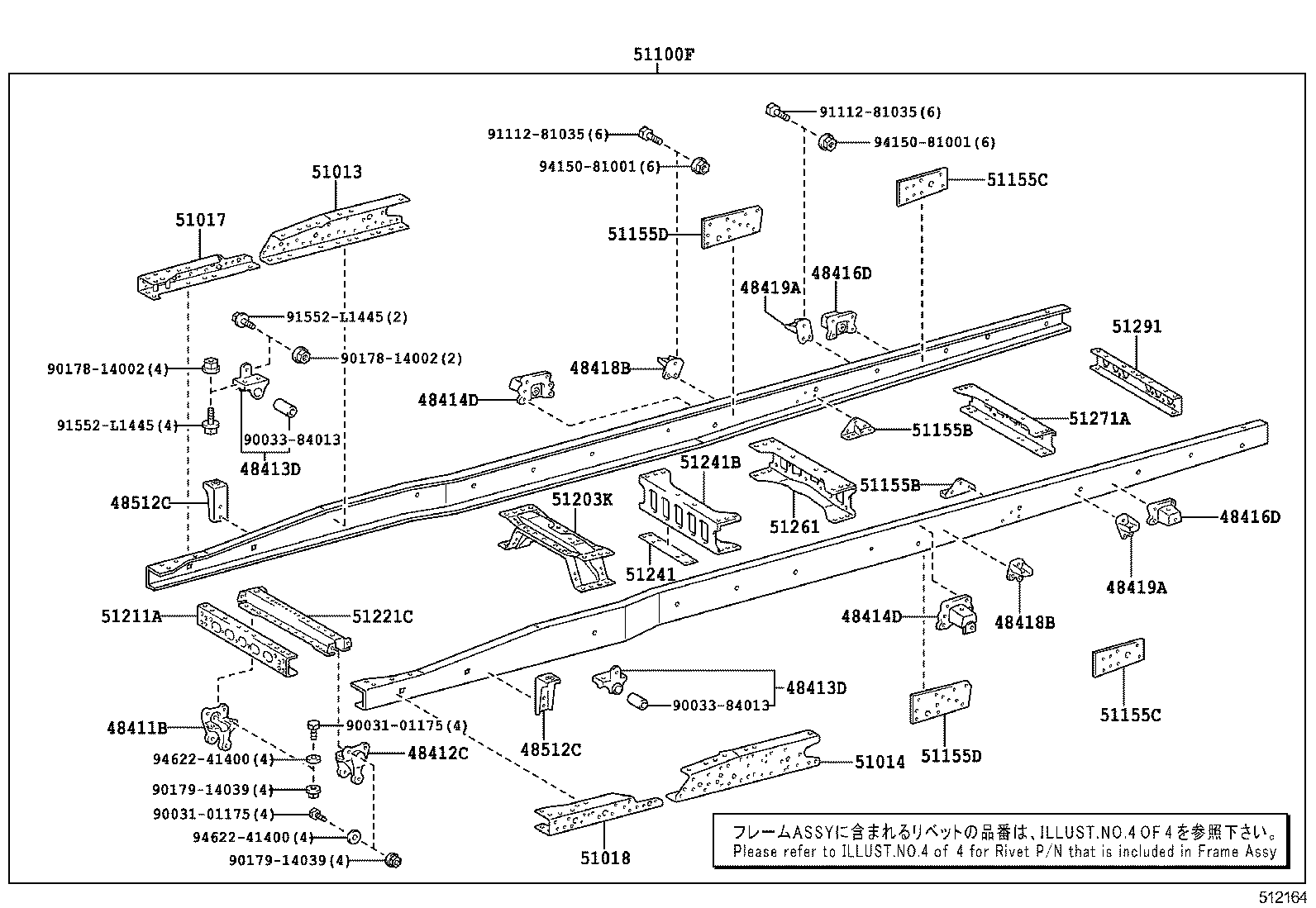

ILLUST NO. 1 OF 4(1107- )6FC

Click highlighted areas on diagram

Part #	Description	Period	Qty
48411B - BRACKET, SPRING, NO.1 RH
48411-37090	XZU710..CBU	07/2011 - 05/2015	1
48411-37110	XZU710..CBU REAR SUSPENSION-MULTI LEAF REIN TENSION	07/2011 - 05/2015	1
48411-37110	WU720..GCC;WU710,XZU710,720..6F..GCC	07/2011 - 05/2020	1
48411-37110	XZU710..CBU REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)	07/2011 - 05/2015	1
48412C - BRACKET, SPRING, NO.1 LH
48412-37080	XZU710..CBU	07/2011 - 05/2015	1
48412-37100	XZU710..CBU REAR SUSPENSION-MULTI LEAF REIN TENSION	07/2011 - 05/2015	1
48412-37100	XZU710..CBU REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)	07/2011 - 05/2015	1
48412-37100	WU720..GCC;WU710,XZU710,720..6F..GCC	07/2011 - 05/2020	1
48413D - BRACKET, SPRING, NO.2
48403-37080	XZU710..CBU	07/2011 - 05/2015	2
48413D - BRACKET, SPRING, NO.2
48403-37080	XZU710..CBU	07/2011 - 05/2015	2
48414D - BRACKET, SPRING, NO.3
48414-37200	WU720..GCC;WU710,XZU710,720..6F..GCC	07/2011 - 05/2020	2
48414-37200	XZU710..CBU REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)	07/2011 - 05/2015	2
48414-37200	XZU710..CBU REAR SUSPENSION-MULTI LEAF REIN TENSION	07/2011 - 05/2015	2
48414-37140	XZU710..CBU	07/2011 - 05/2015	2
48414D - BRACKET, SPRING, NO.3
48414-37200	WU720..GCC;WU710,XZU710,720..6F..GCC	07/2011 - 05/2020	2
48414-37200	XZU710..CBU REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)	07/2011 - 05/2015	2
48414-37200	XZU710..CBU REAR SUSPENSION-MULTI LEAF REIN TENSION	07/2011 - 05/2015	2
48414-37140	XZU710..CBU	07/2011 - 05/2015	2
48416D - BRACKET, SPRING, NO.4
48416-37120	XZU710..CBU	07/2011 - 05/2015	2
48416D - BRACKET, SPRING, NO.4
48416-37120	XZU710..CBU	07/2011 - 05/2015	2
48418B - BRACKET, SPRING, NO.6
48418-37050	XZU710..CBU REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)	07/2011 - 05/2015	2
48418-37050	XZU710..CBU REAR SUSPENSION-MULTI LEAF REIN TENSION	07/2011 - 05/2015	2
48418-37030	XZU710..CBU	07/2011 - 05/2015	2
48418-37050	WU720..GCC;WU710,XZU710,720..6F..GCC	07/2011 - 05/2020	2
48418B - BRACKET, SPRING, NO.6
48418-37050	XZU710..CBU REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)	07/2011 - 05/2015	2
48418-37050	XZU710..CBU REAR SUSPENSION-MULTI LEAF REIN TENSION	07/2011 - 05/2015	2
48418-37030	XZU710..CBU	07/2011 - 05/2015	2
48418-37050	WU720..GCC;WU710,XZU710,720..6F..GCC	07/2011 - 05/2020	2
48419A - BRACKET, SPRING, NO.7
48419-37030	XZU710..CBU	07/2011 - 05/2015	2
48419-37040	XZU710..CBU REAR SUSPENSION-MULTI LEAF REIN TENSION,RH	07/2011 - 05/2015	1
48419-37050	XZU710..CBU REAR SUSPENSION-MULTI LEAF REIN TENSION,LH	07/2011 - 05/2015	1
48419-37050	XZU710..CBU REAR SUSPENSION-MULTI LEAF(RUBBER BUSH),LH	07/2011 - 05/2015	1
48419-37040	XZU710..CBU REAR SUSPENSION-MULTI LEAF(RUBBER BUSH),RH	07/2011 - 05/2015	1
48419-37040	WU720..GCC;WU710,XZU710,720..6F..GCC RH	07/2011 - 05/2020	1
48419-37050	WU720..GCC;WU710,XZU710,720..6F..GCC LH	07/2011 - 05/2020	1
48419A - BRACKET, SPRING, NO.7
48419-37030	XZU710..CBU	07/2011 - 05/2015	2
48419-37040	XZU710..CBU REAR SUSPENSION-MULTI LEAF REIN TENSION,RH	07/2011 - 05/2015	1
48419-37050	XZU710..CBU REAR SUSPENSION-MULTI LEAF REIN TENSION,LH	07/2011 - 05/2015	1
48419-37050	XZU710..CBU REAR SUSPENSION-MULTI LEAF(RUBBER BUSH),LH	07/2011 - 05/2015	1
48419-37040	XZU710..CBU REAR SUSPENSION-MULTI LEAF(RUBBER BUSH),RH	07/2011 - 05/2015	1
48419-37040	WU720..GCC;WU710,XZU710,720..6F..GCC RH	07/2011 - 05/2020	1
48419-37050	WU720..GCC;WU710,XZU710,720..6F..GCC LH	07/2011 - 05/2020	1
48512C - BRACKET, FRONT SHOCK ABSORBER, UPPER
48512-37080	WU700,710,720;XZU710,720..MTM..GCC	07/2011 - 05/2020	2
48512-37080	XZU710..CBU	07/2011 - 05/2015	2
48512C - BRACKET, FRONT SHOCK ABSORBER, UPPER
48512-37080	WU700,710,720;XZU710,720..MTM..GCC	07/2011 - 05/2020	2
48512-37080	XZU710..CBU	07/2011 - 05/2015	2
51013 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT RH
51013-37470	XZU710..CBU	07/2011 - 05/2015	1
51013-37470	WU700,710,720;XZU710,720..MTM..GCC	07/2011 - 05/2020	1
51014 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT LH
51014-37450	XZU710..CBU	07/2011 - 05/2015	1
51014-37450	WU700,710,720;XZU710,720..MTM..GCC	07/2011 - 05/2020	1
51017 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 RH
51017-37240	WU700,710,720;XZU710,720..MTM..GCC	07/2011 - 05/2020	1
51017-37240	XZU710..CBU	07/2011 - 05/2015	1
51018 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 LH
51018-37190	WU700,710,720;XZU710,720..MTM..GCC	07/2011 - 05/2020	1
51018-37190	XZU710..CBU	07/2011 - 05/2015	1
51100F - FRAME SUB-ASSY
51002-37A20	XZU710..CBU REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)	07/2011 - 05/2015	1
51002-37A50	XZU710..CBU	07/2011 - 05/2015	1
51002-37A20	XZU710..CBU REAR SUSPENSION-MULTI LEAF REIN TENSION	07/2011 - 05/2015	1
51155B - STIFFENER, FRAME SIDE RAIL, REAR NO.2
51155-37090	XZU710..CBU	07/2011 - 05/2015	2
51155-37090	WU700,710,720;XZU710,720..MTM..GCC	07/2011 - 05/2020	2
51155B - STIFFENER, FRAME SIDE RAIL, REAR NO.2
51155-37090	XZU710..CBU	07/2011 - 05/2015	2
51155-37090	WU700,710,720;XZU710,720..MTM..GCC	07/2011 - 05/2020	2
51155C - STIFFENER, FRAME SIDE RAIL, REAR NO.3
51155-37050	XZU710..CBU	07/2011 - 05/2015	2
51155-37210	XZU710..CBU REAR SUSPENSION-MULTI LEAF REIN TENSION	07/2011 - 05/2015	2
51155-37210	XZU710..CBU REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)	07/2011 - 05/2015	2
51155-37210	WU720..GCC;WU710,XZU710,720..6F..GCC	07/2011 - 05/2020	2
51155C - STIFFENER, FRAME SIDE RAIL, REAR NO.3
51155-37050	XZU710..CBU	07/2011 - 05/2015	2
51155-37210	XZU710..CBU REAR SUSPENSION-MULTI LEAF REIN TENSION	07/2011 - 05/2015	2
51155-37210	XZU710..CBU REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)	07/2011 - 05/2015	2
51155-37210	WU720..GCC;WU710,XZU710,720..6F..GCC	07/2011 - 05/2020	2
51155D - STIFFENER, FRAME SIDE RAIL, REAR NO.1
51155-37200	XZU710..CBU REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)	07/2011 - 05/2015	2
51155-37040	XZU710..CBU	07/2011 - 05/2015	2
51155-37200	XZU710..CBU REAR SUSPENSION-MULTI LEAF REIN TENSION	07/2011 - 05/2015	2
51155-37200	WU720..GCC;WU710,XZU710,720..6F..GCC	07/2011 - 05/2020	2
51155D - STIFFENER, FRAME SIDE RAIL, REAR NO.1
51155-37200	XZU710..CBU REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)	07/2011 - 05/2015	2
51155-37040	XZU710..CBU	07/2011 - 05/2015	2
51155-37200	XZU710..CBU REAR SUSPENSION-MULTI LEAF REIN TENSION	07/2011 - 05/2015	2
51155-37200	WU720..GCC;WU710,XZU710,720..6F..GCC	07/2011 - 05/2020	2
51203K - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51203-37351	WU700,710,720;XZU710,720..MTM..GCC	07/2011 - 05/2020	1
51203-37202	XZU710..CBU	07/2011 - 05/2015	1
51211A - CROSSMEMBER, FRAME, FRONT
51211-37130	WU700,710,720;XZU710,720..MTM..GCC	07/2011 - 05/2020	1
51211-37130	XZU710..CBU	07/2011 - 05/2015	1
51221C - CROSSMEMBER, FRAME, NO.2
51221-37200	WU700,710,720;XZU710,720..MTM..GCC	07/2011 - 05/2020	1
51221-37200	XZU710..CBU	07/2011 - 05/2015	1
51241 - BRACKET, CENTER BEARING SUPPORT
51241-37080	XZU710..CBU	07/2011 - 05/2015	1
51241B - CROSSMEMBER, FRAME, NO.4
51241-37070	XZU710..CBU	07/2011 - 05/2015	1
51261 - CROSSMEMBER, FRAME, NO.6
51261-37060	XZU710..DCB;WU710..85T..IV3;WU720,XZU710,720..6F..GCC	07/2011 - 05/2017	1
51261-37060	XZU710..CBU	07/2011 - 05/2015	1
51261-37170	XZU710..DCB;WU710,720,XZU710,720..6F..GCC	05/2017 - 05/2020	1
51271A - CROSSMEMBER, FRAME, NO.7
51271-37010	XZU710..CBU	07/2011 - 05/2015	1
51271-37010	WU700,710,720;XZU710,720..MTM..GCC	07/2011 - 05/2020	1
51291 - CROSSMEMBER, FRAME, REAR
51291-37100	XZU710..CBU	07/2011 - 05/2015	1
Common parts
90031-01175
90033-84013
90178-14002
90179-14039
91112-81035
91552-L1445
94150-81001
94622-41400

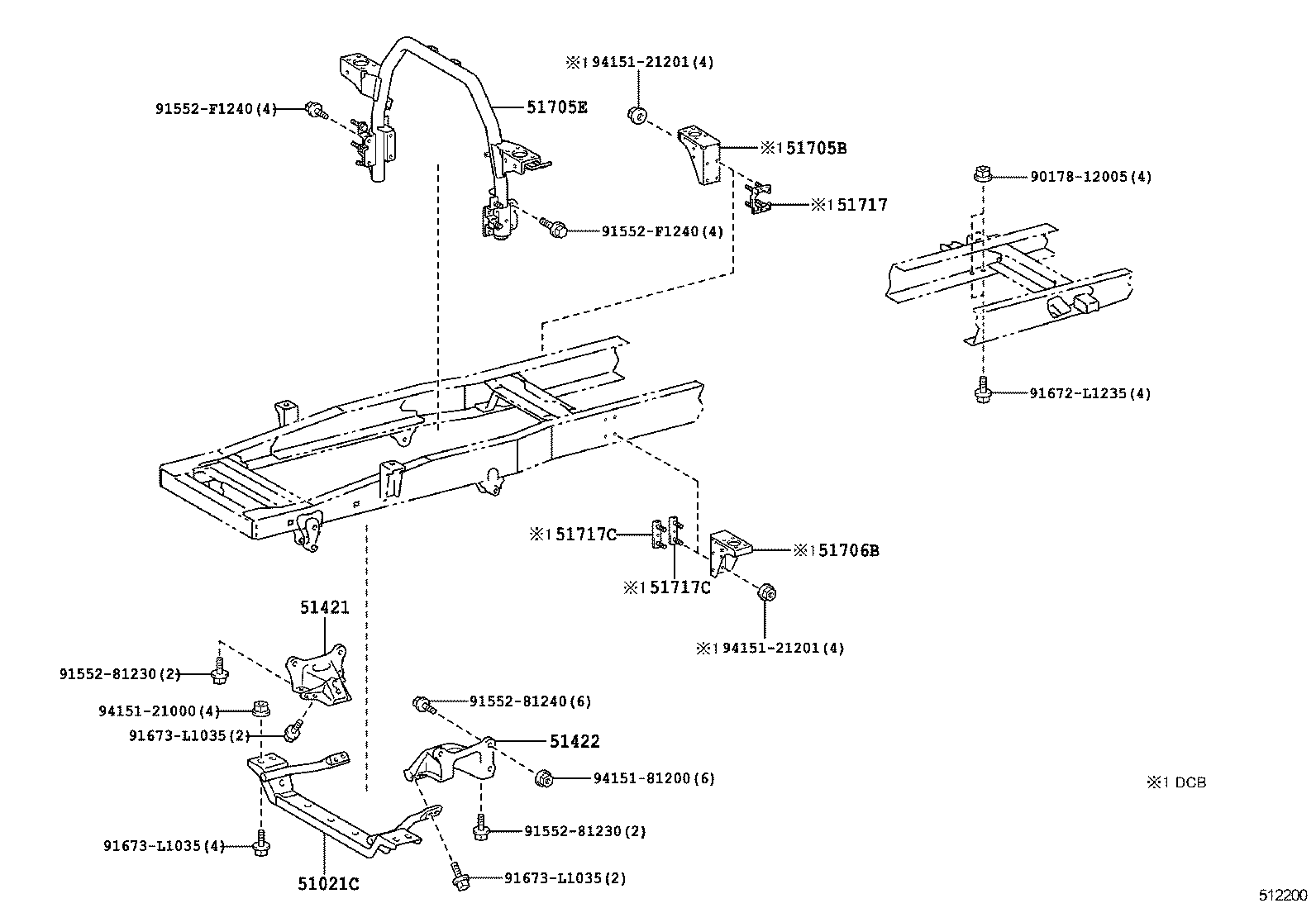

ILLUST NO. 2 OF 4(1107- )DCB ; (1107- )WU710,720,XZU730 ; (1107- )XZU720..6F..75T..IV3 ; (1

Click highlighted areas on diagram

Part #	Description	Period	Qty
51021C - MEMBER SUB-ASSY, ENGINE FRONT SUPPORT
51021-37030	XZU710..CBU	07/2011 - 05/2015	1
51021-37030	WU700,710,720;XZU710,720..MTM..GCC	07/2011 - 05/2020	1
51421 - BRACKET, ENGINE FRONT MOUNTING, RH
51421-37230	XZU710..CBU	07/2011 - 05/2015	1
51421-37230	WU700,710,720;XZU710,720..MTM..GCC	07/2011 - 05/2020	1
51422 - BRACKET, ENGINE FRONT MOUNTING, LH
51422-37230	WU700,710,720;XZU710,720..MTM..GCC	07/2011 - 05/2020	1
51422-37230	XZU710..CBU	07/2011 - 05/2015	1
51705E - BRACKET SUB-ASSY, CAB REAR MOUNTING
51705-37720	WU700,710,720;XZU710,720..SCB..MTM..GCC	07/2011 - 05/2020	1
51705-37720	XZU710..CBU	07/2011 - 05/2015	1
Common parts
90178-12005
91552-81230
91552-81240
91552-F1240
91672-L1235
91673-L1035
94151-21000
94151-21201
94151-81200

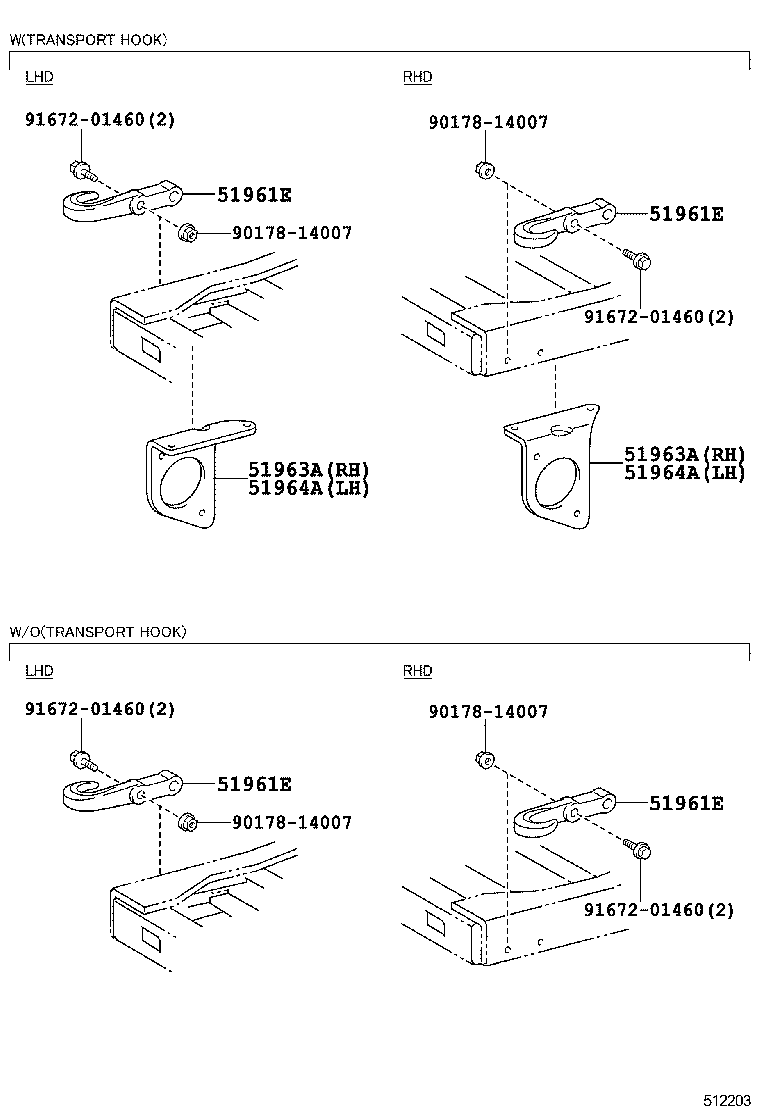

ILLUST NO. 3 OF 4(1107- )

Click highlighted areas on diagram

FRONT HOOK

Part #	Description	Period	Qty
51961E - HOOK, FRONT
51961-37120	WU700,710,720;XZU710,720..MTM..GCC	07/2011 - 05/2020	1
51961-37120	XZU710..CBU	07/2011 - 05/2015	1
51961E - HOOK, FRONT
51961-37120	WU700,710,720;XZU710,720..MTM..GCC	07/2011 - 05/2020	1
51961-37120	XZU710..CBU	07/2011 - 05/2015	1
51961E - HOOK, FRONT
51961-37120	WU700,710,720;XZU710,720..MTM..GCC	07/2011 - 05/2020	1
51961-37120	XZU710..CBU	07/2011 - 05/2015	1
51961E - HOOK, FRONT
51961-37120	WU700,710,720;XZU710,720..MTM..GCC	07/2011 - 05/2020	1
51961-37120	XZU710..CBU	07/2011 - 05/2015	1
51963A - HOOK, TRANSPORT, FRONT RH
51963-37030	XZU710..CBU	07/2011 - 05/2015	1
51963A - HOOK, TRANSPORT, FRONT RH
51963-37030	XZU710..CBU	07/2011 - 05/2015	1
51964A - HOOK, TRANSPORT, FRONT LH
51964-37040	XZU710..CBU	07/2011 - 05/2015	1
51964A - HOOK, TRANSPORT, FRONT LH
51964-37040	XZU710..CBU	07/2011 - 05/2015	1
Common parts
90178-14007
91672-01460

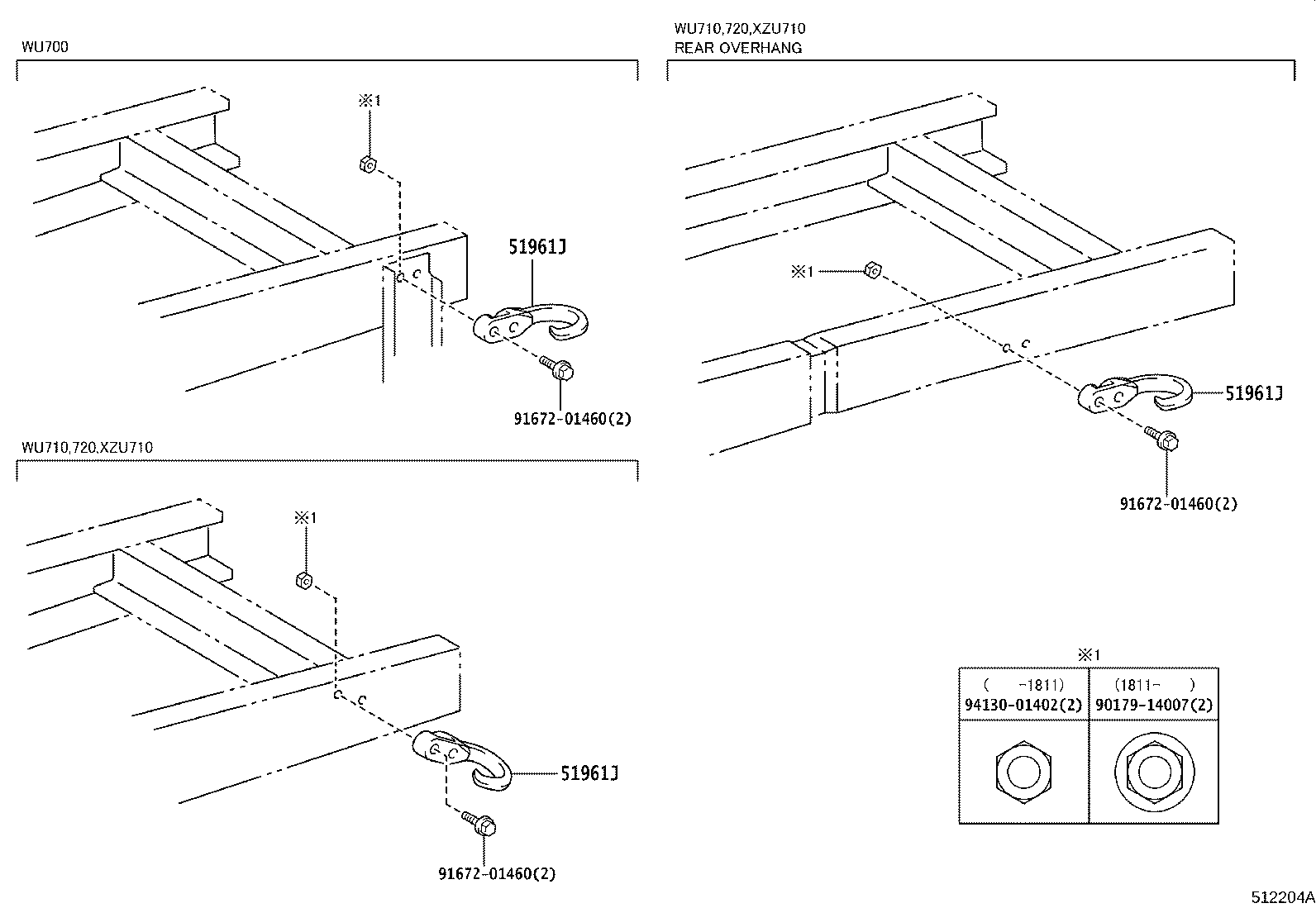

ILLUST NO. 3 OF 4(1107- )

Click highlighted areas on diagram

REAR HOOK

Part #	Description	Period	Qty
51961J - HOOK, REAR
51961-36040	XZU710..CBU TOWING HOOK-FRONT & REAR(WITH TRANSPORT HOOK)	07/2011 - 05/2015	1
51961-36040	WU700,710,720;XZU720..75T..CBU;XZU710,720..MTM..(65T,85T) TOWING HOOK-FRONT & REAR(WITH TRANSPORT HOOK)	07/2011 - 05/2020	1
51961J - HOOK, REAR
51961-36040	XZU710..CBU TOWING HOOK-FRONT & REAR(WITH TRANSPORT HOOK)	07/2011 - 05/2015	1
51961-36040	WU700,710,720;XZU720..75T..CBU;XZU710,720..MTM..(65T,85T) TOWING HOOK-FRONT & REAR(WITH TRANSPORT HOOK)	07/2011 - 05/2020	1
51961J - HOOK, REAR
51961-36040	XZU710..CBU TOWING HOOK-FRONT & REAR(WITH TRANSPORT HOOK)	07/2011 - 05/2015	1
51961-36040	WU700,710,720;XZU720..75T..CBU;XZU710,720..MTM..(65T,85T) TOWING HOOK-FRONT & REAR(WITH TRANSPORT HOOK)	07/2011 - 05/2020	1
Common parts
90179-14007
91672-01460
94130-01402

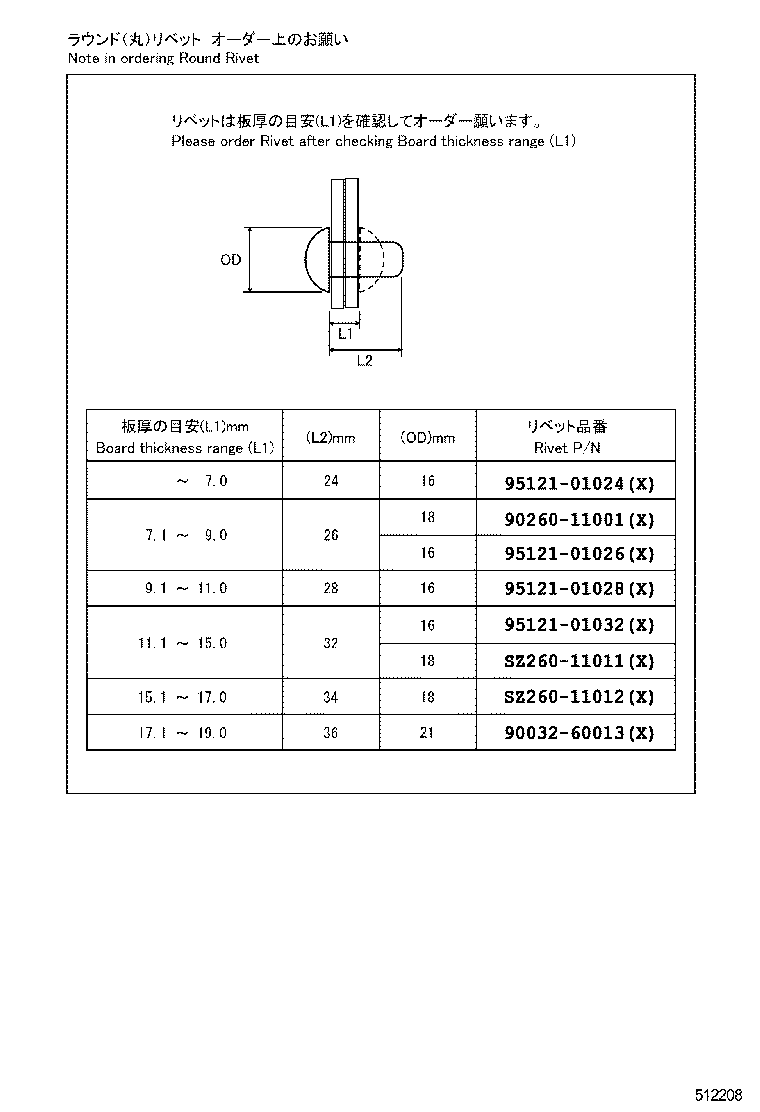

ILLUST NO. 4 OF 4(1107- )

Click highlighted areas on diagram

RIVET

Part #	Description	Period	Qty	Price
Common parts
90032-60013
90260-11001
95121-01024
95121-01026
95121-01028
95121-01032
SZ260-11011
SZ260-11012

XZU710L-TKTQKV (2011)

ILLUST NO. 1 OF 4(1107- )6FC

ILLUST NO. 1 OF 4(1107- )6FC

ILLUST NO. 2 OF 4(1107- )DCB ; (1107- )WU710,720,XZU730 ; (1107- )XZU720..6F..75T..IV3 ; (1

ILLUST NO. 3 OF 4(1107- )

ILLUST NO. 3 OF 4(1107- )

ILLUST NO. 4 OF 4(1107- )

Part Price Details
