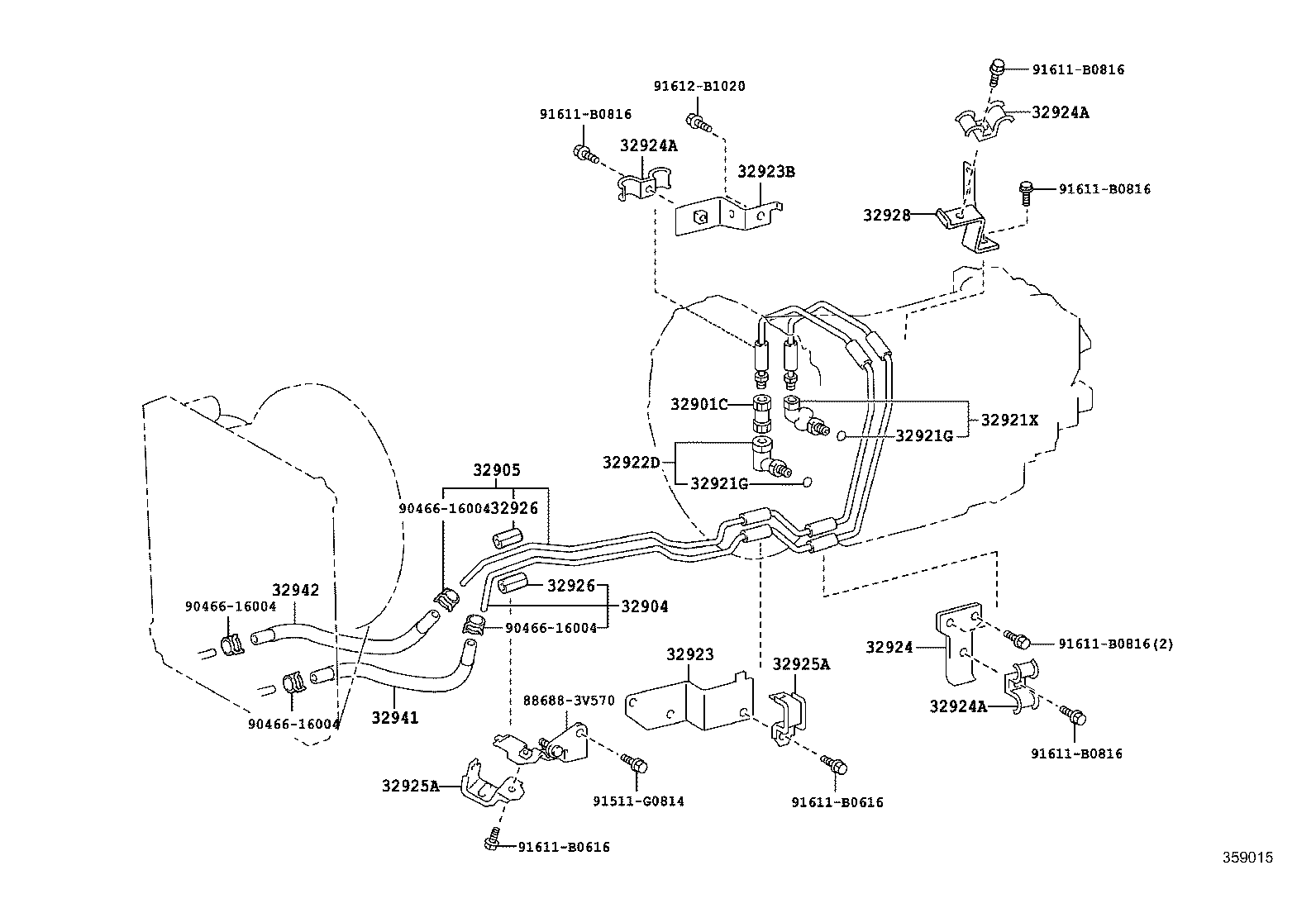

Toyota Dyna XZU710 OIL COOLER & TUBE (ATM)

Part #	Description	Period	Qty
32901C - UNION SUB-ASSY, OIL COOLER
32901-37030	XZU710..CBU	07/2011 - 05/2015	1
32904 - TUBE SUB-ASSY, OIL COOLER INLET, NO.1
32904-37161	XZU710..CBU	07/2011 - 05/2015	1
32905 - TUBE SUB-ASSY, OIL COOLER OUTLET, NO.1
32905-37162	XZU710..CBU	07/2011 - 05/2015	1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11006	XZU710..CBU	07/2011 - 05/2015	2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11006	XZU710..CBU	07/2011 - 05/2015	2
32921X - UNION OR ELBOW, OIL COOLER INLET
90407-20010	XZU710..CBU	07/2011 - 05/2015	1
32922D - UNION OR ELBOW, OIL COOLER OUTLET
90407-20009	XZU710..CBU	07/2011 - 05/2015	1
32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
32927-37021	XZU710..CBU	07/2011 - 05/2015	1
32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1
32923-37011	XZU710..CBU	07/2011 - 05/2015	1
32924 - CLAMP, OIL COOLER TUBE, NO.2
32924-37010	XZU710..CBU	07/2011 - 05/2015	1
32924A - CLAMP(FOR OIL COOLER TUBE, NO.2)
90462-12076	XZU710..CBU	07/2011 - 05/2015	3
32924A - CLAMP(FOR OIL COOLER TUBE, NO.2)
90462-12076	XZU710..CBU	07/2011 - 05/2015	3
32924A - CLAMP(FOR OIL COOLER TUBE, NO.2)
90462-12076	XZU710..CBU	07/2011 - 05/2015	3
32925A - CLAMP, FLEXIBLE HOSE, NO.2
32929-25020	XZU710..CBU	07/2011 - 05/2015	2
32925A - CLAMP, FLEXIBLE HOSE, NO.2
32929-25020	XZU710..CBU	07/2011 - 05/2015	2
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-60010	XZU710..CBU L=45,ID=12	07/2011 - 05/2015	10
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-60010	XZU710..CBU L=45,ID=12	07/2011 - 05/2015	10
32928 - CLAMP, FLEXIBLE HOSE, NO.1
32928-37041	XZU710..CBU	07/2011 - 05/2015	1
32941 - HOSE, OIL COOLER INLET, NO.1
32941-37140	XZU710..CBU	07/2011 - 05/2015	1
32942 - HOSE, OIL COOLER OUTLET, NO.1
32942-37020	XZU710..CBU	07/2011 - 05/2015	1
Common parts
88688-3V570
90466-16004
91511-G0814
91611-B0616
91611-B0816
91612-B1020

XZU710L-TKTQKV (2011)

(1107- )6FC
