XZU710L-SKMRK3 (2019)

Toyota Dyna

Production Nov 2019 - Sep 9999
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1911- )XZU710,720..GEN

Click highlighted areas on diagram

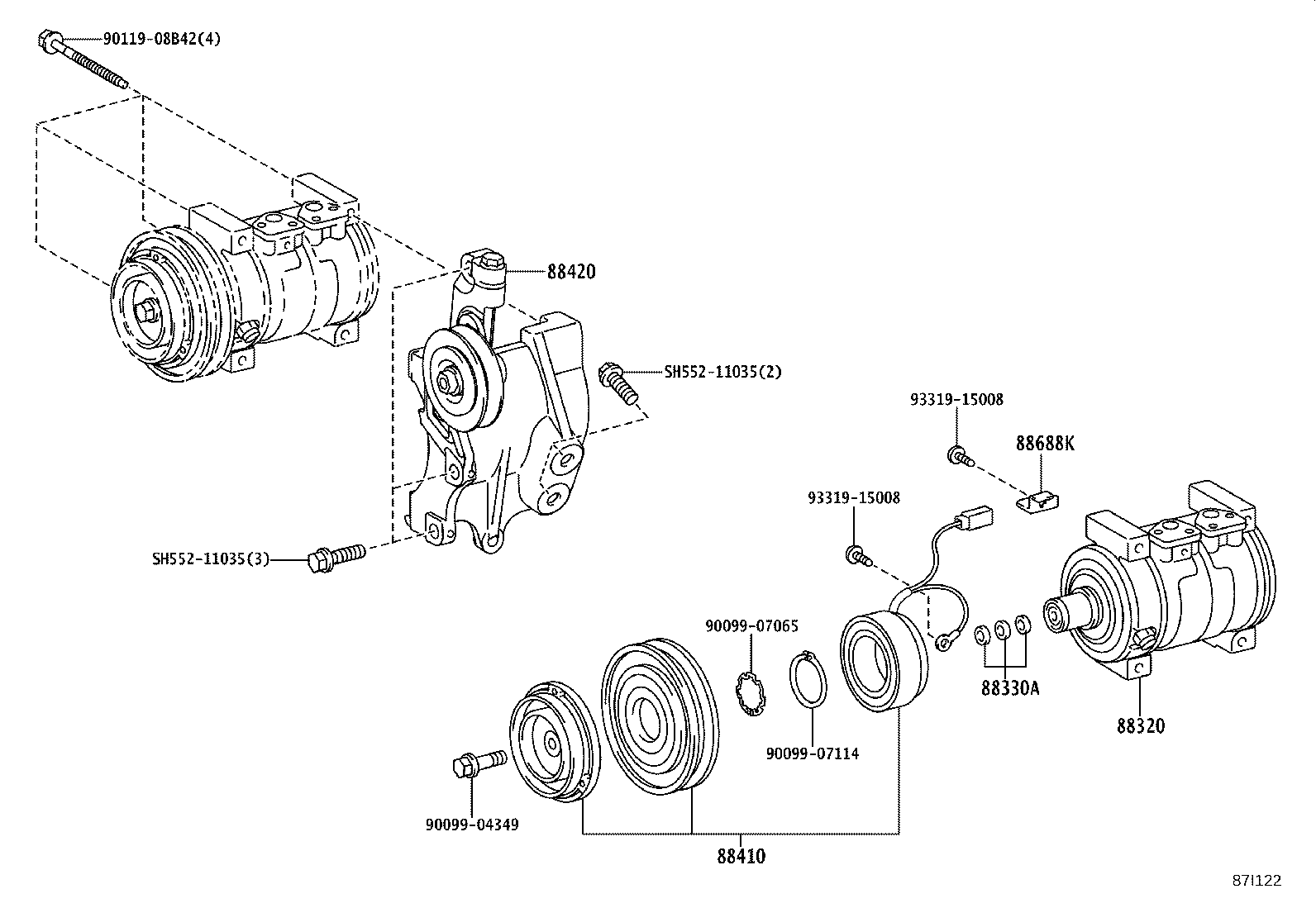

diagram 88320 88330A 88410 88420 88688K 9009904349 9009907065 9009907114 9011908B42 9331915008 9331915008 SH55211035 SH55211035
Part # Description Qty Price
88320 - COMPRESSOR ASSY, COOLER
88320-37110

XZU710,720..GEN

AIR CONDITIONER-MANUAL & WITH(CLEAN AIR FILTER)

 1
88320-37110

XZU710,720..GEN

AIR CONDITIONER-MANUAL

 1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-14020

XZU710,720..GEN

AIR CONDITIONER-MANUAL

 1
88335-14020

XZU710,720..GEN

AIR CONDITIONER-MANUAL & WITH(CLEAN AIR FILTER)

 1
88410 - CLUTCH ASSY, MAGNET
88410-17100

XZU710,720..GEN

AIR CONDITIONER-MANUAL

 1
88410-17100

XZU710,720..GEN

AIR CONDITIONER-MANUAL & WITH(CLEAN AIR FILTER)

 1
88420 - PULLEY ASSY, IDLE, W/BRACKET
88420-37320

XZU710,720..GEN

AIR CONDITIONER-MANUAL & WITH(CLEAN AIR FILTER)

 1
88420-37320

XZU710,720..GEN

AIR CONDITIONER-MANUAL

 1
88688K - BRACKET, COOLER COMPRESSOR
88688-3V580

XZU710,720..GEN

AIR CONDITIONER-MANUAL & WITH(CLEAN AIR FILTER)

 1
88688-3V580

XZU710,720..GEN

AIR CONDITIONER-MANUAL

 1
Common parts
90099-04349
90099-07065
90099-07114
90119-08B42
93319-15008
SH552-11035

(1911- )XZU710,720..GEN

Click highlighted areas on diagram

REFRIGERATOR CAR

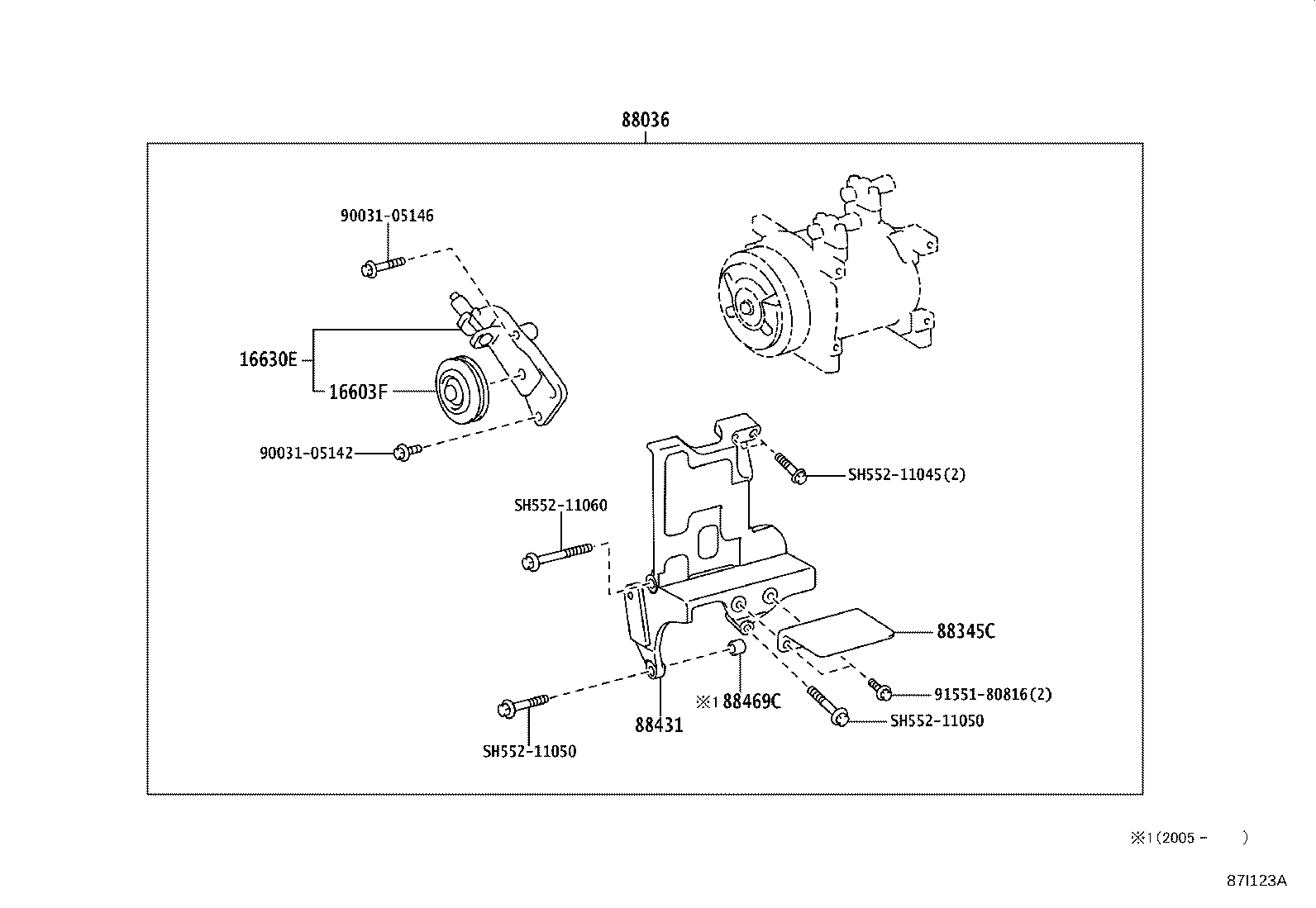

diagram 16603F 16630E 88036 88345C 88431 88469C 9003105142 9003105146 9155180816 SH55211045 SH55211050 SH55211050 SH55211060
Part # Description Qty Price
16603F - PULLEY SUB-ASSY, IDLER
16603-78021

N04C..XZU710,720..GEN

REFRIGERATOR CAR,W(COMPRESSOR BRACKET)

 1
16630E - PULLEY ASSY, IDLER
16630-78201

N04C..XZU710,720..GEN

REFRIGERATOR CAR,W(COMPRESSOR BRACKET)

 1
88036 - COMPRESSOR MOUNTING SET
88036-37240

XZU710,720..GEN

REFRIGERATOR CAR,W(COMPRESSOR BRACKET)

 1
88345C - BRACKET, COMPRESSOR MOUNTING, NO.2
88345-37271

XZU710,720..GEN

REFRIGERATOR CAR,W(COMPRESSOR BRACKET)

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-37272

XZU710,720..GEN

REFRIGERATOR CAR,W(COMPRESSOR BRACKET)

 1
88469C - SPACER
65167-37040

XZU710,720..GEN

REFRIGERATOR CAR,W(COMPRESSOR BRACKET)

 1
Common parts
90031-05142
90031-05146
91551-80816
SH552-11045
SH552-11050
SH552-11060
