XZU710L-SKMRK3 (2019)

Toyota Dyna

Production Nov 2019 - Sep 9999
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

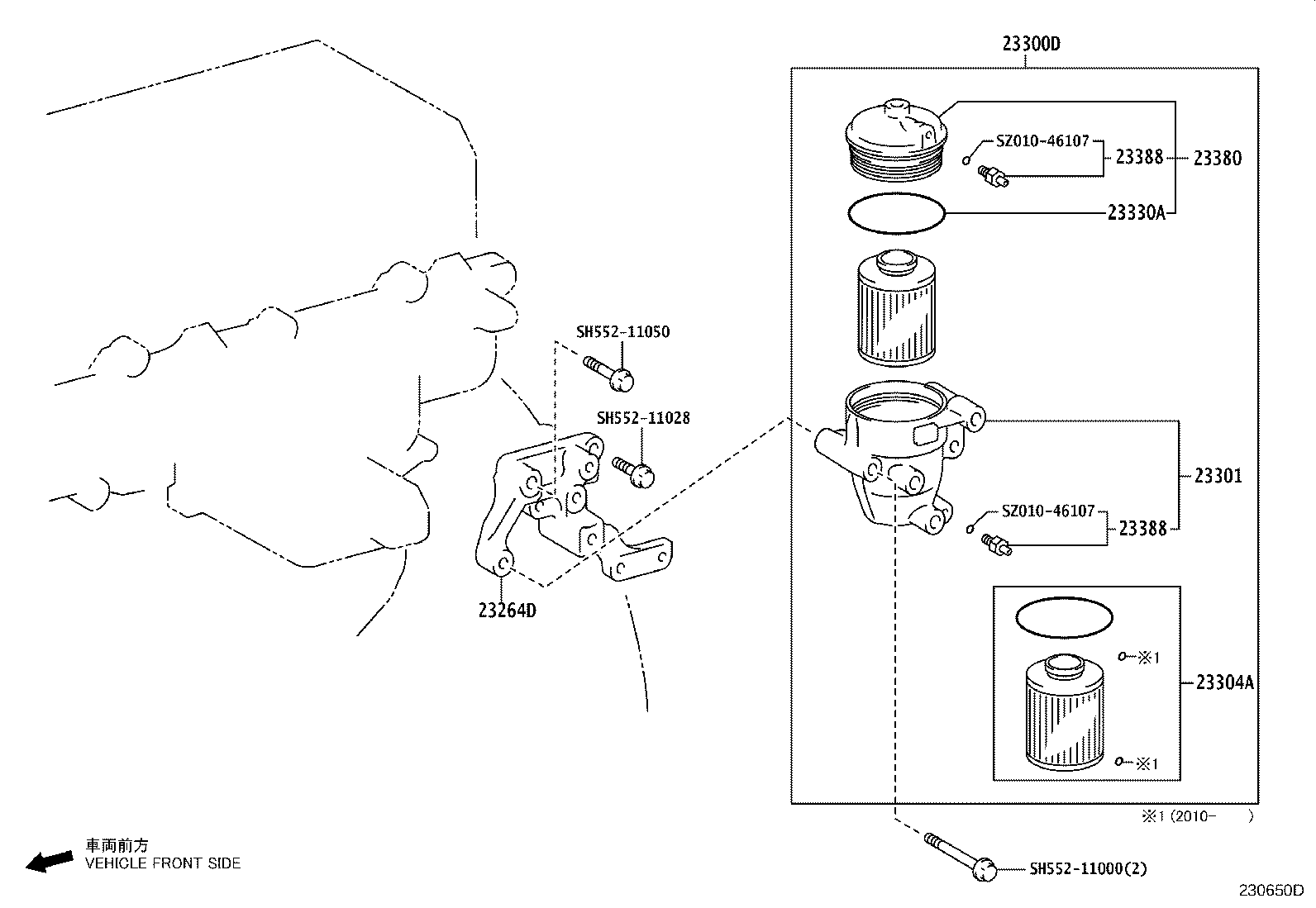

ILLUST NO. 2 OF 2(1911- )N04C..XZU710,720..GEN

Click highlighted areas on diagram

ENGINE SIDE

diagram 23264D 23300D 23301 23304A 23330A 23380 23388 23388 SH55211000 SH55211028 SH55211050 SZ01046107 SZ01046107
Part # Description Qty Price
23264D - BRACKET, FUEL FILTER
23264-78090

N04C..XZU710,720..GEN

 1
23300D - FILTER ASSY, FUEL(FOR DIESEL)
23300-78501

N04C..XZU710,720..GEN

 1
23300-78500

N04C..XZU710,720..GEN

 1
23301 - BODY SUB-ASSY, FUEL FILTER
23301-78500

N04C..XZU710,720..GEN

 1
23301-78501

N04C..XZU710,720..GEN

 1
23304A - ELEMENT SET, FUEL FILTER
23304-78500

N04C..XZU710,720..GEN

 1
23304-EV570

N04C..XZU710,720..GEN

 1
23330A - GASKET
23386-78500

N04C..XZU710,720..GEN

 1
SZ010-46251

N04C..XZU710,720..GEN

 1
23380 - CAP ASSY, FUEL FILTER
23380-78501

N04C..XZU710,720..GEN

 1
23380-78500

N04C..XZU710,720..GEN

 1
23388 - PLUG, FUEL FILTER DRAIN
23388-EV020

N04C..XZU710,720..GEN

 2
23388 - PLUG, FUEL FILTER DRAIN
23388-EV020

N04C..XZU710,720..GEN

 2
Common parts
SH552-11000
SH552-11028
SH552-11050
SZ010-46107

ILLUST NO. 1 OF 2(1911- )N04C..XZU710,720..GEN

Click highlighted areas on diagram

diagram 23328 23330 23355 23382 23383 23388A 23390 23921 9155180830 9155281030 9415181000 SZ01046167
Part # Description Qty Price
23328 - GASKET(FOR FUEL FILTER)
23385-78150

N04C..XZU710,720..GEN

 1
23330 - PREFILTER ASSY, FUEL
23330-78261

N04C..XZU710,720..GEN

 1
23330-78260

N04C..XZU710,720..GEN

 1
23355 - ELEMENT, PREFILTER
23355-78261

N04C..XZU710,720..GEN

 1
23355-78260

N04C..XZU710,720..GEN

 1
23382 - CASE, FUEL FILTER
23382-78260

N04C..XZU710,720..GEN

 1
23382-78261

N04C..XZU710,720..GEN

 1
23383 - UNION, FUEL FILTER
23383-78150

N04C..XZU710,720..GEN

 1
23388A - PLUG, FUEL FILTER DRAIN
23388-EV060

N04C..XZU710,720..GEN

 1
23390 - ELEMENT ASSY, FUEL FILTER
23304-78260

N04C..XZU710,720..GEN

 1
23921 - SUPPORT, FUEL FILTER
23921-78730

N04C..XZU710,720..GEN

TYPE B:REFER ILLUST.

 1
Common parts
91551-80830
91552-81030
94151-81000
SZ010-46167
