XZU710L-SKMRK (2019)

Toyota Dyna

Production Nov 2019 - Sep 9999
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1911- )N04C..XZU710,720..GEN

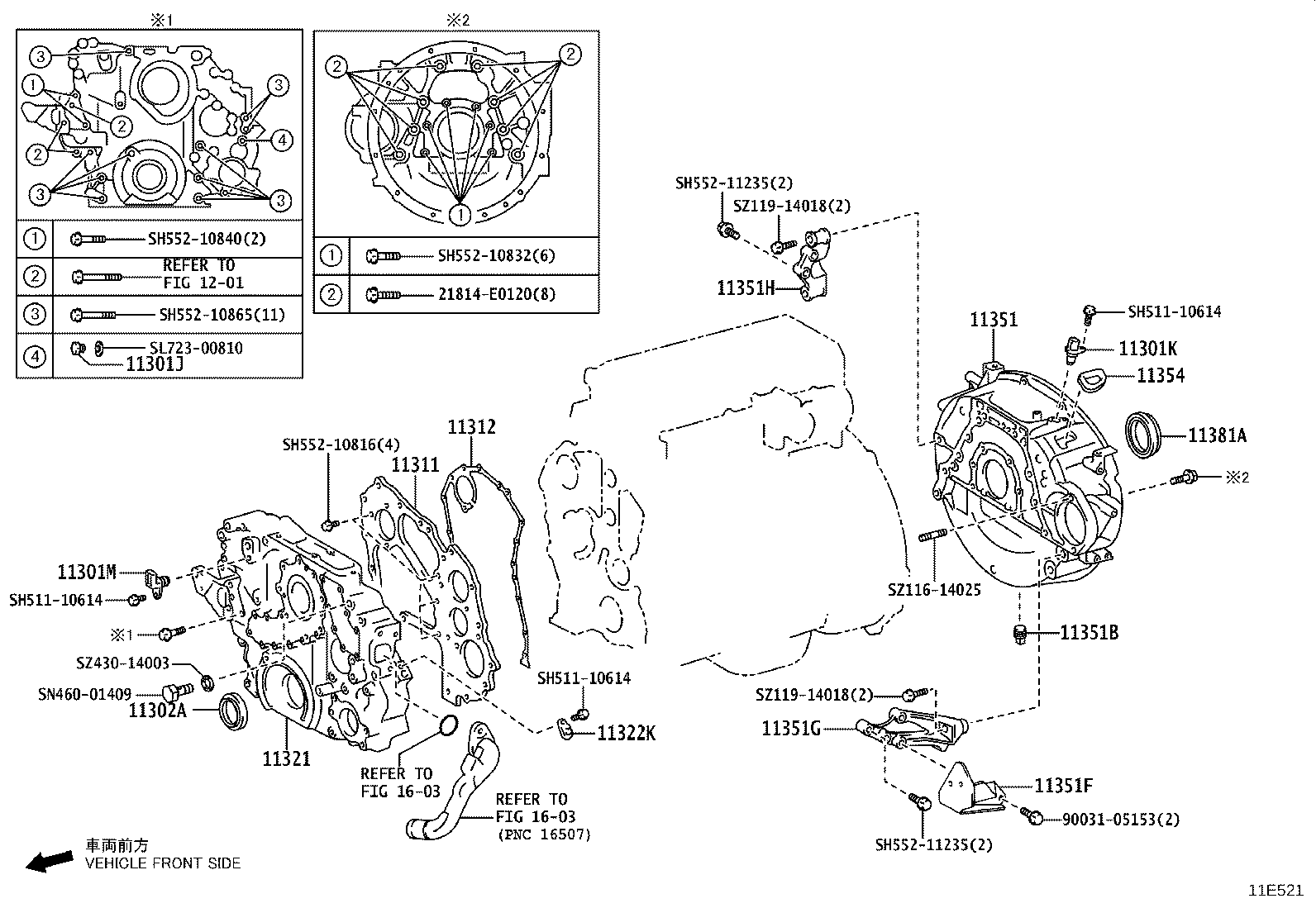

Click highlighted areas on diagram

diagram 11301J 11301K 11301M 11302A 11311 11312 11321 11322K 11351 11351B 11351F 11351G 11351H 11354 11381A 1201 1603 1603 21814E0120 9003105153 SH51110614 SH51110614 SH51110614 SH55210816 SH55210832 SH55210840 SH55210865 SH55211235 SH55211235 SL72300810 SN46001409 SZ11614025 SZ11914018 SZ11914018 SZ43014003
Part # Description Qty Price
11301J - PLUG, W/HEAD STRAIGHT SCREW(FOR TIMING GEAR CASE)
SZ341-08001

N04C..XZU710,720..GEN

 1
11301K - SENSOR, CRANK POSITION
89411-E0050

N04C..XZU710,720..GEN

 1
11301M - SENSOR, CAM POSITION
S8941-01570

N04C..XZU710,720..GEN

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
SZ313-58002

N04C..XZU710,720..GEN

 1
11311 - PLATE, FRONT END
11301-E0101

N04C..XZU710,720..GEN

 1
11312 - GASKET, FRONT END PLATE
S1131-21170

N04C..XZU710,720..GEN

 1
11321 - CASE, TIMING GEAR
11310-78110

N04C..XZU710,720..GEN

 1
11322K - PLUG, HOLE
11306-E0190

N04C..XZU710,720..GEN

 1
11351 - HOUSING, FLYWHEEL
11351-78202

N04C..XZU710,720..GEN

 1
11351B - PLUG, HOLE(FOR FLYWHEEL HOUSING)
SN480-01008

N04C..XZU710,720..GEN

 1
11351F - PLATE, STIFFENER, LH(FOR FLYWHEEL HOUSING)
33119-37100

N04C..XZU710,720..GEN

 1
11351G - STAY, LH(FOR FLYWHEEL HOUSING)
11353-E0060

N04C..XZU710,720..GEN

 1
11351H - STAY, RH(FOR FLYWHEEL HOUSING)
S1135-62030

N04C..XZU710,720..GEN

 1
11354 - SEAL, FLYWHEEL HOUSING DUST
11354-E0060

N04C..XZU710,720..GEN

 1
11381A - SEAL, ENGINE REAR OIL
SZ311-00004

N04C..XZU710,720..GEN

 1
Common parts
21814-E0120
90031-05153
SH511-10614
SH552-10816
SH552-10832
SH552-10840
SH552-10865
SH552-11235
SL723-00810
SN460-01409
SZ116-14025
SZ119-14018
SZ430-14003
Linked diagrams
1201
1603
