XZU710L-PKMQKV3 (2011)

Toyota Dyna

Production Aug 2011 - Sep 9999
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1108- )DCB

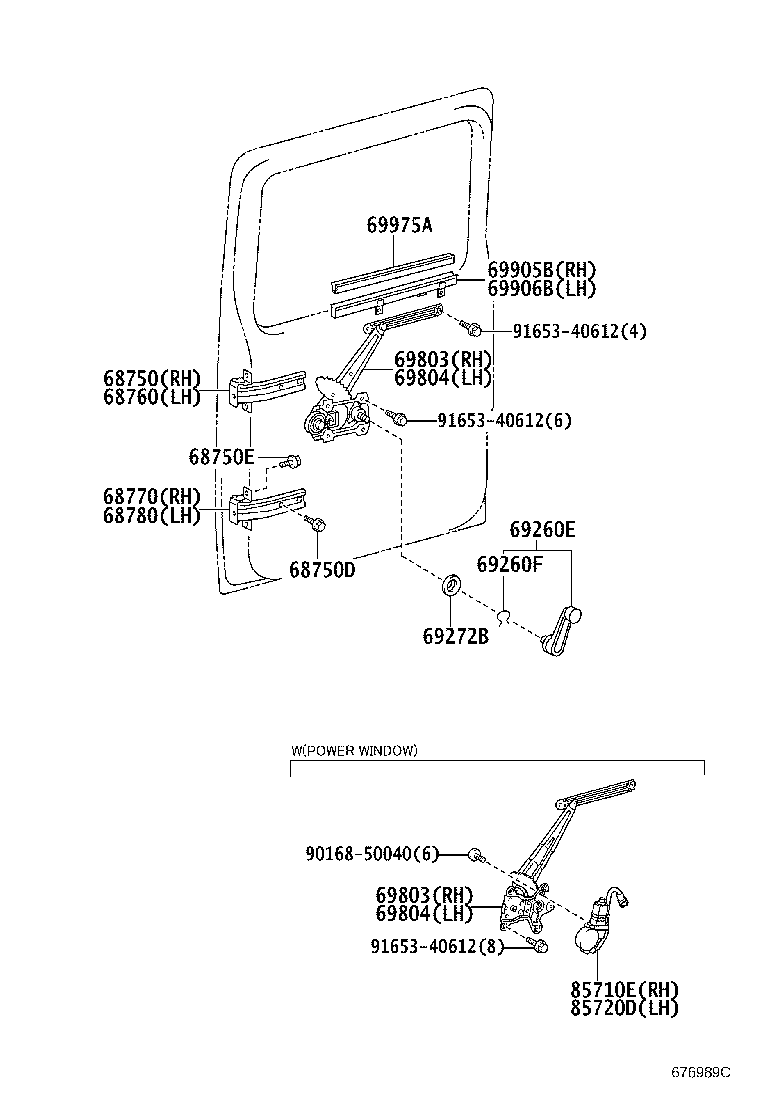

Click highlighted areas on diagram

diagram 68750 68750D 68750E 68760 68770 68780 69260E 69260F 69272B 69803 69803 69804 69804 69905B 69906B 69975A 85710E 85720D 9016850040 9165340612 9165340612 9165340612
Part # Description Qty Price
68750 - HINGE ASSY, REAR DOOR, UPPER RH
68750-37020

XZU710..DCB

 1
S6933-01010

XZU710..DCB

 1
68750D - BOLT NO.1(FOR REAR DOOR HINGE)
91551-80816

XZU710..DCB

 8
91651-60818

XZU710..DCB

 8
68750E - BOLT NO.2(FOR REAR DOOR HINGE)
91553-80820

XZU710..DCB

 12
90119-08892

XZU710..DCB

 12
68760 - HINGE ASSY, REAR DOOR, UPPER LH
68750-37020

XZU710..DCB

 1
S6933-01010

XZU710..DCB

 1
68770 - HINGE ASSY, REAR DOOR, LOWER RH
S6933-01010

XZU710..DCB

 1
68750-37020

XZU710..DCB

 1
68780 - HINGE ASSY, REAR DOOR, LOWER LH
68750-37020

XZU710..DCB

 1
S6933-01010

XZU710..DCB

 1
69260E - HANDLE ASSY, REAR DOOR WINDOW REGULATOR
69260-89104B5

XZU710..DCB

POWER WINDOW-WITH(FRONT & REAR),GRAY,TRIM1#

 2
69260-89104B5

XZU710..DCB

POWER WINDOW-WITH(FRONT ONLY),GRAY,TRIM1#

 2
69260-89104B5

XZU710..DCB

GRAY,TRIM1#

 2
69260F - RING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)
90520-01274

XZU710..DCB

POWER WINDOW-WITH(FRONT & REAR)

 2
90520-01274

XZU710..DCB

 2
90520-01274

XZU710..DCB

POWER WINDOW-WITH(FRONT ONLY)

 2
69272B - PLATE, REAR DOOR REGULATOR INSIDE HANDLE
69285-22010

XZU710..DCB

 2
69285-22010

XZU710..DCB

POWER WINDOW-WITH(FRONT & REAR)

 2
69285-22010

XZU710..DCB

POWER WINDOW-WITH(FRONT ONLY)

 2
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69803-37060

XZU710..DCB

 1
69803-37030

XZU710..DCB

POWER WINDOW-WITH(FRONT & REAR)

 1
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69803-37060

XZU710..DCB

 1
69803-37030

XZU710..DCB

POWER WINDOW-WITH(FRONT & REAR)

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69804-37030

XZU710..DCB

POWER WINDOW-WITH(FRONT & REAR)

 1
69804-37060

XZU710..DCB

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69804-37030

XZU710..DCB

POWER WINDOW-WITH(FRONT & REAR)

 1
69804-37060

XZU710..DCB

 1
69905B - CHANNEL SUB-ASSY, REAR DOOR GLASS, RH
69905-37020

XZU710..DCB

 1
69906B - CHANNEL SUB-ASSY, REAR DOOR GLASS, LH
69906-37020

XZU710..DCB

 1
69975A - FILLER, REAR DOOR GLASS CHANNEL
69975-37020

XZU710..DCB

 2
85710E - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85720-37060

XZU710..DCB

POWER WINDOW-WITH(FRONT & REAR)

 1
85720D - MOTOR ASSY, POWER WINDOW REGULATOR, LH
85710-37050

XZU710..DCB

POWER WINDOW-WITH(FRONT & REAR)

 1
Common parts
90168-50040
91653-40612
