XZU600L-TKMMKV3 (2016)

Toyota Dyna

Production May 2016 - Sep 9999
Engine N04C
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1605- )N04C

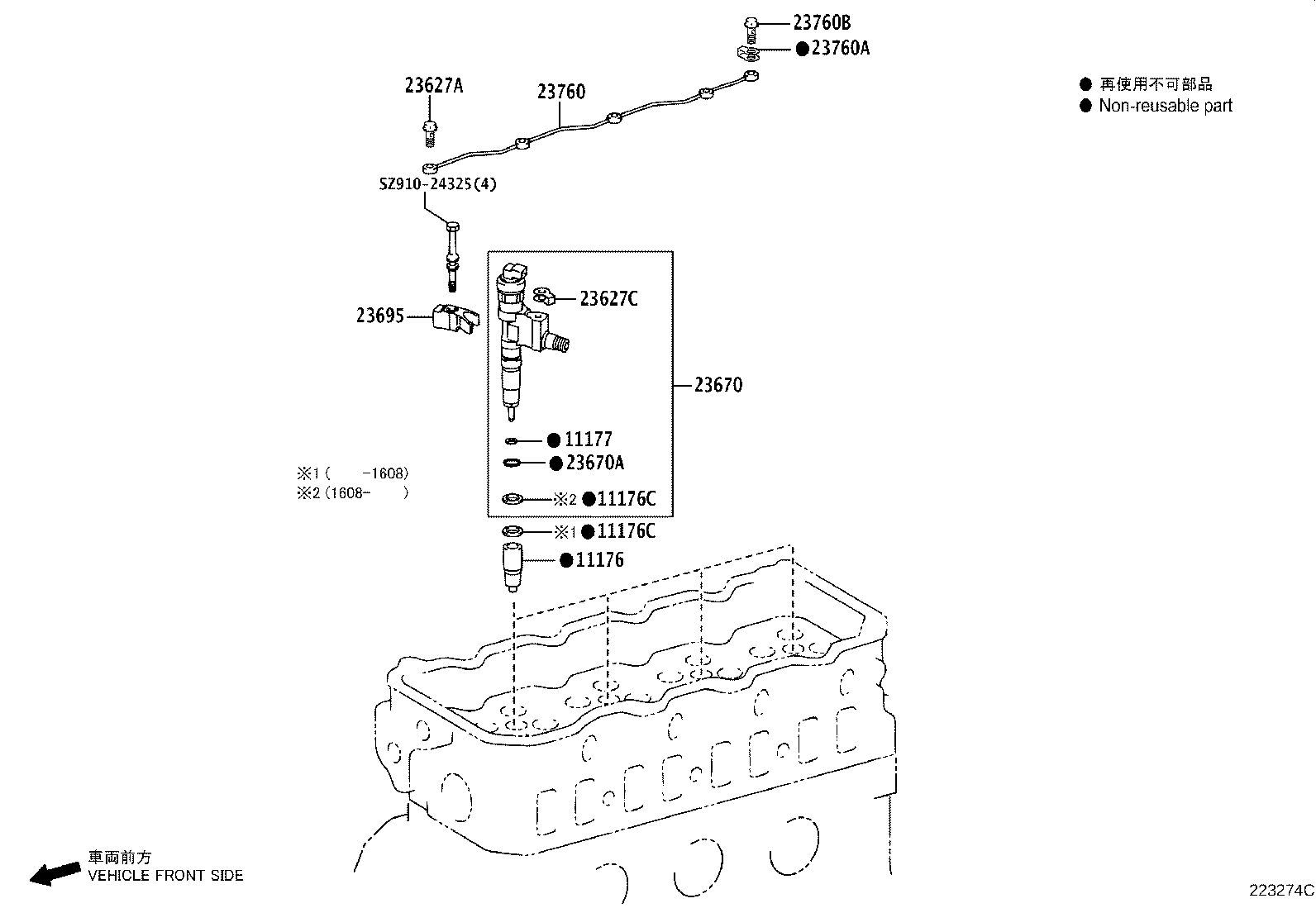

Click highlighted areas on diagram

diagram 11176 11176C 11176C 11177 23627A 23627C 23670 23670A 23695 23760 23760A 23760B SZ91024325
Part # Description Qty Price
11176 - SEAT, INJECTION NOZZLE
S1117-61200

N04C..XZU600,650..GCC

 4
11176C - GASKET, NO.2(FOR INJECTION NOZZLE SEAT)
SZ910-15133

N04C..XZU600,650..GCC

 4
11176C - GASKET, NO.2(FOR INJECTION NOZZLE SEAT)
SZ910-15133

N04C..XZU600,650..GCC

 4
11177 - GASKET, INJECTION NOZZLE SEAT
23682-E0050

N04C..XZU600,650..GCC

 4
23627A - SCREW, FOLLOW(FOR NOZZLE)
21811-E0050

N04C..XZU600,650..GCC

 4
23627C - WASHER(FOR NOZZLE)
SZ209-08024

N04C..XZU600,650..GCC

 4
23670 - INJECTOR ASSY
23670-E9271

N04C..XZU600,650

 4
23670-E9272

N04C..XZU600,650

 4
23670-E9273

N04C..XZU600,650..GCC

 4
23670A - RING, O(FOR INJECTOR ASSY)
15518-E0010

N04C..XZU600,650

 4
15518-E0011

N04C..XZU600,650..GCC

 4
23695 - CLAMP, NOZZLE HOLDER, NO.1
S1119-51140

N04C..XZU600,650..GCC

 4
23760 - PIPE ASSY, NOZZLE LEAKAGE
23708-78031

N04C..XZU600,650..GCC

 1
S2308-12630

N04C..XZU600,650

 1
23760A - GASKET
SZ209-08024

N04C..XZU600,650..GCC

 1
23760B - BOLT, UNION(FOR NOZZLE LEAKAGE PIPE)
21811-E0060

N04C..XZU600,650..GCC

 1
Common parts
SZ910-24325
