XZU600L-TKMMKV3 (2016)

Toyota Dyna

Production May 2016 - Sep 9999
Engine N04C
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1605- )N04C..GCC

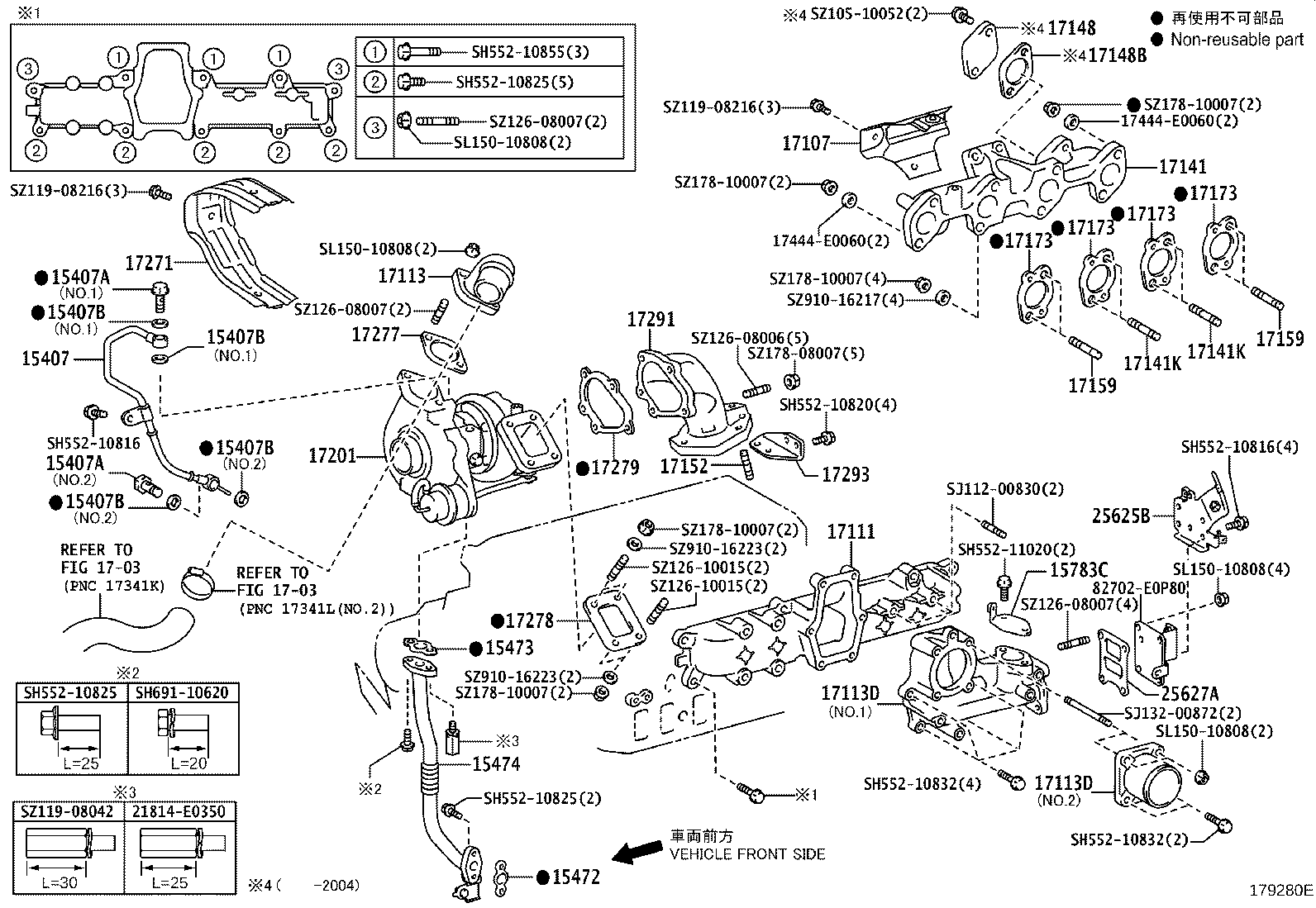

Click highlighted areas on diagram

diagram 15407 15407A 15407A 15407B 15407B 15407B 15407B 15472 15473 15474 15783C 1703 1703 17107 17111 17113 17113D 17113D 17141 17141K 17141K 17148 17148B 17152 17159 17159 17173 17173 17173 17173 17201 17271 17277 17278 17279 17291 17293 17444E0060 17444E0060 21814E0350 25625B 25627A 82702E0P80 SH55210816 SH55210816 SH55210820 SH55210825 SH55210825 SH55210825 SH55210832 SH55210832 SH55210855 SH55211020 SH69110620 SJ11200830 SJ13200872 SL15010808 SL15010808 SL15010808 SL15010808 SZ10510052 SZ11908042 SZ11908216 SZ11908216 SZ12608006 SZ12608007 SZ12608007 SZ12608007 SZ12610015 SZ12610015 SZ17808007 SZ17810007 SZ17810007 SZ17810007 SZ17810007 SZ17810007 SZ91016217 SZ91016223 SZ91016223
Part # Description Qty Price
15407 - PIPE SUB-ASSY, TURBO OIL INLET
S2410-61340

N04C..XZU600,650

 1
15407-78170

N04C..XZU600,650..GCC

 1
15407-78160

N04C..XZU600,650

 1
15407-E0381

N04C..XZU600,650

 1
15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE)
SZ401-12001

N04C..XZU600,650

NO.1

 1
SZ401-14004

N04C..XZU600,650..GCC

NO.2

 1
21811-E0070

N04C..XZU600,650..GCC

NO.1

 1
15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE)
SZ401-12001

N04C..XZU600,650

NO.1

 1
SZ401-14004

N04C..XZU600,650..GCC

NO.2

 1
21811-E0070

N04C..XZU600,650..GCC

NO.1

 1
15407B - GASKET(FOR TURBO OIL INLET PIPE)
SL722-01415

N04C..XZU600,650..GCC

NO.2

 2
SL722-01210

N04C..XZU600,650

NO.1

 2
SL722-01010

N04C..XZU600,650..GCC

NO.1

 2
15407B - GASKET(FOR TURBO OIL INLET PIPE)
SL722-01415

N04C..XZU600,650..GCC

NO.2

 2
SL722-01210

N04C..XZU600,650

NO.1

 2
SL722-01010

N04C..XZU600,650..GCC

NO.1

 2
15407B - GASKET(FOR TURBO OIL INLET PIPE)
SL722-01415

N04C..XZU600,650..GCC

NO.2

 2
SL722-01210

N04C..XZU600,650

NO.1

 2
SL722-01010

N04C..XZU600,650..GCC

NO.1

 2
15407B - GASKET(FOR TURBO OIL INLET PIPE)
SL722-01415

N04C..XZU600,650..GCC

NO.2

 2
SL722-01210

N04C..XZU600,650

NO.1

 2
SL722-01010

N04C..XZU600,650..GCC

NO.1

 2
15472 - GASKET, TURBO OIL OUTLET, NO.1
S2413-51161

N04C..XZU600,650..GCC

 1
15473 - GASKET, TURBO OIL OUTLET, NO.2
15472-E0050

N04C..XZU600,650..GCC

 1
15474 - PIPE, TURBO OIL OUTLET
29601-E0250

N04C..XZU600,650

 1
15407-78140

N04C..XZU600,650..GCC

 1
15783C - BRACKET, OIL PIPE CLAMP
15783-78100

N04C..XZU600,650..GCC

 1
17107 - INSULATOR SUB-ASSY, EXHAUST MANIFOLD HEAT
17107-E0012

N04C..XZU600,650..GCC

 1
17111 - MANIFOLD, INTAKE
17111-E0210

N04C..XZU600,650..GCC

 1
17113 - PIPE, INTAKE
17113-E0V61

N04C..XZU600,650..GCC

 1
17113D - PIPE, INTAKE, NO.1
17113-78521

N04C..XZU600,650..GCC

NO.2

 1
17113-E0A50

N04C..XZU600,650

NO.1

 1
17113-E0A51

N04C..XZU600,650..GCC

NO.1

 1
17113D - PIPE, INTAKE, NO.1
17113-78521

N04C..XZU600,650..GCC

NO.2

 1
17113-E0A50

N04C..XZU600,650

NO.1

 1
17113-E0A51

N04C..XZU600,650..GCC

NO.1

 1
17141 - MANIFOLD, EXHAUST
17141-E0360

N04C..XZU600,650..GCC

 1
17141-78170

N04C..XZU600,650..GCC

 1
17141K - BOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
SZ126-10012

N04C..XZU600,650..GCC

 4
17141K - BOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
SZ126-10012

N04C..XZU600,650..GCC

 4
17148 - PLATE, EXHAUST MANIFOLD(FOR EGR INLET)
17148-E0060

N04C..XZU600,650..GCC

 1
17148B - GASKET, EGR INLET
S1710-42020

N04C..XZU600,650..GCC

 1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
SZ126-10015

N04C..XZU600,650..GCC

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
SZ126-10006

N04C..XZU600,650..GCC

 4
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
SZ126-10006

N04C..XZU600,650..GCC

 4
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
S1710-41880

N04C..XZU600,650

 4
17173-78080

N04C..XZU600,650..GCC

 4
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
S1710-41880

N04C..XZU600,650

 4
17173-78080

N04C..XZU600,650..GCC

 4
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
S1710-41880

N04C..XZU600,650

 4
17173-78080

N04C..XZU600,650..GCC

 4
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
S1710-41880

N04C..XZU600,650

 4
17173-78080

N04C..XZU600,650..GCC

 4
17201 - TURBOCHARGER SUB-ASSY
17201-E0813

N04C..XZU600,650

 1
17201-EW080

N04C..XZU600,650..GCC

 1
17271 - INSULATOR, TURBO, NO.1
17271-E0391

N04C..XZU600,650..GCC

 1
17277 - GASKET, COMPRESSOR OUTLET
S2417-91430

N04C..XZU600,650..GCC

 1
17278 - GASKET, TURBO TO EXHAUST MANIFOLD
S2410-91860

N04C..XZU600,650..GCC

 1
17279 - GASKET, TURBINE OUTLET ELBOW
S2410-91870

N04C..XZU600,650..GCC

 1
17291 - ELBOW, TURBINE OUTLET
S1715-92542

N04C..XZU600,650..GCC

 1
17293 - STAY, TURBOCHARGER
S1745-82840

N04C..XZU600,650..GCC

 1
25625B - BRACKET, EGR VALVE
S1705-E0010

N04C..XZU600,650..GCC

 1
25627A - GASKET, EGR HOLE COVER PLATE, NO.1
17173-E0140

N04C..XZU600,650..GCC

 1
Common parts
17444-E0060
21814-E0350
82702-E0P80
SH552-10816
SH552-10820
SH552-10825
SH552-10832
SH552-10855
SH552-11020
SH691-10620
SJ112-00830
SJ132-00872
SL150-10808
SZ105-10052
SZ119-08042
SZ119-08216
SZ126-08006
SZ126-08007
SZ126-10015
SZ178-08007
SZ178-10007
SZ910-16217
SZ910-16223
