XZU600L-SKMMJ3 (2019)

Toyota Dyna

Production Nov 2019 - Sep 9999
Engine N04C
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1911- )XZU600..GEN

Click highlighted areas on diagram

RE50

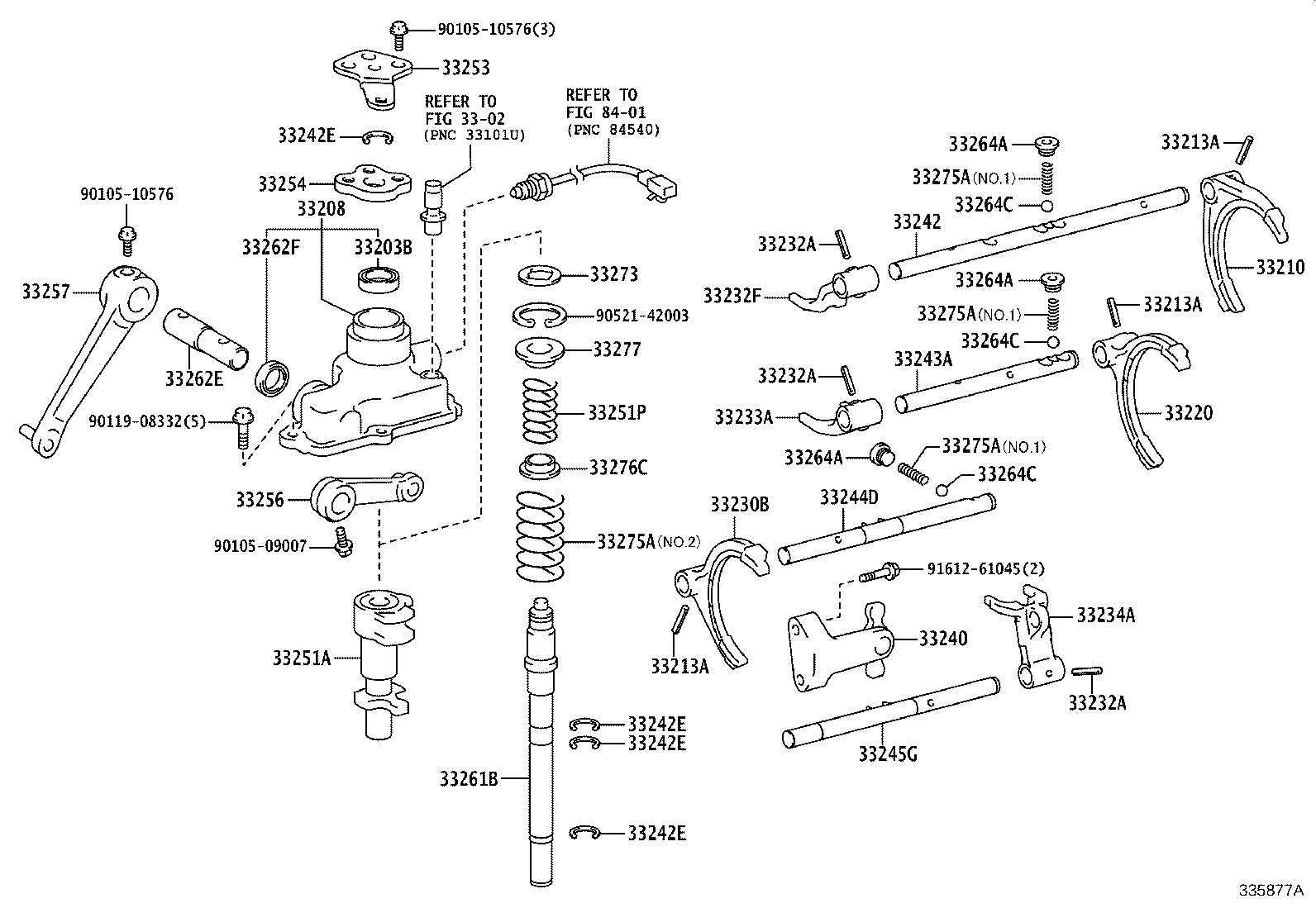

diagram 3302 33203B 33208 33210 33213A 33213A 33213A 33220 33230B 33232A 33232A 33232A 33232F 33233A 33234A 33240 33242 33242E 33242E 33242E 33242E 33243A 33244D 33245G 33251A 33251P 33253 33254 33256 33257 33261B 33262E 33262F 33264A 33264A 33264A 33264C 33264C 33264C 33273 33275A 33275A 33275A 33275A 33276C 33277 8401 9010509007 9010510576 9010510576 9011908332 9052142003 9161261045
Part # Description Qty Price
33203B - SEAL, OIL(FOR SHIFT LEVER SHAFT)
90311-22021

XZU600..GEN

 1
33208 - HOUSING SUB-ASSY, SHIFT LEVER SHAFT
33208-37010

XZU600..GEN

 1
33210 - FORK ASSY, GEAR SHIFT, NO.1
33210-37030

XZU600..GEN

 1
33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET)
90254-07003

XZU600..GEN

 3
33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET)
90254-07003

XZU600..GEN

 3
33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET)
90254-07003

XZU600..GEN

 3
33220 - FORK ASSY, GEAR SHIFT, NO.2
33220-37030

XZU600..GEN

 1
33230B - FORK ASSY, GEAR SHIFT, NO.3
33230-37010

XZU600..GEN

 1
33232A - PIN, SLOTTED SPRING (FOR SHIFT HEAD SET)
90254-07003

XZU600..GEN

 3
33232A - PIN, SLOTTED SPRING (FOR SHIFT HEAD SET)
90254-07003

XZU600..GEN

 3
33232A - PIN, SLOTTED SPRING (FOR SHIFT HEAD SET)
90254-07003

XZU600..GEN

 3
33232F - HEAD, GEAR SHIFT, NO.1
33232-37030

XZU600..GEN

 1
33233A - HEAD, GEAR SHIFT, NO.2
33233-37010

XZU600..GEN

 1
33234A - HEAD, GEAR SHIFT, NO.3
33234-37020

XZU600..GEN

 1
33240 - BRACKET ASSY, REVERSE SHIFT ARM
33240-37020

XZU600..GEN

 1
33242 - SHAFT, GEAR SHIFT FORK, NO.1
33242-37061

XZU600..GEN

 1
33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
90520-15009

XZU600..GEN

 4
33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
90520-15009

XZU600..GEN

 4
33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
90520-15009

XZU600..GEN

 4
33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
90520-15009

XZU600..GEN

 4
33243A - SHAFT, GEAR SHIFT FORK, NO.2
33243-37070

XZU600..GEN

 1
33244D - SHAFT, GEAR SHIFT FORK, NO.3
33244-37080

XZU600..GEN

 1
33245G - SHAFT, GEAR SHIFT FORK, NO.4
33245-37040

XZU600..GEN

 1
33251A - LEVER, SHIFT, INNER NO.1
33251-37070

XZU600..GEN

 1
33251P - SPRING (FOR SHIFT & SELECT LEVER)
90501-17048

XZU600..GEN

 1
33253 - LEVER, SHIFT OUTER, NO.1
33253-37170

XZU600..GEN

 1
33254 - LEVER, SHIFT OUTER, NO.2
33254-37010

XZU600..GEN

 1
33256 - LEVER, SELECT INNER
33256-37010

XZU600..GEN

 1
33257 - LEVER, SELECT OUTER
33257-37140

XZU600..GEN

 1
33261B - SHAFT, SHIFT LEVER
33261-37040

XZU600..GEN

 1
33262E - SHAFT, SELECT LEVER
33262-37040

XZU600..GEN

 1
33262F - SEAL, OIL (FOR SELECT LEVER SHAFT)
90311-20012

XZU600..GEN

 1
33264A - PLUG, INTER LOCK HOLE
90341-12008

XZU600..GEN

OD=18

 3
33264A - PLUG, INTER LOCK HOLE
90341-12008

XZU600..GEN

OD=18

 3
33264A - PLUG, INTER LOCK HOLE
90341-12008

XZU600..GEN

OD=18

 3
33264C - BALL (FOR SHIFT INTER LOCK)
90360-10003

XZU600..GEN

 3
33264C - BALL (FOR SHIFT INTER LOCK)
90360-10003

XZU600..GEN

 3
33264C - BALL (FOR SHIFT INTER LOCK)
90360-10003

XZU600..GEN

 3
33273 - WASHER, SHIFT LEVER SHAFT HOUSING, NO.1
33273-37010

XZU600..GEN

 1
33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
90501-17043

XZU600..GEN

L=26.6,NO.1:REFER ILLUST.

 3
90501-22075

XZU600..GEN

L=76.2,NO.2:REFER ILLUST.

 1
33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
90501-17043

XZU600..GEN

L=26.6,NO.1:REFER ILLUST.

 3
90501-22075

XZU600..GEN

L=76.2,NO.2:REFER ILLUST.

 1
33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
90501-17043

XZU600..GEN

L=26.6,NO.1:REFER ILLUST.

 3
90501-22075

XZU600..GEN

L=76.2,NO.2:REFER ILLUST.

 1
33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
90501-17043

XZU600..GEN

L=26.6,NO.1:REFER ILLUST.

 3
90501-22075

XZU600..GEN

L=76.2,NO.2:REFER ILLUST.

 1
33276C - SEAT, SELECT SPRING
33278-37010

XZU600..GEN

 1
33277 - SEAT, SELECT SPRING, NO.2
33277-37040

XZU600..GEN

 1
Common parts
90105-09007
90105-10576
90119-08332
90521-42003
91612-61045
Linked diagrams
3302
8401
