XZU435L-TKFRWW3 (2006)
Toyota Dyna
Production
Aug 2006
-
Aug 2007
Engine
N04C
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7708- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90461-08109 | ||||
| 90461-08282 | ||||
| 90461-08746 | ||||
| 90461-10294 | ||||
| 90461-10295 | ||||
| 90463-08124 | ||||
| 90463-08375 | ||||
| 90463-15298 | ||||
| 91611-40816 | ||||
| 91611-40820 | ||||
| 94110-40800 | ||||
| Linked diagrams | ||||
| 8202 | ||||
(0608-0708)XZU415,425,435

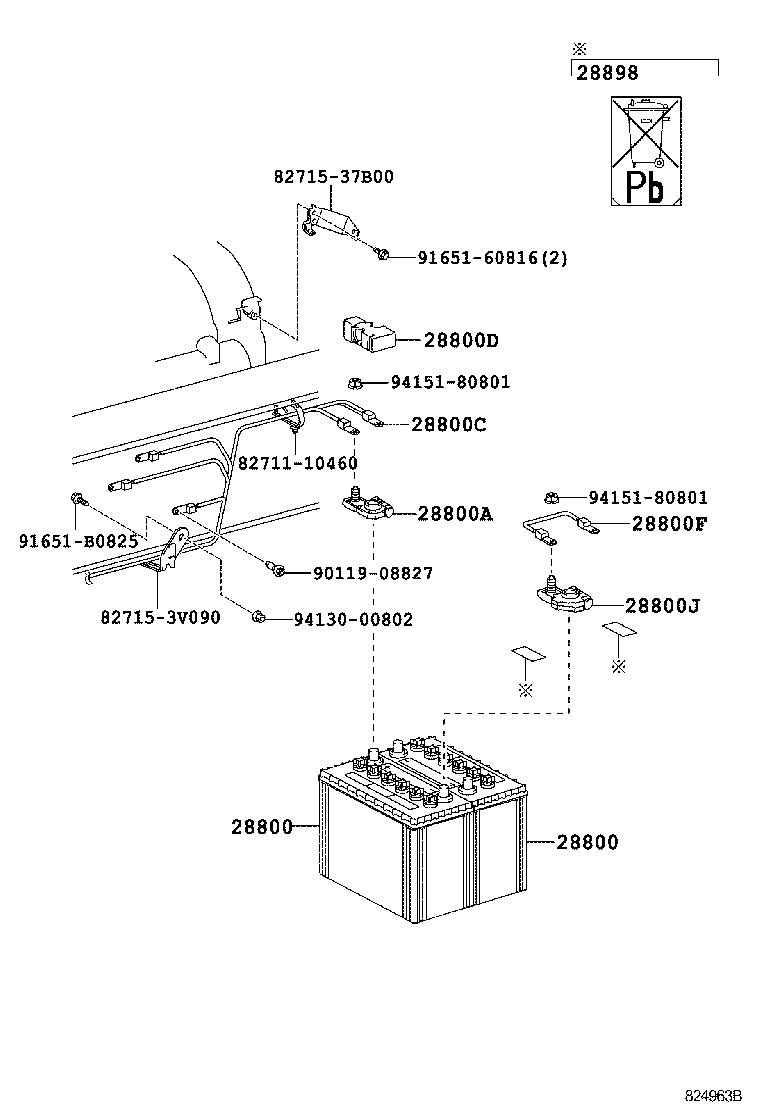

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28800 - BATTERY | ||||
| 28800-42041 |
N04C..XZU415,425,435 55D23L |
2 | ||
| 28800-42042 |
S05C..XZU412,422..6F;J05C,N04C,W04D..WU410,420,XZU415,420,425,430,435..EUR,SA 55D23L |
2 | ||
| 28800 - BATTERY | ||||
| 28800-42041 |
N04C..XZU415,425,435 55D23L |
2 | ||
| 28800-42042 |
S05C..XZU412,422..6F;J05C,N04C,W04D..WU410,420,XZU415,420,425,430,435..EUR,SA 55D23L |
2 | ||
| 28800A - TERMINAL, BATTERY POSITIVE | ||||
| 90982-05042 |
N04C..XZU415,425,435 |
1 | ||
| 28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH) | ||||
| 82122-37850 |
N04C..XZU415,425,435 |
1 | ||
| 28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL) | ||||
| 82821-37071 |
N04C..XZU415,425,435 |
1 | ||
| 28800F - CABLE, BATTERY TO BATTERY | ||||
| 82123-37040 |
N04C..XZU415,425,435 |
1 | ||
| 28800J - TERMINAL, BATTERY NEGATIVE | ||||
| 90982-06028 |
N04C..XZU415,425,435 |
1 | ||
| 28898 - PLATE, BATTERY | ||||
| 28898-16020 |
N04C..XZU415,425,435 |
2 | ||
| Common parts | ||||
| 82711-10460 | ||||
| 82715-37B00 | ||||
| 82715-3V090 | ||||
| 90119-08827 | ||||
| 91651-60816 | ||||
| 91651-B0825 | ||||
| 94130-00802 | ||||
| 94151-80801 | ||||
