Toyota Dyna XZU435 FRONT FLOOR PANEL & FRONT FLOOR MEMBER

Manufacturers Home
Toyota
GR
DYNA
XZU435L-TKFRWW3 (2006)
5851 - FRONT FLOOR PANEL & FRONT FLOOR MEMBER

XZU435L-TKFRWW3 (2006)

Toyota Dyna

Production Aug 2006 - Aug 2007

Engine N04C

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0110- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
53089A - MUDGUARD SUB-ASSY, FRONT
53736-37010	XZU415,425,435	10/2001 - 08/2007	2
53089B - CLIP, FRONT MUDGUARD
67868-95401	XZU415,425,435	10/2001 - 08/2007	12
53706C - BRACE SUB-ASSY, FENDER APRON, LH
53706-37020	XZU415,425,435	10/2001 - 08/2007	1
53707B - APRON SUB-ASSY, FENDER SIDE, RH
53715-37150	XZU415,425,435	10/2001 - 08/2007	1
53708B - APRON SUB-ASSY, FENDER SIDE, LH
53716-37170	XZU415,425,435	10/2001 - 08/2007	1
53719A - BRACE, FENDER APRON
53719-37170	WU410,420,XZU404,41#,42#,43# LH,NO.1	10/2001 - 09/2003	1
53719-37200	XZU415,425,435 RH	10/2001 - 08/2007	1
53719-37190	XZU415,425,435 LH,NO.2	10/2001 - 08/2007	1
53719A - BRACE, FENDER APRON
53719-37170	WU410,420,XZU404,41#,42#,43# LH,NO.1	10/2001 - 09/2003	1
53719-37200	XZU415,425,435 RH	10/2001 - 08/2007	1
53719-37190	XZU415,425,435 LH,NO.2	10/2001 - 08/2007	1
53719A - BRACE, FENDER APRON
53719-37170	WU410,420,XZU404,41#,42#,43# LH,NO.1	10/2001 - 09/2003	1
53719-37200	XZU415,425,435 RH	10/2001 - 08/2007	1
53719-37190	XZU415,425,435 LH,NO.2	10/2001 - 08/2007	1
53735G - SEAL, FRONT FENDER APRON, UPPER
53735-37010	XZU415,425,435	10/2001 - 08/2007	1
53739D - SEAL, FRONT FENDER APRON TO FRAME, REAR
53739-37010	XZU415,425,435	10/2001 - 08/2007	1
53881D - MUDGUARD, FRONT RH
53881-37170	XZU415,425,435	10/2006 - 08/2007	1
53881-37090	XZU415,425,435;BU410,420,WU410,420,XZU404,412,414,420,422,424,430,434..ARL,GCC,GEN,SA,TAIW	10/2001 - 09/2006	1
53882D - MUDGUARD, FRONT LH
53881-37090	XZU415,425,435;BU410,420,WU410,420,XZU404,412,414,420,422,424,430,434..ARL,GCC,GEN,SA,TAIW	10/2001 - 09/2006	1
53881-37170	XZU415,425,435	10/2006 - 08/2007	1
53887E - PLATE, FRONT MUDGUARD
53887-37060	XZU415,425,435	10/2001 - 08/2007	2
53887E - PLATE, FRONT MUDGUARD
53887-37060	XZU415,425,435	10/2001 - 08/2007	2
58132C - APRON, FRONT FLOOR SIDE, NO.1 RH
58132-37050	XZU415,425,435	10/2006 - 08/2007	1
58132-37010	XZU415,425,435;BU410,420,WU410,420,XZU404,412,414,420,422,424,430,434..ARL,GCC,GEN,SA,TAIW	10/2001 - 10/2006	1
58142A - APRON, FRONT FLOOR SIDE, NO.1 LH
58142-37080	XZU415,425,435	10/2006 - 08/2007	1
58142-37020	XZU415,425,435;BU410,420,WU410,420,XZU404,412,414,420,422,424,430,434..ARL,GCC,GEN,SA,TAIW	10/2001 - 10/2006	1
76621A - MUDGUARD, FRONT BODY, FRONT RH
76621-37030	XZU415,425,435	10/2001 - 08/2007	1
76621E - CLIP(FOR FRONT FENDER MUDGUARD)
90467-05031C0	XZU415,425,435 BLACK,058	10/2001 - 08/2007	10
76622A - MUDGUARD, FRONT BODY, FRONT LH
76622-37030	XZU415,425,435	10/2001 - 08/2007	1
76623D - MUDGUARD, FRONT FENDER, FRONT RH
76623-37100	XZU415,425,435	10/2006 - 08/2007	1
76624D - MUDGUARD, FRONT FENDER, FRONT LH
76624-37050	XZU415,425,435	10/2006 - 08/2007	1
76624-37030	XZU415,425,435;BU410,420,WU410,420,XZU404,412,414,420,422,424,430,434..ARL,GCC,GEN,SA,TAIW	10/2001 - 09/2006	1
Common parts
90179-06127
90179-06171
90179-08233
90467-06181C0
91651-60816
91651-B0616
91651-B0820
91651-B0825

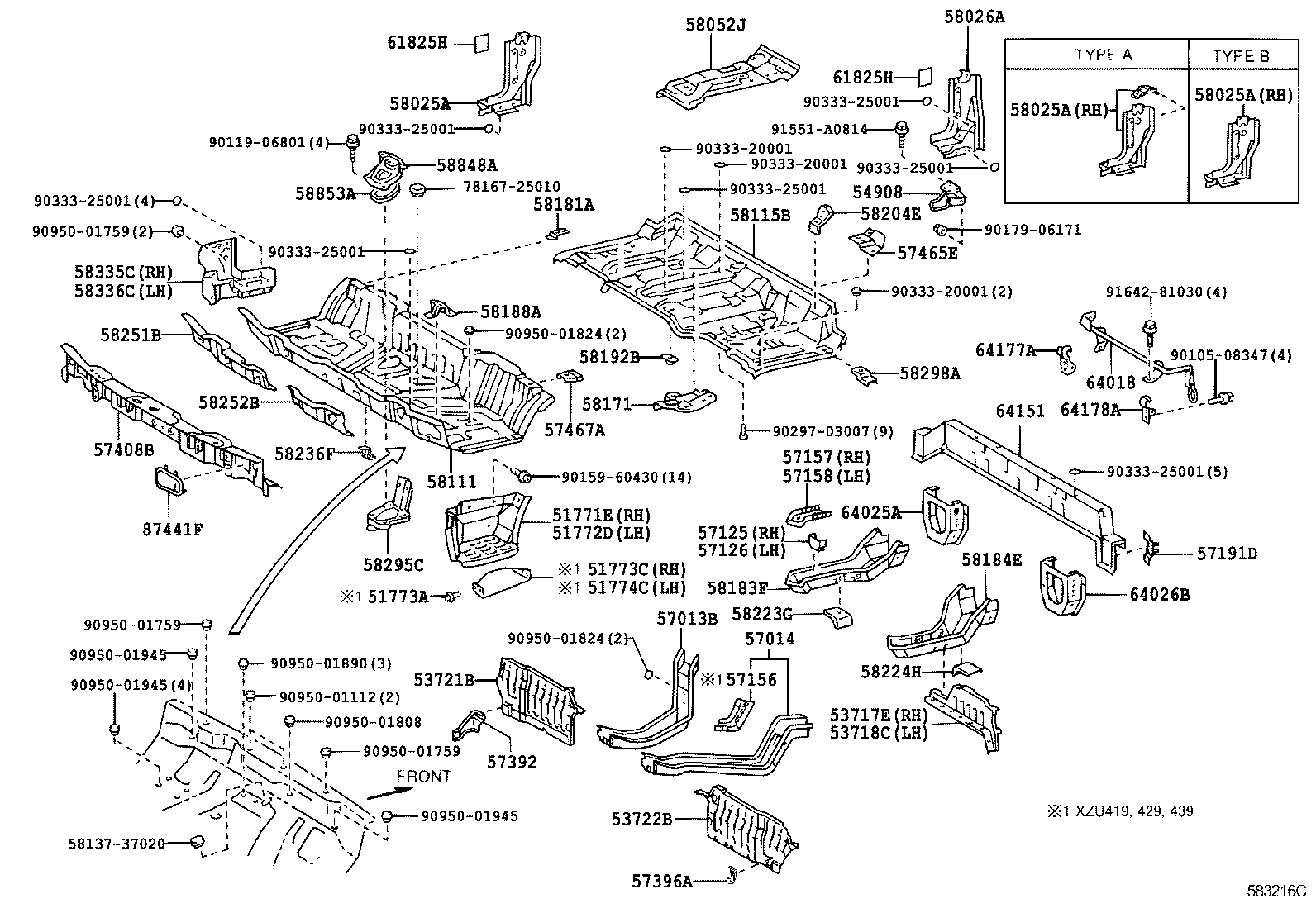

ILLUST NO. 1 OF 2(0608-0708)XZU415,425,435 ; (0708- )XZU415,419,425,429,435,439

Click highlighted areas on diagram

Part #	Description	Period	Qty
51771E - PLATE, STEP, RH
51771-37240	XZU415,425,435	10/2006 - 08/2007	1
51771-37110	WU410,420,XZU404,41#,42#,43#	10/2001 - 12/2003	1
51772D - PLATE, STEP, LH
51772-37090	WU410,420,XZU404,41#,42#,43#	10/2001 - 12/2003	1
51772-37160	XZU415,425,435	10/2006 - 08/2007	1
53717E - APRON, FRONT FENDER, NO.2 RH
53717-37180	XZU415,425,435	10/2001 - 08/2007	1
53718C - APRON, FRONT FENDER, NO.2 LH
53718-37140	XZU415,425,435	10/2001 - 08/2007	1
53721B - APRON SUB-ASSY, FENDER SIDE, RH
53721-37070	XZU415,425,435	10/2001 - 08/2007	1
53722B - APRON SUB-ASSY, FENDER SIDE, LH
53722-37050	XZU415,425,435	10/2001 - 08/2007	1
54908 - BRACKET SUB-ASSY, TILT CAB GRIP
54908-37020	XZU415,425,435	10/2001 - 08/2007	1
57013B - MEMBER SUB-ASSY, FLOOR, FRONT RH
57013-37150	WU410,420,XZU404,41#,42#,43#	10/2001 - 12/2003	1
57014 - MEMBER SUB-ASSY, FLOOR, FRONT LH
57014-37070	XZU415,425,435 TYPE B:REFER TO ILLUSTRATION	10/2001 - 08/2007	1
57125 - BRACKET, FRONT SIDE MEMBER, RH
57125-37010	XZU415,425,435	10/2001 - 08/2007	1
57126 - BRACKET, FRONT SIDE MEMBER, LH
57126-37020	XZU415,425,435	10/2001 - 08/2007	1
57157 - REINFORCEMENT, FRONT SIDE MEMBER, NO.4 RH
57157-37030	XZU415,425,435	10/2001 - 08/2007	1
57158 - REINFORCEMENT, FRONT SIDE MEMBER, NO.4 LH
57158-37030	XZU415,425,435	10/2001 - 08/2007	1
57191D - BRACKET, FLOOR NO.1 CROSSMEMBER
57191-37010	XZU415,425,435	10/2001 - 08/2007	1
57392 - PLATE, FRONT STEP, NO.2 RH
57392-37020	XZU415,425,435	10/2001 - 08/2007	1
57396A - PLATE, FRONT STEP, NO.2 LH
57396-37020	XZU415,425,435	10/2001 - 08/2007	1
57465E - RETAINER, BELT ANCHOR, NO.2
57405-37080	XZU415,425,435	10/2001 - 08/2007	1
57467A - BRACKET, FRONT SEAT OUTSIDE MOUNTING, FRONT LH
57467-37010	WU410,420,XZU404,41#,42#,43#	10/2001 - 12/2003	1
58026A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH
58044-37080	XZU415,425,435 TYPE A:REFER TO ILLUSTRATION	10/2001 - 08/2007	1
58052J - REINFORCEMENT SUB-ASSY, ENGINE SUB COVER
58052-37030	XZU415,425,435	10/2001 - 08/2007	1
58111 - PAN, FRONT FLOOR
58111-37331	XZU415,425,435	08/2006 - 08/2007	1
58171 - REINFORCEMENT, PARKING BRAKE BASE
58107-37050	XZU415,425,435	10/2001 - 08/2007	1
58181A - RETAINER, SEAT RAIL, FRONT
58181-37070	XZU415,425,435	10/2001 - 08/2007	1
58188A - BRACKET, ACCELERATOR PEDAL STOPPER
58188-37030	XZU415,425,435	10/2001 - 08/2007	1
58192B - PLATE, FRONT FLOOR, REAR
58192-37020	XZU415,425,435	10/2001 - 08/2007	2
58204E - BRACKET SUB-ASSY, FRONT SEAT
58204-37030	XZU415,425,435	10/2001 - 08/2007	1
58223G - REINFORCEMENT, SEAT SET, NO.1
58223-37040	XZU415,425,435	10/2001 - 08/2007	1
58224H - REINFORCEMENT, SEAT SET, NO.2
58224-37020	XZU415,425,435	10/2001 - 08/2007	1
58236F - BRACKET, CLUTCH TUBE
58236-37010	XZU415,425,435	08/2006 - 08/2007	1
58251B - BRACE, FLOOR PANEL, FRONT
58251-37060	XZU415,425,435	10/2001 - 08/2007	1
58252B - BRACE, FLOOR PANEL, FRONT LH
58252-37040	XZU415,425,435	10/2001 - 08/2007	1
58295C - BRACKET, FLOOR SHIFT LEVER, NO.1
58295-37070	XZU415,425,435	10/2001 - 08/2007	1
58298A - REINFORCEMENT, SEAT BELT ANCHOR FLOOR, RH
58298-37010	XZU415,425,435	10/2001 - 08/2007	2
58335C - PLATE, FLOOR SIDE, FRONT RH
58335-37040	XZU415,425,435	10/2001 - 08/2007	1
58336C - PLATE, FLOOR SIDE, FRONT LH
58336-37031	XZU415,425,435	10/2001 - 08/2007	1
58848A - COVER, SHIFT LEVER HOLE
58840-37020	XZU415,425,435	10/2001 - 08/2007	1
58853A - PACKING, SHIFT LEVER HOLE
58853-37020	XZU415,425,435	10/2001 - 08/2007	1
61825H - PAD, NOISE SHUTTER, NO.2
61825-34010	XZU415,425,435	10/2001 - 08/2007	2
61825H - PAD, NOISE SHUTTER, NO.2
61825-34010	XZU415,425,435	10/2001 - 08/2007	2
64151 - FRAME, BACK
64151-37370	XZU412,414,422,424..LHD..5F;BU410,420,WU410,XZU415,425,435..LHD TYPE A:REFER TO ILLUSTRATION	10/2001 - 09/2006	1
64151-37440	XZU415,425,435	10/2006 - 08/2007	1
64177A - STOPPER, REAR MOUNTING BRACKET, RH
64177-37030	BU410,420,WU410,420,XZU404,41#,42#,43#	10/2001 - 03/2006	1
64178A - STOPPER, REAR MOUNTING BRACKET, LH
64178-37030	BU410,420,WU410,420,XZU404,41#,42#,43#	10/2001 - 03/2006	1
87441F - FILTER, HEATER AIR
87441-37020	XZU415,425,435	10/2001 - 08/2007	1
Common parts
58137-37020
78167-25010
90105-08347
90119-06801
90159-60430
90179-06171
90297-03007
90333-20001
90333-25001
90950-01112
90950-01759
90950-01808
90950-01824
90950-01890
90950-01945
91551-A0814
91642-81030

XZU435L-TKFRWW3 (2006)

ILLUST NO. 2 OF 2(0110- )

ILLUST NO. 1 OF 2(0608-0708)XZU415,425,435 ; (0708- )XZU415,419,425,429,435,439
