XZU435L-TKFRWW3 (2006)
Toyota Dyna
Production
Aug 2006
-
Aug 2007
Engine
N04C
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0608- )XZU415,417,419,425,427,429,435,439

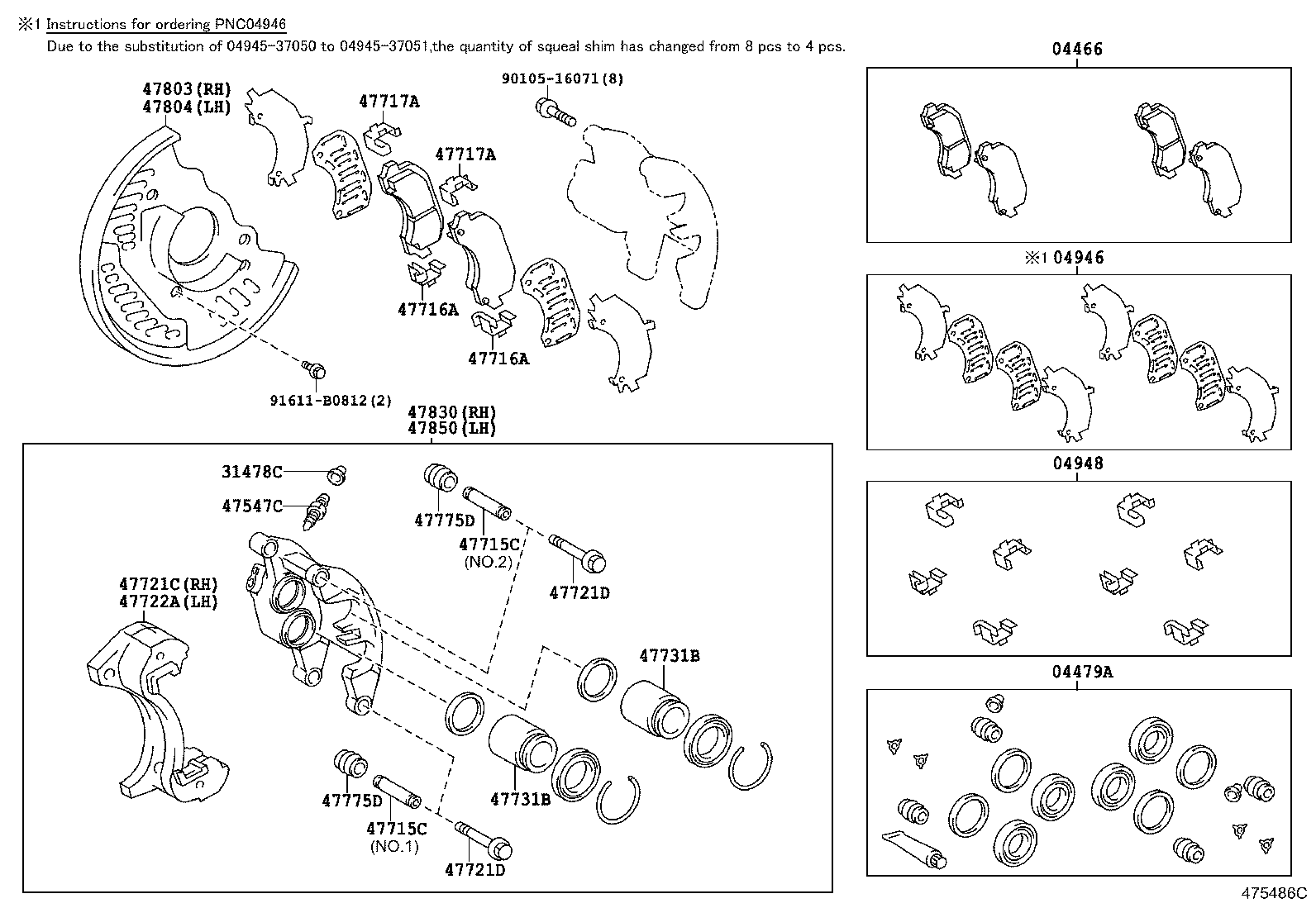

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04466 - PAD KIT, DISC BRAKE, REAR | ||||
| 04465-37090 |
XZU415,425,435 MARK NS174 |
1 | ||
| 04479A - CYLINDER KIT, DISC BRAKE, REAR | ||||
| 04478-37090 |
XZU415,425,435 |
1 | ||
| 04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE) | ||||
| 04945-37050 |
XZU415,425,435 |
1 | ||
| 04948 - FITTING KIT, DISC BRAKE, REAR | ||||
| 04948-37010 |
XZU415,425,435 |
1 | ||
| 31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE) | ||||
| 31478-30010 |
XZU415,425,435 |
2 | ||
| 47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE) | ||||
| 47847-37030 |
XZU415,425,435 |
2 | ||
| 47715C - PIN, CYLINDER SLIDE(FOR REAR DISC BRAKE) | ||||
| 47714-37120 |
XZU415,425,435 NO.1 |
2 | ||
| 47715-37120 |
XZU415,425,435 NO.2 |
2 | ||
| 47715C - PIN, CYLINDER SLIDE(FOR REAR DISC BRAKE) | ||||
| 47714-37120 |
XZU415,425,435 NO.1 |
2 | ||
| 47715-37120 |
XZU415,425,435 NO.2 |
2 | ||
| 47716A - PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE) | ||||
| 47716-37120 |
XZU415,425,435 |
4 | ||
| 47716A - PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE) | ||||
| 47716-37120 |
XZU415,425,435 |
4 | ||
| 47717A - PLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE) | ||||
| 47717-37120 |
XZU415,425,435 |
4 | ||
| 47717A - PLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE) | ||||
| 47717-37120 |
XZU415,425,435 |
4 | ||
| 47721C - MOUNTING, REAR DISC BRAKE CYLINDER, RH | ||||
| 47821-37010 |
XZU415,425,435 |
1 | ||
| 47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING) | ||||
| 90105-37120 |
XZU415,425,435 |
4 | ||
| 47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING) | ||||
| 90105-37120 |
XZU415,425,435 |
4 | ||
| 47722A - MOUNTING, REAR DISC BRAKE CYLINDER, LH | ||||
| 47821-37010 |
XZU415,425,435 |
1 | ||
| 47731B - PISTON, REAR DISC BRAKE | ||||
| 47731-37120 |
XZU415,425,435 |
4 | ||
| 47731B - PISTON, REAR DISC BRAKE | ||||
| 47731-37120 |
XZU415,425,435 |
4 | ||
| 47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE) | ||||
| 47775-37120 |
XZU415,425,435 |
4 | ||
| 47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE) | ||||
| 47775-37120 |
XZU415,425,435 |
4 | ||
| 47803 - COVER SUB-ASSY, DISC BRAKE DUST, REAR RH | ||||
| 47803-37010 |
XZU415,425,435 |
1 | ||
| 47804 - COVER SUB-ASSY, DISC BRAKE DUST, REAR LH | ||||
| 47804-37010 |
XZU415,425,435 |
1 | ||
| 47830 - CYLINDER ASSY, DISC BRAKE, REAR RH | ||||
| 47830-37010 |
XZU415,425,435 |
1 | ||
| 47850 - CYLINDER ASSY, DISC BRAKE, REAR LH | ||||
| 47850-37010 |
XZU415,425,435 |
1 | ||
| Common parts | ||||
| 90105-16071 | ||||
| 91611-B0812 | ||||
