XZU435L-TKFRWW3 (2006)
Toyota Dyna
Production
Aug 2006
-
Aug 2007
Engine
N04C
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7708- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90101-10470 | ||||
| 90119-10338 | ||||
| 94531-01000 | ||||
| 94613-11200 | ||||
(7708- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90101-10443 | ||||
| 90101-10470 | ||||
| 90119-10338 | ||||
| 94531-01000 | ||||
| 94613-11200 | ||||

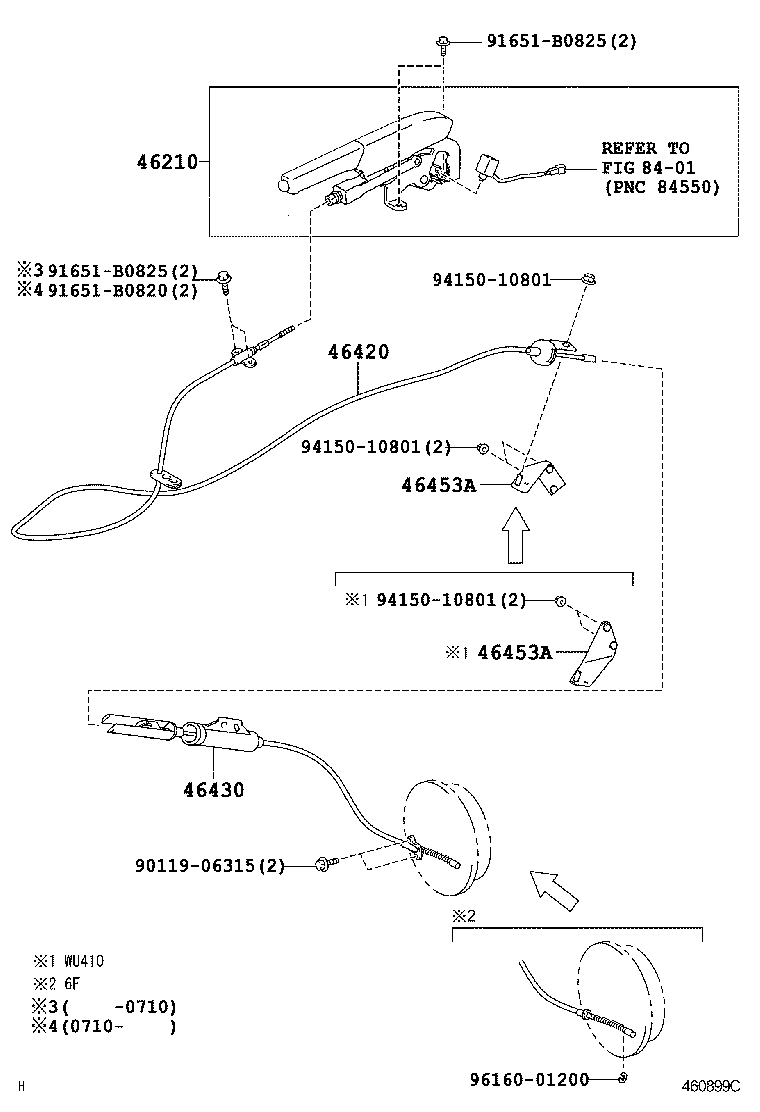

ILLUST NO. 1 OF 2(0608- )DCR ; (0610- )WU41#,422..LHD ; (0610- )XZU413,423..5F..75T ; (0701
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-37500 |
XZU415,425,435 |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-37460 |
XZU415,425,435 |
1 | ||
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-37200 |
XZU415,425,435 |
1 | ||
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-37200 |
XZU415,425,435 |
1 | ||
| Common parts | ||||
| 90119-06315 | ||||
| 91651-B0820 | ||||
| 91651-B0825 | ||||
| 94150-10801 | ||||
| 96160-01200 | ||||
| Linked diagrams | ||||
| 8401 | ||||

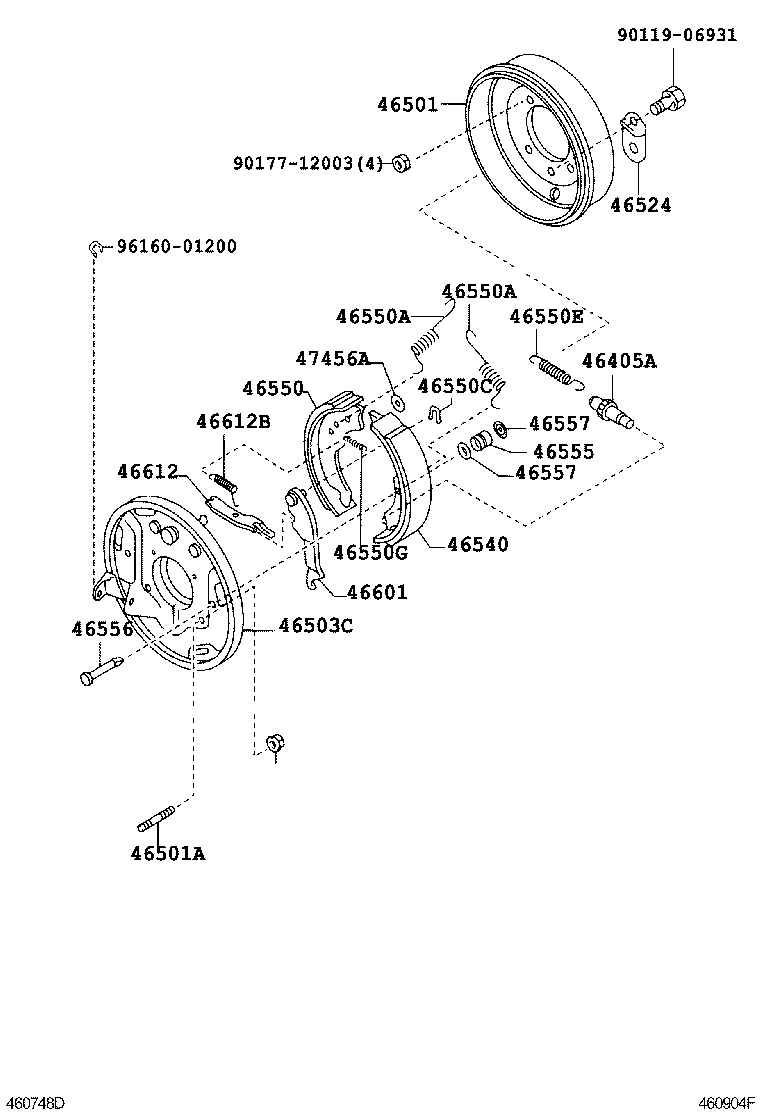

ILLUST NO. 2 OF 2(0608- )DCR ; (0610- )WU412,422..85T ; (0701- )6F..DCRTK
Click highlighted areas on diagram
MYY6S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46405A - SCREW SET, SHOE ADJUSTING, RH | ||||
| SU002-00289 |
XZU415,425,435 |
1 | ||
| 46501 - DRUM SUB-ASSY, PARKING BRAKE | ||||
| 46511-37080 |
XZU415,425,435 |
1 | ||
| 46501A - BOLT, SERRATION(FOR PARKING BRAKE DRUM) | ||||
| SU002-00970 |
XZU415,425,435 |
4 | ||
| 46503C - PLATE SUB-ASSY, PARKING BRAKE | ||||
| 46503-36060 |
XZU41#,42#,43#..65T,75T,85T |
1 | ||
| SU002-00296 |
XZU415,425,435 |
1 | ||
| 46524 - COVER, PARKING BRAKE DUST | ||||
| 46524-37030 |
XZU415,425,435 |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46540-37030 |
XZU41#,42#,43#..65T,75T,85T |
1 | ||
| SU002-00286 |
XZU415,425,435 |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46550-37030 |
XZU41#,42#,43#..65T,75T,85T |
1 | ||
| SU002-00286 |
XZU415,425,435 |
1 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| SU002-00287 |
XZU415,425,435 |
2 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| SU002-00287 |
XZU415,425,435 |
2 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| SU002-00299 |
XZU415,425,435 |
1 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| SU002-00288 |
XZU415,425,435 |
1 | ||
| 46550G - SPRING, TENSION, NO.3(FOR PARKING BRAKE SHOE RETURN) | ||||
| SU002-00291 |
XZU415,425,435 |
1 | ||
| 46555 - SPRING, BRAKE SHOE HOLD DOWN | ||||
| SU002-00925 |
XZU415,425,435 |
2 | ||
| 46556 - PIN, SHOE HOLD DOWN SPRING | ||||
| SU002-00297 |
XZU415,425,435 |
2 | ||
| 46557 - CUP, BRAKE SHOE HOLD DOWN | ||||
| SU002-00303 |
XZU415,425,435 |
4 | ||
| 46557 - CUP, BRAKE SHOE HOLD DOWN | ||||
| SU002-00303 |
XZU415,425,435 |
4 | ||
| 46601 - LEVER SUB-ASSY, PARKING BRAKE SHOE | ||||
| SU002-00293 |
XZU415,425,435 |
1 | ||
| 46612 - STRUT, PARKING BRAKE SHOE LEVER | ||||
| SU002-00294 |
XZU415,425,435 |
1 | ||
| 46612B - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| SU002-00295 |
XZU415,425,435 |
1 | ||
| 47456A - PLATE, SHOE GUIDE(FOR PARKING BRAKE) | ||||
| SU002-00292 |
XZU415,425,435 |
1 | ||
| Common parts | ||||
| 90119-06931 | ||||
| 90177-12003 | ||||
| 96160-01200 | ||||
