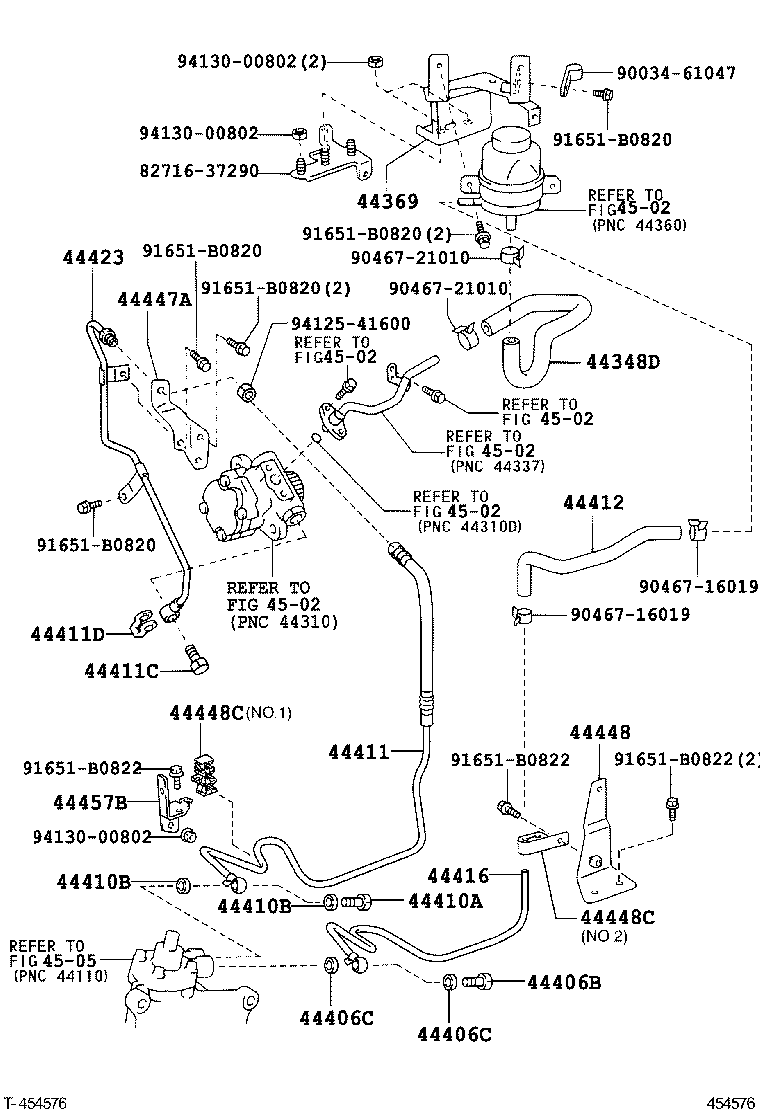

Toyota Dyna XZU435 POWER STEERING TUBE

Part #	Description	Period	Qty
44348D - HOSE, OIL RESERVOIR TO PUMP, NO.2
44348-37310	XZU415,425,435	08/2006 - 08/2007	1
44369 - BRACKET, OIL RESERVOIR, NO.1
44369-37170	XZU415,425,435	08/2006 - 08/2007	1
44406B - BOLT, UNION(FOR RETURN TUBE)
90401-14003	XZU415,425,435	10/2001 - 08/2007	1
44406C - GASKET(FOR RETURN TUBE)
90430-14235	XZU415,425,435	10/2001 - 08/2007	2
44406C - GASKET(FOR RETURN TUBE)
90430-14235	XZU415,425,435	10/2001 - 08/2007	2
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-14003	XZU415,425,435	10/2001 - 08/2007	1
44410B - GASKET(FOR PRESSURE FEED TUBE)
90430-14235	XZU415,425,435	10/2001 - 08/2007	2
44410B - GASKET(FOR PRESSURE FEED TUBE)
90430-14235	XZU415,425,435	10/2001 - 08/2007	2
44411 - HOSE, PRESSURE FEED
44411-37320	XZU415,425,435	08/2006 - 08/2007	1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90401-16027	XZU415,425,435	10/2001 - 08/2007	1
44412 - HOSE, RETURN
44412-37140	XZU415,425,435	08/2006 - 08/2007	1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-37490	XZU415,425,435	08/2006 - 08/2007	1
44423 - TUBE, OIL PUMP TO GEAR BOX
44423-37081	XZU415,425,435	08/2006 - 09/2006	1
44423-37110	XZU415,425,435	10/2006 - 08/2007	1
44447A - BRACKET, HOSE SUPPORT, NO.1
44447-37220	XZU415,425,435	08/2006 - 08/2007	1
44448 - BRACKET, PRESSURE FEED HOSE SUPPORT, NO.1
44447-37270	XZU415,425,435	10/2006 - 08/2007	1
44447-37200	XZU415,425,435	08/2006 - 09/2006	1
44448C - CLAMP, PRESSURE FEED, NO.2
44448-37020	XZU415,425,435 NO.1	08/2006 - 08/2007	1
44448-37050	XZU415,425,435 NO.2	08/2006 - 08/2007	1
44448C - CLAMP, PRESSURE FEED, NO.2
44448-37020	XZU415,425,435 NO.1	08/2006 - 08/2007	1
44448-37050	XZU415,425,435 NO.2	08/2006 - 08/2007	1
44457B - BRACKET, POWER STEERING TUBE SUPPORT, NO.2
44457-37150	XZU415,425,435	08/2006 - 08/2007	1
Common parts
82716-37290
90034-61047
90467-16019
90467-21010
91651-B0820
91651-B0822
94125-41600
94130-00802
Linked diagrams
4502
4505

XZU435L-TKFRWW3 (2006)

(0608- )DCR
