XZU435L-TKFRWW3 (2006)

Toyota Dyna

Production Aug 2006 - Aug 2007
Engine N04C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )BU2#,3#,40,RU2#,30

Click highlighted areas on diagram

diagram 31111 31111 31121 31121 31122 33118 33118 33119 33119 33131 33131 33131A 33131A 33132 33132 9011908092 9011908092 9161161028 9161161028 9161161035 9161161035 9161161045 9161161045 9161161050 9161161050 9161161060 9161961245 9161961255 9161961255 9331116010
Part # Description Qty Price
Common parts
90119-08092
91611-61028
91611-61035
91611-61045
91611-61050
91611-61060
91619-61245
91619-61255
93311-16010

(7708- )

Click highlighted areas on diagram

diagram 33104 33104 33104A 33104A 33111 33111 33111A 33111A 33111J 33111J 33111J 33111J 33111X 33111X 33141 33141A 33141A 33151 33151 33157 33157 33161 33161 33161A 33161A 9010112412 9010112412 9011910121 9011910121 9011912115 9011912169 9161141016 9161141016 9161160825 9161160825 9161961230 9161961245 9161961245 9161961250 9161961255 9451201200
Part # Description Qty Price
Common parts
90101-12412
90119-10121
90119-12115
90119-12169
91611-41016
91611-60825
91619-61230
91619-61245
91619-61250
91619-61255
94512-01200

(0608-0708)XZU415,425,435

Click highlighted areas on diagram

MYY6S

diagram 31111 31121 31121 31123 3307 3307 33101A 33101C 33104 33104A 33111 33111J 33111J 33112C 33112C 33112G 33112H 33115 33131A 33141A 33151 33161 33162 33208Q 33449B 8401 9011910898 SU00200155 SU00200256 SU00200267 SU00200943 SU00200948 SU00200950 SU00200965 SU00200966 SU00200966 SU00200966 SU00201011 SU00201012 SU00201013 SU00201014 SU00201018
Part # Description Qty Price

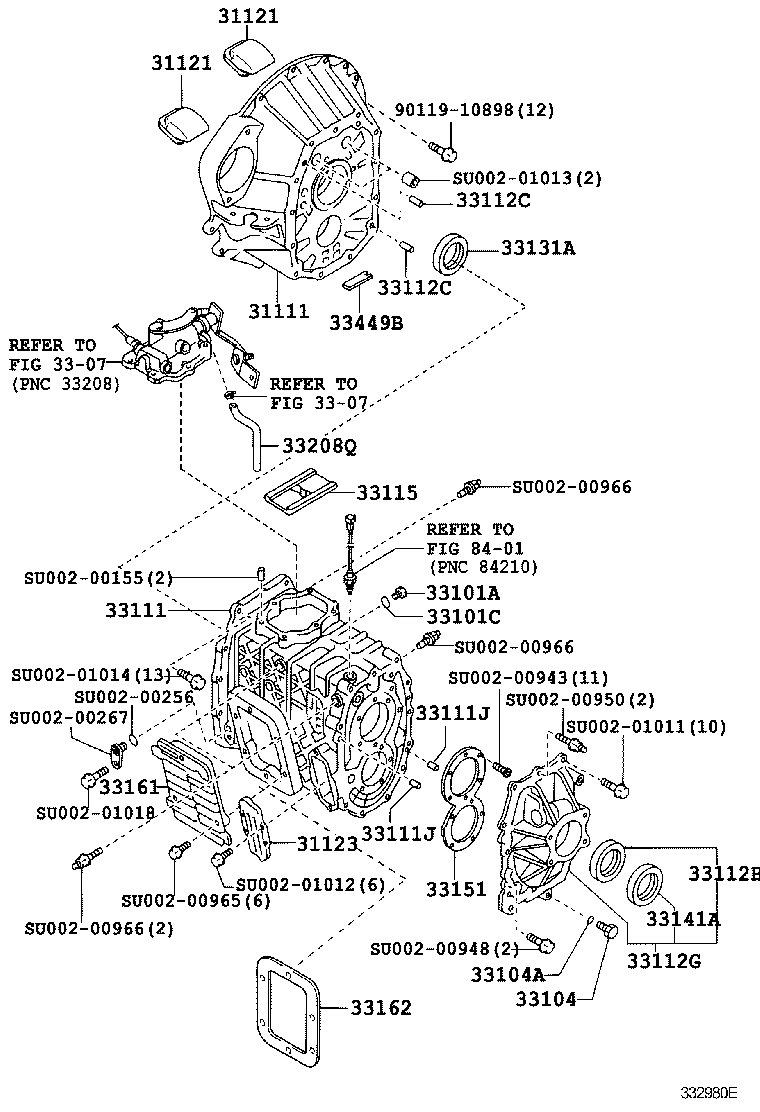

31111 - HOUSING, CLUTCH
SU002-00667

XZU415,425,435

 1
31121 - COVER, CLUTCH HOUSING, NO.1
31121-28041

XZU415,425,435

 2
31121 - COVER, CLUTCH HOUSING, NO.1
31121-28041

XZU415,425,435

 2
31123 - COVER, CLUTCH HOUSING, NO.2
SU002-00158

XZU415,425,435

 1
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
SU002-00944

XZU415,425,435

 1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
SU002-00149

XZU415,425,435

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
SU002-00945

XZU415,425,435

 1
33104A - GASKET, DRAIN PLUG(MTM)
SU002-00149

XZU415,425,435

 1
33111 - CASE, MANUAL TRANSMISSION
SU002-00367

XZU415,425,435

 1
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
SU002-00156

XZU415,425,435

 2
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
SU002-00156

XZU415,425,435

 2
33112C - PIN, STRAIGHT(FOR TRANSFER ADAPTER)
SU002-00155

XZU415,425,435

 2
33112C - PIN, STRAIGHT(FOR TRANSFER ADAPTER)
SU002-00155

XZU415,425,435

 2
33112G - CASE, TRANSMISSION, REAR
SU002-00871

XZU415,425,435

 1
33112H - BEARING, TRANSMISSION CASE NEEDLE
SU002-00341

XZU415,425,435

 1
33115 - PLATE, TRANSMISSION OIL FILTER
SU002-00474

XZU415,425,435

 1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
SU002-00148

XZU415,425,435

 1
33141A - SEAL, OIL(FOR TRANSMISSION REAR BEARING RETAINER)
SU002-00154

XZU415,425,435

 1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
SU002-00168

XZU415,425,435

 1
33161 - COVER, MANUAL TRANSMISSION POWER TAKE-OFF
SU002-00150

XZU415,425,435

 1
33162 - GASKET, MANUAL TRANSMISSION POWER TAKE-OFF COVER
SU002-00147

XZU415,425,435

 1
33208Q - HOSE, BREATHER
SU002-00265

XZU415,425,435

 1
33449B - MAGNET, TRANSMISSION
SU002-00157

XZU415,425,435

 1
Common parts
90119-10898
SU002-00155
SU002-00256
SU002-00267
SU002-00943
SU002-00948
SU002-00950
SU002-00965
SU002-00966
SU002-01011
SU002-01012
SU002-01013
SU002-01014
SU002-01018
